Q 94 GK (14AQ94GK897) - Columbia 54" Garden Tractor (2010) Drive Assembly Parts Diagram

54" Garden Tractor

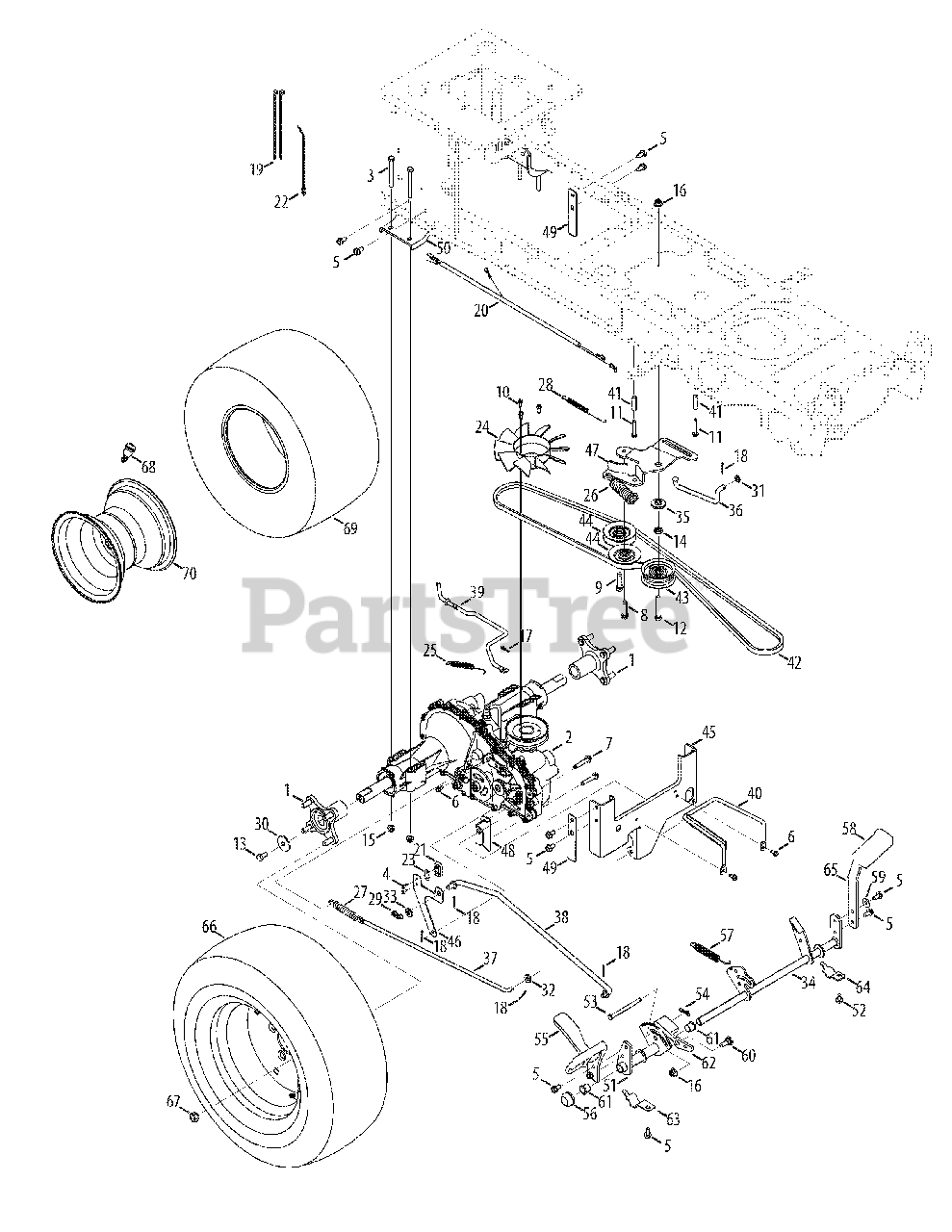

Drive Assembly Parts Diagram

  • Title

1

White Outdoor 918-04317

Wheel Hub

$116.99

$

Usually ships in 3-6 days

0

2

White Outdoor 918-04917

Transmission

$1988.99

$

Usually ships in 3-6 days

0

3

White Outdoor 710-0189

Hex Screw 5/16-18 X 3.00

$6.49

$

In Stock, Qty 5

0

4

White Outdoor 710-0227

Hex Wash HD AB S-Tapp Scr #8-.50

$4.49

$

In Stock, Qty 15

0

5

White Outdoor 710-04484

Hex Wash Hd. Tapp Scr. 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

6

White Outdoor 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 710-0909A

Hex Wash TT-Tap Scr 5/16-18 x 1.75 Lg.

$10.99

$

In Stock, only 2 left!

0

8

White Outdoor 710-1007

Hex L-Wash HD Scr 3/8-16 x 1.5

$6.49

$

In Stock, only 1 left!

0

9

White Outdoor 710-1008

Hex L-Wash TT Scr. 3/8-16 x 1.88

$5.49

$

In Stock, Qty 9

0

10

White Outdoor 710-1189

Screw, #12-24 x .625

$

$

Not available

11

White Outdoor 710-1325

Hex Washer Hd. TT Screw 1/4-20 x 1.625

$4.49

$

Usually ships in 3-6 days

0

12

White Outdoor 710-3011

Hex Bolt 3/8-16 x 2.25" Lg.

$6.99

$

In Stock, Qty 20+

0

13

White Outdoor 710-3119

Hex Cap Lock Screw 3/8-16 x .75 Gr. 5

$6.99

$

In Stock, only 1 left!

0

14

White Outdoor 912-0240

Hex Jam Nut 7/16-20

$4.49

$

In Stock, Qty 20+

0

15

White Outdoor 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

16

White Outdoor 712-04065

Flange Locknut 3/8-16 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

17

White Outdoor 914-0104

Int. Cotter Pin .072 x 1.13" Lg.
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 914-0111

Cotter Pin 3/32 dia x 1.00 Lg.
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

19

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

20

White Outdoor 725-04791A

Jumper Harness

$15.99

$

Usually ships in 3-6 days

0

21

White Outdoor 725-1644

Short Spring Switch

$9.99

$

In Stock, only 1 left!

0

22

White Outdoor 926-0154

Push Mount Tie

$6.49

$

Usually ships in 3-6 days

0

23

White Outdoor 926-0320

Insulator Nut Plate

$6.99

$

In Stock, Qty 9

0

24

White Outdoor 931-1449A

Fan

$35.99

$

In Stock, Qty 9

0

25

White Outdoor 732-04528

Extension Spring .50 dia. x 5.0" Lg.

$9.99

$

Usually ships in 3-6 days

0

26

White Outdoor 732-04624

Extension Spring 1.0 dia. x 4.75" lg.

$10.99

$

In Stock, only 1 left!

0

27

White Outdoor 732-0716D

Extension Spring .59 dia. x 4.0" Lg.

$13.99

$

In Stock, only 2 left!

0

28

White Outdoor 732-0932

Extension Spring .38 dia. x 5.6" Lg.

$14.99

$

In Stock, only 2 left!

0

29

White Outdoor 732-3118

Extension Spring 3/8 dia. x 1.44" Lg.

$10.99

$

In Stock, only 2 left!

0

30

White Outdoor 936-0227

Flat Washer .39 ID x 1.5 OD x .135
(Superseded to 736-0227)

$

$

Not available

31

White Outdoor 936-0264

Flat Washer .344 ID x .625 OD x .063

$6.99

$

In Stock, only 3 left!

0

32

White Outdoor 936-3008

Flat Washer .312 ID x .75 OD

$6.99

$

Usually ships in 3-6 days

0

33

White Outdoor 736-3010

Flat Washer .406 ID x .812 OD x .134

$4.99

$

In Stock, only 2 left!

0

34

White Outdoor 647-04152A

Brake Control Ass’y
(Superseded to 647-04152D)

$

$

Not available

35

White Outdoor 738-04420

Shoulder Spacer 1.375 x .380 x .183

$6.99

$

In Stock, only 3 left!

0

36

White Outdoor 747-04957A

Footpedal Bypass Rod

$13.99

$

Usually ships in 3-6 days

0

37

White Outdoor 747-05124

Brake Rod

$15.99

$

Usually ships in 3-6 days

0

38

White Outdoor 747-05125A

Control Rod

$

$

Not available

39

White Outdoor 747-05130

Disengage Rod

$

$

Not available

40

White Outdoor 747-05181

Belt Keeper

$14.99

$

Usually ships in 3-6 days

0

41

White Outdoor 750-04456

Spacer .260 x .372 x 1.420

$7.49

$

In Stock, only 4 left!

0

42

White Outdoor 954-04244A

V-Belt, 4L x 77.0

$30.99

$

In Stock, only 1 left!

0

43

White Outdoor 756-04224

Idler Pulley, Flat 2.75 OD

$26.99

$

In Stock, Qty 20+

0

44

White Outdoor 756-04325

Idler Pulley V-Type x 3.06

$24.99

$

In Stock, Qty 20+

0

45

White Outdoor 783-05443A-0637

Torque Bracket

$29.99

$

Usually ships in 3-6 days

0

46

White Outdoor 783-05841

Switch Bracket
(Superseded to 753-06760)

$13.99

$

Usually ships in 3-6 days

0

47

White Outdoor 783-06027A

Idler Bracket (Centre Double)
(Superseded to 783-06027B)

$

$

Not available

48

White Outdoor 783-06501A-0637

Deck Bracket

$

$

Not available

49

White Outdoor 783-06503

Plate Bracket

$

$

Not available

50

White Outdoor 783-0693A-0637

Axle Bracket

$24.99

$

Usually ships in 3-6 days

0

51

White Outdoor 783-04621-0637

Grill Pivot Bracket
(Superseded to 783-05827-0637)

$

$

Not available

52

White Outdoor 710-0604A

Self-tapping Screw 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

53

White Outdoor 711-05068

Clevis Pin 5/16 x 3.985
(Superseded to 711-05068A)

$7.99

$

Usually ships in 3-6 days

0

54

White Outdoor 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

55

White Outdoor 719-0584B-0637

Control Pedal

$60.99

$

In Stock, only 1 left!

0

56

White Outdoor 726-0214

Push Cap 5/8" Dia Rod

$10.99

$

Usually ships in 3-6 days

0

57

White Outdoor 732-04587

Extension Spring .63 dia. x 4.95

$7.49

$

In Stock, Qty 12

0

58

White Outdoor 735-04136

Brake Pedal Pad

$15.99

$

Usually ships in 3-6 days

0

59

White Outdoor 736-0242

Cupped Washer .345 ID x .88 OD x .060

$4.49

$

In Stock, Qty 20+

0

60

White Outdoor 938-0380

Shoulder Screw .500 x .25
(Superseded to 738-0380)

$7.99

$

In Stock, only 1 left!

0

61

White Outdoor 741-0495

Nyliner Flanged Brg.

$4.99

$

Usually ships in 3-6 days

0

62

White Outdoor 748-04203

Cruise Latch

$14.99

$

Usually ships in 3-6 days

0

63

White Outdoor 783-05914

Pedal Strap Support Bracket

$7.49

$

Usually ships in 3-6 days

0

64

White Outdoor 783-05940

Pedal Strap Support Bracket

$7.49

$

Usually ships in 3-6 days

0

65

White Outdoor 783-06103A-0637

Brake Pedal Bracket

$17.99

$

Usually ships in 3-6 days

0

66

White Outdoor 634-0202A-0911

Wheel Ass’y
(Superseded to 634-0202A)

$323.99

$

Usually ships in 3-6 days

0

67

White Outdoor 712-3050

Nut, 7/16-14

$9.99

$

In Stock, Qty 6

0

68

White Outdoor 934-0255

Air Valve

$4.49

$

In Stock, Qty 20+

0

69

White Outdoor 734-04147-0901

Tire

$120.99

$

Usually ships in 3-6 days

0

70

White Outdoor 634-04238-0662

Rim Assembly
(Superseded to 634Z04238-0662)

$197.99

$

Usually ships in 3-6 days

0
