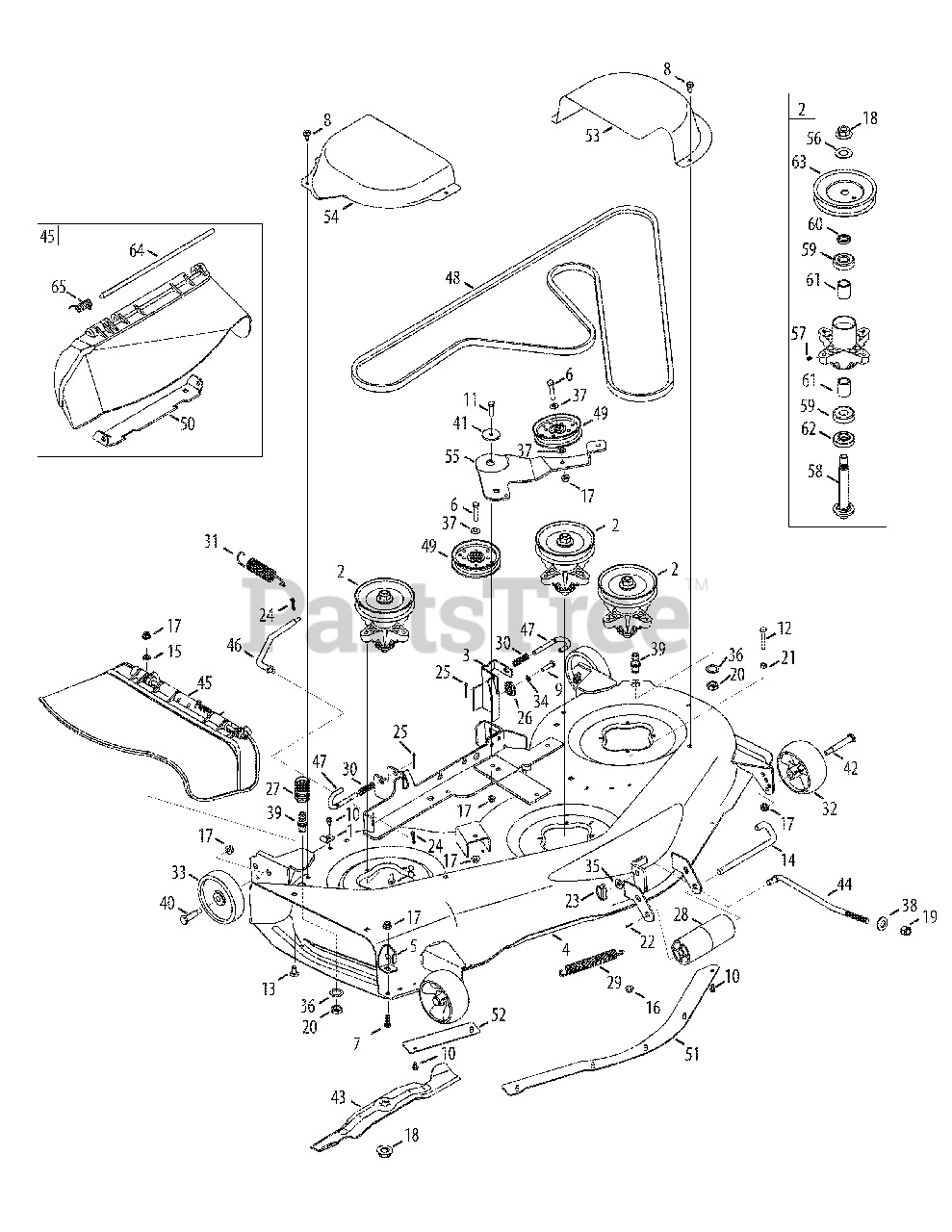

Q 92 GP (13AQ92GP897) - Columbia 50" Lawn Tractor (2010) Mower Deck Parts Diagram

50" Lawn Tractor

Mower Deck Parts Diagram

  • Title

1

White Outdoor 96606

Retainer Hook Brkt.

$7.49

$

In Stock, Qty 7

0

2

White Outdoor 918-04126B

Spindle Assembly
(Superseded to 918-04125C)

$133.99

$

In Stock, Qty 20+

0

3

White Outdoor 683-0254B-0606

Deck Hanger Bracket Ass'y
(Superseded to 683-06474-0637)

$36.99

$

In Stock, only 1 left!

0

4

White Outdoor 983-04493-0606

Deck Assembly

$

$

Not available

5

White Outdoor 703-3279-0606

Chute Deflector Stop
(Superseded to 703-3279)

$40.99

$

Usually ships in 3-6 days

0

6

White Outdoor 710-0347

Hex Screw 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

7

White Outdoor 710-04095

Screw, 3/8-16 x 1.0

$5.49

$

In Stock, Qty 20+

0

8

White Outdoor 710-04484

Hex Wash Hd. Tapp Screw. 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 710-0528

Hex Bolt 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 710-0599

Hex Wash S-Tapp Screw 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 710-3005

Hex Bolt 3/8-16 x 1.25

$3.99

$

In Stock, Qty 10

0

12

White Outdoor 710-3103

Hex Hd Cap Screw. 5/16-18 x 2.0 Gr. 5

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 710-3178

Short Neck Carriage Bolt 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 911-3314

Roller Pin
(Superseded to 711-3314A)

$25.99

$

In Stock, Qty 11

0

15

White Outdoor 712-0229

Push Nut 3/8

$3.99

$

In Stock, Qty 20+

0

16

White Outdoor 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 5

0

17

White Outdoor 712-04065

Flange Lock-Nut 3/8-16 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

18

White Outdoor 712-0417A

Flange Nut 5/8-18

$6.99

$

In Stock, Qty 20+

0

19

White Outdoor 712-04243

Flexlock Nut 1/2-13

$4.49

$

In Stock, Qty 20+

0

20

White Outdoor 912-0641

Hex Nut M16-1.5 DIN 936
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

21

White Outdoor 912-3010

Hex Nut 5/16-18 hd. (Gr. 5)
(Superseded to 712-3010)

$

$

Not available

22

White Outdoor 914-0111

Cotter Pin 3/32 x 1.0
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

23

White Outdoor 753-04070

Lynch Pin, .1875

$9.99

$

In Stock, Qty 20+

0

24

White Outdoor 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

25

White Outdoor 914-0470

Cotter Pin 1/8" Dia x 1.25
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

26

White Outdoor 917-04074

Deck adjustment Gear

$13.99

$

In Stock, Qty 16

0

27

White Outdoor 921-04041

Water Nozzle Adap tor

$23.99

$

In Stock, Qty 20+

0

28

White Outdoor 731-05679

Front Roller
(Superseded to 731-05679B)

$18.99

$

In Stock, Qty 20+

0

29

White Outdoor 732-0459C

Extension Spring .94 x 6.74

$18.99

$

In Stock, only 3 left!

0

30

White Outdoor 732-04652

Compression Spring .535 OD x 1.751 Lg.

$6.99

$

Usually ships in 3-6 days

0

31

White Outdoor 732-0934

Extension Spring 1.15 x 5.99

$11.99

$

In Stock, only 1 left!

0

32

White Outdoor 734-04155

Deck Wheel 5.0

$20.99

$

In Stock, Qty 20+

0

33

White Outdoor 734-0973

Wheel Ass’y - Deck 5" x 1.38"

$12.99

$

In Stock, Qty 20+

0

34

White Outdoor 936-0119

L-Wash 5/16 ID

$4.99

$

In Stock, Qty 20+

0

35

White Outdoor 936-0179

Flat Washer .531 ID x 1.25 OD x .100
(Superseded to 736-0179)

$4.99

$

In Stock, only 2 left!

0

36

White Outdoor 736-0225

L-Washer Internal

$4.49

$

In Stock, only 2 left!

0

37

White Outdoor 936-0300

Flat Washer .406 ID x .875 OD x .059
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

38

White Outdoor 736-0317

Cupped Washer .63 x 1.25 x .18

$7.99

$

In Stock, Qty 20+

0

39

White Outdoor 737-04003D

Port, Water

$23.99

$

In Stock, Qty 6

0

40

White Outdoor 938-0373

Shoulder Bolt .498 Dia x 1.53 x 3/8-16

$9.49

$

In Stock, Qty 20+

0

41

White Outdoor 738-04162A

Spacer, Shoulder .884 x .190
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

42

White Outdoor 938-3056

Shoulder Screw

$9.49

$

In Stock, Qty 20+

0

43

White Outdoor 942-04053C

Blade 17.90

$28.99

$

In Stock, Qty 20+

0

44

White Outdoor 747-05067A

Front Deck Lift Rod

$21.99

$

In Stock, Qty 6

0

45

White Outdoor 631-04092B

Chute Ass'y
(Superseded to 631-04092C)

$60.99

$

Usually ships in 3-6 days

0

46

White Outdoor 747-05279

Deck Sway Rod

$15.99

$

In Stock, only 4 left!

0

47

White Outdoor 747-1116

Deck Release Pin

$12.99

$

In Stock, Qty 6

0

48

White Outdoor 954-04077

V-Belt
(Superseded to 954-04077A)

$82.99

$

In Stock, Qty 12

0

49

White Outdoor 756-04129B

Idler Pulley
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

50

White Outdoor 783-05030

Chute Bracket

$29.99

$

In Stock, Qty 5

0

51

White Outdoor 783-04414A-0637

Deck Skirt Center
(Superseded to 783-04414A)

$35.99

$

Usually ships in 3-6 days

0

52

White Outdoor 783-04415-0637

Deck Shirt RH

$30.99

$

In Stock, only 3 left!

0

53

White Outdoor 783-05280-0606

LH Belt Cover

$76.99

$

Usually ships in 3-6 days

0

54

White Outdoor 783-05281-0606

RH Belt Cover

$73.99

$

Usually ships in 3-6 days

0

55

White Outdoor 783-05030

Chute Bracket

$29.99

$

In Stock, Qty 5

0

56

White Outdoor 736-0315

Flat Washer .760 ID x 1.50 OD x .120

$6.99

$

In Stock, Qty 6

0

57

White Outdoor 937-3000

Grease Fit ting

$4.99

$

In Stock, Qty 20+

0

58

White Outdoor 738-1010A

Spindle Shaft

$46.99

$

In Stock, only 2 left!

0

59

White Outdoor 941-0919

Ball Bearing 20 x 47 x 14:6204:DS
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

60

750-0160

Spacer .790 x 1.25 x 1.75

$

$

Not available

61

White Outdoor 750-1000

Spacer .800 x 1.10 x 1.322

$4.49

$

In Stock, Qty 7

0

62

White Outdoor 750-1349A

Spacer .79 x 1.82 x .55

$13.99

$

In Stock, only 3 left!

0

63

White Outdoor 756-04216

Deck Pulley

$33.99

$

In Stock, only 1 left!

0

64

White Outdoor 711-04565

Hinge Pin .3125 x 7.96

$15.99

$

In Stock, only 3 left!

0

65

N/A

Torsion Spring .40 x 1.0

Note: Order Ref #45

$

$

Not available
