Q 92 GP (13AQ92GP897) - Columbia 50" Lawn Tractor (2010) Engine Accessories Parts Diagram

50" Lawn Tractor

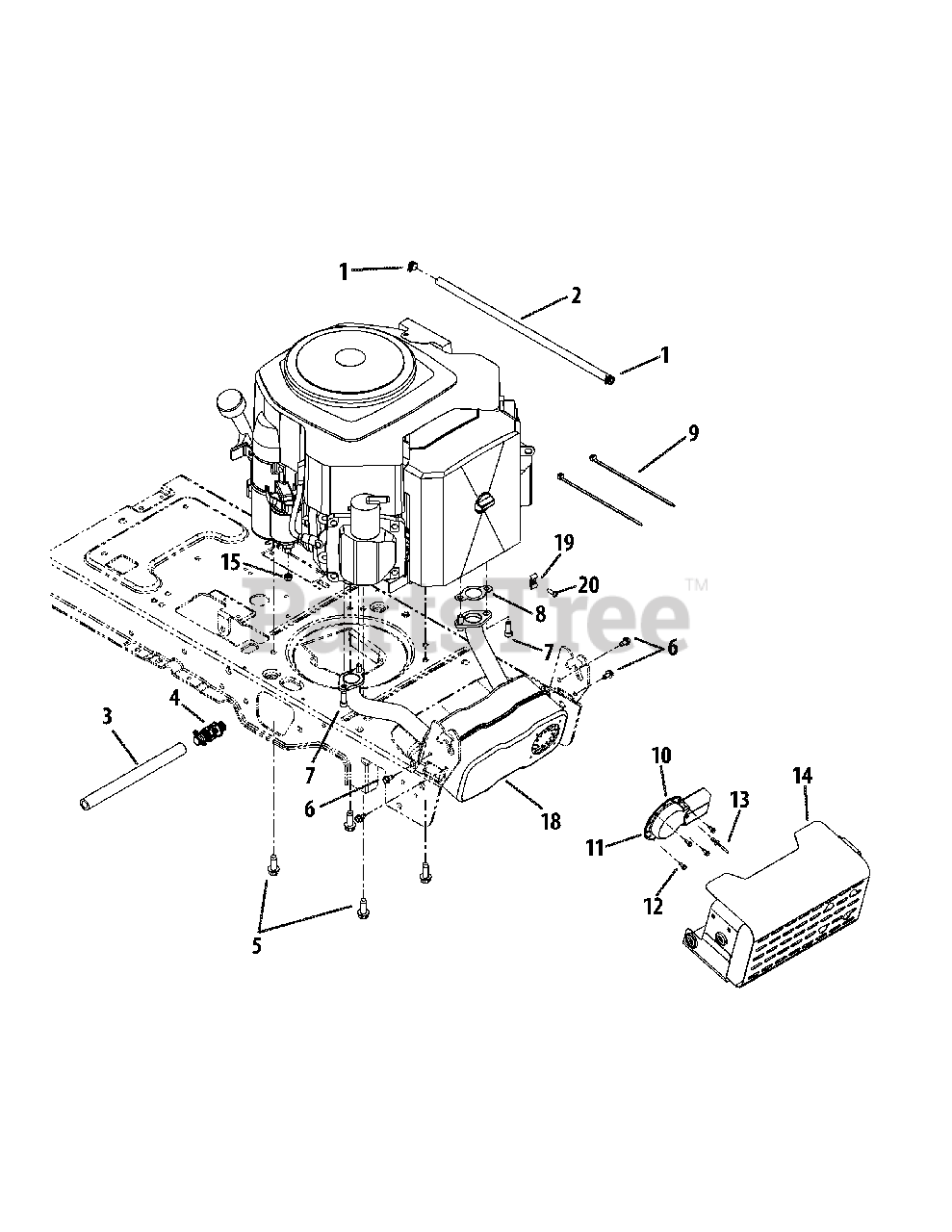

Engine Accessories Parts Diagram

  • Title

1

White Outdoor 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

2

White Outdoor 751-10349-28

Fuel Line

$41.99

$

In Stock, only 1 left!

0

3

White Outdoor 751-3141-14

Oil Drain Hose

$11.99

$

In Stock, Qty 7

0

4

White Outdoor 951-10517A

Oil Drain

$24.99

$

In Stock, only 1 left!

0

5

White Outdoor 710-04683

TT Screw 3/8-16 x 1.00
(Superseded to 710-04683C)

$6.49

$

In Stock, only 4 left!

0

6

White Outdoor 710-0599

Hex Wash S-Tapp Screw 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 710-1314A

Screw. 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 721-0377A

Exhaust Gasket
(Superseded to KH-24-041-49-S)

$

$

Not available

9

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 751-0564B

Muffler Deflector

$13.99

$

In Stock, only 3 left!

0

11

White Outdoor 751-10353

Long Muffler Deflector
(Superseded to 751-11053B)

$5.49

$

In Stock, Qty 20+

0

12

White Outdoor 710-0227

Hex AB Screw #8-18 x .50

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 728-04000

Pop Rivet

$6.99

$

In Stock, Qty 7

0

14

White Outdoor 683-04549-0637

Muffler Shield Assembly
(Superseded to 683-05460A-0637)

$80.99

$

Usually ships in 3-6 days

0

18

White Outdoor 751-10528A

Muffler
(Superseded to 951-10528B)

$160.99

$

In Stock, only 2 left!

0

19

White Outdoor 751K4723702

Dual Conduit Clamp
(Superseded to KH-47-237-02-S)

$10.99

$

Usually ships in 2-5 days

0

20

White Outdoor KH-24-086-43-S

Tap Screw, M5 x .8
(Superseded to KH-25-086-405-S)

$2.49

$

In Stock, only 2 left!

0
