Q 816 K (14AQ816K597) - Columbia 54" Garden Tractor (2008) Deck Assembly 54-inch Parts Diagram

54" Garden Tractor

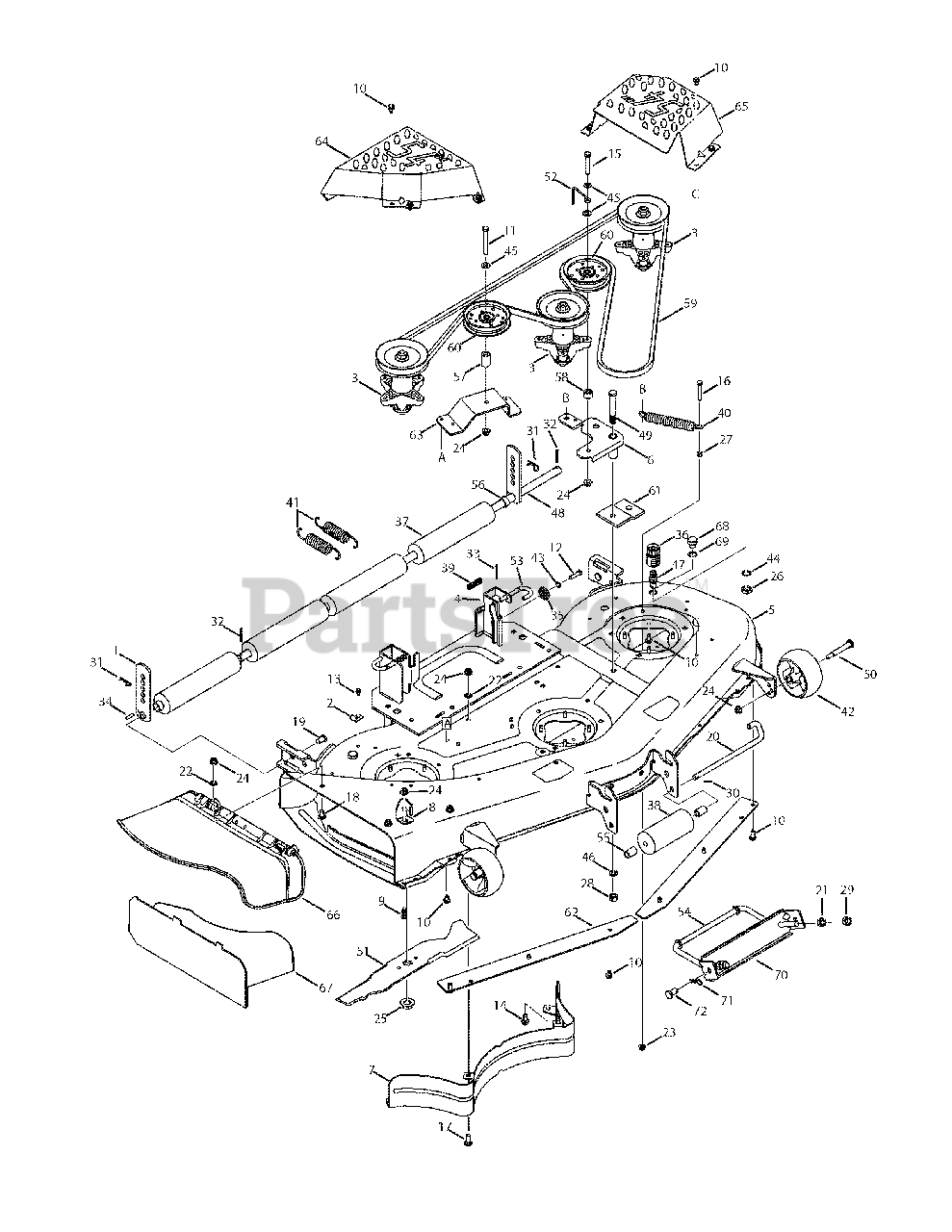

Deck Assembly 54-inch Parts Diagram

  • Title

1

White Outdoor 12650

Bracket, Height Adjustment

Variations

White Outdoor 12650-0637

Height Adjuster, Powder Black - POWDER BLACK (0637)

$43.99

$

In Stock, only 3 left!

0

White Outdoor 12650-4008

Height Adjuster - WINE RED (4008)

$43.99

$

In Stock, only 3 left!

0

$35.99

$

Usually ships in 3-6 days

0

2

White Outdoor 16606

Retainer Hook Brkt.
(Superseded to 96606)

$7.49

$

In Stock, Qty 7

0

3

White Outdoor 918-0671B

Spindle Assembly
(Superseded to 918-04608A)

$153.99

$

In Stock, Qty 16

0

3

White Outdoor 712-0417A

Flange Nut:5/8-18

Note: Not shown

$6.99

$

In Stock, Qty 20+

0

3

White Outdoor 937-3000

Grease Fitting:3/16:LNC #70:DRI

Note: Not shown

$4.99

$

In Stock, Qty 20+

0

3

White Outdoor 738-1197

Spindle Shaft:6.95 LG.

Note: Not shown

$41.99

$

In Stock, Qty 15

0

3

White Outdoor 941-0919

Ball Bearing:20x47x14:62
(Superseded to 941-0919B)

Note: Not shown

$21.99

$

In Stock, Qty 20+

0

3

White Outdoor 748-0160A

Spacer:.790 ID x 1.25OD X .175

Note: Not shown

$6.99

$

In Stock, only 3 left!

0

3

White Outdoor 750-1000

Spacer:.80 x 1.10 x 1.322

Note: Not shown

$4.49

$

In Stock, Qty 7

0

3

White Outdoor 750-1349A

Spacer:.79 x 1.82 x .55

Note: Not shown

$13.99

$

In Stock, only 3 left!

0

3

White Outdoor 756-04216

Deck Pulley:V TYP:5.39

Note: Not shown

$33.99

$

In Stock, only 1 left!

0

4

White Outdoor 683-0254B

Deck Adjustment Bracket w/Weld Nut

Variations

White Outdoor 683-0254B-0498

Deck Bracket Assembly, LH - OLD CUB YELLOW (0498)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 683-0254B-0716

Deck Bracket Assembly, LH - CUB YELLOW-99 (0716)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 683-0254B-4021

Deck Bracket Assembly, LH - CUB YELLOW 2 (4021)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 683-0254B-0637

Deck Bracket Assembly, LH - POWDER BLACK (0637)

$36.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254B-4033

Deck Bracket Assembly, LH - FLINT MICA (4033)

$36.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254B-4044

Deck Bracket Assembly, LH - CRAFTSMAN RED (4044)

$49.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254B-0606

Deck Bracket Assembly, LH - MAJESTIC ORANGE (0606)

$36.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254B-0638

Deck Bracket Assembly, LH - MTD/TROY-BILT RED (0638)

$36.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254B-0650

BRACKET ASSY-DECK LH - RED METALLIC (0650)

$49.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254B-0665

BRACKET ASSY-DECK LH - YARDMAN GREEN (0665)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 683-0254B-0691

Deck Bracket Assembly, LH - BLACK JACK (0691)

$36.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254B-4008

BRACKET ASSY-DECK LH - WINE RED (4008)

$46.99

$

Usually ships in 3-6 days

0

White Outdoor 683-0254B-0709

BRACKET ASSY-DECK LH - MASTERCRAFT GREEN (0709)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 683-0254B-4028

BRACKET ASSY-DECK LH - SEARS YELLOW (4028)

$36.99

$

In Stock, only 1 left!

0

$46.99

$

Usually ships in 3-6 days

0

5

White Outdoor 683-04483

54" Deck
(Superseded to 983-04483)

Variations

White Outdoor 683-04483-0716

SHELL-54" DECK - CUB YELLOW-99 (0716)

$1098.99

$

Usually ships in 3-6 days

0

White Outdoor 683-04483-4021

SHELL-54" DECK - CUB YELLOW 2 (4021)

$1098.99

$

Usually ships in 3-6 days

0

White Outdoor 683-04483-0606

SHELL-54" DECK - MAJESTIC ORANGE (0606)

$1098.99

$

Usually ships in 3-6 days

0

White Outdoor 683-04483-0637

SHELL-54" DECK - POWDER BLACK (0637)

$1098.99

$

Usually ships in 3-6 days

0

White Outdoor 683-04483-0650

DECK-54" - RED METALLIC (0650)

$1098.99

$

Usually ships in 3-6 days

0

$1027.99

$

Usually ships in 3-6 days

0

6

White Outdoor 683-0459

Idler Assembly

Variations

White Outdoor 683-0459-0637

Idler Assembly, 54" GT - POWDER BLACK (0637)

$74.99

$

In Stock, only 1 left!

0

White Outdoor 683-0459-4008

Idler Assembly, 54" GT - WINE RED (4008)

$74.99

$

In Stock, only 1 left!

0

$60.99

$

Usually ships in 3-6 days

0

7

White Outdoor 703-2093

RR Inner Baffle
(Superseded to 703-2093C)

Variations

White Outdoor 703-2093-0637

Inner Rear Baffle, Black - POWDER BLACK (0637)

$96.99

$

In Stock, only 2 left!

0

White Outdoor 703-2093-4008

Inner Rear Baffle, Black - WINE RED (4008)

$96.99

$

In Stock, only 2 left!

0

$89.99

$

Usually ships in 3-6 days

0

8

White Outdoor 703-3279

Chute Stop Deflector

Variations

White Outdoor 703-3279-0606

Chute Deflector Stop - MAJESTIC ORANGE (0606)

$40.99

$

Usually ships in 3-6 days

0

White Outdoor 703-3279-0650

Chute Deflector Stop - RED METALLIC (0650)

$40.99

$

Usually ships in 3-6 days

0

White Outdoor 703-3279-4033

Chute Deflector Stop - FLINT MICA (4033)

$40.99

$

Usually ships in 3-6 days

0

White Outdoor 703-3279-0637

STOP-CHUTE DEFLECTOR - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

White Outdoor 703-3279-0638

STOP-CHUTE DEFLECTOR - MTD/TROY-BILT RED (0638)

$40.99

$

Usually ships in 3-6 days

0

White Outdoor 703-3279-0665

STOP-CHUTE DEFLECTOR - YARDMAN GREEN (0665)

$40.99

$

Usually ships in 3-6 days

0

White Outdoor 703-3279-0691

STOP-CHUTE DEFLECTOR - BLACK JACK (0691)

$40.99

$

Usually ships in 3-6 days

0

White Outdoor 703-3279-4008

STOP-CHUTE DEFLECTOR - WINE RED (4008)

$40.99

$

Usually ships in 3-6 days

0

White Outdoor 703-3279-4028

STOP-CHUTE DEFLECTOR - SEARS YELLOW (4028)

$40.99

$

Usually ships in 3-6 days

0

White Outdoor 703-3279-4044

STOP-CHUTE DEFLECTOR - CRAFTSMAN RED (4044)

$40.99

$

Usually ships in 3-6 days

0

$40.99

$

Usually ships in 3-6 days

0

9

White Outdoor 710-04095

Screw, 3/8-16 x 1.0

$5.49

$

In Stock, Qty 20+

0

10

White Outdoor 710-04484

S-Tapp Scr 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 710-0521

Screw, 3/8-16 x 3.0

$5.49

$

In Stock, Qty 11

0

12

White Outdoor 710-0528

Hex Bolt 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 710-0623

Screw, 3/8-16 x 0.75

$4.49

$

In Stock, only 2 left!

0

15

White Outdoor 710-0859

Screw, 3/8-16 x 2.5

$6.99

$

In Stock, Qty 16

0

16

White Outdoor 710-3103

Hex Hd Cap Scr. 5/16-18 x 2.0 Gr. 5

$4.49

$

In Stock, Qty 20+

0

17

White Outdoor 710-3168

Carriage Bolt 3/8-16 x 1.0

$3.99

$

In Stock, Qty 20+

0

18

White Outdoor 710-3178

Short Neck Carriage Bolt 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 711-0332

Clevis Pin .50 Dia. x .78
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 17

0

20

White Outdoor 711-1737

Roller Pin .5" Dia x 10.06

$25.99

$

In Stock, Qty 6

0

21

White Outdoor 712-0206

Hex Nut 1/2-13

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 712-0229

Push Nut 3/8

$3.99

$

In Stock, Qty 20+

0

23

White Outdoor 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 5

0

24

White Outdoor 712-04065

Flange Lock-Nut 3/8-16 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

25

White Outdoor 712-0417A

Hex Flange Nut 5/8-18

$6.99

$

In Stock, Qty 20+

0

26

White Outdoor 712-0641

Hex Nut, M16-1.5

$6.49

$

In Stock, Qty 7

0

27

White Outdoor 712-3010

Hex Nut 5/16-18 hd. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

28

White Outdoor 712-3022

Hex L-Nut 1/2-13

$3.99

$

In Stock, Qty 9

0

29

White Outdoor 712-3083

Hex L-Nut 1/2-13

$4.49

$

In Stock, Qty 20+

0

30

White Outdoor 714-0111

Cotter Pin 3/32 x 1.0

$4.99

$

In Stock, Qty 13

0

31

White Outdoor 714-0145

Cotter Pin

$4.99

$

In Stock, Qty 20+

0

32

White Outdoor 714-0162

Cotter Pin

$4.99

$

In Stock, Qty 20+

0

33

White Outdoor 714-0470

Cotter Pin 1/8" Dia x 1.25

$4.49

$

In Stock, Qty 20+

0

34

White Outdoor 715-0108

Spring Pin 1/4 Dia. x 1.0

$4.99

$

In Stock, Qty 15

0

35

White Outdoor 717-04074

Deck Adjustment Gear
(Superseded to 917-04074)

$13.99

$

In Stock, Qty 16

0

36

White Outdoor 721-04041

Water Nozzle Adaptor
(Superseded to 921-04041)

$23.99

$

In Stock, Qty 20+

0

37

White Outdoor 731-0335

Deck Roller

$72.99

$

In Stock, Qty 11

0

38

White Outdoor 731-05679

Front Roller
(Superseded to 731-05679B)

$18.99

$

In Stock, Qty 20+

0

39

White Outdoor 732-0306A

Compression Spring .531 OD x 1.75 Lg.
(Superseded to 932-0306A)

$8.49

$

In Stock, only 4 left!

0

40

White Outdoor 732-0459C

Extension Spring .94 Dia. x 6.74

$18.99

$

In Stock, only 3 left!

0

41

White Outdoor 732-0934

Extension Spring 1.5 x 5.99

$11.99

$

In Stock, only 1 left!

0

42

White Outdoor 734-04155

Deck Wheel 5.0

$20.99

$

In Stock, Qty 20+

0

43

White Outdoor 736-0119

L-Wash 5/16 ID
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

44

White Outdoor 736-0225

Lockwasher 5/8

$4.49

$

In Stock, only 2 left!

0

45

White Outdoor 736-0300

Flat Washer .406 x .875 x .059

$4.49

$

In Stock, Qty 20+

0

46

White Outdoor 736-0921

Lockwasher

$4.49

$

In Stock, Qty 6

0

47

White Outdoor 737-04003D

Port, Water

$23.99

$

In Stock, Qty 6

0

48

White Outdoor 738-0295

Shaft .75 x 47.12

$124.99

$

In Stock, only 2 left!

0

49

White Outdoor 738-1229A

Shoulder Screw

$12.99

$

In Stock, only 4 left!

0

50

White Outdoor 738-3056

Shoulder Screw
(Superseded to 938-3056)

$9.49

$

In Stock, Qty 20+

0

51

White Outdoor 742-0677B

Blade 18.5
(Superseded to 942-0677B)

$30.99

$

In Stock, Qty 20+

0

52

White Outdoor 747-04938

Idler Belt Keeper Rod

$7.99

$

In Stock, only 1 left!

0

53

White Outdoor 747-1116

Deck Release Pin

$12.99

$

In Stock, Qty 6

0

54

White Outdoor 747-1324

Deck Adjustment Rod

$58.99

$

In Stock, only 3 left!

0

55

White Outdoor 750-0151

Spacer .55 ID x .75 OD
(Superseded to 950-0151)

$10.99

$

In Stock, Qty 20+

0

56

White Outdoor 750-0212

Spacer .82 ID x 1.0 OD x .53

$10.99

$

In Stock, Qty 18

0

57

White Outdoor 750-04597

Spacer .380 ID x .90 OD x 1.313

$

$

Not available

58

White Outdoor 750-0933

Spacer .385 ID x .88 OD x .64

$3.99

$

In Stock, Qty 8

0

59

White Outdoor 754-0642

V-Type Belt, B Section
(Superseded to 954-0642)

$82.99

$

In Stock, Qty 8

0

60

White Outdoor 756-04129

Idler Poulie w/Flange 4.25 Dia
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

61

White Outdoor 783-04013A

Bracket, Stabilizing

Variations

White Outdoor 783-04013A-0637

Stabilizer Bracket - POWDER BLACK (0637)

$22.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04013A-4008

Stabilizer Bracket - WINE RED (4008)

$22.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0

62

White Outdoor 783-04690B

Deck Shirt

Variations

White Outdoor 783-04690B-0637

Deck Skirt, 54" Black - POWDER BLACK (0637)

$42.99

$

In Stock, only 3 left!

0

$36.99

$

Usually ships in 3-6 days

0

63

White Outdoor 783-04726

Idler Bracket

Variations

White Outdoor 783-04726-0637

Idler Pulley Bracket - POWDER BLACK (0637)

$36.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04726-4008

BRACKET-IDLER PULLEY - WINE RED (4008)

$29.99

$

Usually ships in 3-6 days

0

$29.99

$

Usually ships in 3-6 days

0

64

White Outdoor 783-1470A

Spindle Cover RH

Variations

White Outdoor 783-1470A-0606

COVER-SPINDLE RH - MAJESTIC ORANGE (0606)

$86.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1470A-0637

Spindle Cover, RH - POWDER BLACK (0637)

$107.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1470A-0665

COVER-SPINDLE RH - YARDMAN GREEN (0665)

$107.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1470A-0716

COVER-SPINDLE RH - CUB YELLOW-99 (0716)

$107.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1470A-4021

Spindle Cover, RH - CUB YELLOW 2 (4021)

$107.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1470A-4028

Spindle Cover, RH - SEARS YELLOW (4028)

$107.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1470A-0691

COVER-SPINDLE RH - BLACK JACK (0691)

$107.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1470A-4008

COVER-SPINDLE RH - WINE RED (4008)

$86.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1470A-4044

COVER-SPINDLE RH - CRAFTSMAN RED (4044)

$86.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1470A-0650

COVER-SPINDLE RH - RED METALLIC (0650)

$

$

Not available

$86.99

$

Usually ships in 3-6 days

0

65

White Outdoor 783-1471

Spindle Cover LH
(Superseded to 783-1471A)

Variations

White Outdoor 783-1471-0606

COVER-SPINDLE LH - MAJESTIC ORANGE (0606)

$80.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1471-0637

Spindle Cover, LH - POWDER BLACK (0637)

$80.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1471-0650

COVER-SPINDLE LH - RED METALLIC (0650)

$80.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1471-0716

COVER-SPINDLE LH - CUB YELLOW-99 (0716)

$80.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1471-4021

Spindle Cover, LH - CUB YELLOW 2 (4021)

$80.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1471-4028

Spindle Cover, LH - SEARS YELLOW (4028)

$80.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1471-0665

COVER-SPINDLE LH - YARDMAN GREEN (0665)

$80.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1471-0691

COVER-SPINDLE LH - BLACK JACK (0691)

$80.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1471-4008

COVER-SPINDLE LH - WINE RED (4008)

$80.99

$

Usually ships in 3-6 days

0

$69.99

$

Usually ships in 3-6 days

0

66

White Outdoor 631-04070A

Chute Assembly
(Superseded to 631-04070C)

$122.99

$

In Stock, only 4 left!

0

67

White Outdoor 731-04651

Mulching Plug

$78.99

$

In Stock, only 3 left!

0

68

White Outdoor 738-04146

Plug Bolt, M16 x 1.5

$9.49

$

Usually ships in 3-6 days

0

69

White Outdoor 736-0187

Flat Washer .64 x 1.24 x .06

$4.49

$

In Stock, Qty 20+

0

70

White Outdoor 783-0720A

Front Deck Rod Adjustment Bracket
(Superseded to 783-0720C)

Variations

White Outdoor 783-0720A-0637

Deck Adjustment Bracket, Front - POWDER BLACK (0637)

$45.99

$

In Stock, only 2 left!

0

White Outdoor 783-0720A-4008

BRACKET-ADJ:FRT DE - WINE RED (4008)

$36.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0

71

White Outdoor 714-04023

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

72

White Outdoor 711-0332

Clevis Pin .50 x .78
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 17

0
