Q 816 H (14AQ816H597) - Columbia 46" Garden Tractor (2008) Drive & Rear Wheel Parts Diagram

46" Garden Tractor

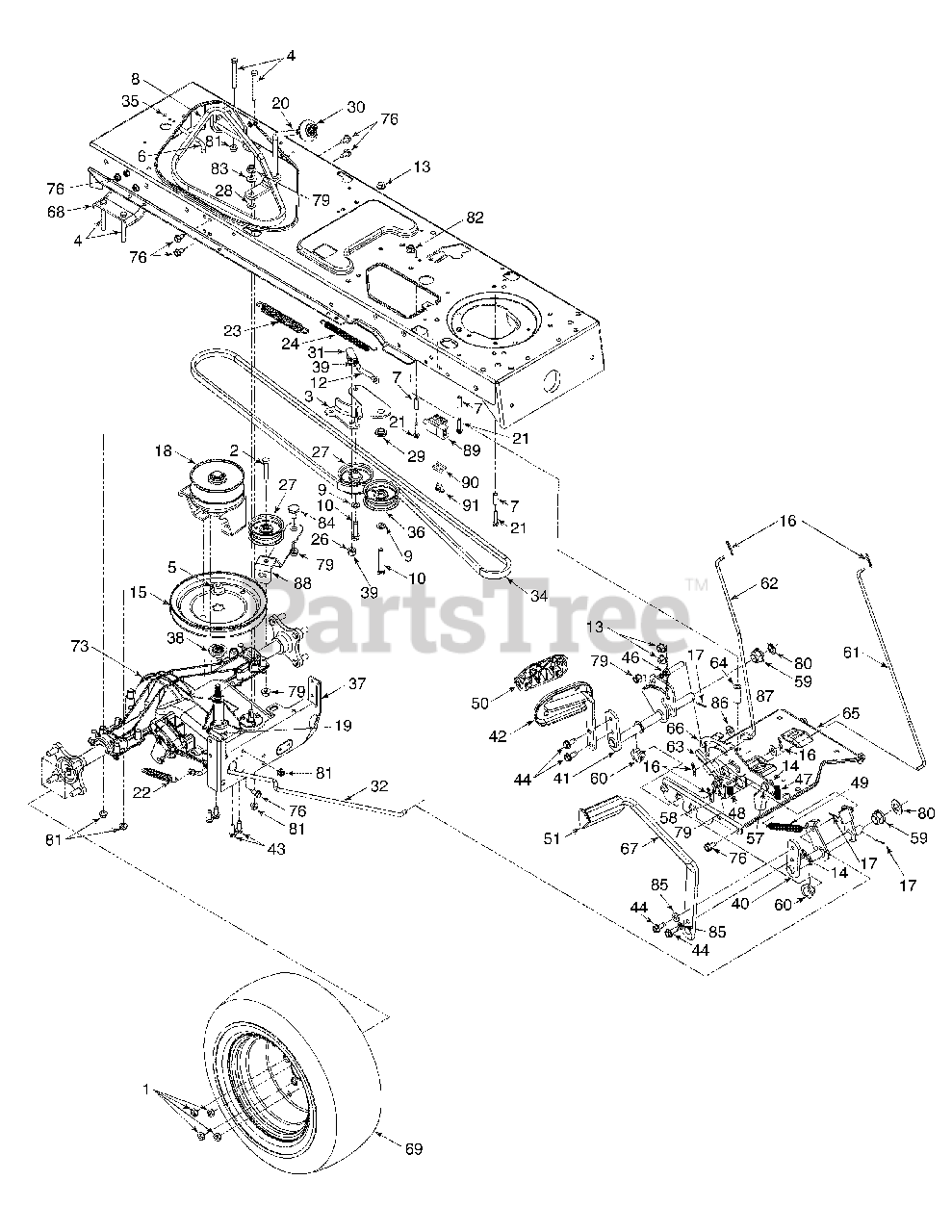

Drive & Rear Wheel Parts Diagram

  • Title

1

White Outdoor 712-3050

Lug Nut, 7/16-14

$9.99

$

In Stock, Qty 6

0

2

White Outdoor 710-0347

Hex Screw 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

3

White Outdoor 783-04442

Idler Bracket

Variations

White Outdoor 783-04442-0637

Double Idler Bracket Assembly - POWDER BLACK (0637)

$35.99

$

In Stock, only 1 left!

0

White Outdoor 783-04442-4008

Double Idler Bracket Assembly - WINE RED (4008)

$

$

Not available

$35.99

$

In Stock, only 1 left!

0

4

White Outdoor 710-0176

Hex Scr 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

5

White Outdoor 712-0702

Hex Flanged L-Nut 7/16-20 Gr. 2
(Superseded to 912-0702)

$18.99

$

In Stock, only 1 left!

0

6

White Outdoor 747-1185A

Belt Guard Rod

$

$

Not available

7

White Outdoor 750-0566A

Spacer .260 x .375 x 1.030 Lg.

$9.99

$

In Stock, only 1 left!

0

8

White Outdoor 754-0468

Drive Belt
(Superseded to 954-0468)

$30.99

$

In Stock, Qty 16

0

9

White Outdoor 736-3010

Flat Washer .40 ID x .812 OD x .135

$4.99

$

In Stock, only 2 left!

0

10

White Outdoor 710-1007

Hex L-Wash HD Scr 3/8-16 x 1.5

$6.49

$

In Stock, only 1 left!

0

12

White Outdoor 747-1127

Idler Adjustment Rod, 3/8

$42.99

$

Usually ships in 3-6 days

0

13

White Outdoor 712-0431

Hex. Flanged L-Nut 3/8-16 Gr. F
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

14

White Outdoor 712-3004A

Hex Flange L-Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

15

White Outdoor 756-0665

V-Pulley
(Superseded to 956-0665)

$73.99

$

Usually ships in 3-6 days

0

16

White Outdoor 714-0104

Int. Cotter Pin .072 x 1.13" Lg.

$4.49

$

In Stock, Qty 20+

0

17

White Outdoor 714-0111

Cotter Pin 3/32 dia x 1.00 Lg.

$4.99

$

In Stock, Qty 13

0

18

White Outdoor 618-04201A

Variable Speed Pulley

$153.99

$

Usually ships in 3-6 days

0

19

White Outdoor 710-0805

Hex Bolt 5/16-18 x 1,50" Lg. Gr. 5
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

20

White Outdoor 647-04023A

Shift Rod Assembly

$

$

Not available

21

White Outdoor 710-0809

Hex Bolt 1/4-20 x 1.25

$6.99

$

In Stock, Qty 19

0

22

White Outdoor 732-0716D

Ext. Spring .59 OD x 4.00 Lg.

$13.99

$

In Stock, only 2 left!

0

23

White Outdoor 732-0478

Extension Spring 6.12 Lg.
(Superseded to 932-0478)

$12.99

$

In Stock, Qty 12

0

24

White Outdoor 732-0963

Extension Spring, .50 Dia. x 6.37

$9.99

$

In Stock, only 4 left!

0

26

White Outdoor 736-0169

L-Wash 3/8 ID

$3.99

$

In Stock, Qty 20+

0

27

White Outdoor 756-04325

Idler V-Pulley

$24.99

$

In Stock, Qty 20+

0

28

White Outdoor 736-0642

Flat Washer .44 x .75 x .06

$3.99

$

Usually ships in 3-6 days

0

29

White Outdoor 738-0372B

Shoulder Spacer

$9.49

$

In Stock, Qty 20+

0

30

White Outdoor 720-04028

Shift Knob

$10.99

$

In Stock, only 4 left!

0

31

White Outdoor 723-3018

Drag Link Ball Joint
(Superseded to 923-3018)

$16.99

$

In Stock, Qty 20+

0

32

White Outdoor 747-04136

Brake Rod

$

$

Not available

34

White Outdoor 754-0467

Variable-speed Belt
(Superseded to 954-0467A)

$50.99

$

In Stock, Qty 20+

0

35

White Outdoor 710-0642

Thd Forming Scr. 1/4-20 x .75 Lg.

$4.49

$

In Stock, Qty 20+

0

36

White Outdoor 756-04224

Flat Idler Pulley 2.75 OD

$26.99

$

In Stock, Qty 20+

0

37

White Outdoor 783-0667B

Transmission Torque Bracket

Variations

White Outdoor 783-0667B-0637

Trans Torque Bracket - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0667B-4008

BRACKET-TRANS TORQUE - WINE RED (4008)

$

$

Not available

$40.99

$

Usually ships in 3-6 days

0

38

White Outdoor 718-0771A

Pulley Hub 1/2 Spline
(Superseded to 918-0771A)

$28.99

$

Usually ships in 3-6 days

0

39

White Outdoor 712-0241

Hex Nut 3/8-24

$4.49

$

In Stock, Qty 13

0

40

White Outdoor 647-04100

Brake Control
(Superseded to 647-04100-0637)

Variations

White Outdoor 647-04100-0637

Brake Control Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

41

White Outdoor 647-0032A

Speed Control
(Superseded to 647-0032A-0637)

Variations

White Outdoor 647-0032A-0637

CONTROL ASSY-SPEED - POWDER BLACK (0637)

$

$

Not available

$

$

42

White Outdoor 683-0266

AutoDrive Pedal Assembly

$

$

Not available

43

White Outdoor 710-0650

Hex Wash Taptite 5/16-18 x .875

$3.99

$

In Stock, Qty 20+

0

44

White Outdoor 710-1260A

Hex Wash. Hd. Scr. 5/16-18 x .75 Lg.

$3.99

$

In Stock, Qty 20+

0

46

White Outdoor 711-04159B

Pin 3/8-16 x 2.68 Lg.

$7.99

$

Usually ships in 3-6 days

0

47

White Outdoor 732-0335

Compression Spring

$

$

Not available

48

White Outdoor 732-0955

Extension Spring, .50 OD x 1.41

$9.99

$

In Stock, only 1 left!

0

49

White Outdoor 732-0963

Extension Spring, .50 Dia. x 6.37

$9.99

$

In Stock, only 4 left!

0

50

White Outdoor 735-0662

AutoDrive Pedal Pad

$11.99

$

Usually ships in 3-6 days

0

51

White Outdoor 735-3049A

Brake Pedal Pad

$12.99

$

In Stock, only 1 left!

0

57

White Outdoor 738-0155

Shld. Scr .437 Dia x .162 Lg.
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

58

White Outdoor 738-0380

Shoulder Screw .500 x .25

$7.99

$

In Stock, only 1 left!

0

59

White Outdoor 741-0225

Hex Flange Bearing .630 ID
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

60

White Outdoor 741-3065B

Hex Flanged Bearing .628 ID

$8.49

$

In Stock, Qty 11

0

61

White Outdoor 747-04096

Cruise Control Rod

$15.99

$

Usually ships in 3-6 days

0

62

White Outdoor 747-04093A

Brake Lock Control Rod

$

$

Not available

63

White Outdoor 748-04039C

Cruise Latch

$

$

Not available

64

White Outdoor 748-0415B

Spacer .385 ID x .635 OD x 1.54

$7.49

$

In Stock, Qty 10

0

65

White Outdoor 783-04612

Steering Support Bracket
(Superseded to 783-04612-0637)

Variations

White Outdoor 783-04612-0637

Steering Support Bracket - POWDER BLACK (0637)

$89.99

$

In Stock, only 3 left!

0

$89.99

$

In Stock, only 3 left!

0

66

White Outdoor 783-0732A

AutoDrive Lockout Bracket

$34.99

$

Usually ships in 3-6 days

0

67

White Outdoor 747-04641A

Brake Pedal
(Superseded to 747-04641A-0637)

Variations

White Outdoor 747-04641A-0637

PEDAL-BRAKE - POWDER BLACK (0637)

$31.99

$

Usually ships in 3-6 days

0

$31.99

$

Usually ships in 3-6 days

0

68

White Outdoor 783-0693

Axle Bracket

Variations

White Outdoor 783-0693-4008

BRACKET-AXLE - WINE RED (4008)

$21.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0693-0637

BRACKET-AXLE - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0

69

White Outdoor 634-0202A

Wheel Assembly Complete, 23 x 10.5 x 12

Variations

White Outdoor 634-0202A-0991

WHEEL ASM COMP. 23 - Carlisle White (0991)

$344.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0202A-4009

WHEEL ASM COMP. 23 - TEE WHITE (4009)

$344.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0202A-0911

WHEEL ASM COMP. 23 - Carlisle Gray (0911)

$323.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0202A-0914

WHEEL ASM COMP. 23 - Cheng Gray (0914)

$323.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0202A-0931

WHEEL ASM COMP. 23 - Carlisle Beige (0931)

$370.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0202A-0961

WHL ASM-COMP 23X10 - Carlisle Gray (0961)

$323.99

$

Usually ships in 3-6 days

0

$323.99

$

Usually ships in 3-6 days

0

69

White Outdoor 734-04147

Tire Only, Square Shoulder
(Superseded to 734-04147-0901)

Note: Not shown

Variations

White Outdoor 734-04147-0901

TIRE 23 X 10.5 X 12 - Carlisle (0901)

$120.99

$

Usually ships in 3-6 days

0

$120.99

$

Usually ships in 3-6 days

0

69

White Outdoor 634-04238

Rim Only
(Superseded to 753-10244)

Note: Not shown

Variations

White Outdoor 634-04238-0499

Rim Assembly, 12.0 X 7.0 - CUB BEIGE (0499)

$172.99

$

In Stock, only 1 left!

0

White Outdoor 634-04238-0662

RIM GREY 12 X 7 - OYSTER GRAY (0662)

$197.99

$

Usually ships in 3-6 days

0

White Outdoor 634-04238-0674

RIM-WHEEL 12.0 X 7.0 - YARDMAN YELLOW (0674)

$197.99

$

Usually ships in 3-6 days

0

White Outdoor 634-04238-0688

RIM GREY 12 X 7 - SPRING GREEN (0688)

$197.99

$

Usually ships in 3-6 days

0

White Outdoor 634-04238-4028

RIM-WHEEL 12.0 X 7.0 - SEARS YELLOW (4028)

$172.99

$

Usually ships in 3-6 days

0

White Outdoor 634-04238-4009

RIM-WHEEL 12.0 X 7.0 - TEE WHITE (4009)

$197.99

$

Usually ships in 3-6 days

0

White Outdoor 634-04238-4042

RIM-WHEEL 12.0 X 7.0 - CRAFTSMAN GRAY (4042)

$197.99

$

Usually ships in 3-6 days

0

$186.99

$

Usually ships in 3-6 days

0

69

White Outdoor 734-0255

Air Valve
(Superseded to 934-0255)

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

73

White Outdoor 618-0376A

Two Speed Transmission Assembly
(Superseded to 753-05002)

$2299.99

$

Usually ships in 3-6 days

0

76

White Outdoor 710-04484

S-Tapp Scr 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

79

White Outdoor 712-0181

Hex Jam L-Nut 3/6-16 Gr. 5

$4.49

$

In Stock, only 3 left!

0

80

White Outdoor 736-0187

Flat Washer .640 ID x 1.24 OD x .06

$4.49

$

In Stock, Qty 20+

0

81

White Outdoor 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

82

White Outdoor 712-04065

Flange Lock-Nut 3/8-16 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

83

White Outdoor 736-0105

Cupped Washer .375 ID x .870 OD x .063

$4.49

$

In Stock, Qty 20+

0

84

White Outdoor 738-0322A

Shoulder Screw .625 Dia. x .217

$6.99

$

In Stock, only 2 left!

0

85

White Outdoor 736-0119

L-Wash 5/16 ID
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

86

White Outdoor 736-0262

Flat Washer .38 ID x .87 OD x .09

$3.99

$

Usually ships in 3-6 days

0

87

White Outdoor 736-0300

Flat Washer .385 ID x .87 OD x .06

$4.49

$

In Stock, Qty 20+

0

88

White Outdoor 783-0669

Idler Bracket
(Superseded to 783-0669-0637)

Variations

White Outdoor 783-0669-0637

Idler Bracket - POWDER BLACK (0637)

$20.99

$

In Stock, only 1 left!

0

$20.99

$

In Stock, only 1 left!

0

89

White Outdoor 725-04039

Switch
(Superseded to 925-04039)

$24.99

$

In Stock, Qty 9

0

90

White Outdoor 17962

Switch Plate

$4.99

$

In Stock, only 3 left!

0

91

White Outdoor 710-0224

Hex Scr. AB #10-16 x .50
(Superseded to 910-0224)

$3.99

$

In Stock, only 2 left!

0
