Q 816 H (14AQ816H597) - Columbia 46" Garden Tractor (2008) Deck Assembly 46-inch Parts Diagram

46" Garden Tractor

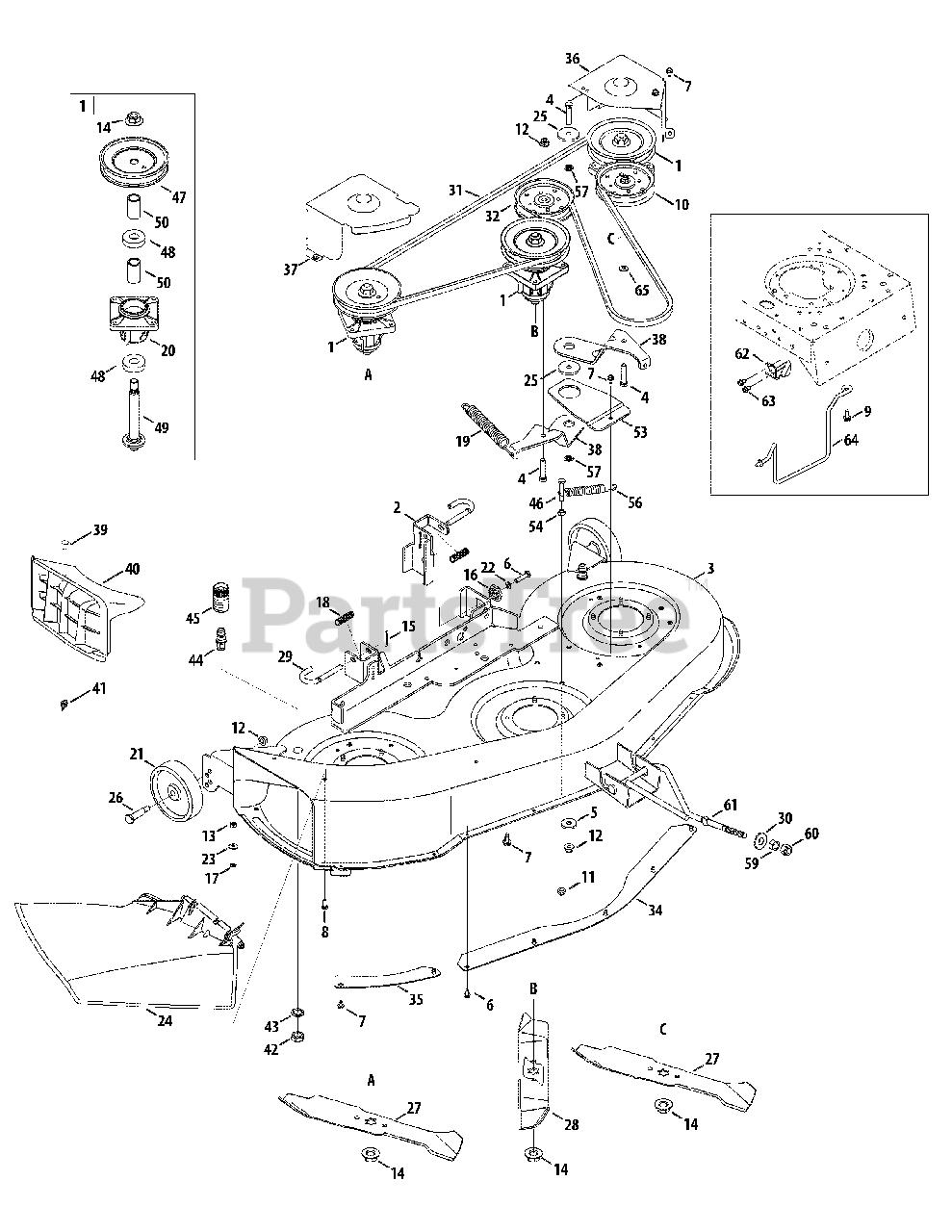

Deck Assembly 46-inch Parts Diagram

  • Title

1

White Outdoor 618-0625A

Spindle Ass’y 5.75 Dia w/grease fitting
(Superseded to 918-0625B)

$140.99

$

In Stock, only 4 left!

0

2

White Outdoor 683-0254B

Deck Adjustment Bracket w/Weld Nut

Variations

White Outdoor 683-0254B-0498

Deck Bracket Assembly, LH - OLD CUB YELLOW (0498)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 683-0254B-0716

Deck Bracket Assembly, LH - CUB YELLOW-99 (0716)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 683-0254B-4021

Deck Bracket Assembly, LH - CUB YELLOW 2 (4021)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 683-0254B-0637

Deck Bracket Assembly, LH - POWDER BLACK (0637)

$36.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254B-4033

Deck Bracket Assembly, LH - FLINT MICA (4033)

$36.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254B-4044

Deck Bracket Assembly, LH - CRAFTSMAN RED (4044)

$49.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254B-0606

Deck Bracket Assembly, LH - MAJESTIC ORANGE (0606)

$36.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254B-0638

Deck Bracket Assembly, LH - MTD/TROY-BILT RED (0638)

$36.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254B-0650

BRACKET ASSY-DECK LH - RED METALLIC (0650)

$49.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254B-0665

BRACKET ASSY-DECK LH - YARDMAN GREEN (0665)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 683-0254B-0691

Deck Bracket Assembly, LH - BLACK JACK (0691)

$36.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254B-4008

BRACKET ASSY-DECK LH - WINE RED (4008)

$46.99

$

Usually ships in 3-6 days

0

White Outdoor 683-0254B-0709

BRACKET ASSY-DECK LH - MASTERCRAFT GREEN (0709)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 683-0254B-4028

BRACKET ASSY-DECK LH - SEARS YELLOW (4028)

$36.99

$

In Stock, only 1 left!

0

$46.99

$

Usually ships in 3-6 days

0

3

White Outdoor 683-04343

46" Deck Assembly w/Water Nozzle
(Superseded to 983-04343)

Variations

White Outdoor 683-04343-0637

DECK ASSY-SD:LT 46" - POWDER BLACK (0637)

$

$

Not available

White Outdoor 683-04343-0665

DECK ASSY-SD:LT 46" - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 683-04343-4008

DECK ASSY-SD:LT 46" - WINE RED (4008)

$

$

Not available

$439.99

$

Usually ships in 3-6 days

0

4

White Outdoor 710-0347

Hex Screw 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

5

White Outdoor 736-0322

Flat Washer .450 x 1.25 x .164

$9.49

$

In Stock, Qty 8

0

6

White Outdoor 710-0528

Hex Bolt 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 710-3015

Hex Cap Bolt 1/4-20 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 710-1260A

Hex Wash. Hd. Scr. 5/16-18 x .75 Lg.

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 756-0627D

Flat Idler Pulley 3.5 OD

$30.99

$

In Stock, Qty 20+

0

11

White Outdoor 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

12

White Outdoor 712-04065

Flange Lock-Nut 3/8-16 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

13

White Outdoor 712-3006

Hex Nut 1/4-20 Gr. 5

$4.99

$

In Stock, Qty 19

0

14

White Outdoor 712-0417A

Hex Flange Nut 5/8-18

$6.99

$

In Stock, Qty 20+

0

15

White Outdoor 714-0111

Cotter Pin 3/32 dia x 1.00 Lg.

$4.99

$

In Stock, Qty 13

0

16

White Outdoor 717-04074

Deck Adjustment Gear
(Superseded to 917-04074)

$13.99

$

In Stock, Qty 20+

0

17

White Outdoor 726-0233

Bolt Retainer 1/4" x .50" OD

$4.49

$

In Stock, only 3 left!

0

18

White Outdoor 732-0306A

Compression Spring .531 OD x 1.75 Lg.
(Superseded to 932-0306A)

$8.49

$

In Stock, only 4 left!

0

19

White Outdoor 732-0594A

Extension Spring
(Superseded to 932-0594A)

$14.99

$

In Stock, Qty 20+

0

20

N/A

Spindle Housing

$

$

Not available

21

White Outdoor 734-0973

Wheel Ass’y - Deck 5" x 1.38"

$12.99

$

In Stock, Qty 20+

0

22

White Outdoor 736-0119

L-Wash 5/16 ID
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

23

White Outdoor 736-0270

Cupped Washer .265 ID x .75 OD x .062

$3.99

$

In Stock, Qty 20+

0

24

White Outdoor 731-1032B

Chute Deflector (Plastic)
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 6

0

25

White Outdoor 738-04162A

Shoulder Spacer .884 x .190
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

26

White Outdoor 738-0373

Shoulder Bolt .498 Dia x 1.53 x 3/8-16
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

27

White Outdoor 742-0611A

Three-in-one Blade, Star Centre 16.28"
(Superseded to 942-0611A)

$29.99

$

In Stock, Qty 20+

0

28

White Outdoor 742-0612A

Three-in-one Blade, Star Centre 14.88"
(Superseded to 942-0612A)

$29.99

$

In Stock, Qty 15

0

29

White Outdoor 747-1116

Deck Release Pin

$12.99

$

Usually ships in 3-6 days

0

30

White Outdoor 748-04069

Pivot Deck Lift Cup
(Superseded to 748-04069A)

$5.99

$

In Stock, Qty 17

0

31

White Outdoor 754-04153

Belt, V Type
(Superseded to 954-04153A)

$84.99

$

Usually ships in 3-6 days

0

32

White Outdoor 756-04129

Idler Poulie w/Flange 4.25 Dia
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

34

White Outdoor 783-0141

Center Deck Skirt

Variations

White Outdoor 783-0141-0637

Center Deck Skirt, Powder Black - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0141-4008

Center Skirt for Deck, Red - WINE RED (4008)

$60.99

$

In Stock, only 1 left!

0

$60.99

$

Usually ships in 3-6 days

0

35

White Outdoor 783-0142

RH Deck Skirt
(Superseded to 783-0142-0637)

Variations

White Outdoor 783-0142-0637

Deck Skirt, RH Powder Black - POWDER BLACK (0637)

$48.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0142-4008

Deck Skirt, RH Powder Black - WINE RED (4008)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

36

White Outdoor 783-0747B

Cover, Deck Belt RH

Variations

White Outdoor 783-0747B-0637

Belt Cover, LH 46" Black - POWDER BLACK (0637)

$58.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0747B-0716

Belt Cover, LH 46" Yellow - CUB YELLOW-99 (0716)

$58.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0747B-0650

Belt Cover, LH 46" Red - RED METALLIC (0650)

$58.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0747B-0665

COVER-BELT LH 46" - YARDMAN GREEN (0665)

$58.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0747B-4008

COVER-BELT LH 46" - WINE RED (4008)

$58.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0747B-4021

Belt Cover, LH 46" Yellow - CUB YELLOW 2 (4021)

$58.99

$

Usually ships in 3-6 days

0

$54.99

$

Usually ships in 3-6 days

0

37

White Outdoor 783-0805C

RH Belt Cover

Variations

White Outdoor 783-0805C-0637

Belt Cover, RH Black - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0805C-0650

COVER-BELT RH - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0805C-0716

Belt Cover, RH Yellow - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 783-0805C-4021

Belt Cover, RH Yellow - CUB YELLOW 2 (4021)

$

$

Not available

White Outdoor 783-0805C-0665

COVER-BELT RH - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0805C-0691

COVER-BELT RH - BLACK JACK (0691)

$

$

Not available

White Outdoor 783-0805C-4008

COVER-BELT RH - WINE RED (4008)

$

$

Not available

$

$

38

White Outdoor 783-05118

Idler Bracket

Variations

White Outdoor 783-05118-0637

Idler Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

39

White Outdoor 710-0134

Carriage Bolt 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

40

White Outdoor 731-05264

Mulching Plug

$28.99

$

Usually ships in 3-6 days

0

41

White Outdoor 712-3087

Wing Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 20+

0

42

White Outdoor 712-0641

Hex Nut M16-1.5 DIN 936

$6.49

$

In Stock, Qty 7

0

43

White Outdoor 736-0225

L-Washer Internal

$4.49

$

In Stock, only 2 left!

0

44

White Outdoor 737-04003D

Port, Water

$23.99

$

In Stock, Qty 6

0

45

White Outdoor 721-04041

Water Nozzle Adaptor
(Superseded to 921-04041)

$23.99

$

In Stock, Qty 20+

0

46

White Outdoor 710-3103

Hex Hd Cap Scr. 5/16-18 x 2.0 Gr. 5

$4.49

$

In Stock, only 4 left!

0

47

White Outdoor 756-1188

Deck Pulley 5.75 Dia. (42" Deck)

$36.99

$

In Stock, Qty 8

0

48

White Outdoor 741-0919

Ball Bearing 20 x 47 x 14:6204:DS
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

49

White Outdoor 738-1186A

Spindle Shaft 6.05 Lg.

$49.99

$

In Stock, Qty 14

0

50

White Outdoor 750-04936

Spacer .792 x 1.060 x 1.860 Lg.

$6.99

$

In Stock, Qty 20+

0

52

White Outdoor 737-3000

Grease Fitting
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

53

White Outdoor 783-05463

Support Bracket, Idler

$

$

Not available

54

White Outdoor 712-3010

Hex Nut 5/16-18 hd. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

56

White Outdoor 732-0826A

Extension Spring .865 x 4.68

$11.99

$

In Stock, Qty 20+

0

57

White Outdoor 712-0229

Push Nut Bolt Retainer

$3.99

$

In Stock, Qty 20+

0

58

White Outdoor 736-0343

Flat Washer .330 ID x 1.25 OD x .120

$4.49

$

In Stock, Qty 7

0

59

White Outdoor 712-0206

Hex Nut 1/2-13

$4.49

$

In Stock, Qty 20+

0

60

White Outdoor 712-3083

Hex Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

61

White Outdoor 747-04645

Deck Front Hanger Rod

$46.99

$

In Stock, Qty 5

0

62

White Outdoor 783-04419B

Clutch Bracket
(Superseded to 783-04419B-0637)

Variations

White Outdoor 783-04419B-0637

Clutch Bracket - POWDER BLACK (0637)

$14.99

$

In Stock, only 3 left!

0

White Outdoor 783-04419B-4008

Clutch Bracket - WINE RED (4008)

$14.99

$

In Stock, only 3 left!

0

$14.99

$

In Stock, only 3 left!

0

63

White Outdoor 710-0726

Hex Wash HD AB Tap Scr 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

64

White Outdoor 747-04685A

Deck Stop

$31.99

$

Usually ships in 3-6 days

0

65

White Outdoor 736-3010

Flat Washer .406 ID x .812 OD x .134

$4.99

$

In Stock, only 2 left!

0
