Q 81 GH (14AQ81GH897) - Columbia 46" Garden Tractor (2009) Steering Parts Diagram

46" Garden Tractor

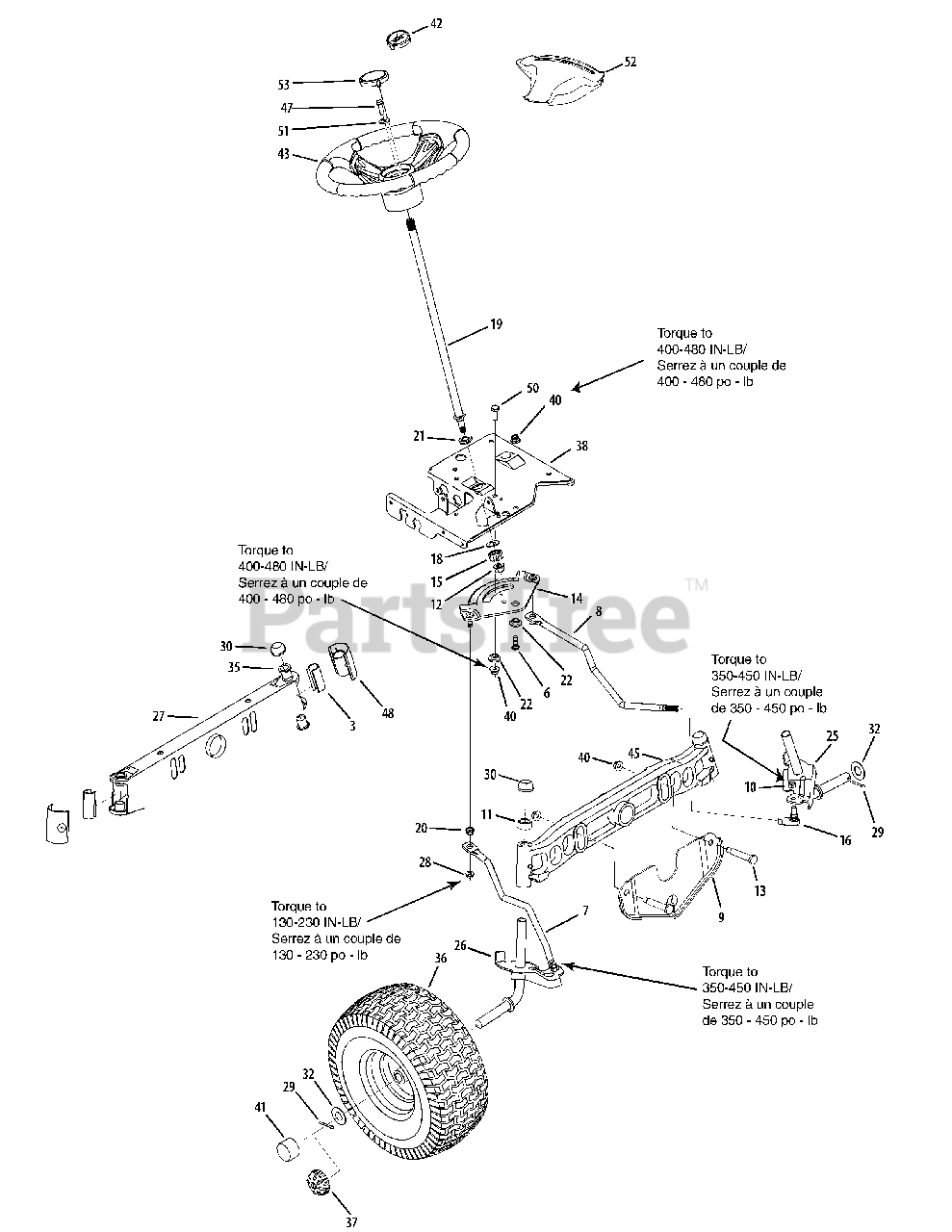

Steering Parts Diagram

  • Title

3

White Outdoor 731-04057A

Axle End Cap - Std.

$5.49

$

In Stock, Qty 20+

0

6

White Outdoor 710-04095

Hex Cap Screw 3/8-16 x 1.00 Gr. 5 Spec.

$5.49

$

In Stock, Qty 20+

0

7

White Outdoor 711-1408

RH Drag Link

$

$

Not available

8

White Outdoor 711-1409A

LH Drag Link

$

$

Not available

9

White Outdoor 783-04568-0637

Front Deck Hanger Brkt. (Style 6)

$51.99

$

Usually ships in 3-6 days

0

10

White Outdoor 912-0214

Hex Cent. L-Nut 3/8-24
(Superseded to 712-0214)

$6.49

$

In Stock, only 2 left!

0

11

White Outdoor 748-04068

Spacer .71 ID x .125 OD x .56" Lg.

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 712-0459

Flange Lock Nut, 7/16-20

$4.99

$

In Stock, Qty 20+

0

13

White Outdoor 738-04128

Shoulder Bolt .50 x 2.38: 3/8-16

$7.99

$

Usually ships in 3-6 days

0

14

White Outdoor 917-1550E

Steering Gear, 11/90 Ratio
(Superseded to 717-1550F)

$70.99

$

In Stock, Qty 20+

0

15

White Outdoor 717-1554

Steering Pinion Gear

$10.99

$

In Stock, Qty 20+

0

16

White Outdoor 923-0448A

Ball Joint, 7/16 - 20

$24.99

$

In Stock, Qty 20+

0

18

White Outdoor 736-3084

Fl. Washer .510 x 1.120 x .060

$4.99

$

In Stock, Qty 20+

0

19

White Outdoor 738-04263

Steering Shaft, .625 OD x 24.25

$68.99

$

In Stock, Qty 7

0

20

White Outdoor 941-0475

Plastic Bushing .380 ID

$4.49

$

In Stock, Qty 20+

0

21

White Outdoor 741-04237B

Hex Flange Bearing, 5/8

$6.99

$

In Stock, Qty 15

0

22

White Outdoor 738-04154

Shoulder Spacer

$5.49

$

In Stock, Qty 11

0

25

White Outdoor 638-04003AP

LH Axle Assembly, .750 Dia. (46", 50" & 54")

$

$

Not available

26

White Outdoor 938-04004A

RH Axle Assembly, .750 Dia. (46", 50" & 54")

$71.99

$

In Stock, only 2 left!

0

27

White Outdoor 683-0128B-0637

Pivot Bar

$97.99

$

In Stock, only 2 left!

0

28

White Outdoor 712-3004A

Hex Flange L-Nut 5/16-18 Gr. 5

$3.99

$

In Stock, Qty 20+

0

29

White Outdoor 714-0162

Cotter Pin 5/32" Dia. x 1.25

$4.99

$

In Stock, Qty 20+

0

30

White Outdoor 726-0341

Push Cap, .750

$4.99

$

In Stock, Qty 20+

0

32

White Outdoor 736-04228A

Flat Washer .781 ID x 1.90 OD
(Superseded to 736-04228B)

$5.49

$

In Stock, Qty 20+

0

35

White Outdoor 741-0660A

Flange Bearing .760 ID x .937 OD

$3.49

$

In Stock, Qty 20+

0

36

White Outdoor 634-04088A-0911

Wheel Assembly
(Superseded to 634-04088A)

$228.99

$

Usually ships in 3-6 days

0

36

White Outdoor 734-04148-0901

Tire Only

$65.99

$

Usually ships in 3-6 days

0

36

White Outdoor 934-04082-0662

Rim Only
(Superseded to 934-04082-4042)

$131.99

$

Usually ships in 3-6 days

0

36

White Outdoor 934-0255

Valve

$4.49

$

In Stock, Qty 20+

0

37

White Outdoor 731-2290A

Hub Cap
(Superseded to 731-2290B)

$4.49

$

In Stock, Qty 20+

0

38

White Outdoor 783-04612-0637

Steering Support Bracket

$89.99

$

In Stock, only 3 left!

0

39

White Outdoor 738-0143

Shld. Scr. .500 Dia. X .335" Lg.

$4.49

$

In Stock, Qty 20+

0

40

White Outdoor 712-04065

Hex Flange L-Nut 3/8-16 Gr. F

$3.99

$

In Stock, Qty 20+

0

41

White Outdoor 731-05674

Cap

$5.49

$

In Stock, Qty 20+

0

42

White Outdoor 731-04040

Steering Wheel Cap - Small w/logo

$9.99

$

In Stock, only 1 left!

0

43

White Outdoor 631-04008A

Steering Wheel - 3 Spokes Soft Grip
(Superseded to 631-04008B)

$94.99

$

In Stock, only 3 left!

0

45

White Outdoor 719-04177A

Cast Iron Pivot Bar (.750 dia.)
(Superseded to 919-04177E)

$248.99

$

In Stock, only 1 left!

0

47

White Outdoor 710-0643

Hex Screw 5/16-18 X 1.00 Spe cial

$6.99

$

In Stock, Qty 5

0

48

White Outdoor 931-1291A

Pivot Bar End Cap

$15.99

$

In Stock, Qty 9

0

50

White Outdoor 710-0514

Hex Screw 3/16 x 1.00

$4.49

$

In Stock, Qty 20+

0

51

White Outdoor 936-3004

Flat Washer .406 ID x .875 OD x .105
(Superseded to 736-3004)

$

$

Not available

52

White Outdoor 731-04065A

Steering Wheel Cover - MTD

$14.99

$

Usually ships in 3-6 days

0

53

N/A

Steering Wheel Cap - Small Toro

Note: Not used in this application

$

$

Not available
