Q 81 GH (14AQ81GH897) - Columbia 46" Garden Tractor (2009) Mower Deck 46 Inch Parts Diagram

46" Garden Tractor

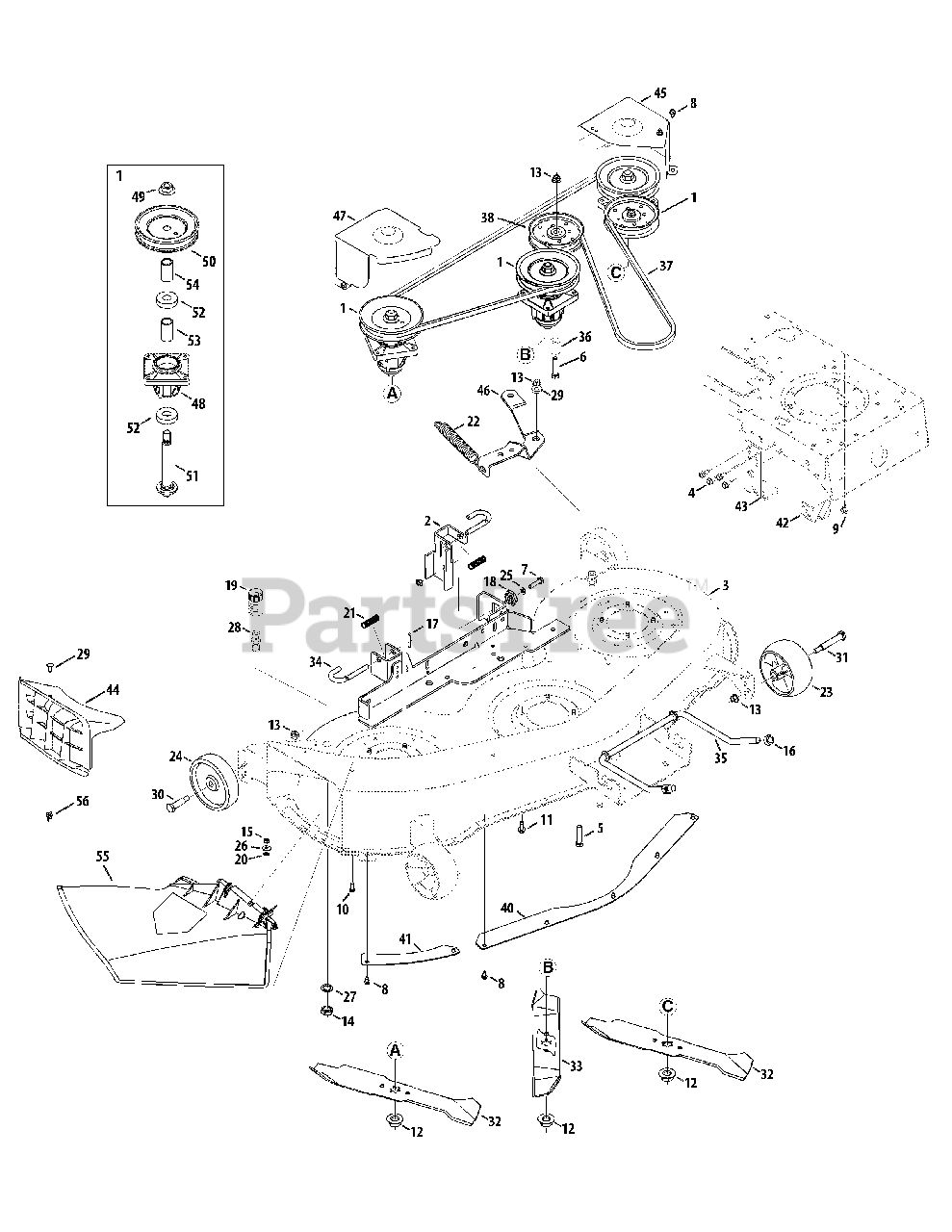

Mower Deck 46 Inch Parts Diagram

  • Title

1

White Outdoor 918-0666A

Spindle Assembly
(Superseded to 918-0665A)

$213.99

$

Usually ships in 3-6 days

0

2

White Outdoor 683-0254B-0606

Deck Hanger Bracket Ass'y
(Superseded to 683-06474-0637)

$36.99

$

In Stock, only 1 left!

0

3

White Outdoor 983-04121-0606

Deck Assembly
(Superseded to 983-04121A-0606)

$

$

Not available

4

White Outdoor 710-04484

Hex Wash Hd. Tapp Scr. 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

5

White Outdoor 710-0514

Hex Screw 3/16 x 1.00

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 710-0521

Hex. Hd. Cap Scr. 3/8-16 X 3.0 Gr. 8

$5.49

$

In Stock, Qty 11

0

7

White Outdoor 710-0528

Hex Bolt 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 710-0607

Hex Wash HD S-Tapp Scr 5/16-18 x .50

$6.99

$

In Stock, Qty 11

0

10

White Outdoor 710-0751

Hex. Hd. Cap Scr. 3/8-16 X 3.0 Gr. 8

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 710-1260A

Hex Wash. Hd. Scr. 5/16-18 x .75 Lg.

$3.99

$

In Stock, Qty 20+

0

12

White Outdoor 712-0417A

Hex Flange Nut 5/8-18

$6.99

$

In Stock, Qty 20+

0

13

White Outdoor 912-0431

Hex. Flanged L-Nut 3/8-16 Gr. F

$4.99

$

In Stock, Qty 20+

0

14

White Outdoor 912-0641

Hex Nut M16-1.5 DIN 936
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

15

White Outdoor 712-3006

Hex Nut 1/4-20 Gr. 5

$4.99

$

In Stock, Qty 19

0

16

White Outdoor 712-3083

Hex Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

17

White Outdoor 914-0111

Cotter Pin 3/32 x 1.0
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

18

White Outdoor 917-04074

Deck Adjustment Gear

$13.99

$

In Stock, Qty 16

0

19

White Outdoor 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

20

White Outdoor 726-0233

Pushnut 1/4 x .50

$4.49

$

In Stock, Qty 20+

0

21

White Outdoor 732-0306A

Compression Spring .531 OD x 1.75 Lg
(Superseded to 932-0306A)

$8.49

$

In Stock, only 4 left!

0

22

White Outdoor 932-0594A

Extension Spring

$14.99

$

In Stock, Qty 20+

0

23

White Outdoor 734-04155

Deck Wheel

$20.99

$

In Stock, Qty 20+

0

24

White Outdoor 734-0973

Wheel Ass’y - Deck 5" x 1.38"

$12.99

$

In Stock, Qty 20+

0

25

White Outdoor 936-0119

L-Wash 5/16 ID

$4.99

$

In Stock, Qty 20+

0

26

White Outdoor 736-0270

Cupped Washer .265 ID x .75 OD x .062

$3.99

$

In Stock, Qty 20+

0

27

White Outdoor 936-0760

Lockwasher Schnorr 17 x 23.8 x 1.95

$4.49

$

In Stock, Qty 13

0

28

White Outdoor 737-04003D

Port, Water

$23.99

$

In Stock, Qty 6

0

29

White Outdoor 738-0372B

Shoulder Spacer 1.0 x .38 X .38

$9.49

$

In Stock, Qty 20+

0

30

White Outdoor 938-0373

Shoulder Bolt .498 Dia x 1.53 x 3/8-16

$9.49

$

In Stock, Qty 20+

0

31

White Outdoor 938-3056

Shoulder Bolt 3/8-16 x .496 x 2.5

$9.49

$

In Stock, Qty 20+

0

32

White Outdoor 942-0611A

Three-in-one Blade, Star Centre 16.28"

$29.99

$

In Stock, Qty 20+

0

33

White Outdoor 942-0612A

Three-in-one Blade, Star Centre 14.88"

$29.99

$

In Stock, Qty 15

0

34

White Outdoor 747-1116

Deck Release Pin

$12.99

$

In Stock, Qty 6

0

35

White Outdoor 747-1130B

Front Adjustment Deck Rod

$41.99

$

In Stock, only 3 left!

0

36

White Outdoor 750-0748

Spacer 3/8 ID x 1.0 x 1.25

$9.49

$

Usually ships in 3-6 days

0

37

White Outdoor 954-04033

V-Belt Type A 118.20" Lg.
(Superseded to 954-04033A)

$50.99

$

In Stock, only 3 left!

0

38

White Outdoor 756-1229

Idler Pulley 4.06 Dia

$47.99

$

In Stock, Qty 20+

0

40

White Outdoor 783-0141-0637

Center Deck Skirt

$65.99

$

Usually ships in 3-6 days

0

41

White Outdoor 783-0142-0637

RH Deck Skirt

$48.99

$

Usually ships in 3-6 days

0

42

White Outdoor 783-04419B-0637

Clutch Bracket

$14.99

$

In Stock, only 4 left!

0

43

White Outdoor 783-04467-0606

Deck Stop Bracket
(Superseded to 783-04467-0637)

$37.99

$

Usually ships in 3-6 days

0

44

White Outdoor 731-05264

Mulching Plug

$28.99

$

Usually ships in 3-6 days

0

45

White Outdoor 783-1347C-0606

Belt Cover LH

$

$

Not available

46

White Outdoor 783-1421B-0637

Idler Bracket

$37.99

$

Usually ships in 3-6 days

0

47

White Outdoor 783-1450-0606

Belt Cover RH
(Superseded to 783-1450-0637)

$

$

Not available

48

White Outdoor 619-04205

Spindle Housing
(Superseded to 753-07015)

$57.99

$

In Stock, only 1 left!

0

49

White Outdoor 712-0417A

Hex Flange Nut 5/8-18

$6.99

$

In Stock, Qty 20+

0

50

White Outdoor 756-1188

Deck Pulley 5.75 Diam.

$36.99

$

In Stock, Qty 8

0

51

N/A

Spindle Shaft

Note: Order Complete Spindle

$

$

Not available

52

White Outdoor 941-0919

Ball Bearing 20 x 47 x 14:6204:DS
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

53

White Outdoor 750-04936

Spacer .792 x 1.060 x 1.860

$6.99

$

In Stock, Qty 20+

0

54

N/A

Spacer .807 x 1.0 x 3.03

Note: Order Complete Spindle

$

$

Not available

55

White Outdoor 631-0216A

Chute Ass'y
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 6

0

56

White Outdoor 712-3087

Wing Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 20+

0
