Q 81 GH (14AQ81GH897) - Columbia 46" Garden Tractor (2009) Engine Accessories Parts Diagram

46" Garden Tractor

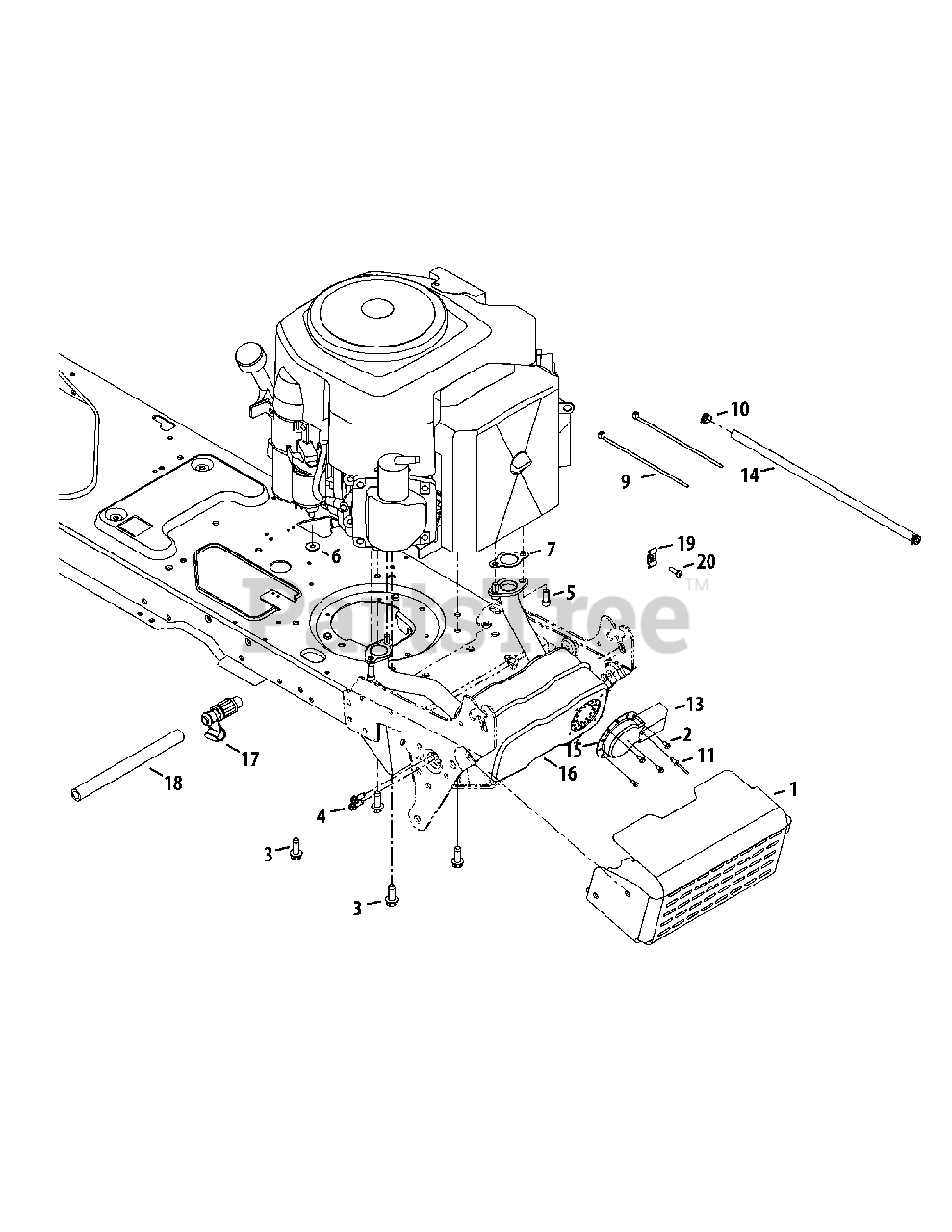

Engine Accessories Parts Diagram

  • Title

1

White Outdoor 683-04549-0637

Muffler Shield
(Superseded to 683-05460A-0637)

$80.99

$

Usually ships in 3-6 days

0

2

White Outdoor 710-0227

Hex Wash HD AB S-Tapp Scr #8-.50

$4.49

$

In Stock, Qty 15

0

3

White Outdoor 710-04683

Hex Wash S-Tapp Scr 3/8-16 x 1.0
(Superseded to 710-04683C)

$6.49

$

In Stock, only 3 left!

0

4

White Outdoor 710-0642

Thd Form ing Scr. 1/4-20 x .75 Lg.

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 710-1314A

Socket HD Cap Scr. 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 712-0271

Sems Nut 1/4-20

$4.49

$

In Stock, Qty 10

0

7

N/A

Gasket supplied by Kohler

$

$

Not available

9

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

10

White Outdoor 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 18

0

11

White Outdoor 728-04000

Rivot, Pop, .188 x .3

$6.99

$

In Stock, Qty 7

0

12

White Outdoor 936-0300

Flat Washer .385 ID x .87 OD x .06
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 751-0564B

Muffler Deflector

$13.99

$

In Stock, Qty 5

0

14

White Outdoor 751-10349-54

Fuel Hose; Low Permeation, 51" Lg.

$53.99

$

Usually ships in 3-6 days

0

15

White Outdoor 751-10353

Muffler Deflector Long
(Superseded to 751-11053B)

$5.49

$

In Stock, only 3 left!

0

16

White Outdoor 751-10528

Muffler
(Superseded to 951-10528B)

$160.99

$

Usually ships in 3-6 days

0

17

White Outdoor 951-10517A

Oil Drain

$24.99

$

In Stock, only 1 left!

0

18

White Outdoor 751-3141-14

Oil Drain Hose

$11.99

$

In Stock, Qty 8

0

19

White Outdoor KH-47-237-02

Clamp
(Superseded to KH-47-237-02-S)

$10.99

$

Usually ships in 2-5 days

0

20

White Outdoor KH-24-086-43-S

Torx Tap. Screw M5 x 0.8
(Superseded to KH-25-086-405-S)

$2.49

$

In Stock, only 2 left!

0
