Q 81 GH (14AQ81GH897) - Columbia 46" Garden Tractor (2009) Electric PTO Parts Diagram

46" Garden Tractor

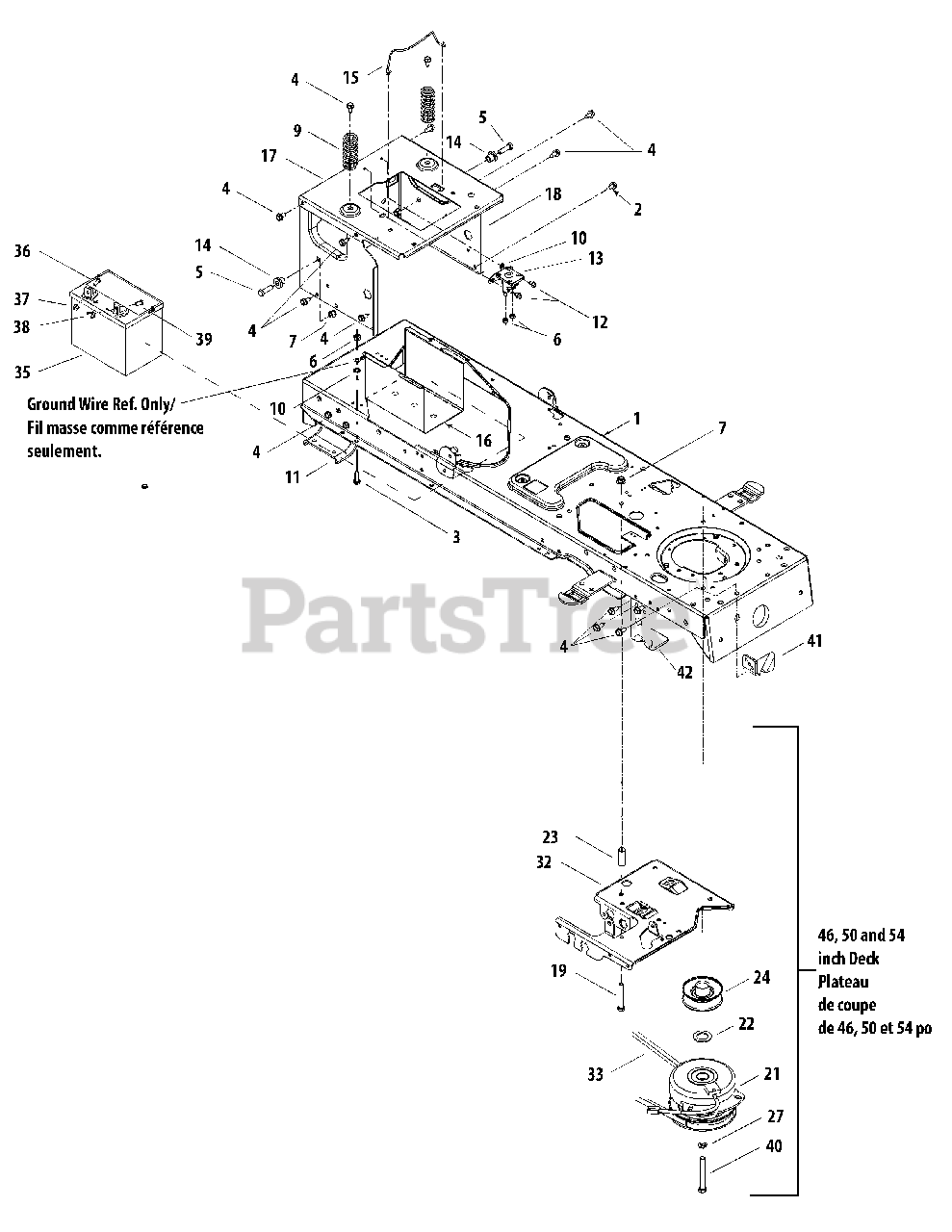

Electric PTO Parts Diagram

  • Title

1

White Outdoor 683-04173B-0606

Lower Frame Assembly
(Superseded to 683-04173B-0637)

$

$

Not available

2

White Outdoor 710-0607

Hex Wash HD S-Tapp Scr 5/16-18 x

$6.99

$

In Stock, Qty 11

0

3

White Outdoor 710-0642

Thd Form ing Scr. 1/4-20 x .75 Lg.

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 710-04484

S-Tapp Scr 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

5

White Outdoor 710-3005

Hex Bolt 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

6

White Outdoor 712-04064

Hex L-Flanged Nut 1/4-20 Gr. F Ny lon

$3.99

$

In Stock, Qty 20+

0

7

White Outdoor 712-04065

Flange Lock-Nut 3/8-16 Gr. F Ny lon

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 732-04035

Compression Spring 1.28 x 3.125

$10.99

$

In Stock, only 4 left!

0

10

White Outdoor 936-0222

Ext. L-Washer 1/4 ID
(Superseded to 736-0222)

$

$

Not available

11

White Outdoor 783-0693-0637

Axle Bracket
(Superseded to 783-0693A-0637)

$24.99

$

Usually ships in 3-6 days

0

12

White Outdoor 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 725-04439

Solenoid
(Superseded to 725-04439B)

$39.99

$

In Stock, Qty 20+

0

14

White Outdoor 738-04058

Shoulder Spacer .38 x 1.0 x .70

$4.49

$

In Stock, only 3 left!

0

15

White Outdoor 747-04121A

Battery Re tainer Rod

$6.49

$

In Stock, Qty 20+

0

16

White Outdoor 783-0349-0637

Battery Tray

$

$

Not available

17

White Outdoor 783-04329A-0606

Frame Seat Bracket

$

$

Not available

18

White Outdoor 783-04811C-0606

Upper Frame (800)

$

$

Not available

19

White Outdoor 710-3011

Hex Cap Screw, 3/8-16 x 2.25 Gr. 5

$6.99

$

In Stock, Qty 20+

0

21

White Outdoor 917-04174A

Electric PTO Clutch 46 & 50" Deck

$679.99

$

Usually ships in 3-6 days

0

21

White Outdoor 917-1774C

Electric PTO Clutch 54" Deck
(Superseded to 917-05001)

$630.99

$

In Stock, only 2 left!

0

22

White Outdoor 736-0277

Flat Washer 1.03 ID x 1.64 OD x .095

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 748-0415B

Spacer .385 ID x .635 OD x 1.54

$7.49

$

In Stock, Qty 10

0

24

White Outdoor 756-0978B

Engine Pulley (w/Hydrostatic models)

$66.99

$

In Stock, Qty 13

0

24

White Outdoor 756-0639A

Engine Pulley, 3.56 OD

$76.99

$

In Stock, only 1 left!

0

27

White Outdoor 936-0171

Lockwasher 7/16 ID
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

32

White Outdoor 783-04612-0637

Steering Support Bracket

$89.99

$

In Stock, only 3 left!

0

33

White Outdoor 954-04033

V-Belt Type A Sec x 118.20 (46" Deck)
(Superseded to 954-04033A)

$50.99

$

In Stock, only 3 left!

0

33

White Outdoor 954-0642

V-Belt Type A Sec x 138.0 (54" Deck)

$82.99

$

In Stock, Qty 7

0

35

White Outdoor 925-1707D

Battery 245 CCA (Dry)

$

$

Not available

36

White Outdoor 710-04666

Hex Flg. Bolt 1/4-10 x .75 Gr. 5

$6.99

$

In Stock, only 3 left!

0

37

White Outdoor 712-0271

Sems Hex Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

38

White Outdoor 712-3087

Wing Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 20+

0

39

White Outdoor 738-1132

Shoulder Screw, 1/4-20

$5.49

$

In Stock, only 2 left!

0

40

White Outdoor 710-04379A

Hex Hd. Cap Scr. 7/16-20 x 3.5

$6.49

$

Usually ships in 3-6 days

0

41

White Outdoor 783-04419B-0637

Bracket Clutch (w/ 54" Deck)

$14.99

$

In Stock, only 4 left!

0

42

White Outdoor 783-04467-0606

Bracket - Deck Stop (w/54" Deck)
(Superseded to 783-04467-0637)

$37.99

$

Usually ships in 3-6 days

0
