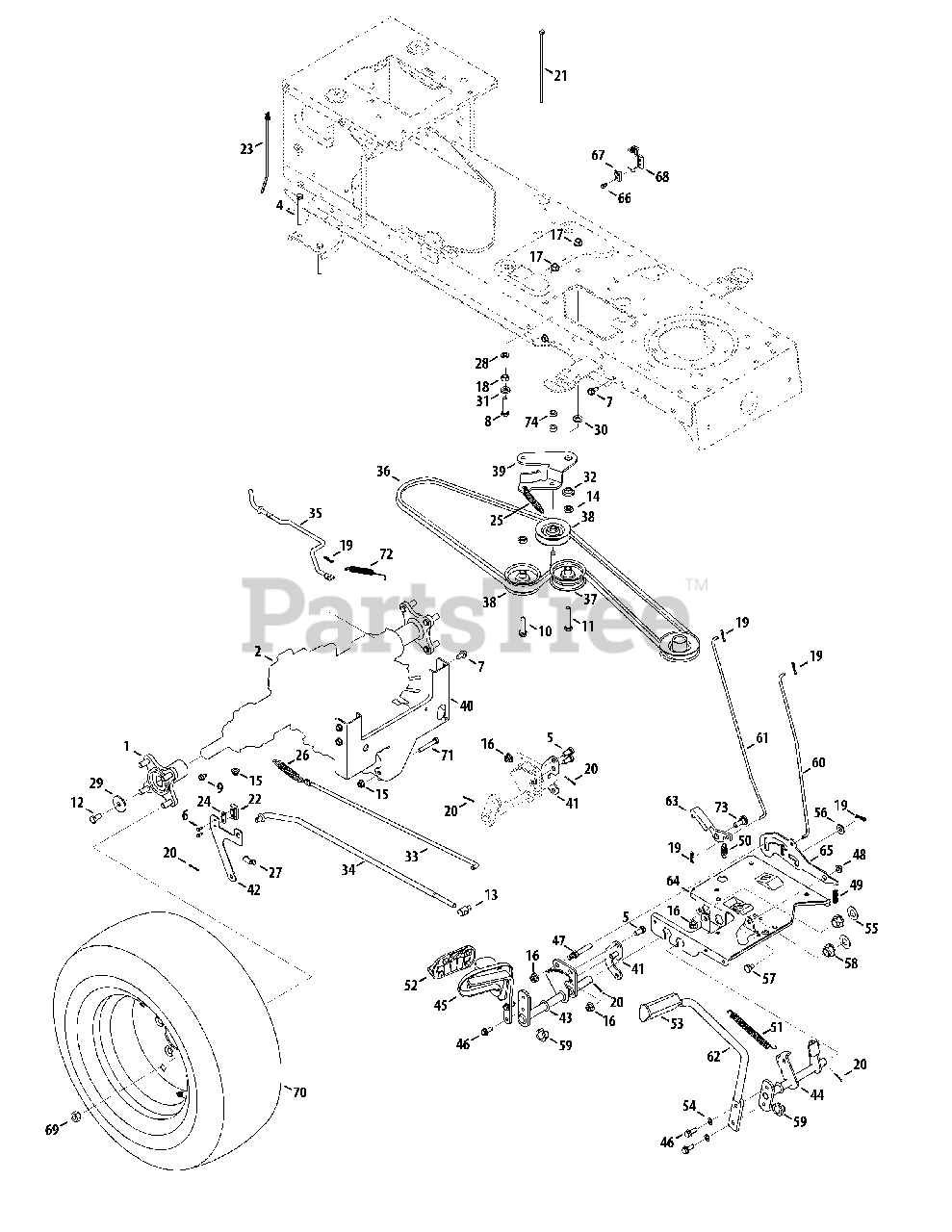

Q 81 GH (14AQ81GH897) - Columbia 46" Garden Tractor (2009) Drive & Rear Wheels Parts Diagram

46" Garden Tractor

Drive & Rear Wheels Parts Diagram

  • Title

1

White Outdoor 918-04317

Wheel Hub Assembly

$116.99

$

Usually ships in 3-6 days

0

2

White Outdoor 918-04468

Hydrostatic Transmission Ass'y

$1778.99

$

Usually ships in 3-6 days

0

4

White Outdoor 710-0189

Hex Cap Scr. 5/16-18 x 3.0

$6.49

$

In Stock, Qty 5

0

5

White Outdoor 710-0216

Hex Cap Scr. 3/8-16 x .75

$4.49

$

In Stock, Qty 15

0

6

White Outdoor 710-0227

Screw #8-18 x .5

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 710-04484

S-Tapp Scr 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 710-0520

Hex Screw 3/8-16 x 1.50

$4.49

$

In Stock, Qty 6

0

9

White Outdoor 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 710-1008

Hex Cap Scr. 3/8-16 x 1.875

$5.49

$

In Stock, Qty 7

0

11

White Outdoor 710-3011

Hex Bolt 3/8-16 x 2.25" Lg.

$6.99

$

In Stock, Qty 20+

0

12

White Outdoor 710-3119

Hex Cap Lock Screw 3/8-16 x .75 Gr. 5

$6.99

$

In Stock, only 1 left!

0

13

White Outdoor 711-0832

Ferrule, 3/8-24
(Superseded to 911-0832)

$15.99

$

In Stock, only 4 left!

0

14

White Outdoor 912-0240

Hex Jam Nut 7/16-20

$4.49

$

In Stock, Qty 20+

0

15

White Outdoor 712-04063

Flange Locknut 5/16-18 Gr. F, Ny lon

$3.99

$

In Stock, Qty 20+

0

16

White Outdoor 712-04065

Flange Lock-Nut 3/8-16 Gr. F, Ny lon

$3.99

$

In Stock, Qty 20+

0

17

White Outdoor 912-0431

Hex. Flanged L-Nut 3/8-16 Gr. F

$4.99

$

In Stock, Qty 20+

0

18

White Outdoor 912-3017

Hex. Nut 3/8-16
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 914-0104

Int. Cotter Pin .072 x 1.13" Lg.
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

20

White Outdoor 914-0111

Cotter Pin 3/32 dia x 1.00 Lg.
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

21

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

22

White Outdoor 725-1644

Short Spring Switch

$9.99

$

In Stock, Qty 11

0

23

White Outdoor 926-0154

Push-mount Cable tie

$6.49

$

Usually ships in 3-6 days

0

24

White Outdoor 926-0320

Insulator Nut Plate

$6.99

$

In Stock, Qty 11

0

25

White Outdoor 732-04323B

Extension Spring .770 x 3.72" Lg.

$12.99

$

In Stock, only 1 left!

0

26

White Outdoor 732-0716D

Extension Spring .59 x 4.0

$13.99

$

Usually ships in 3-6 days

0

27

White Outdoor 732-3118

Extension Srping 3/8-1.44

$10.99

$

In Stock, only 1 left!

0

28

White Outdoor 936-0169

L-Wash 3/8 ID
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

29

White Outdoor 936-0227

Flat Washer .39 ID x 1.5 OD x .135
(Superseded to 736-0227)

$

$

Not available

30

White Outdoor 736-0258

Flat Washer .385 ID X 1.0 OD X .130

$4.49

$

In Stock, only 2 left!

0

31

White Outdoor 936-0300

Flat Washer .406 x .875 x .059
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

32

White Outdoor 738-0372B

Shoulder Spacer

$9.49

$

In Stock, Qty 20+

0

33

White Outdoor 747-04873

Hydrostatic Brake Rod

$

$

Not available

34

White Outdoor 747-04666

Hydrostatic Control Rod

$

$

Not available

35

White Outdoor 747-04838A

Hydrostic Bypass Rod

$

$

Not available

36

White Outdoor 954-0461

Drive Belt

$59.99

$

In Stock, Qty 20+

0

37

White Outdoor 756-04224

Flat Idler Pulley, 2.75

$26.99

$

In Stock, Qty 20+

0

38

White Outdoor 756-04325

V-idler Pulley 3.06

$24.99

$

In Stock, Qty 20+

0

39

White Outdoor 783-04442-0637

Double Idler Bracket

$35.99

$

In Stock, only 1 left!

0

40

White Outdoor 783-05443-0637

Transmission Torque Bracket

$

$

Not available

41

White Outdoor 783-0745-0637

Speed Control Bracket

$

$

Not available

42

White Outdoor 783-05841

Switch Actuator Bracket
(Superseded to 753-06760)

$13.99

$

Usually ships in 3-6 days

0

43

White Outdoor 647-0049A-0637

Drive Control Ass'y

$

$

Not available

44

White Outdoor 647-04100-0637

Brake Control Ass'y

$

$

Not available

45

White Outdoor 683-0267C

Hy dro Pedal Ass'y

$

$

Not available

46

White Outdoor 710-1260A

Self-Tap ping Scr. 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

47

White Outdoor 711-04159B

in 3/8-16 x 2.68 Lg.

$7.99

$

Usually ships in 3-6 days

0

48

White Outdoor 712-3004A

Hex Flange L-Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

49

White Outdoor 732-0335

Compression Spring

$

$

Not available

50

White Outdoor 732-0955

Extension Spring, .50 OD x 1.41

$9.99

$

In Stock, only 1 left!

0

51

White Outdoor 732-0963

Extension Spring, .50 Dia. x 6.37

$9.99

$

In Stock, only 4 left!

0

52

White Outdoor 735-0662

Drive Pedal Pad

$11.99

$

Usually ships in 3-6 days

0

53

White Outdoor 735-3049A

Brake Pedal Pad

$12.99

$

In Stock, only 1 left!

0

54

White Outdoor 936-0119

L-Wash 5/16 ID

$4.99

$

In Stock, Qty 20+

0

55

White Outdoor 736-0187

Flat Washer .640 ID x 1.24 OD x .06

$4.49

$

In Stock, Qty 20+

0

56

White Outdoor 736-0262

Flat Washer .38 ID x .87 OD x .09

$3.99

$

In Stock, Qty 20+

0

57

White Outdoor 938-0155

Shld. Scr .437 Dia x .162 Lg.

$6.99

$

Usually ships in 3-6 days

0

58

White Outdoor 941-0225

Hex Flange Bearing .630 ID

$7.49

$

In Stock, Qty 20+

0

59

White Outdoor 741-3065B

Hex Flanged Bearing .628 ID

$8.49

$

In Stock, Qty 20+

0

60

White Outdoor 747-04093A

Brake Lock Control Rod

$

$

Not available

61

White Outdoor 747-04096

Cruise Control Rod

$15.99

$

Usually ships in 3-6 days

0

62

White Outdoor 747-04641A-0637

Brake Pedal

$31.99

$

Usually ships in 3-6 days

0

63

White Outdoor 748-04039C

Cruise Latch

$

$

Not available

64

White Outdoor 783-04612-0637

Steering Support Bracket

$89.99

$

In Stock, only 3 left!

0

65

White Outdoor 783-0663E

Drive Lock out Bracket

$17.99

$

Usually ships in 3-6 days

0

66

White Outdoor 910-0224

Hex Scr. AB #10-16 x .50

$3.99

$

In Stock, Qty 20+

0

67

White Outdoor 17962

Switch Plate

$4.99

$

In Stock, only 3 left!

0

68

White Outdoor 925-04039

Switch

$24.99

$

In Stock, Qty 8

0

69

White Outdoor 712-3050

Lub Nut, 7/16-14

$9.99

$

In Stock, Qty 5

0

70

White Outdoor 634-0202A-0911

Wheel Assembly Complete, 23 x 10.5 x 12
(Superseded to 634-0202A)

$323.99

$

Usually ships in 3-6 days

0

70

White Outdoor 634-04238-0662

Rim Only
(Superseded to 634Z04238-0662)

Note: Not shown

$197.99

$

Usually ships in 3-6 days

0

70

White Outdoor 934-0255

Air Valve (Not Showm)

Note: Not shown

$4.49

$

In Stock, Qty 20+

0

70

White Outdoor 734-04147-0901

Tire Only, Square Shoulder

Note: Not shown

$120.99

$

Usually ships in 3-6 days

0

71

White Outdoor 710-3103

Hex Hd Cap Scr. 5/16-18 x 2.0 Gr. 5

$4.49

$

In Stock, Qty 20+

0

72

White Outdoor 732-04528

Extension Srping .50 OD x 5.0

$9.99

$

Usually ships in 3-6 days

0

73

White Outdoor 938-0380

Shoulder Screw .500 x .25
(Superseded to 738-0380)

$7.99

$

In Stock, only 1 left!

0

74

White Outdoor 750-04776

Spacer, .380 x .625 x .265

$5.49

$

In Stock, only 3 left!

0

White Outdoor 629-0949B

Reverse/Ground Wire Harness Adapter)

Note: (not shown

$43.99

$

Usually ships in 3-6 days
