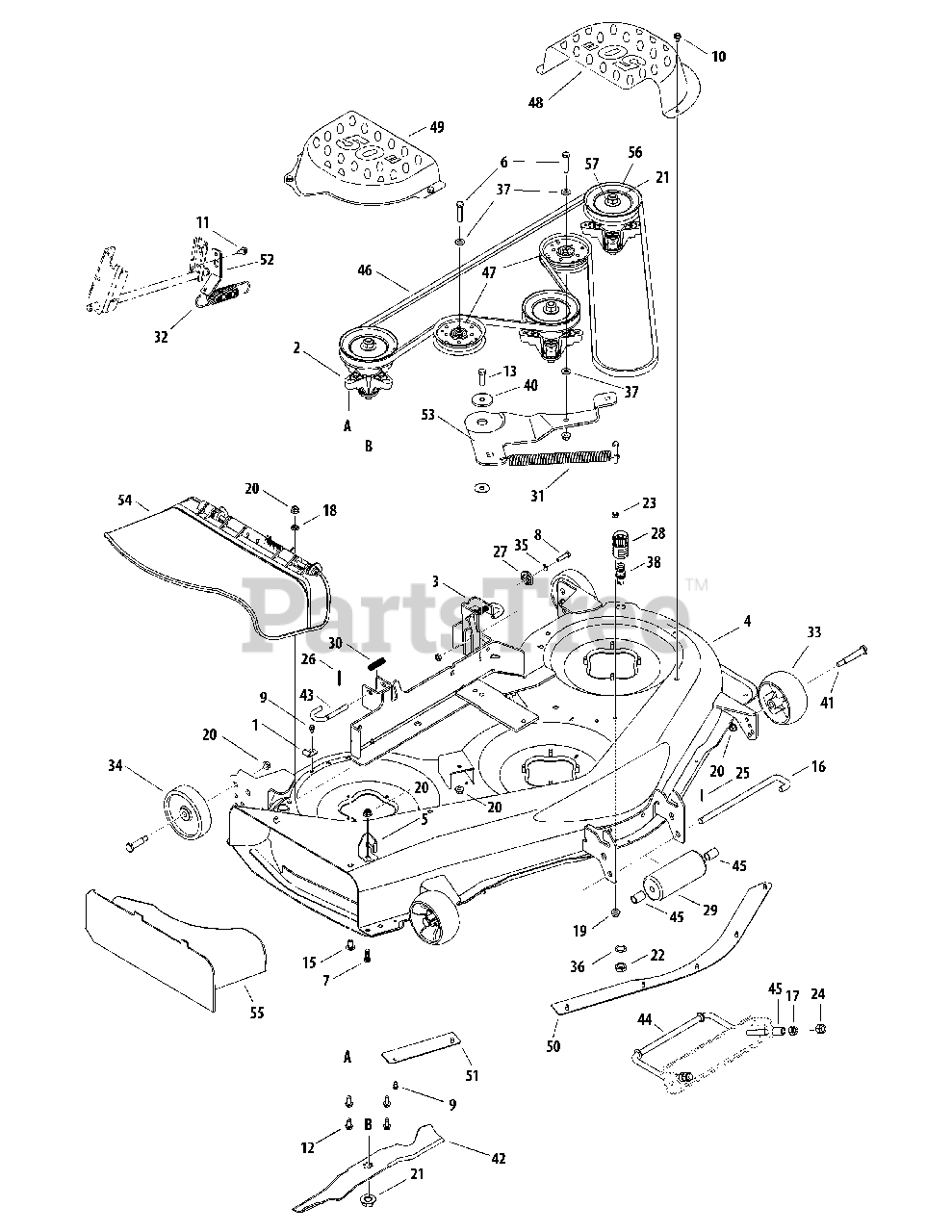

Q 62 GP (13AQ62GP897) - Columbia 50" Lawn Tractor (2009) Deck Assembly Parts Diagram

50" Lawn Tractor

Deck Assembly Parts Diagram

  • Title

1

White Outdoor 96606

Retainer Hook Brkt.

$7.49

$

In Stock, Qty 7

0

2

White Outdoor 918-04126A

Spindle Assembly
(Superseded to 918-04125C)

$133.99

$

In Stock, Qty 20+

0

2

White Outdoor 712-0417A

Flange Nut:5/8-18

Note: Not shown

$6.99

$

In Stock, Qty 20+

0

2

White Outdoor 736-0315

Flat Washer:.760 x 1.50 X .120

Note: Not shown

$6.99

$

In Stock, Qty 6

0

2

White Outdoor 937-3000

Grease Fitting:3/16:LNC #70:DRI

Note: Not shown

$4.99

$

In Stock, Qty 20+

0

2

White Outdoor 738-1010A

Spindle Shaft:5.75 LG.

Note: Not shown

$46.99

$

In Stock, only 2 left!

0

2

White Outdoor 941-0919

Ball Bearing:20x47x14:62
(Superseded to 941-0919B)

Note: Not shown

$21.99

$

In Stock, Qty 20+

0

2

White Outdoor 748-0160A

Spacer:.790 ID x 1.25 OD X .175

Note: Not shown

$6.99

$

In Stock, only 3 left!

0

2

White Outdoor 750-1000

Spacer:.80 x 1.10 x 1.322

Note: Not shown

$4.49

$

In Stock, Qty 7

0

2

White Outdoor 750-1349A

Spacer:.79 x 1.82 x .55

Note: Not shown

$13.99

$

In Stock, only 3 left!

0

2

White Outdoor 756-04216

Deck Pulley:V TYP:5.39

Note: Not shown

$33.99

$

In Stock, only 1 left!

0

3

White Outdoor 683-0254B-0637

Deck Adjustment Bracket w/Weld Nut
(Superseded to 683-06474-0637)

$36.99

$

Usually ships in 3-6 days

0

4

White Outdoor 983-04075B-0606

50" Deck (weldment)
(Superseded to 983-04075B-0637)

$1181.99

$

Usually ships in 3-6 days

0

5

White Outdoor 703-3279

Chute Stop Deflector

Variations

White Outdoor 703-3279-0606

Chute Deflector Stop - MAJESTIC ORANGE (0606)

$40.99

$

Usually ships in 3-6 days

0

White Outdoor 703-3279-0650

Chute Deflector Stop - RED METALLIC (0650)

$40.99

$

Usually ships in 3-6 days

0

White Outdoor 703-3279-4033

Chute Deflector Stop - FLINT MICA (4033)

$40.99

$

Usually ships in 3-6 days

0

White Outdoor 703-3279-0637

STOP-CHUTE DEFLECTOR - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

White Outdoor 703-3279-0638

STOP-CHUTE DEFLECTOR - MTD/TROY-BILT RED (0638)

$40.99

$

Usually ships in 3-6 days

0

White Outdoor 703-3279-0665

STOP-CHUTE DEFLECTOR - YARDMAN GREEN (0665)

$40.99

$

Usually ships in 3-6 days

0

White Outdoor 703-3279-0691

STOP-CHUTE DEFLECTOR - BLACK JACK (0691)

$40.99

$

Usually ships in 3-6 days

0

White Outdoor 703-3279-4008

STOP-CHUTE DEFLECTOR - WINE RED (4008)

$40.99

$

Usually ships in 3-6 days

0

White Outdoor 703-3279-4028

STOP-CHUTE DEFLECTOR - SEARS YELLOW (4028)

$40.99

$

Usually ships in 3-6 days

0

White Outdoor 703-3279-4044

STOP-CHUTE DEFLECTOR - CRAFTSMAN RED (4044)

$40.99

$

Usually ships in 3-6 days

0

$40.99

$

Usually ships in 3-6 days

0

6

White Outdoor 710-0347

Hex Screw 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

7

White Outdoor 710-04095

Screw, 3/8-16 x 1.0

$5.49

$

In Stock, Qty 20+

0

8

White Outdoor 710-0528

Hex Bolt 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 710-0607

Hex Wash HD AB Tap Scr 5/16-18 x .75

$6.99

$

In Stock, Qty 11

0

11

White Outdoor 710-0726

Hex Wash HD AB Tap Scr 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 710-04484

S-Tapp Scr 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

13

White Outdoor 710-3005

Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

15

White Outdoor 710-3178

Short Neck Carriage Bolt 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

16

White Outdoor 711-1737

Pin, Roller, .50" Dia. x 10.06

$25.99

$

In Stock, Qty 6

0

17

White Outdoor 912-0206

Hex Nut 1/2-13
(Superseded to 712-0206)

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 712-0229

Push Nut 3/8

$3.99

$

In Stock, Qty 20+

0

19

White Outdoor 712-04063

Flange Locknut 5/16-18 Gr. F, Ny lon

$3.99

$

In Stock, Qty 20+

0

20

White Outdoor 712-04065

Flange Lock-Nut 3/8-16 Gr. F Ny lon

$3.99

$

In Stock, Qty 20+

0

21

White Outdoor 712-0417A

Hex Flange Nut 5/8-18

$6.99

$

In Stock, Qty 20+

0

22

White Outdoor 912-0641

Hex Nut, M16-1.5
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

23

White Outdoor 912-3010

Hex Nut 5/16-18 hd. (Gr. 5)
(Superseded to 712-3010)

$

$

Not available

24

White Outdoor 712-3083

Hex L-Nut 1/2-13

$4.49

$

In Stock, Qty 20+

0

25

White Outdoor 914-0111

Cotter Pin 3/32 x 1.0
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

26

White Outdoor 914-0470

Cotter Pin 1/8" Dia x 1.25
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

27

White Outdoor 917-04074

Deck Adjustment Gear

$13.99

$

In Stock, Qty 14

0

28

White Outdoor 921-04041

Wa ter Noz zle Adap tor

$23.99

$

In Stock, Qty 20+

0

29

White Outdoor 731-3005

Front Roller

$28.99

$

In Stock, Qty 20+

0

30

White Outdoor 932-0306A

Compression Spring .531 OD x 1.75 Lg.

$8.49

$

In Stock, only 4 left!

0

31

White Outdoor 732-0459C

Extension Spring .94 x 6.74

$18.99

$

In Stock, only 3 left!

0

32

White Outdoor 732-0934

Extension Spring 1.5 x 5.99

$11.99

$

In Stock, only 1 left!

0

33

White Outdoor 734-04155

Deck Wheel 5.0

$20.99

$

In Stock, Qty 20+

0

34

White Outdoor 734-0973

Wheel Ass’y - Deck 5" x 1.38"

$12.99

$

In Stock, Qty 20+

0

35

White Outdoor 736-0119

L-Wash 5/16 ID
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

36

White Outdoor 736-0225

Lockwasher 5/8

$4.49

$

In Stock, only 2 left!

0

37

White Outdoor 936-0300

Flat Washer .406 x .875 x .059
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

38

White Outdoor 737-04003D

Port, Wa ter

$23.99

$

In Stock, Qty 6

0

40

White Outdoor 738-04162A

Spacer, Shoulder .884 x .190
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

41

White Outdoor 938-3056

Shoulder Screw

$9.49

$

In Stock, Qty 20+

0

42

White Outdoor 942-04053C

Blade 17.90

$28.99

$

In Stock, Qty 20+

0

43

White Outdoor 747-1116

Deck Release Pin

$12.99

$

In Stock, Qty 6

0

44

White Outdoor 747-1324

Deck Adjustment Rod

$58.99

$

In Stock, only 3 left!

0

45

White Outdoor 950-0151

Spacer .55 ID x .75

$10.99

$

In Stock, Qty 20+

0

46

White Outdoor 954-04164

V-Belt

$80.99

$

In Stock, Qty 5

0

47

White Outdoor 756-04129

Idler Pulley w/Flange 4.25 Dia
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

48

White Outdoor 783-04399

LH Belt Cover

Variations

White Outdoor 783-04399-0637

Belt Cover, LH Black - POWDER BLACK (0637)

$95.99

$

In Stock, only 2 left!

0

White Outdoor 783-04399-0606

Belt Cover, LH Orange - MAJESTIC ORANGE (0606)

$95.99

$

In Stock, only 2 left!

0

White Outdoor 783-04399-0650

COVER-BELT LH - RED METALLIC (0650)

$95.99

$

In Stock, only 2 left!

0

White Outdoor 783-04399-0691

Belt Cover, LH Black - BLACK JACK (0691)

$95.99

$

In Stock, only 2 left!

0

White Outdoor 783-04399-0716

COVER-BELT LH - CUB YELLOW-99 (0716)

$95.99

$

In Stock, only 2 left!

0

White Outdoor 783-04399-4008

COVER-BELT LH - WINE RED (4008)

$71.99

$

In Stock, only 1 left!

0

White Outdoor 783-04399-4021

Belt Cover, LH Yellow - CUB YELLOW 2 (4021)

$95.99

$

In Stock, only 2 left!

0

White Outdoor 783-04399-4033

Belt Cover, LH Flint - FLINT MICA (4033)

$95.99

$

In Stock, only 2 left!

0

White Outdoor 783-04399-4044

COVER-BELT LH - CRAFTSMAN RED (4044)

$95.99

$

In Stock, only 2 left!

0

White Outdoor 783-04399-0638

COVER-BELT LH - MTD/TROY-BILT RED (0638)

$95.99

$

In Stock, only 2 left!

0

White Outdoor 783-04399-0665

COVER-BELT LH - YARDMAN GREEN (0665)

$

$

Not available

$95.99

$

In Stock, only 2 left!

0

49

White Outdoor 783-04400

RH Belt Cover

Variations

White Outdoor 783-04400-4021

Belt Cover, RH Yellow - CUB YELLOW 2 (4021)

$95.99

$

In Stock, Qty 5

0

White Outdoor 783-04400-0606

Belt Cover, RH Orange - MAJESTIC ORANGE (0606)

$95.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04400-0637

Belt Cover, RH Black - POWDER BLACK (0637)

$95.99

$

In Stock, Qty 5

0

White Outdoor 783-04400-0638

COVER-BELT RH - MTD/TROY-BILT RED (0638)

$95.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04400-0650

COVER-BELT RH - RED METALLIC (0650)

$88.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04400-4033

COVER-BELT RH - FLINT MICA (4033)

$95.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04400-0665

COVER-BELT RH - YARDMAN GREEN (0665)

$95.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04400-4008

COVER-BELT RH - WINE RED (4008)

$95.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04400-0691

Belt Cover, RH Black - BLACK JACK (0691)

$

$

Not available

White Outdoor 783-04400-0716

COVER-BELT RH - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 783-04400-4044

COVER-BELT RH - CRAFTSMAN RED (4044)

$

$

Not available

$95.99

$

Usually ships in 3-6 days

0

50

White Outdoor 783-04414A-0637

Deck Skirt Cen ter
(Superseded to 783-04414A)

$35.99

$

Usually ships in 3-6 days

0

51

White Outdoor 783-04415-0637

Deck Shirt RH

$30.99

$

In Stock, only 3 left!

0

52

White Outdoor 783-04462A

Lift Bracket

$10.99

$

Usually ships in 3-6 days

0

53

White Outdoor 783-05303-0637

Idler Bracket

$61.99

$

In Stock, only 1 left!

0

54

White Outdoor 631-04092B

Side Chute Assembly
(Superseded to 631-04092C)

$60.99

$

Usually ships in 3-6 days

0

55

White Outdoor 731-04651

Mulching Plug

$78.99

$

In Stock, only 3 left!

0

56

White Outdoor 756-04216

Deck Pulley 5.39 Dia.

$33.99

$

In Stock, only 1 left!

0

57

White Outdoor 736-0315

Flat Washer .76 ID x 1.5 OD x .12

$6.99

$

In Stock, Qty 6

0
