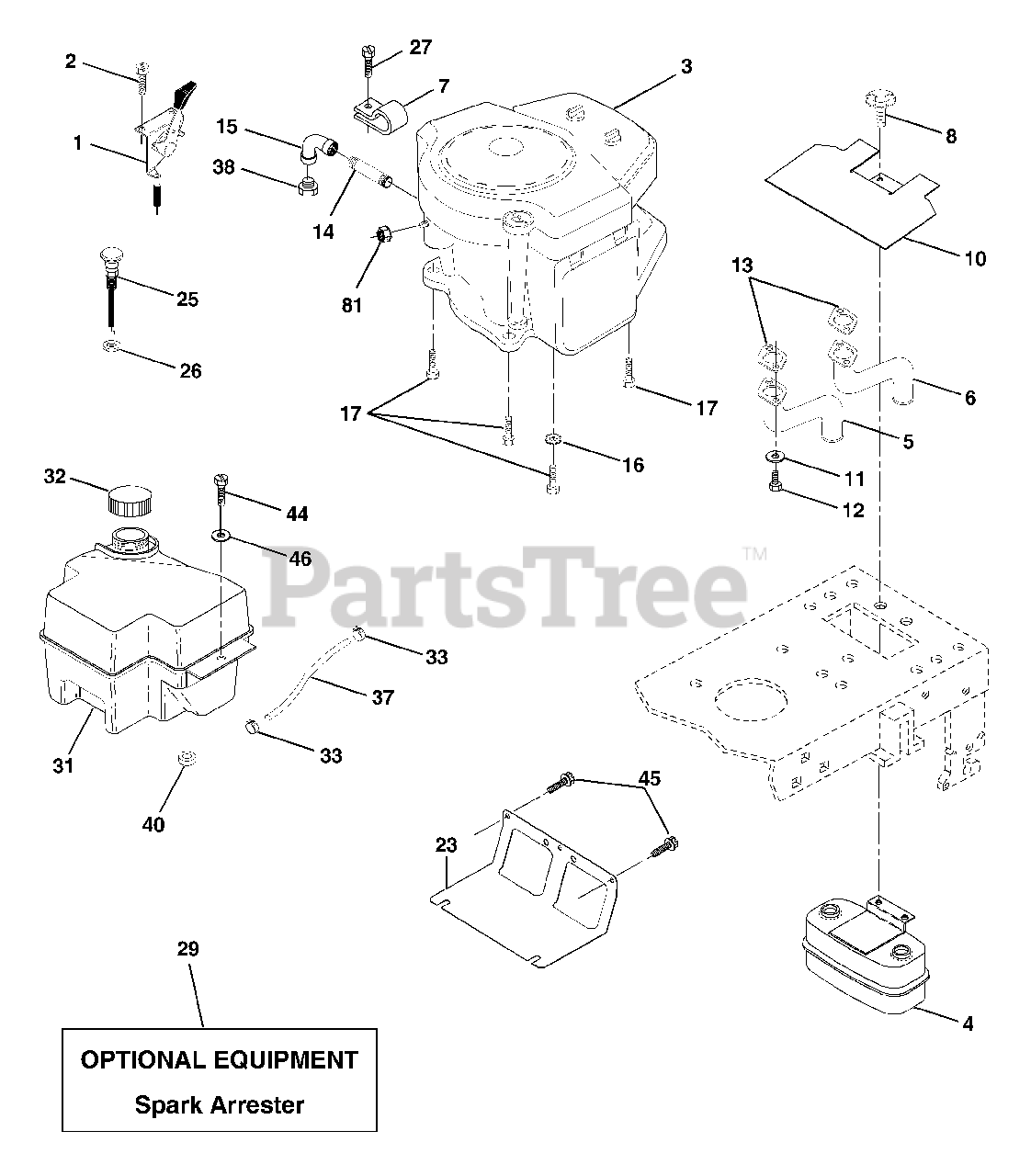

Q 14542 B - Quality Lawn Tractor (2000) Engine Parts Diagram

Lawn Tractor

Engine Parts Diagram

  • Title
1

Electrolux/AYP 141295

Control Throt 35.5 Lh Flag
(Superseded to 532170803)

$30.99

$

In Stock, only 1 left!

0

2

Electrolux/AYP 17720410

Screw Hex Thd Cut 1/4-20x5/8 T
(Superseded to 817720410)

$

$

Not available

3

Engine Briggs Model 461707

Note: (Order Parts from Engine Manufacturer)

$

$

Not available

4

Electrolux/AYP 149723

Muffler Exhaust
(Superseded to 532149723)

$74.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 144069

Exhaust Asm. Left
(Superseded to 532144069)

$37.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 144068

Exhaust Asm. Right
(Superseded to 532144068)

$

$

Not available

7

Electrolux/AYP 138129

Clamp Tube Double Engine
(Superseded to 532138129)

$4.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 150176

Bolt 5/16-18unc x 3/4 w/sems
(Superseded to 532149741)

$7.49

$

In Stock, Qty 5

0

10

Electrolux/AYP 145552

Shield Heat
(Superseded to 532145552)

$7.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 10040400

Wash Lock Hvy Hlcl spr 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

12

Electrolux/AYP 74780412

Bolt Fin Hex 1/4-20 x 3/4
(Superseded to 874780412)

$

$

Not available

13

Electrolux/AYP 165287

Gasket Muffler
(Superseded to 532272250)

$18.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 13280336

Nipple Pipe 4-12"
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

15

Electrolux/AYP 13200300

Elbow Std 90 Degree 3/8-18 Npt
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

16

Electrolux/AYP 11050600

Washer Lock Ext Tooth 3/8
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 17490624

Screw Thdrol 3/8-16 x 1-1/2 Tytt
(Superseded to 817060624)

$7.49

$

In Stock, only 1 left!

0

23

Electrolux/AYP 169837

Shield Brn/Dbr Guard
(Superseded to 532169837)

$10.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 145996

Control Choke
(Superseded to 532145996)

$

$

Not available

26

Electrolux/AYP 73920600

Nut Keps 3/8-24 UNF
(Superseded to 873920600)

$3.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 152927

Screw TT #10-32.5 3/8 Flange
(Superseded to 532152927)

$7.49

$

In Stock, only 2 left!

0

29

Electrolux/AYP 137180

Arrestor Spark
(Superseded to 532137180)

$

$

Not available

31

Electrolux/AYP 161911

Tank Fuel Front 2.00
(Superseded to 532180645)

$

$

Not available

32

Electrolux/AYP 140527

Cap Fuel
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 123487X

Clamp Hose Blk
(Superseded to 532123487)

$7.49

$

In Stock, only 4 left!

0

37

Electrolux/AYP 137040

Line Fuel
(Superseded to 532137040)

$6.49

$

Usually ships in 3-10 days

0

38

Plug Oil Drain

Note: (Order from engine manufacturer)

$

$

Not available

40

Murray 124028X

Bushing Snap Nyl Blk Fuel Line

$

$

Not available

44

Electrolux/AYP 17670412

Screw Hex wsh Thdrol 1/4-20 x 3/4
(Superseded to 817670412)

$6.49

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 17000612

Screw Hex Wsh Thdr 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 19091416

Washer 9/32 x 7/8 x 16 Ga.
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

81

Murray 73510400

Nut Keps Hex 1/4-20 Unc
(Superseded to 873640400)

$

$

Not available
