Q 12538 A - Quality Lawn Tractor (2000) Chassis Parts Diagram

Lawn Tractor

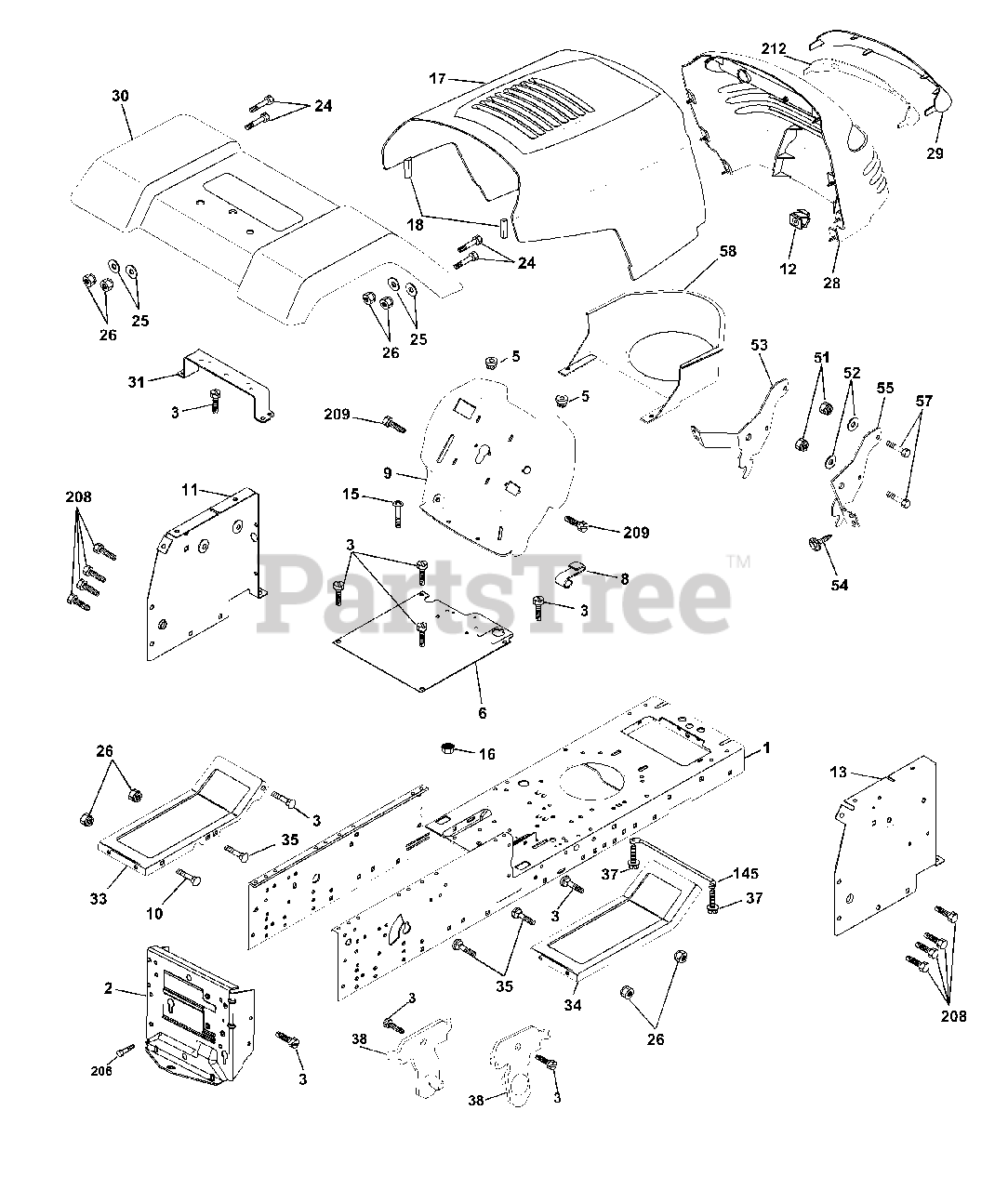

Chassis Parts Diagram

  • Title

$

$

Not available

2

Electrolux/AYP 169061

Drawbar, Stretch
(Superseded to 532176554)

$43.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 17060612

Screw 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

4

Electrolux/AYP 19131216

Washer 13/32 X 3/4 X 16 Ga.
(Superseded to 819131216)

$

$

Not available

5

Electrolux/AYP 155272

Bumper, Hood/Dash
(Superseded to 532155272)

$7.49

$

In Stock, only 3 left!

0

6

Electrolux/AYP 155924X011

Saddle Silkscreen Flt Sdl
(Superseded to 584372201)

$12.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 155138

Clip Retainer Slide-On
(Superseded to 532155138)

$4.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 168347X011

Dash
(Superseded to 532172170)

$31.99

$

Usually ships in 3-10 days

0

10

Murray 72140608

Bolt, Carriage 3/8-16 x 1

$

$

Not available

11

Electrolux/AYP 155927

Panel Dash LH
(Superseded to 174996)

$

$

Not available

12

Electrolux/AYP 145660

Clip Tinnerman Grille P.L
(Superseded to 532145660)

$3.49

$

In Stock, only 1 left!

0

13

Electrolux/AYP 172107X010

Panel Slkscr Dash RH

$

$

Not available

14

Electrolux/AYP 17490608

Screw Thdrol 3/8-16x1/2 Ty-tt
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 74180512

Screw Mach TRHD 5/16-18uncx3/4
(Superseded to 874180512)

$

$

Not available

16

Electrolux/AYP 73510500

Nut Keps 5/16-18 Unc

$2.99

$

Usually ships in 3-10 days

0

$

$

Not available

18

Electrolux/AYP 126938X

Bumper Hood
(Superseded to 532126938)

$

$

Not available

24

Electrolux/AYP 74780616

Bolt Fin Hex 3/8-16unc X 1 Gr. 5
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 19131312

Washer 13/32 X 13/16 X 12 Ga
(Superseded to 596133201)

$6.99

$

In Stock, Qty 5

0

26

Electrolux/AYP 73800600

Nut Lock Hex w/Ins 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 157373

Grille P.L Ms 428
(Superseded to 532179101)

$

$

Not available

29

Electrolux/AYP 140273X599

Lens Grille Private Label
(Superseded to 532140273)

$

$

Not available

$75.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 136619

Bracket Fender Repl 109873x
(Superseded to 532136619)

$

$

Not available

33

Electrolux/AYP 105476X602

Footrest Pnt LH Perf

$

$

Not available

34

Electrolux/AYP 105475X602

Footrest Pnt RH Perf

$

$

Not available

35

Electrolux/AYP 72110606

Bolt Rdhd Sht Sqnk 3/8-16 X3/4
(Superseded to 872110606)

$4.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 17490508

Screw Thdrol 5/16-18 x 1/2 TYT
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 169834

Bracket Asm. Pivot Mower Rear
(Superseded to 532175710)

$11.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 73800400

Nut Lock W/Insert 1/4-20unc
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 19091416

Washer 9/32 x 7/8x16 Ga.
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 144697

Bracket Grille Lh
(Superseded to 532144697)

$

$

Not available

54

Electrolux/AYP 161464

Screw Hex 8-18 x 7/8
(Superseded to 532161464)

$

$

Not available

55

Electrolux/AYP 144696

Bracket Grille Rh
(Superseded to 532144696)

$

$

Not available

57

Electrolux/AYP 74780412

Bolt Fin Hex 1/4-20 unc x .75
(Superseded to 874780412)

$

$

Not available

58

Electrolux/AYP 150127

Duct Air Engine PL/LT
(Superseded to 532150127)

$

$

Not available

145

Electrolux/AYP 156524

Rod Pivot Chassis/Hood
(Superseded to 532409167)

$13.99

$

In Stock, only 2 left!

0

206

Electrolux/AYP 170165

Bolt Shoulder 5/16-18
(Superseded to 532170165)

$4.99

$

In Stock, Qty 5

0

208

Electrolux/AYP 17670608

Screw Thdrol 3/8-16 x 1/2
(Superseded to 817670608)

$6.49

$

Usually ships in 3-10 days

0

209

Electrolux/AYP 17000612

Screw Hex Wsh Thdrol 3/8-16
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

Electrolux/AYP 5479J

Plug Button Blk 359 Dia Choke
(Superseded to 532005479)

$5.99

$

Usually ships in 3-10 days

0

212

UNKNOWN

$

$

Not available
