PZT 60 (966613503-00) - Husqvarna Zero-Turn Mower (2015-06) IGNITION SYSTEM Parts Diagram

Zero-Turn Mower

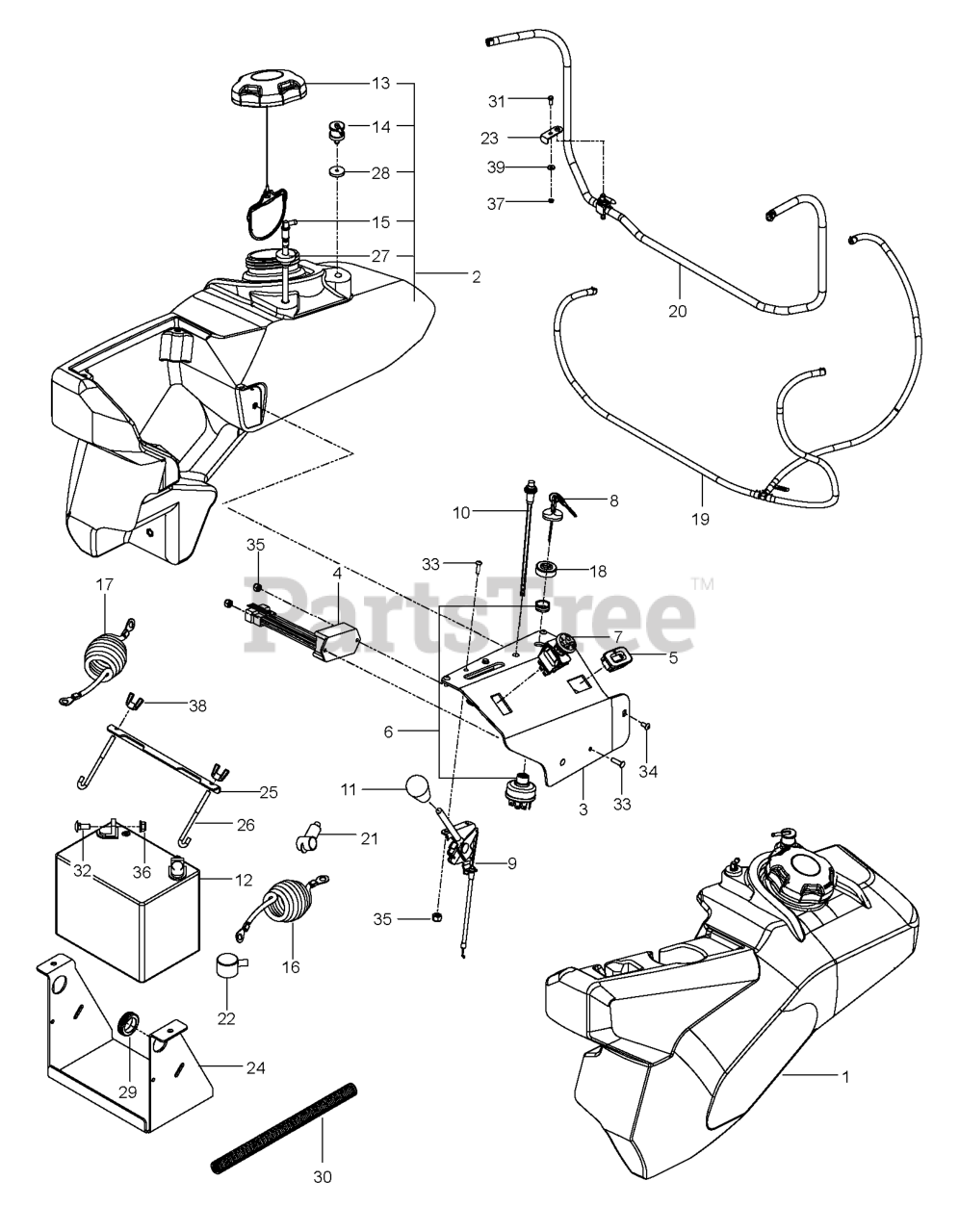

IGNITION SYSTEM Parts Diagram

  • Title

3

Husqvarna 529280202

PANEL.CONTROL.GAS.GRAY
(Superseded to 592979103)

$31.99

$

Usually ships in 3-10 days

0

16

Husqvarna 522718701

CABLE, POSITIVE, 55"

$26.99

$

In Stock, only 2 left!

0

19

Husqvarna 587593407

HOSE.ASM.VAPOR.LINE.36-10-21

$14.99

$

Usually ships in 3-10 days

0

6

Husqvarna 574455401

SWITCH, IGNITION, INDAK

$34.99

$

Usually ships in 3-10 days

0

17

Husqvarna 522710701

CABLE, NEG, 55"

$34.99

$

Usually ships in 3-10 days

0

5

Husqvarna 586161801

GUAGE.SRVCMNDR.HRMTR.
(Superseded to 594919101)

$24.99

$

In Stock, Qty 5

0

37

Husqvarna 539108120

JAM NUT 1/4C (2 2 PW01)
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

13

Husqvarna 575018101

CAP, FUEL
(Superseded to 575018103)

$34.99

$

Usually ships in 3-10 days

0

25

Husqvarna 510030001

BRACKET, BATTERY MOUNT

$51.99

$

In Stock, only 1 left!

0

38

Husqvarna 539990997

WING NUT 1/4

$3.49

$

Usually ships in 3-10 days

0

26

Husqvarna 510064001

HOOK, "J"

$

$

Not available

35

Husqvarna 539976977

NUT 10-24 NYLOC

$

$

Not available

29

Husqvarna 539105974

RUBBER GROMMET

$

$

Not available

12

Husqvarna 539102436

BATTERY, 12 V 330 AMP
(Superseded to 579411601)

$

$

Not available

11

Husqvarna 539132624

KNOB - SHIFT

$7.99

$

In Stock, Qty 6

0

30

Husqvarna 574235301

LOOM, SPLIT, CONVOLUTED

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 582031201

BATTERY.CABLE.BOOT.RED.MZ.PZ.E

$4.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539990598

WASHER 1/4 FLAT

$

$

Not available

4

Husqvarna 574514001

TIMER, SEAT

$120.99

$

In Stock, only 1 left!

0

32

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 582107602

RP SWITCH.PTO.TERMINAL.STD.RED
(Superseded to 582107601)

$28.99

$

In Stock, Qty 8

0

34

Husqvarna 539114341

SCR #10-24 X 3/8 SKT HD BLK OX

$4.99

$

In Stock, only 3 left!

0

8

Husqvarna 574455501

KEY, IGNITION

$6.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 510029902

BRACKET, BATTERY, BLK

$84.99

$

Usually ships in 3-10 days

0

1

Husqvarna 584280301

FUEL TANK LH PZ GRAY
(Superseded to 589997102)

$626.99

$

Usually ships in 3-10 days

0

23

Husqvarna 577104002

BRACKET,FUEL VALVE, BLACK

$15.99

$

Usually ships in 3-10 days

0

28

Husqvarna 576618201

GROMMET, CHECK VALVE
(Superseded to 584648201)

$4.99

$

In Stock, Qty 20+

0

20

Husqvarna 577150501

ASSEMBLY, FUEL LINE

$48.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539105245

RUBBER GROMMET

$4.99

$

In Stock, Qty 11

0

21

Husqvarna 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

36

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

18

Husqvarna 539103178

CAP IGNITION NUT

$4.99

$

Usually ships in 3-10 days

0

33

Husqvarna 574822701

SCR #10-24 X .75 SKT HD BLK

$4.99

$

In Stock, Qty 6

0

Husqvarna 587449901

HARNESS.MAIN.PZ.W/MIL

Note: NOT SHOWN

$250.99

$

Usually ships in 3-10 days

0

14

Husqvarna 576618101

VALVE.FUEL.CHECK

$25.99

$

In Stock, Qty 16

0

2

Husqvarna 584280401

FUEL TANK ASM RH GRAY PZ

$

$

Not available

9

Husqvarna 574207001

CABLE, THROTTLE, 46"

$53.99

$

In Stock, only 1 left!

0

15

Husqvarna 525865401

FITTING, FUEL

$34.99

$

In Stock, only 2 left!

0

10

Husqvarna 581878301

LED.LIGHT.SERVICE.EFI

$91.99

$

In Stock, only 3 left!

0
