PZT 54 (966613402-01) - Husqvarna Zero-Turn Mower (2012-08) MOWER DECK / CUTTING DECK Parts Diagram

Zero-Turn Mower

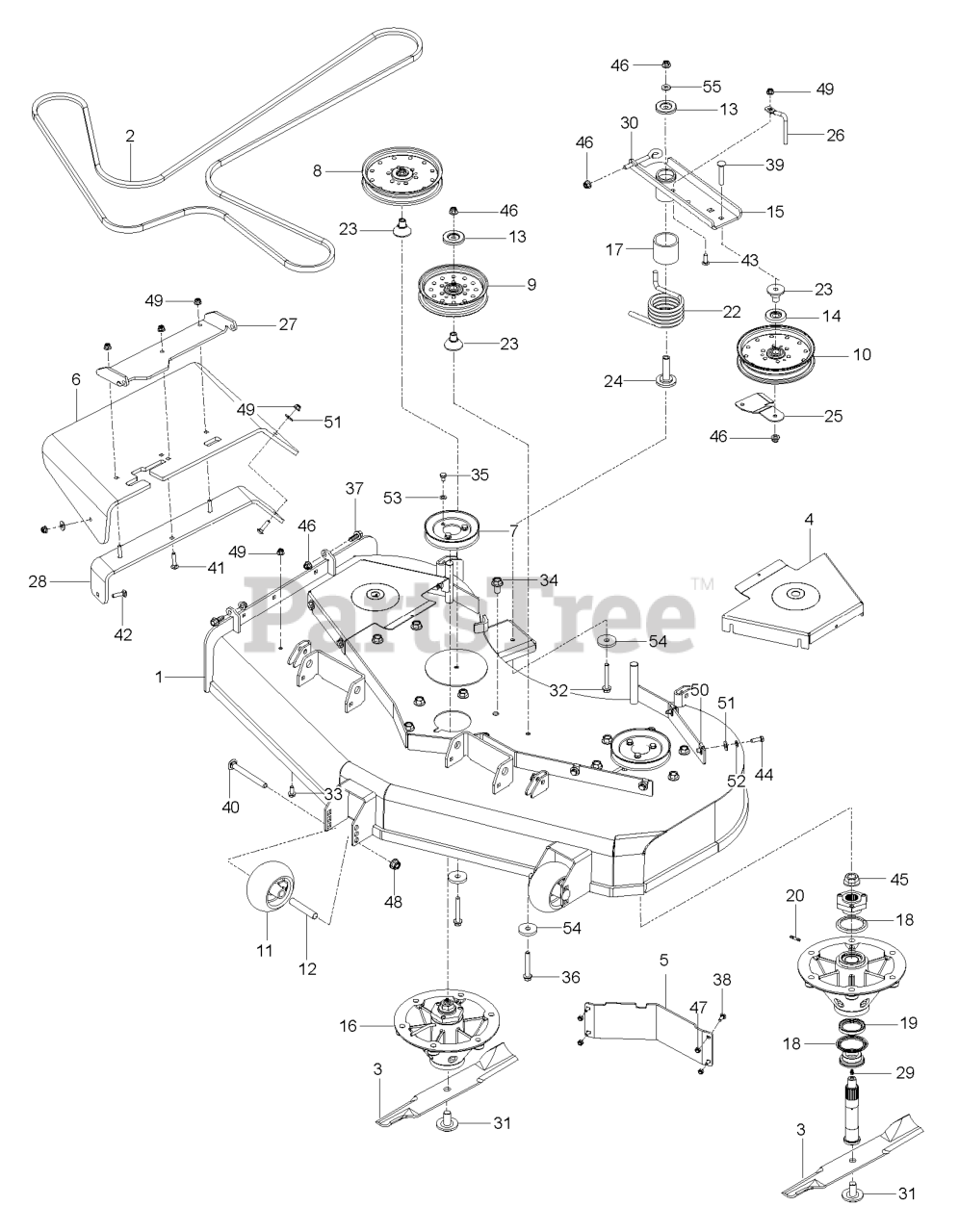

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
36

Husqvarna 539131781

HHFS 3/8-16 X 2 3/4

$5.99

$

In Stock, only 2 left!

0

30

Husqvarna 574202001

EYE BOLT, 3/8 X 4"

$

$

Not available

13

Husqvarna 510254501

DUST SHIELD

$

$

Not available

17

Husqvarna 525465601

SPACER, IDLER PIVOT

$10.99

$

In Stock, only 1 left!

0

1

Husqvarna 581497802

DECK.SHELL.54".FAB.W/DECALS
(Superseded to 588127605)

$2426.99

$

Usually ships in 3-10 days

0

33

Husqvarna 525464701

HHFS 5/16-18 X 3/4

$3.99

$

In Stock, only 1 left!

0

34

Husqvarna 574210601

HHFS 1/2-13 X 1 GR5 ZD

$

$

Not available

11

Husqvarna 574169601

ROLLER, GAUGE .635 BORN

$17.99

$

Usually ships in 3-10 days

0

16

Husqvarna 580943301

SPINDLE ASM. 10" ALUMINUM
(Superseded to 580943305)

$241.99

$

In Stock, only 1 left!

0

3

Husqvarna 581055502

BLADE 19" HIGH LIFT (3 2)

$28.99

$

In Stock, only 3 left!

0

9

Husqvarna 510019601

PULLEY IDLER, 6" NARROW

$

$

Not available

24

Husqvarna 522729701

BEARING, IDLER PIVOT

$9.49

$

In Stock, only 1 left!

0

50

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 9

0

5

Husqvarna 510437502

BAFFLE, DIVERTER 54"/60" LH

$60.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539115620

1/4-20X3/4 CARR BLT
(Superseded to 596238401)

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 580942601

SEAL SHAFT

$6.99

$

In Stock, only 2 left!

0

52

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

28

Husqvarna 525486002

BRKT, CHUTE SUPPORT BLACK

$79.99

$

In Stock, only 1 left!

0

42

Husqvarna 539100472

BOLT, CARRIAGE 5/16X1-1/4

$3.99

$

In Stock, Qty 20+

0

32

Husqvarna 539101686

HCS 3/8-16 X 4-1/2 GR 8 ZD

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539102933

RHSNB 5/16-18 X 1-1/2 GR 5 ZD

$

$

Not available

51

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

46

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

14

Husqvarna 510262201

SHIELD, DUST

$

$

Not available

10

Husqvarna 510015101

PULLEY - IDLER 7"

$

$

Not available

22

Husqvarna 525310901

SPRING, TORSION, IDLER

$121.99

$

Usually ships in 3-10 days

0

4

Husqvarna 510131202

SHIELD,BELT, 60" ORANGE

$68.99

$

Usually ships in 3-10 days

0

8

Husqvarna 525598201

PULLEY - 7" NARROW

$

$

Not available

12

Husqvarna 574196401

TUBE, ROLLER AXLE

$

$

Not available

54

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

49

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

26

Husqvarna 574262201

BELT KEEPER

$

$

Not available

35

Husqvarna 539130315

HCS 5/16-18 X 1/2 GR 5 ZD

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 575658401

RP_BELT, "5V", 169.75"
(Superseded to 588264802)

$148.99

$

In Stock, only 1 left!

0

25

Husqvarna 574262102

BELT.GUIDE.BLACK

$34.99

$

Usually ships in 3-10 days

0

23

Husqvarna 510263701

BEARING, IDLER ARM

$6.99

$

In Stock, Qty 9

0

55

Husqvarna 522023401

WASHER, 3/8 THICK

$4.99

$

In Stock, Qty 20+

0

40

Husqvarna 510022301

RHSNB 1/2-13 X 4.75 GR5 ZD

$

$

Not available

18

Husqvarna 580942701

SEAL V-RING 55MM

$4.99

$

In Stock, only 2 left!

0

53

Husqvarna 539109600

WASH 5/16 DISC SPRING ZD

$

$

Not available

27

Husqvarna 574197002

BRKT - CHUTE MTG BLACK

$78.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

43

Husqvarna 539107271

RHSSNB 5/16C X 1.0
(Superseded to 596435701)

$3.99

$

In Stock, Qty 6

0

31

Husqvarna 539119007

BLADE BOLT/WASHER

$10.99

$

In Stock, only 3 left!

0

20

Husqvarna 580943001

ADAPTER, FITTING, TUB

$3.99

$

In Stock, only 1 left!

0

48

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

6

Husqvarna 525485801

CHUTE, DISCHARGE 48-52

$85.99

$

In Stock, only 1 left!

0

37

Husqvarna 525612801

HHFS 3/8-16 X 1 GRD 5 ZD

$

$

Not available

39

Husqvarna 539128101

CARRIAGE BOLT 3/8-16 X

$

$

Not available

44

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539130653

NUT FLANGE 3/4-16
(Superseded to 598490501)

$9.49

$

In Stock, only 2 left!

0

15

Husqvarna 525464402

IDLER.ARM.BLACK

$109.99

$

Usually ships in 3-10 days

0

$56.99

$

Usually ships in 3-10 days

0

7

Husqvarna 521979701

PULLEY - 5.93 OVER PINS

$26.99

$

In Stock, only 1 left!

0
