PZT 48 (966663802) - Husqvarna 48" Zero-Turn Mower, CARB (2012-08) MOWER LIFT / DECK LIFT Parts Diagram

48" Zero-Turn Mower, CARB

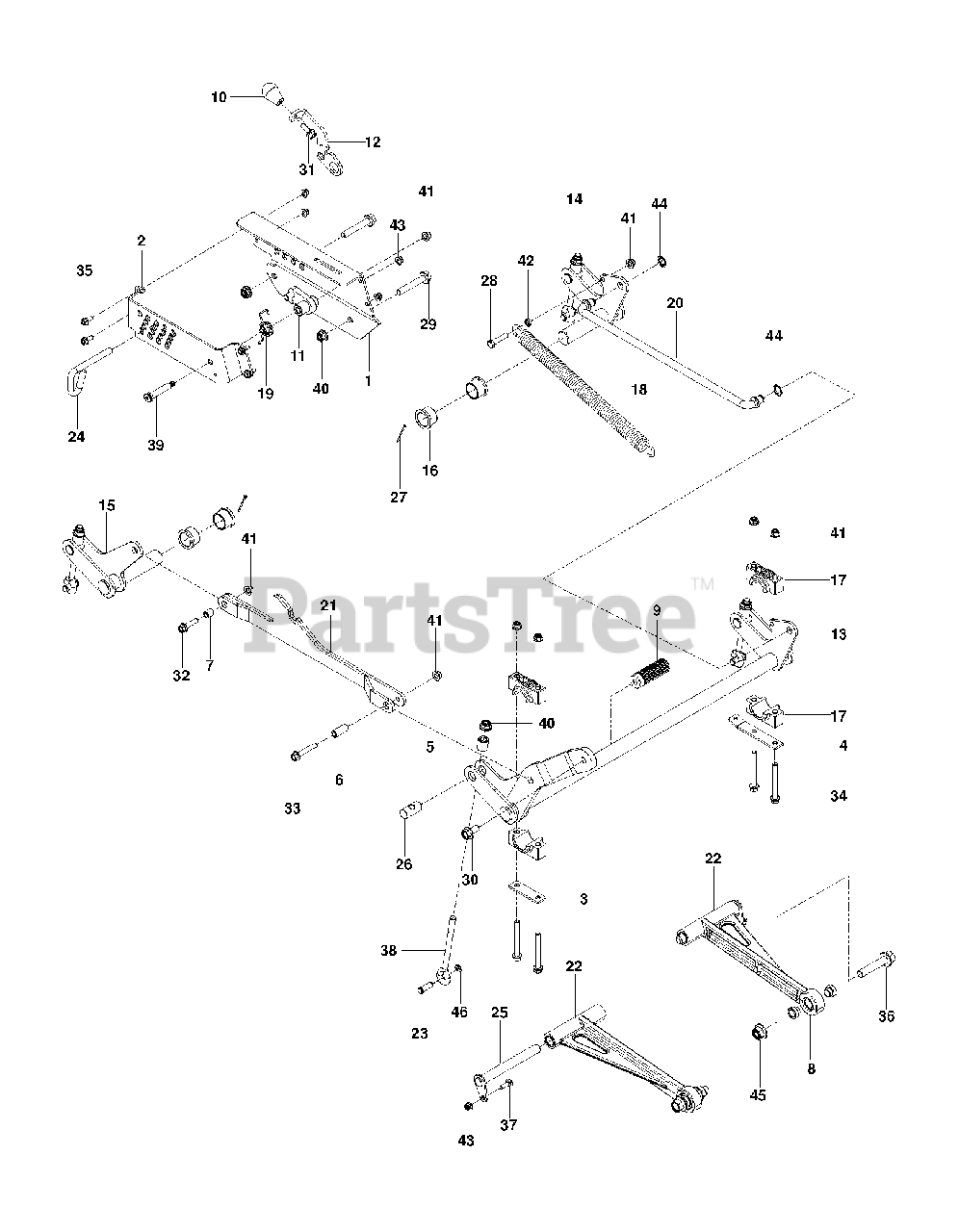

MOWER LIFT / DECK LIFT Parts Diagram

  • Title

1

Husqvarna 576480002

PLATE, HEIGHT INNER ORG

$

$

Not available

2

Husqvarna 576480102

PLATE, HEIGHT OUTER ORG

$68.99

$

Usually ships in 3-10 days

0

3

Husqvarna 525822201

PLATE, PILLOW BLACK
(Superseded to 593634102)

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 576646701

PLATE, SPRING ANCHOR

$9.49

$

Usually ships in 3-10 days

0

5

Husqvarna 576485801

SPACER, EYEBOLT

$

$

Not available

6

Husqvarna 576623101

SPACER, FRONT LIFT STRAP

$

$

Not available

7

Husqvarna 576623001

SPACER, REAR LIFT STRAP

$

$

Not available

8

Husqvarna 510362501

SPACER, STRUT

$7.49

$

Usually ships in 3-10 days

0

9

Husqvarna 510408301

PEDAL, DECK HEIGHT

$

$

Not available

10

Husqvarna 539132624

KNOB - SHIFT

$7.99

$

In Stock, Qty 6

0

11

Husqvarna 510406801

LATCH, TRANSPORT WLDMT

$

$

Not available

12

Husqvarna 576638901

LEVER, TRANSPORT RELEASE

$22.99

$

Usually ships in 3-10 days

0

13

Husqvarna 576479201

SHAFT DECK LIFT FT
(Superseded to 583623801)

$250.99

$

Usually ships in 3-10 days

0

14

Husqvarna 576479901

SHAFT, LIFT LEFT REAR

$145.99

$

Usually ships in 3-10 days

0

15

Husqvarna 576479401

SHAFT, LIFT RIGHT REAR

$157.99

$

Usually ships in 3-10 days

0

16

Husqvarna 510089401

BUSHING, FLANGE 1.25 X 1.0

$20.99

$

Usually ships in 3-10 days

0

17

Husqvarna 510023902

BLOCK, PILLOW

$14.99

$

In Stock, only 1 left!

0

18

Husqvarna 576676601

SPRING, EXTENSION

$30.99

$

Usually ships in 3-10 days

0

19

Husqvarna 510376601

SPRING, TORSION

$3.99

$

In Stock, only 2 left!

0

20

Husqvarna 510089801

ROD, LIFT

$113.99

$

Usually ships in 3-10 days

0

21

Husqvarna 576622601

WELDMT, DECK STRAP

$78.99

$

In Stock, only 2 left!

0

22

Husqvarna 510106501

ASSEMBLY, STRUT

$121.99

$

Usually ships in 3-10 days

0

23

Husqvarna 510090101

PIN, 7/16 CLEVIS

$

$

Not available

24

Husqvarna 510016501

PIN, HEIGHT

$14.99

$

Usually ships in 3-10 days

0

25

Husqvarna 515988201

PIN, STRUT

$24.99

$

Usually ships in 3-10 days

0

26

Husqvarna 576485601

PIN, TRUNION, EYEBOLT

$

$

Not available

27

Husqvarna 539102889

COTTER PIN 1/8 X 2
(Superseded to 539124704)

$

$

Not available

28

Husqvarna 539990730

HCS 3/8-16 X 1 3/4 GR5

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 525828901

HFFS 1/2-13 X 3 GD 5 ZD

$6.49

$

Usually ships in 3-10 days

0

30

Husqvarna 574210601

HHFS 1/2-13 X 1 GR5 ZD

$

$

Not available

31

Husqvarna 525612801

HHFS 3/8-16 X 1 GRD 5 ZD

$

$

Not available

32

Husqvarna 576621601

HHFS 3/8-16 X 1.50 GR5 ZD

$

$

Not available

33

Husqvarna 574496901

HHFS 3/8-16 X 2-1/4 GR 5 ZD
(Superseded to 577098301)

$6.99

$

In Stock, only 3 left!

0

34

Husqvarna 525822101

HHFS 3/8-16 X 3.5 GD 5 ZD

$7.49

$

Usually ships in 3-10 days

0

35

Husqvarna 525464701

HHFS 5/16-18 X 3/4

$3.99

$

In Stock, only 1 left!

0

36

Husqvarna 525829001

HHFS 5/8-11 X 3.0 GD 8 ZD

$31.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 576479001

EYEBOLT, DECK LIFT

$

$

Not available

39

Husqvarna 516035501

BOLT, SHOULDER, 1/2 X 2.25

$4.99

$

Usually ships in 3-10 days

0

40

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

41

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

42

Husqvarna 539109332

NUT 3/8-16 HEX JAM
(Superseded to 596433501)

$3.99

$

In Stock, only 3 left!

0

43

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

44

Husqvarna 539109304

NUT 5/8 PUSH
(Superseded to 532429164)

$6.49

$

In Stock, only 2 left!

0

45

Husqvarna 525829101

NUT 5/8-11 FLG NYLOC ZD

$4.99

$

In Stock, only 3 left!

0

46

Husqvarna 522705201

RING, E, 7/16

$4.99

$

In Stock, only 1 left!

0
