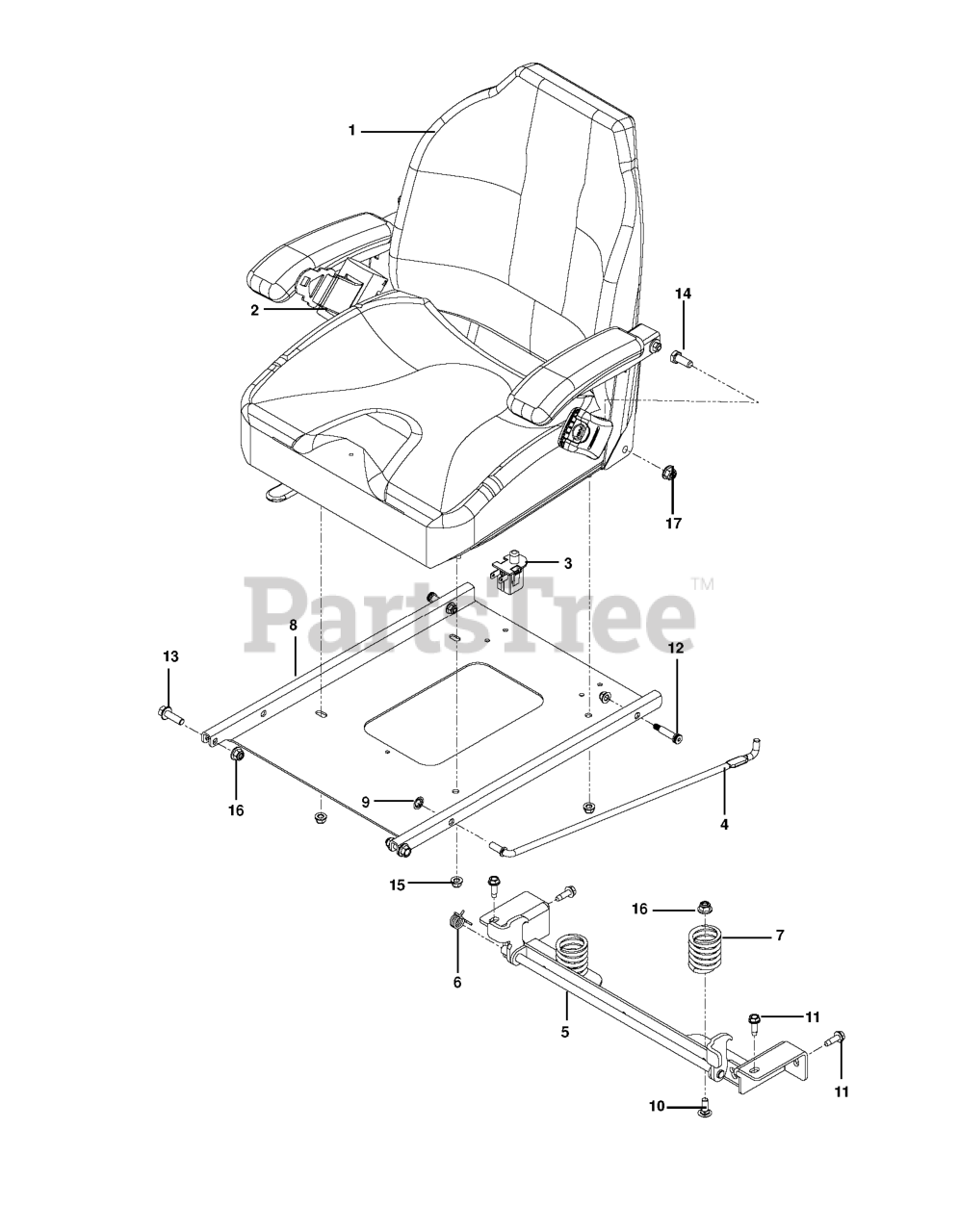

PZT 26 BF (966613701-02) - Husqvarna Zero-Turn Mower (2012-06) SEAT Parts Diagram

Zero-Turn Mower

SEAT Parts Diagram

  • Title

14

Husqvarna 539100143

HCS 7/16-14 X 1 GR 5 ZD

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 525834201

HHFS 3/8-16 X 1.25 GD 5

$

$

Not available

10

Husqvarna 539990645

RHSNB 3/8C X 1

$

$

Not available

16

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

15

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

12

Husqvarna 515990601

BOLT, SHOULDER 3/8 X 1.25

$3.99

$

In Stock, only 2 left!

0

4

Husqvarna 510064101

ROD, SEAT

$10.99

$

Usually ships in 3-10 days

0

8

Husqvarna 510039302

PAN, SEAT, BLACK

$145.99

$

Usually ships in 3-10 days

0

1

Husqvarna 576702001

SEAT.907.VINYL.HUSQVARNA
(Superseded to 501580402)

$797.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539913847

NUT 3/8 PALNUT RTNG BLK PHOS

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539110300

SPRING, SEAT
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

5

Husqvarna 574182202

LATCH.SEAT.BLACK

$267.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539119741

SEAT SWITCH
(Superseded to 532421062)

$14.99

$

In Stock, only 2 left!

0

11

Husqvarna 539113226

RP BLT 5/16-18 X 1 THRD FORM D
(Superseded to 593337201)

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 520283101

SPRING, TORSION

$3.99

$

In Stock, only 1 left!

0

17

Husqvarna 539132019

NUT 7/16-14 HEX WHIZ LK
(Superseded to 873900700)

$7.49

$

In Stock, Qty 14

0

2

Husqvarna 576783401

BELT, SEAT

$96.99

$

Usually ships in 3-10 days

0
