PZ 7234 FX (966614701-00) - Husqvarna 72" Zero-Turn Mower (2011-01) MOWER DECK / CUTTING DECK Parts Diagram

72" Zero-Turn Mower

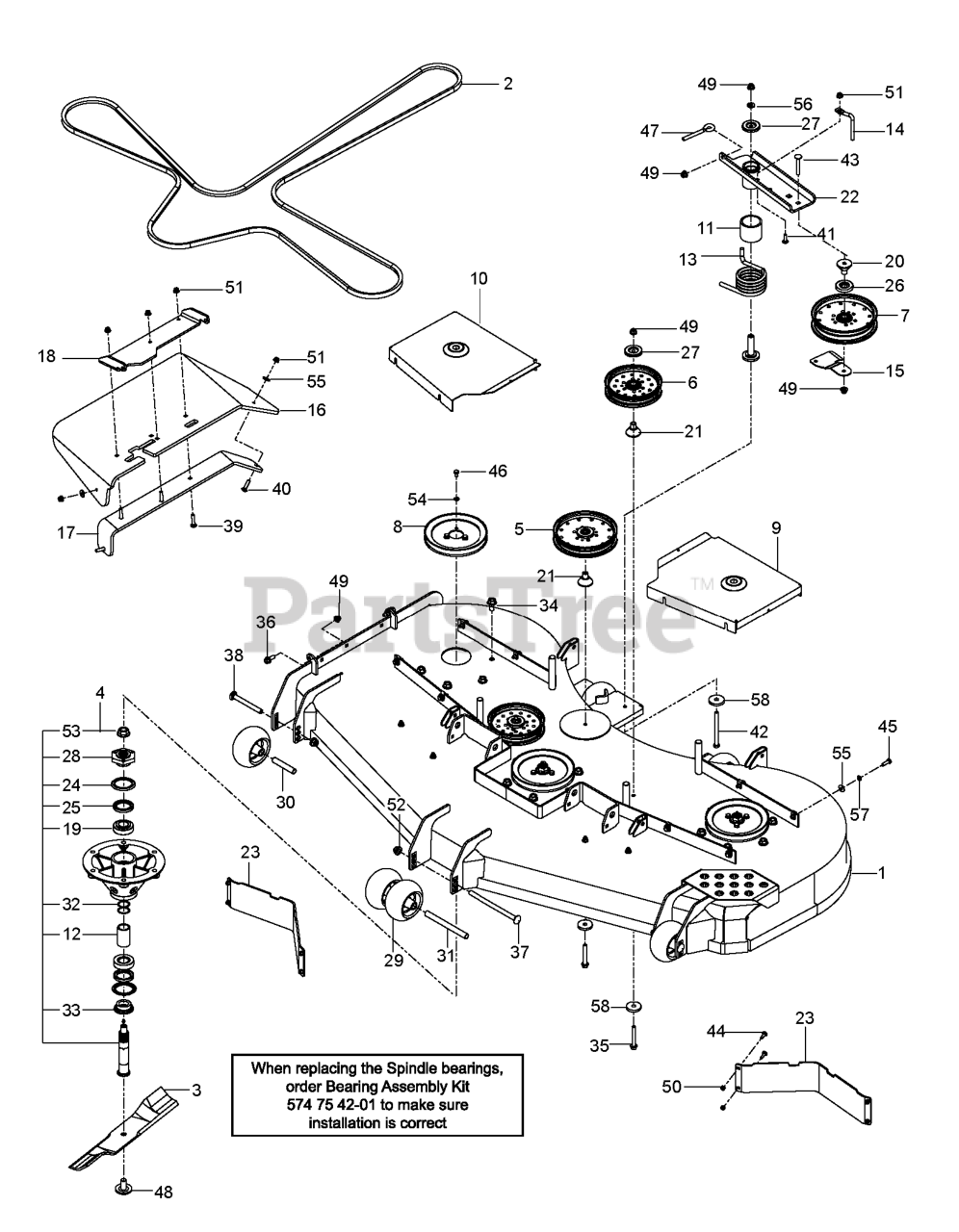

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

39

Husqvarna 539102933

RHSNB 5/16-18 X 1-1/2 GR 5 ZD

$

$

Not available

36

Husqvarna 525612801

HHFS 3/8-16 X 1 GRD 5 ZD

$

$

Not available

9

Husqvarna 525426302

SHIELD, BELT 72 R.H. ORANGE

$113.99

$

Usually ships in 3-10 days

0

37

Husqvarna 872140864

RHSNB 1/2-13 X 8 GR5 ZD

$4.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539100472

BOLT, CARRIAGE 5/16X1-1/4

$3.99

$

In Stock, Qty 20+

0

41

Husqvarna 872110508

BOLT CRT

$4.99

$

Usually ships in 3-10 days

0

47

Husqvarna 574202001

EYE BOLT, 3/8 X 4"

$

$

Not available

7

Husqvarna 510015101

PULLEY - IDLER 7"

$

$

Not available

1

Husqvarna 588127601

DECK SVC W/DECALS PZ 72"

Note: w/ SAFETY DECALS

$3761.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539130647

PULLEY - 7.50

$34.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539101686

HCS 3/8-16 X 4-1/2 GR 8 ZD

$3.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539130315

HCS 5/16-18 X 1/2 GR 5 ZD

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 510263701

BEARING, IDLER ARM

$6.99

$

In Stock, Qty 9

0

29

Husqvarna 574169601

ROLLER, GAUGE .635 BORN

$17.99

$

Usually ships in 3-10 days

0

11

Husqvarna 525465601

SPACER, IDLER PIVOT

$10.99

$

In Stock, only 1 left!

0

21

Husqvarna 522729701

BEARING, IDLER PIVOT

$9.49

$

In Stock, only 1 left!

0

31

Husqvarna 574196501

TUBE, ROLLER AXLE LONG

$14.99

$

Usually ships in 3-10 days

0

12

Husqvarna 580942301

SPACER

$10.99

$

In Stock, only 4 left!

0

15

Husqvarna 574262102

BELT.GUIDE.BLACK

$34.99

$

Usually ships in 3-10 days

0

Husqvarna 525544701

BLADE, 25" GATOR, 1.25 LIFT

Note: OPTIONAL

$45.99

$

Usually ships in 3-10 days

0

19

Husqvarna 580941801

BEARING
(Superseded to 583911101)

$51.99

$

Usually ships in 3-10 days

0

18

Husqvarna 574197002

BRKT - CHUTE MTG BLACK

$78.99

$

Usually ships in 3-10 days

0

33

Husqvarna 580942501

SEAL

$9.49

$

In Stock, only 2 left!

0

48

Husqvarna 539119007

BLADE BOLT/WASHER

$10.99

$

In Stock, only 3 left!

0

32

Husqvarna 580942801

SHIM

$3.49

$

Usually ships in 3-10 days

0

26

Husqvarna 510262201

SHIELD, DUST

$

$

Not available

24

Husqvarna 580942701

SEAL V-RING 55MM

$4.99

$

In Stock, only 2 left!

0

22

Husqvarna 574722201

ASSY, IDLER ARM, PZ

$121.99

$

Usually ships in 3-10 days

0

23

Husqvarna 574221802

BAFFLE, DIVERTER 72" BLACK

$37.99

$

Usually ships in 3-10 days

0

51

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

17

Husqvarna 525485902

BRKT - CHUTE SUPPORT BLACK

$74.99

$

Usually ships in 3-10 days

0

55

Husqvarna 819121414

WASHER.5/16.FLAT.STE.STD.
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

3

Husqvarna 539105476

BLADE OEM - 25"

$39.99

$

In Stock, Qty 20+

0

Husqvarna 574860902

BLADE, WAVY MULCH, 25"

Note: OPTIONAL

$34.99

$

Usually ships in 3-10 days

0

13

Husqvarna 525310901

SPRING, TORSION, IDLER

$121.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539115620

1/4-20X3/4 CARR BLT
(Superseded to 596238401)

$3.99

$

Usually ships in 3-10 days

0

52

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

30

Husqvarna 574196401

TUBE, ROLLER AXLE

$

$

Not available

10

Husqvarna 525426102

SHIELD, BELT 72 LH ORANGE

$96.99

$

In Stock, only 1 left!

0

49

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

14

Husqvarna 574262201

BELT KEEPER

$

$

Not available

38

Husqvarna 510022301

RHSNB 1/2-13 X 4.75 GR5 ZD

$

$

Not available

5

Husqvarna 525598201

PULLEY - 7" NARROW

$

$

Not available

43

Husqvarna 539128101

CARRIAGE BOLT 3/8-16 X

$

$

Not available

25

Husqvarna 580942601

SEAL SHAFT

$6.99

$

In Stock, only 2 left!

0

6

Husqvarna 510019601

PULLEY IDLER, 6" NARROW

$

$

Not available

58

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

Husqvarna 574481401

BLADE, 25 X 3 X .25 X .75 LIFT
(Superseded to 574860902)

Note: OPTIONAL

$34.99

$

Usually ships in 3-10 days

0

Husqvarna 525341101

BLADE, 25 X 3 X .250, 1.5 LIFT

Note: OPTIONAL

$54.99

$

In Stock, only 2 left!

0

27

Husqvarna 510254501

DUST SHIELD

$

$

Not available

53

Husqvarna 539130653

NUT FLANGE 3/4-16
(Superseded to 598490501)

$9.49

$

In Stock, only 2 left!

0

57

Husqvarna 810030500

WASH.5/16.SLW.ZD
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

16

Husqvarna 525485701

CHUTE, DISCHARGE 60-72

$72.99

$

Usually ships in 3-10 days

0

28

Husqvarna 580942201

HUB

$24.99

$

In Stock, only 1 left!

0

50

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

4

Husqvarna 580943304

RP_SPINDLE.ASM.10".IRON.1/8-27
(Superseded to 580943306)

$363.99

$

In Stock, only 1 left!

0

45

Husqvarna 874780516

BOLT.FIN.HEX.5/16-18UNC X 1.00

$6.49

$

Usually ships in 3-10 days

0

56

Husqvarna 522023401

WASHER, 3/8 THICK

$4.99

$

In Stock, Qty 20+

0

54

Husqvarna 539109600

WASH 5/16 DISC SPRING ZD

$

$

Not available

35

Husqvarna 874490644

HHFS 3/8-16 X 2-3/4 GR5 ZD

$

$

Not available

2

Husqvarna 575658405

RP.BELT, "5V", 201"
(Superseded to 588264804)

$133.99

$

In Stock, only 1 left!

0

34

Husqvarna 574210601

HHFS 1/2-13 X 1 GR5 ZD

$

$

Not available
