PZ 6034 FX ZT (966061301) - Husqvarna 60" Zero-Turn Mower (2010-01) Hydraulic Pump-Motor Parts Diagram

60" Zero-Turn Mower

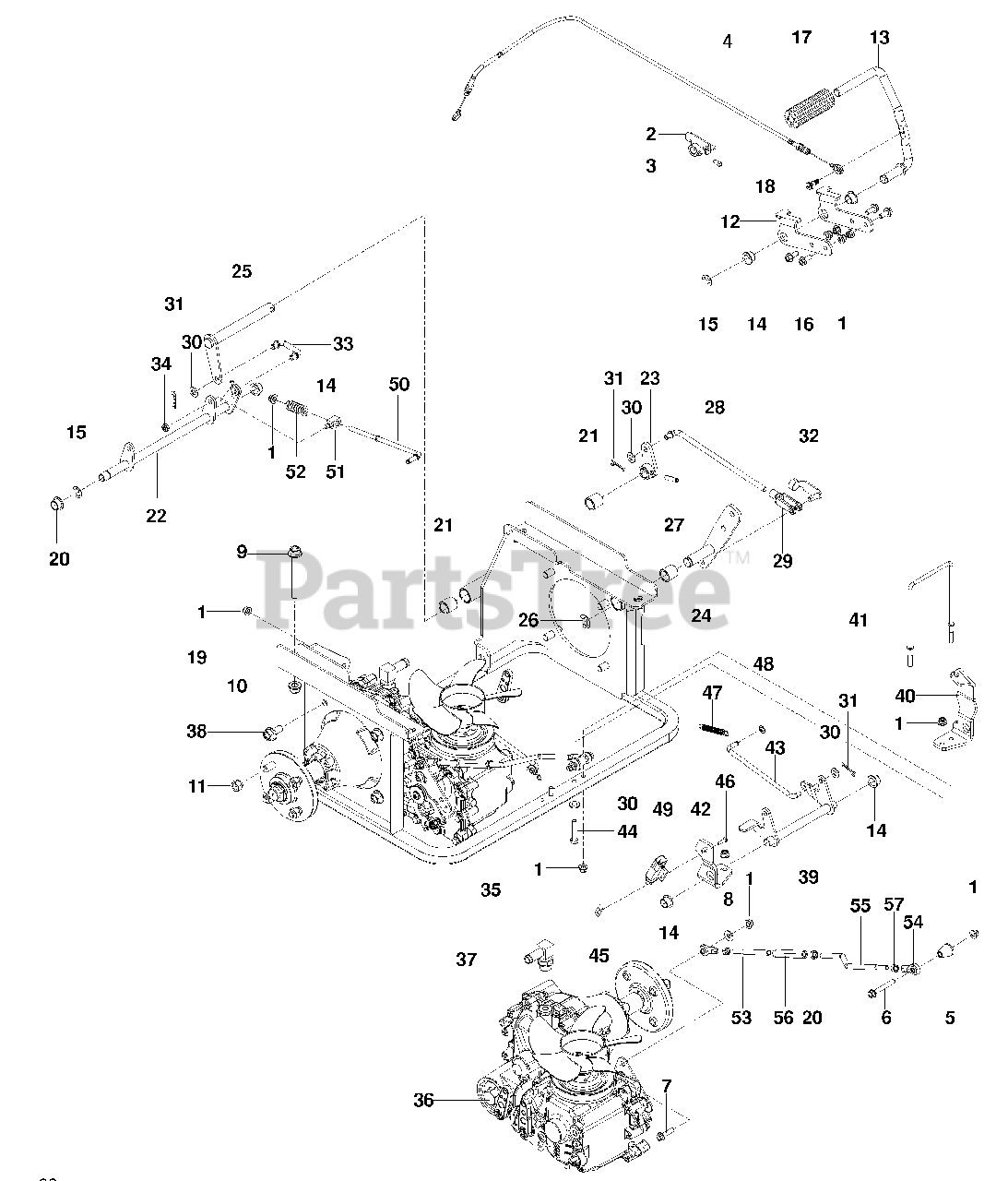

Hydraulic Pump-Motor Parts Diagram

  • Title
1

Husqvarna 539112899

Nut 5/16-18 Hex Flg Nyloc
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

2

Husqvarna 575295603

Bolt 7/16-20 X 1 1/2 Hex Nyl

$

$

Not available

3

Husqvarna 539102717

Screw 5/16-18 Sq Set

$3.99

$

In Stock, only 4 left!

0

4

Husqvarna 527290001

Cable, 2 Speed

$51.99

$

Usually ships in 3-10 days

0

5

Husqvarna 574884001

Spacer 1" Tappered

$

$

Not available

6

Husqvarna 574233801

Screw 5/16-18 X 2 1/4 Hex Flg

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 525544001

Screw 5/16-18 X 1 1/4 Tpblt

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539990692

Washer 5/16 Flt
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

9

Husqvarna 525544801

Bolt 1/2-13 X 4 Hex Flg

$6.49

$

Usually ships in 3-10 days

0

10

Husqvarna 521991101

Nut 1/2-13 Flg Nyloc
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

11

Husqvarna 539101173

Nut 1/2 Lug

$

$

Not available

12

Husqvarna 575303801

Bracket, Pedal

$

$

Not available

13

Husqvarna 575303701

Lever, Pedal

$

$

Not available

14

Husqvarna 574866101

Bushing .625 Flange

$

$

Not available

15

Husqvarna 539105069

E-Ring, .625

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 525464701

Screw 5/16-18 X 3/4 Hex Flg

$3.99

$

In Stock, only 1 left!

0

17

Husqvarna 510089501

Pad, Foot Pedal

$6.49

$

In Stock, Qty 14

0

18

Husqvarna 515990601

Bolt 3/8 X 1 1/4 Shldr

$3.99

$

In Stock, only 2 left!

0

19

Husqvarna 574857502

Frame, Zt5400

$

$

Not available

20

Husqvarna 539108732

Nut 3/8-24 Jam

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 510089201

Bushing, Sleeve 3/4 X 1

$14.99

$

In Stock, only 4 left!

0

22

Husqvarna 574858501

Shaft, Lower

$

$

Not available

23

Husqvarna 510025901

Arm, Rt Brake

$157.99

$

Usually ships in 3-10 days

0

24

Husqvarna 522957701

Lever, Lower Brake

$

$

Not available

25

Husqvarna 574858301

Shaft, Brake

$

$

Not available

26

Husqvarna 539102454

E-Ring 3/4

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539110631

Roll Pin 5/16" Dia.

$3.99

$

In Stock, Qty 16

0

28

Husqvarna 574866301

Linkage, Brake Upper

$

$

Not available

29

Husqvarna 539977465

Yoke 3/8-24

$24.99

$

In Stock, Qty 11

0

30

Husqvarna 539990122

Washer 3/8 Sae Flt
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

31

Husqvarna 539976988

Hairpin Cotter

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 522705901

Pin 3/8 Clevis Spring

$

$

Not available

33

Husqvarna 574866401

Linkage, Brake, Middle

$

$

Not available

34

Husqvarna 539115617

Nut 5/16-18, Nyloc Insert

$

$

Not available

35

Husqvarna 574860801

Zt5400, Left

$

$

Not available

36

Husqvarna 574860802

Zt5400, Right

$

$

Not available

37

Husqvarna 529311401

Fitting, 4601-10-10

$17.99

$

Usually ships in 3-10 days

0

38

Husqvarna 574210601

Screw 1/2-13 X 1 Hex Flg

$

$

Not available

39

Husqvarna 574875701

Crank, Two Speed

$

$

Not available

40

Husqvarna 574876101

Bracket, Two Speed, Lt

$

$

Not available

41

Husqvarna 574882201

Rod, Belt Keeper

$

$

Not available

42

Husqvarna 574876102

Bracket, Two Speed, Rt

$

$

Not available

43

Husqvarna 574876401

Linkage, Two Speed

$

$

Not available

44

Husqvarna 539990669

Bolt 5/16-18 X 1 3/4 Hex Nyl
(Superseded to 874780528)

$7.49

$

In Stock, only 2 left!

0

45

Husqvarna 539102678

Tapped Plate

$15.99

$

In Stock, Qty 9

0

46

Husqvarna 574822701

Screw #10-24 X 3/4 Skt

$4.99

$

In Stock, Qty 6

0

$

$

Not available

48

Husqvarna 539107626

Pushnut
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

49

Husqvarna 575621101

Switch, Plunger, Sealed

$

$

Not available

50

Husqvarna 574866501

Linkage, Brake Lower

$

$

Not available

51

Husqvarna 525851401

Swivel, Brake

$

$

Not available

$13.99

$

Usually ships in 3-10 days

0

53

Husqvarna 522559201

Linkage, Control, Ft

$

$

Not available

54

$27.99

$

In Stock, only 1 left!

0

55

Husqvarna 523022101

Rod, Control

$24.99

$

Usually ships in 3-10 days

0

56

Husqvarna 539109149

Turnbuckle 3/8

$48.99

$

Usually ships in 3-10 days

0

57

Husqvarna 539990223

Nut 5/16-24

$3.99

$

Usually ships in 3-10 days

0

Husqvarna 576127201

Filter W/ O-Ring

Note: Not Shown

$66.99

$

Usually ships in 3-10 days

0
