PZ 6034 FX ZT (966061301) - Husqvarna 60" Zero-Turn Mower (2010-01) 54" Mowing Deck / Cutting Deck Parts Diagram

60" Zero-Turn Mower

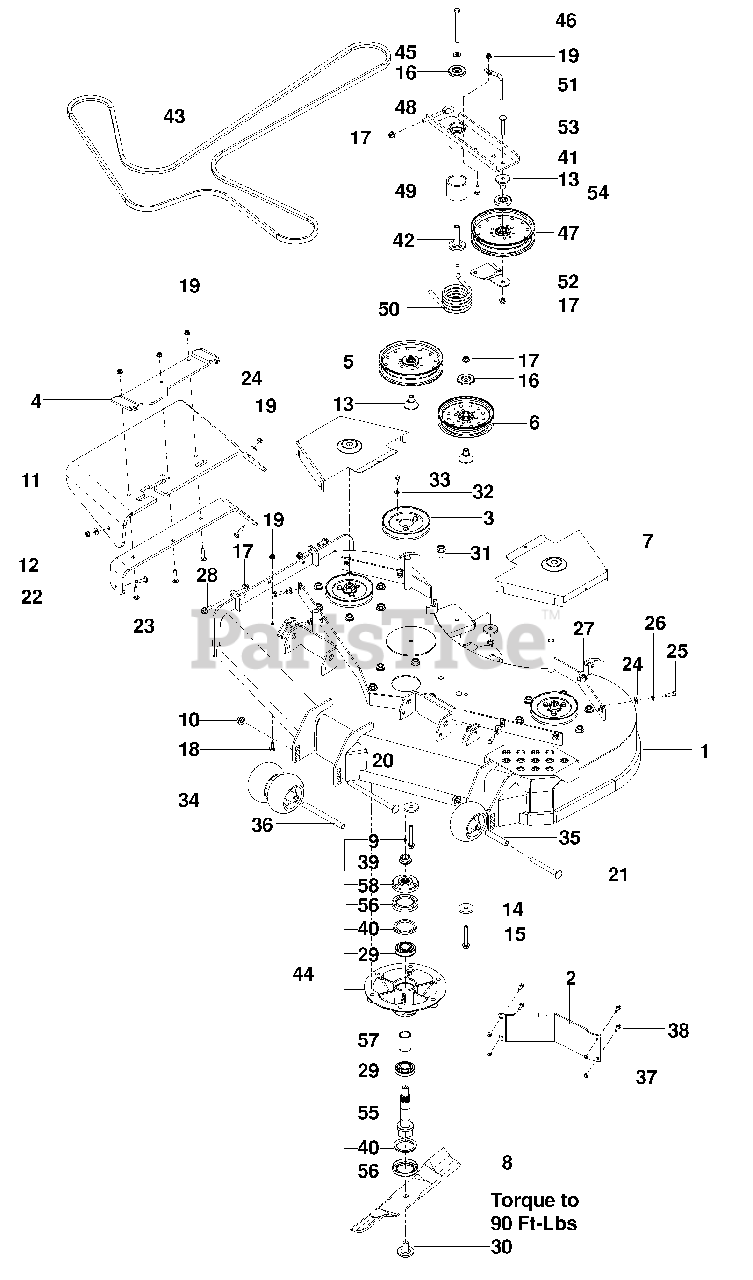

54" Mowing Deck / Cutting Deck Parts Diagram

  • Title

1

Husqvarna 574497101

Deck W/ Safety Decals
(Superseded to 588127604)

$

$

Not available

2

Husqvarna 510437502

Bolt 7/16-20 X 1 1/2 Hex Nyl

$60.99

$

Usually ships in 3-10 days

0

3

Husqvarna 521979701

Pulley

$26.99

$

In Stock, only 1 left!

0

4

Husqvarna 574197002

Bracket, Chute Pivot

$78.99

$

Usually ships in 3-10 days

0

5

Husqvarna 525598201

Pulley, Idler 7" Narrow

$

$

Not available

6

Husqvarna 510019601

Pulley, Idler 6"

$

$

Not available

7

Husqvarna 510131202

Shield, Belt

$68.99

$

Usually ships in 3-10 days

0

8

Husqvarna 575265901

Blade, 19"

$28.99

$

In Stock, Qty 6

0

9

Husqvarna 539976998

Zerk
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

10

Husqvarna 521991101

Nut 1/2-13 Hex Flg Nyloc
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

11

Husqvarna 525485801

Chute, Discharge

$85.99

$

In Stock, only 1 left!

0

12

Husqvarna 525486002

Bracket, Chute Support

$79.99

$

In Stock, only 1 left!

0

13

Husqvarna 510263701

Bearing, Idler Arm

$6.99

$

In Stock, Qty 8

0

14

Husqvarna 539106504

Washer, Heavy

$

$

Not available

15

Husqvarna 539131781

Screw 3/8-16 X 2 3/4 Hex Flg

$5.99

$

In Stock, only 2 left!

0

16

Husqvarna 510254501

Shield, Dust

$

$

Not available

17

Husqvarna 521996501

Nut 3/8-16 Hex Flg Nyloc

$

$

Not available

18

Husqvarna 525464701

Screw 5/16-18 X 3/4 Hex Flg

$3.99

$

In Stock, only 1 left!

0

19

Husqvarna 539112899

Nut 5/16-18 Hex Flg Nyloc
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

20

Husqvarna 510022401

Bolt 1/2-13 X 8 Rd Hd

$31.99

$

In Stock, only 1 left!

0

21

Husqvarna 510022301

Bolt 1/2-13 X 4 3/4 Rd Hd

$

$

Not available

22

Husqvarna 539102933

Bolt 5/16-18 X 1 1/2 Rd Hd

$

$

Not available

23

Husqvarna 539100472

Bolt 5/16-18 X 1 1/4 Rd Hd

$3.99

$

In Stock, Qty 20+

0

24

Husqvarna 539990692

Washer 5/16 Std Flt
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

25

Husqvarna 539990209

Bolt 5/16-18 X 1 Hex Hd

$1.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539990187

Washer 5/16 Slw
(Superseded to 596238801)

$3.99

$

In Stock, only 2 left!

0

27

Husqvarna 539104763

Retainer, U Type

$6.49

$

In Stock, Qty 12

0

28

Husqvarna 525612801

Screw 3/8-16 X 1 Hex Flg

$

$

Not available

29

Husqvarna 539130638

Bearing

$34.99

$

In Stock, Qty 20+

0

30

Husqvarna 539119007

Blade Bolt

$10.99

$

In Stock, only 3 left!

0

31

Husqvarna 574210601

Screw 1/2-13 X 1 Hex Flg

$

$

Not available

32

Husqvarna 539109600

Washer 5/16 Disc Spring

$

$

Not available

33

Husqvarna 539130315

Bolt 5/16-18 X 1/2 Hex Nyloc

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 574169601

Roller, Gauge

$17.99

$

Usually ships in 3-10 days

0

35

Husqvarna 574196401

Tube, Roller Axle

$

$

Not available

36

Husqvarna 574196501

Tube, Roller Axle Long

$14.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539976978

Nut 1/4-20 Hex Nyloc
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

38

Husqvarna 539115620

Bolt 1/4-20 X 3/4 Carriage
(Superseded to 596238401)

$3.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539130653

Nut 3/4-16 Flg
(Superseded to 598490501)

$9.49

$

In Stock, only 2 left!

0

40

Husqvarna 539130639

V-Ring

$6.99

$

In Stock, only 4 left!

0

41

Husqvarna 574722201

Arm, Idler W/ Brgs, Spacr

$121.99

$

Usually ships in 3-10 days

0

42

Husqvarna 522729701

Bearing, Idler Pivot

$9.49

$

In Stock, only 1 left!

0

43

Husqvarna 574285901

Belt, Deck
(Superseded to 588264802)

$148.99

$

In Stock, only 1 left!

0

44

Husqvarna 525836401

Spindle Assy
(Superseded to 580943306)

$363.99

$

In Stock, only 1 left!

0

45

Husqvarna 522023401

Washer 3/8 Thick

$4.99

$

In Stock, Qty 20+

0

46

Husqvarna 539101686

Bolt 3/8-16 X 4 1/2 Hex Gr 8

$3.99

$

Usually ships in 3-10 days

0

47

Husqvarna 510015101

Pulley, Idler 7" Wide

$

$

Not available

48

Husqvarna 574202001

Eyebolt 3/8 X 4

$

$

Not available

49

Husqvarna 525465601

Spacer, Idler Pivot

$10.99

$

In Stock, only 1 left!

0

50

Husqvarna 525310901

Spring, Torsion

$121.99

$

Usually ships in 3-10 days

0

51

Husqvarna 574262201

Keeper, Belt

$

$

Not available

52

Husqvarna 574262102

Guide, Belt

$34.99

$

Usually ships in 3-10 days

0

53

Husqvarna 539128101

Bolt 3/8-16 X 2 1/2 Carriage

$

$

Not available

54

Husqvarna 539107271

Bolt 5/16-18 X 1 Rd Hd
(Superseded to 596435701)

$3.99

$

In Stock, only 4 left!

0

55

Husqvarna 525836001

Shaft, Spindle
(Superseded to 580943306)

$363.99

$

In Stock, only 1 left!

0

56

Husqvarna 539130643

Cup, Debris

$7.99

$

Usually ships in 3-10 days

0

57

Husqvarna 539130641

Spacer

$

$

Not available

58

Husqvarna 539130637

Hub

$

$

Not available

Husqvarna 525307001

Blade, High Lift 19"

Note: Not Shown - Optional

$30.99

$

Usually ships in 3-10 days

0

Husqvarna 574481101

Blade, Low Lift 19"

Note: Not Shown - Optional

$30.99

$

Usually ships in 3-10 days

0

Husqvarna 525525901

Blade, Gator 19"

Note: Not Shown - Optional

$31.99

$

In Stock, Qty 8

0

Husqvarna 574486901

Blade, Wavy Rev Lift 19"

Note: Not Shown - Optional

$

$

Currently unavailable
