PZ 6030 CV (966061101) - Husqvarna 60" Zero-Turn Mower (2009-09) Hydraulic Pump-Motor Parts Diagram

60" Zero-Turn Mower

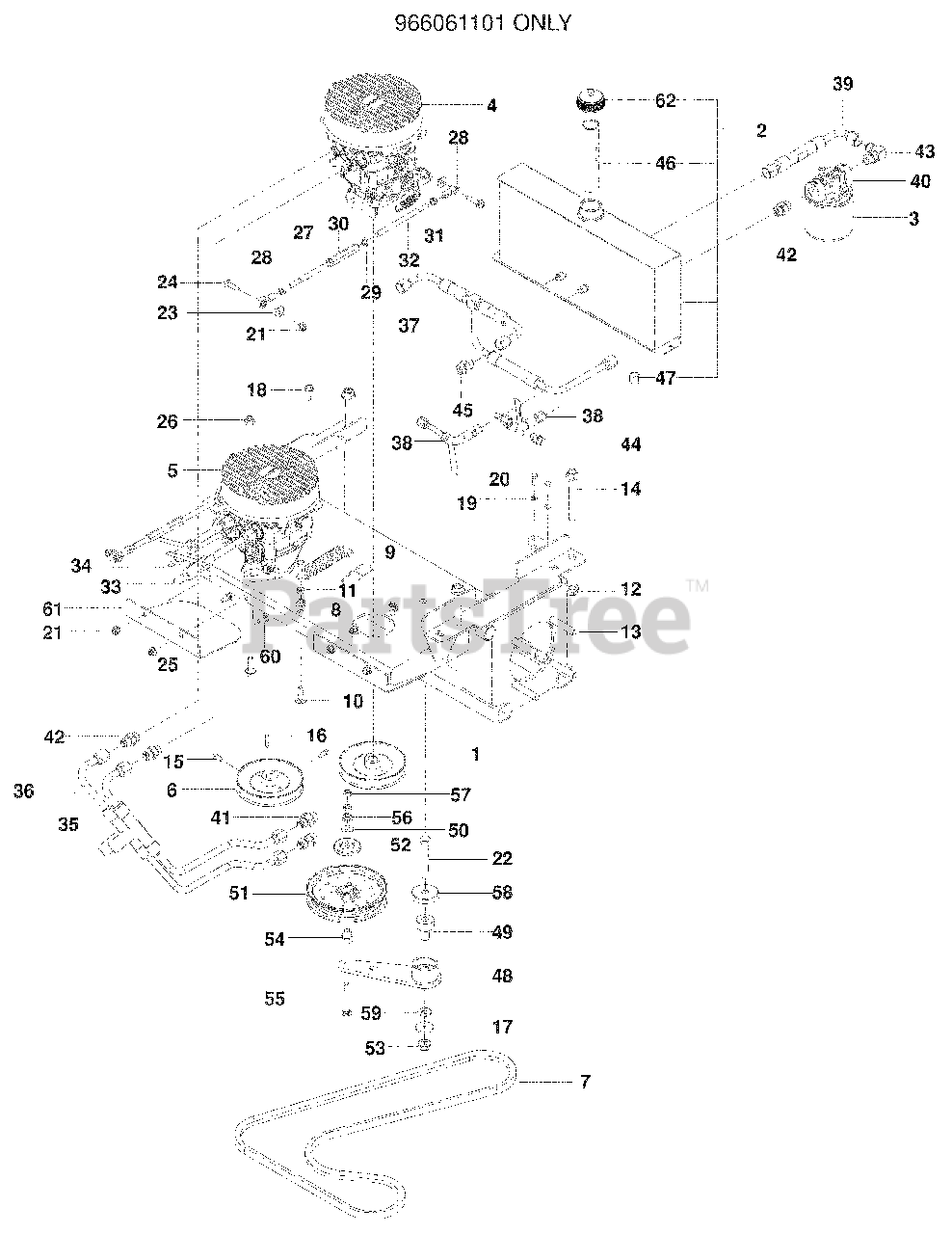

Hydraulic Pump-Motor Parts Diagram

  • Title

1

Husqvarna 506007902

FRAME, SUB

$909.99

$

Usually ships in 3-10 days

0

2

Husqvarna 506120802

OIL TANK ASSY
(Superseded to 576035902)

$376.99

$

Usually ships in 3-10 days

0

3

Husqvarna 522805401

FILTER, 25 MICRON

$31.99

$

Usually ships in 3-10 days

0

4

Husqvarna 505351001

PUMP, 12CC RT

$1595.99

$

Usually ships in 3-10 days

0

5

Husqvarna 505351101

PUMP, 12CC LT

$1595.99

$

Usually ships in 3-10 days

0

6

Husqvarna 510019001

PULLEY, PUMP, 15MM

$62.99

$

Usually ships in 3-10 days

0

7

Husqvarna 573978301

BELT

$66.99

$

In Stock, only 3 left!

0

8

Husqvarna 539990613

NUT 3/8-16 HEX WHIZLK

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 510254401

SPRING, PUMP

$

$

Not available

10

Husqvarna 539100413

BOLT 3/8-16 x 1¼ RD HD

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539200282

NUT 3/8-16 HEX JAM NYLOC
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

12

Husqvarna 521991101

NUT ½-13 HEX FLG NYLOC
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

13

Husqvarna 539101332

BOLT ½-13 x 2¾ HEX NYLOC

$5.99

$

In Stock, only 3 left!

0

14

Husqvarna 525544801

BOLT ½-13 x 4 HEX FLG

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 539102717

SCREW 5/16-18 x 5/8 SET

$3.99

$

In Stock, only 4 left!

0

16

Husqvarna 539101177

KEY, METRIC

$8.99

$

In Stock, only 2 left!

0

17

Husqvarna 539109554

WASHER ½ FLAT

$

$

Not available

18

Husqvarna 539113226

BOLT 5/16-18 x 1 THD FRM
(Superseded to 593337201)

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539990052

WASHER ¼ SPLIT LOCK

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539990580

BOLT ¼-20 x ¾ HEX NYLOC

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539112899

NUT 5/16-18 HEX FLG NYLOC
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

22

Husqvarna 539103433

BOLT ½-13 x 3¼ HEX NYLOC

$6.99

$

In Stock, only 4 left!

0

23

Husqvarna 539990692

WASHER 5/16 STD FLT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

24

Husqvarna 525544001

SCREW 5/16-18 x 1¼ TPBLT

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 525834201

SCREW 3/8-16 x 1¼ HEX FLG

$

$

Not available

26

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC

$

$

Not available

27

Husqvarna 522559201

LINKAGE, CONTROL, FT

$

$

Not available

28

Husqvarna 539102590

BALL END, RT

$27.99

$

In Stock, only 1 left!

0

29

Husqvarna 539108732

NUT 3/8-24 HEX JAM

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539109149

TURNBUCKLE 3/8

$48.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539990223

NUT 5/16-24 HEX

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 522842801

LINKAGE, CONTROL, RR

$91.99

$

Usually ships in 3-10 days

0

33

Husqvarna 510010101

LINE, HYDRAULIC, RT-A

$109.99

$

Usually ships in 3-10 days

0

34

Husqvarna 510010201

LINE, HYDRAULIC, RT-B

$109.99

$

Usually ships in 3-10 days

0

35

Husqvarna 510010301

LINE, HYDRAULIC, LT-A

$109.99

$

Usually ships in 3-10 days

0

36

Husqvarna 510010401

LINE, HYDRAULIC, LT-B

$136.99

$

Usually ships in 3-10 days

0

37

Husqvarna 510010501

LINE, HYDRAULIC, CHARGE

$148.99

$

Usually ships in 3-10 days

0

38

Husqvarna 510010601

LINE, HYDRAULIC, CASE

$34.99

$

Usually ships in 3-10 days

0

39

Husqvarna 510010701

LINE, HYDRAULIC, SUCTION

$34.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539105892

FILTER HEAD

$

$

Not available

41

Husqvarna 539101239

STRAIGHT CONNECTOR
(Superseded to 539101237)

$12.99

$

In Stock, only 2 left!

0

42

Husqvarna 539101237

STRAIGHT CONNECTOR

$12.99

$

In Stock, only 2 left!

0

43

Husqvarna 539101242

ELBOW 90O ADJ

$34.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539103316

CONNECTOR

$11.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539131748

STRAIGHT CONNECTOR

$7.99

$

Usually ships in 3-10 days

0

46

Husqvarna 522805001

TUBE, ANTI-SPLASH

$113.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539105168

CAPNUT

$3.99

$

In Stock, only 3 left!

0

48

Husqvarna 510041603

ARM, IDLER, w/ BEARINGS

$56.99

$

Usually ships in 3-10 days

0

49

Husqvarna 510206301

PIVOT, BEARING

$6.49

$

In Stock, only 2 left!

0

50

Husqvarna 522023401

WASHER 3/8 THICK

$4.99

$

In Stock, Qty 20+

0

51

Husqvarna 510283702

IDLER PULLEY

$

$

Not available

52

Husqvarna 510254501

SHIELD, DUST

$

$

Not available

53

Husqvarna 521991101

NUT ½-13 HEX FLG NYLOC
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

54

Husqvarna 525435601

PIVOT, IDLER

$8.99

$

In Stock, only 4 left!

0

55

Husqvarna 539130235

BOLT 3/8-16 x 2¾ RD HD

$3.99

$

Usually ships in 3-10 days

0

56

Husqvarna 539990613

NUT 3/8-16 HEX WHIZLK

$3.99

$

Usually ships in 3-10 days

0

57

Husqvarna 539200282

NUT 3/8-16 HEX JAM NYLOC
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

58

Husqvarna 539114662

SHIELD, DUST

$

$

Not available

59

Husqvarna 539115528

WASHER ½" BELLEVILLE

$3.99

$

Usually ships in 3-10 days

0

60

Husqvarna 539990316

BOLT 5/16-18 x ¾ RD HD
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

61

Husqvarna 574398502

SHIELD, PULLEY

$34.99

$

Usually ships in 3-10 days

0

62

Husqvarna 522805301

CAP, HYDRAULIC

$31.99

$

Usually ships in 3-10 days

0
