PZ 6029 PFX (966062201) - Husqvarna 60" Zero-Turn Mower (2009-09) 72" Deck Parts Diagram

60" Zero-Turn Mower

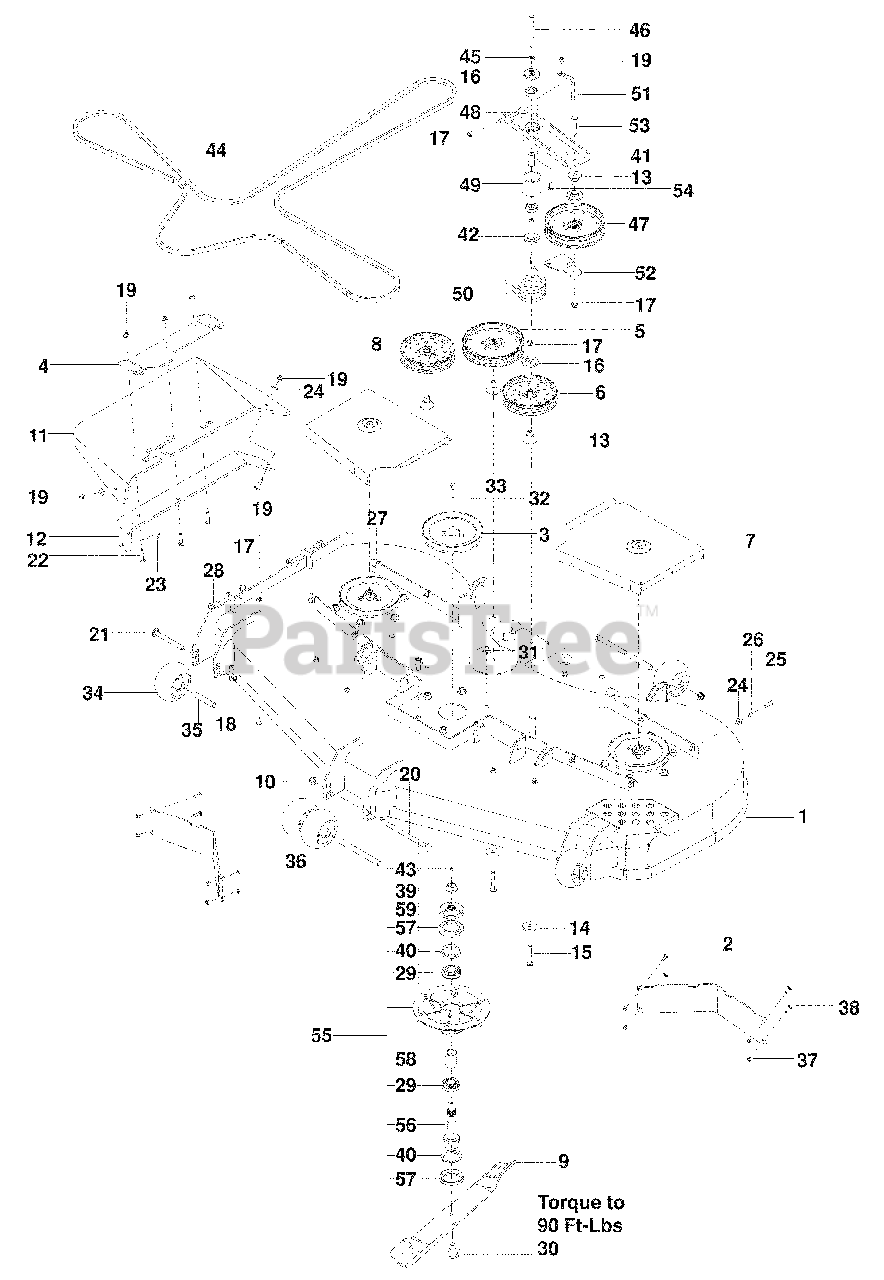

72" Deck Parts Diagram

  • Title

1

Husqvarna 574497301

DECK w/ SAFETY DECALS
(Superseded to 588127601)

$3761.99

$

Usually ships in 3-10 days

0

2

Husqvarna 574221802

BAFFLE, DIVERTER

$37.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539130647

PULLEY

$34.99

$

Usually ships in 3-10 days

0

4

Husqvarna 574197002

BRACKET, CHUTE PIVOT

$78.99

$

Usually ships in 3-10 days

0

5

Husqvarna 525598201

PULLEY, IDLER 7" NARROW

$

$

Not available

6

Husqvarna 510019601

PULLEY, IDLER 6"

$

$

Not available

7

Husqvarna 525426302

SHIELD, 72 RT

$113.99

$

Usually ships in 3-10 days

0

8

Husqvarna 525426102

SHIELD, 72 LT

$96.99

$

In Stock, only 1 left!

0

9

Husqvarna 539105476

BLADE, 25"

$39.99

$

In Stock, Qty 20+

0

10

Husqvarna 521991101

NUT ½-13 HEX FLG NYLOC
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

11

Husqvarna 525485701

CHUTE, DISCHARGE

$72.99

$

Usually ships in 3-10 days

0

12

Husqvarna 525485902

BRACKET, CHUTE SUPPORT

$74.99

$

Usually ships in 3-10 days

0

13

Husqvarna 510263701

BEARING, IDLER ARM

$6.99

$

In Stock, Qty 8

0

14

Husqvarna 539106504

WASHER, HEAVY

$

$

Not available

15

Husqvarna 539131781

SCREW 3/8-16 x 2¾ HEX FLG

$5.99

$

In Stock, only 2 left!

0

16

Husqvarna 510254501

SHIELD, DUST

$

$

Not available

17

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC

$

$

Not available

18

Husqvarna 525464701

SCREW 5/16-18 x ¾ HEX FLG

$3.99

$

In Stock, only 1 left!

0

19

Husqvarna 539112899

NUT 5/16-18 HEX FLG NYLOC
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

20

Husqvarna 510022401

BOLT ½-13 x 8 RD HD

$31.99

$

In Stock, only 1 left!

0

21

Husqvarna 510022301

BOLT ½-13 x 4¾ RD HD

$

$

Not available

22

Husqvarna 539102933

BOLT 5/16-18 x 1½ RD HD

$

$

Not available

23

Husqvarna 539100472

BOLT 5/16-18 x 1¼ RD HD

$3.99

$

In Stock, Qty 20+

0

24

Husqvarna 539990692

WASHER 5/16 STD FLT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

25

Husqvarna 539990209

BOLT 5/16-18 x 1 HEX HD

$1.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539990187

WASHER 5/16 SLW
(Superseded to 596238801)

$3.99

$

In Stock, only 1 left!

0

27

Husqvarna 539104763

RETAINER, U TYPE

$6.49

$

In Stock, Qty 12

0

28

Husqvarna 525612801

SCREW 3/8-16 x 1 HEX FLG

$

$

Not available

29

Husqvarna 539130638

BEARING

$34.99

$

In Stock, Qty 20+

0

30

Husqvarna 539119007

BLADE BOLT

$10.99

$

In Stock, only 3 left!

0

31

Husqvarna 574210601

SCREW ½-13 x 1 HEX FLG

$

$

Not available

32

Husqvarna 539109600

WASHER 5/16 DISC SPRING

$

$

Not available

33

Husqvarna 539130315

BOLT 5/16-18 x ½ HEX NYLOC

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 574169601

ROLLER, GAUGE

$17.99

$

Usually ships in 3-10 days

0

35

Husqvarna 574196401

TUBE, ROLLER AXLE

$

$

Not available

36

Husqvarna 574196501

TUBE, ROLLER AXLE LONG

$14.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539976978

NUT ¼-20 HEX NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

38

Husqvarna 539109800

BOLT ¼-20 x 1 RD HD
(Superseded to 592807801)

$4.99

$

In Stock, only 3 left!

0

39

Husqvarna 539130653

NUT ¾-16 FLG
(Superseded to 598490501)

$9.49

$

In Stock, only 2 left!

0

40

Husqvarna 539130639

V-RING

$6.99

$

In Stock, only 4 left!

0

41

Husqvarna 574722201

ARM, IDLER w/ BRGS, SPACR

$121.99

$

Usually ships in 3-10 days

0

42

Husqvarna 522729701

BEARING, IDLER PIVOT

$9.49

$

In Stock, only 1 left!

0

43

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

44

Husqvarna 574286001

BELT, DECK
(Superseded to 588264804)

$133.99

$

In Stock, only 1 left!

0

45

Husqvarna 522023401

WASHER 3/8 THICK

$4.99

$

In Stock, Qty 20+

0

46

Husqvarna 539101686

BOLT 3/8-16 x 4½ HEX GR 8

$3.99

$

Usually ships in 3-10 days

0

47

Husqvarna 510015101

PULLEY, IDLER 7" WIDE

$

$

Not available

48

Husqvarna 574202001

EYEBOLT 3/8 x 4

$

$

Not available

49

Husqvarna 525465601

SPACER, IDLER PIVOT

$10.99

$

In Stock, only 1 left!

0

50

Husqvarna 525310901

SPRING, TORSION

$121.99

$

Usually ships in 3-10 days

0

51

Husqvarna 574262201

KEEPER, BELT

$

$

Not available

52

Husqvarna 574262102

GUIDE, BELT

$34.99

$

Usually ships in 3-10 days

0

53

Husqvarna 539128101

BOLT 3/8-16 x 2½ CARRIAGE

$

$

Not available

54

Husqvarna 539107271

BOLT 5/16-18 x 1 RD HD
(Superseded to 596435701)

$3.99

$

In Stock, only 4 left!

0

55

Husqvarna 525836401

SPINDLE ASSY
(Superseded to 580943306)

$363.99

$

In Stock, only 1 left!

0

56

Husqvarna 525836001

SHAFT, SPINDLE
(Superseded to 580943306)

$363.99

$

In Stock, only 1 left!

0

57

Husqvarna 539130643

CUP, DEBRIS

$7.99

$

Usually ships in 3-10 days

0

58

Husqvarna 539130641

SPACER

$

$

Not available

59

Husqvarna 539130637

HUB

$

$

Not available

Husqvarna 525341101

BLADE, HIGH LIFT 25"

Note: NOT SHOWN - OPTIONAL

$54.99

$

In Stock, only 2 left!

0

Husqvarna 574481401

BLADE, LOW LIFT 25"
(Superseded to 574860902)

Note: NOT SHOWN - OPTIONAL

$34.99

$

Usually ships in 3-10 days

0

Husqvarna 525544701

BLADE, GATOR 25"

Note: NOT SHOWN - OPTIONAL

$45.99

$

Usually ships in 3-10 days

0

Husqvarna 574860902

BLADE, WAVY REV LIFT 25"

Note: NOT SHOWN - OPTIONAL

$34.99

$

Usually ships in 3-10 days

0
