PZ 6029 D (966476701) - Husqvarna 60" Zero-Turn Mower (2010-03) Steering Parts Diagram

60" Zero-Turn Mower

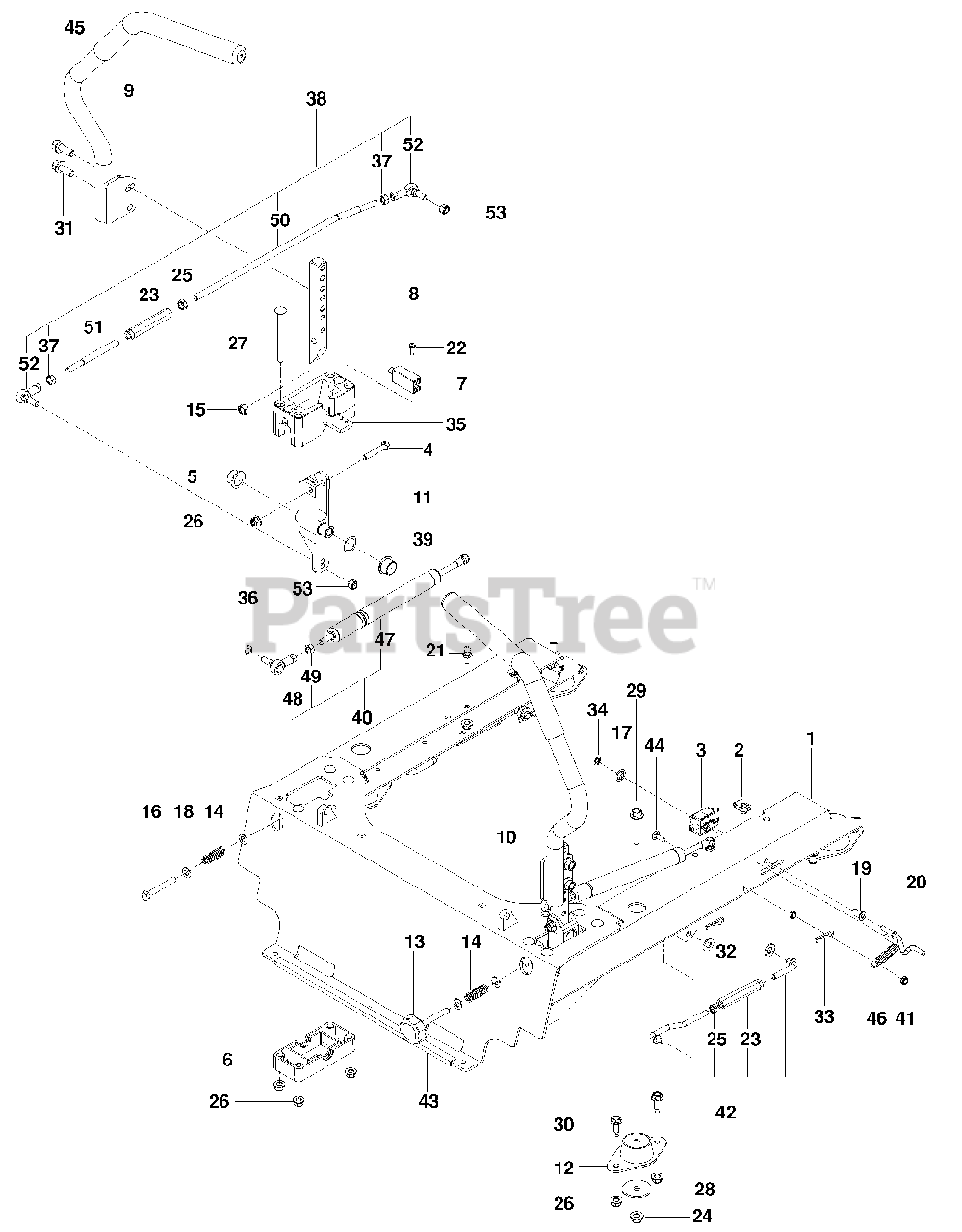

Steering Parts Diagram

  • Title
1

Husqvarna 574189602

Frame Mount

$358.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539104763

Retainer, U Type

$6.49

$

In Stock, Qty 12

0

3

Husqvarna 539113792

Switch, Brake (3-Pole)

$17.99

$

In Stock, Qty 12

0

4

Husqvarna 539990669

Bolt 5/16-18 X 1 3/4 Hex Nyl
(Superseded to 874780528)

$7.49

$

In Stock, only 2 left!

0

5

Husqvarna 539131518

Bearing, Flange

$11.99

$

In Stock, Qty 6

0

6

Husqvarna 539131519

Block, Lower

$15.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539101080

Switch N.C.

$17.99

$

Usually ships in 3-10 days

0

8

Husqvarna 574269401

Lever, Motion

$27.99

$

Usually ships in 3-10 days

0

9

Husqvarna 574262701

Lever W/ Grip Rt

$136.99

$

Usually ships in 3-10 days

0

10

Husqvarna 574262702

Lever W/ Grip Lt

$125.99

$

Usually ships in 3-10 days

0

11

Husqvarna 510113203

Lever, Control

$72.99

$

In Stock, only 1 left!

0

12

Husqvarna 510082101

Mount, Iso

$28.99

$

Usually ships in 3-10 days

0

$

$

Not available

$22.99

$

In Stock, only 1 left!

0

15

Husqvarna 539990196

Nut 5/16-18 Hex

$1.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539108396

Bolt 5/16-18 X 2 1/2 Hex Tpblt

$

$

Not available

17

Husqvarna 539913847

Retainer Nut 3/8

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539990188

Washer 5/16 Sae Flat
(Superseded to 819111116)

$3.99

$

In Stock, Qty 11

0

19

Husqvarna 511594901

Bushing 1/4 Flange

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 511595001

Link, Switch

$7.49

$

Usually ships in 3-10 days

0

21

Husqvarna 539110607

Ball Stud 10Mm

$4.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539991034

Screw 10-24 X 5/8 Washer Hd

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539109149

Turnbuckle 3/8

$48.99

$

Usually ships in 3-10 days

0

24

Husqvarna 521996501

Nut 3/8-16 Hex Flg Nyloc

$

$

Not available

25

Husqvarna 539108732

Nut 3/8-24 Hex Jam

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539112899

Nut 5/16-18 Hex Flange Nyloc
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

27

Husqvarna 539131665

Bolt 5/16-18 X 3 3/4 Rd Hd

$

$

Not available

28

Husqvarna 539111897

Washer 3/8 Special

$

$

Not available

29

Husqvarna 525866201

Hhfs 3/8-16 X 2

$4.99

$

In Stock, only 1 left!

0

30

Husqvarna 525464701

Hhfs 5/16-18 X 3/4

$3.99

$

In Stock, only 1 left!

0

31

Husqvarna 525612801

Screw 3/8-16 X 1 Hex Flg

$

$

Not available

32

Husqvarna 539990122

Washer 3/8 Sae Flt
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

33

Husqvarna 539976988

Hairpin Cotter

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539102234

Push Nut 1/4

$3.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539131517

Block, Upper

$30.99

$

In Stock, only 1 left!

0

36

Husqvarna 539990187

SCREW 3/8-16 x 1 1/2 HEX HD
(Superseded to 596238801)

$3.99

$

In Stock, only 2 left!

0

37

Husqvarna 539990223

Nut 5/16-24 Hex

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 575324602

Linkage Control Assy

$

$

Not available

39

Husqvarna 539133007

Washer, Wave

$4.99

$

In Stock, only 3 left!

0

40

Husqvarna 522842501

Dampener Assy

$148.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539108120

Nut 1/4-20 Hex Thin Nyloc
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

42

Husqvarna 525447901

Seat Strut Assy

$27.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539112294

Flex Trim Blk
(Superseded to 589362602)

$5.99

$

In Stock, only 4 left!

0

44

Husqvarna 539990074

Bolt 1/4-20 X 3/4 Gr2 Rd Hd
(Superseded to 596238401)

$3.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539130894

Grip, Lever

$9.99

$

In Stock, only 3 left!

0

46

Husqvarna 539020035

Spring
(Superseded to 540020035)

$14.99

$

Usually ships in 3-10 days

0

47

$

$

Not available

48

Husqvarna 539131749

Rod End, Spherical

$10.99

$

Usually ships in 3-10 days

0

49

Husqvarna 539127046

Hexnut M8 X 1.25 Std

$3.99

$

Usually ships in 3-10 days

0

50

Husqvarna 522559201

Linkage, Control Ft

$

$

Not available

51

Husqvarna 575324601

Linkage, Control

$

$

Not available

52

Husqvarna 539110603

Rod End, Spherical Rh

$40.99

$

Usually ships in 3-10 days

0

53

Husqvarna 539110943

Nut 5/16-24 Nyloc

$3.99

$

Usually ships in 3-10 days

0
