PZ 6029 D (966476701) - Husqvarna 60" Zero-Turn Mower (2010-03) Frame Parts Diagram

60" Zero-Turn Mower

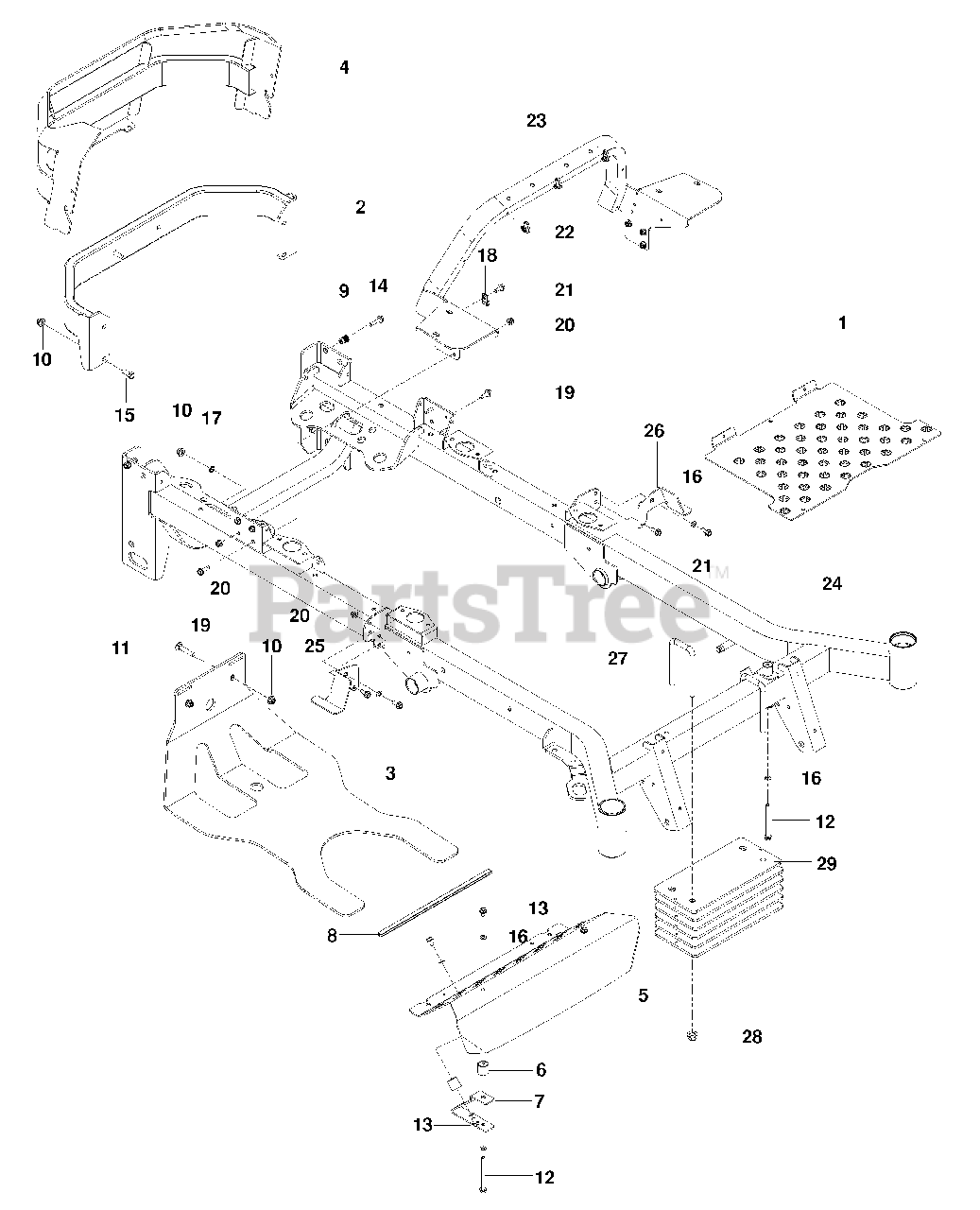

Frame Parts Diagram

  • Title
1

Husqvarna 574215602

Floorpan Org

$157.99

$

Usually ships in 3-10 days

0

2

Husqvarna 522738904

Bumper, Rear Org W/ Decal

$206.99

$

Usually ships in 3-10 days

0

3

Husqvarna 522739902

Plate, Skid Gry

$

$

Not available

4

Husqvarna 574433003

Guard, Rear Gry W/ Decals

$

$

Not available

5

Husqvarna 574215702

Foot Rest Org

$145.99

$

Usually ships in 3-10 days

0

6

Husqvarna 510083201

Mount, F/F Insert

$7.49

$

In Stock, Qty 18

0

7

Husqvarna 510040301

Bracket, Rest Mount

$10.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539112294

Flex Trim Blk
(Superseded to 589362602)

$5.99

$

In Stock, only 4 left!

0

9

Husqvarna 539111028

Nutsert 5/16-18

$

$

Not available

10

Husqvarna 521996501

Nut 3/8-16 Hex Flg Nyloc

$

$

Not available

11

Husqvarna 539100145

Bolt 3/8-16 X 2 Rd Hd
(Superseded to 595901401)

$3.99

$

In Stock, only 4 left!

0

12

Husqvarna 539131780

Screw 5/16-18 X 3 3/4 Hex Flg

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539990858

Screw 5/16-18 X 1/2 Slf Tap

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 525544001

Screw 5/16-18 X 1 1/4 Tpblt

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539990563

Screw 3/8-16 X 1 Hex Hd

$1.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539109600

Washer 5/16 Disc Spring

$

$

Not available

17

Husqvarna 539109603

Washer 3/8 Ext Star

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539109867

Clamp, Double Tube

$6.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539113226

Bolt 5/16-18 X 1 Thd Frm
(Superseded to 593337201)

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539112899

Nut 5/16-18 Hex Flange Nyloc
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

21

Husqvarna 525464701

Hhfs 5/16-18 X 3/4

$3.99

$

In Stock, only 1 left!

0

22

Husqvarna 505280001

Tie Wrap W/ Clip

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 574432602

Cross Member, Gry

$566.99

$

Usually ships in 3-10 days

0

24

Husqvarna 522739302

Frame Org
(Superseded to 574482806)

$

$

Not available

25

Husqvarna 529279902

Mount, Tank Rt Org
(Superseded to 529279903)

$68.99

$

Usually ships in 3-10 days

0

26

Husqvarna 529280002

Mount, Tank Lt Org
(Superseded to 529280003)

$60.99

$

Usually ships in 3-10 days

0

27

Husqvarna 575880601

Linkage, U-Bolt

$36.99

$

Usually ships in 3-10 days

0

28

Husqvarna 521991101

Nut 1/2-13 Hex Flg Nyloc
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

29

Husqvarna 575880502

Plate, Weigh Blk
(Superseded to 575880501)

$40.99

$

Usually ships in 3-10 days

0
