PZ 5426 FX (966614002) - Husqvarna 54" Zero-Turn Mower (2011-01) FUEL SYSTEM Parts Diagram

54" Zero-Turn Mower

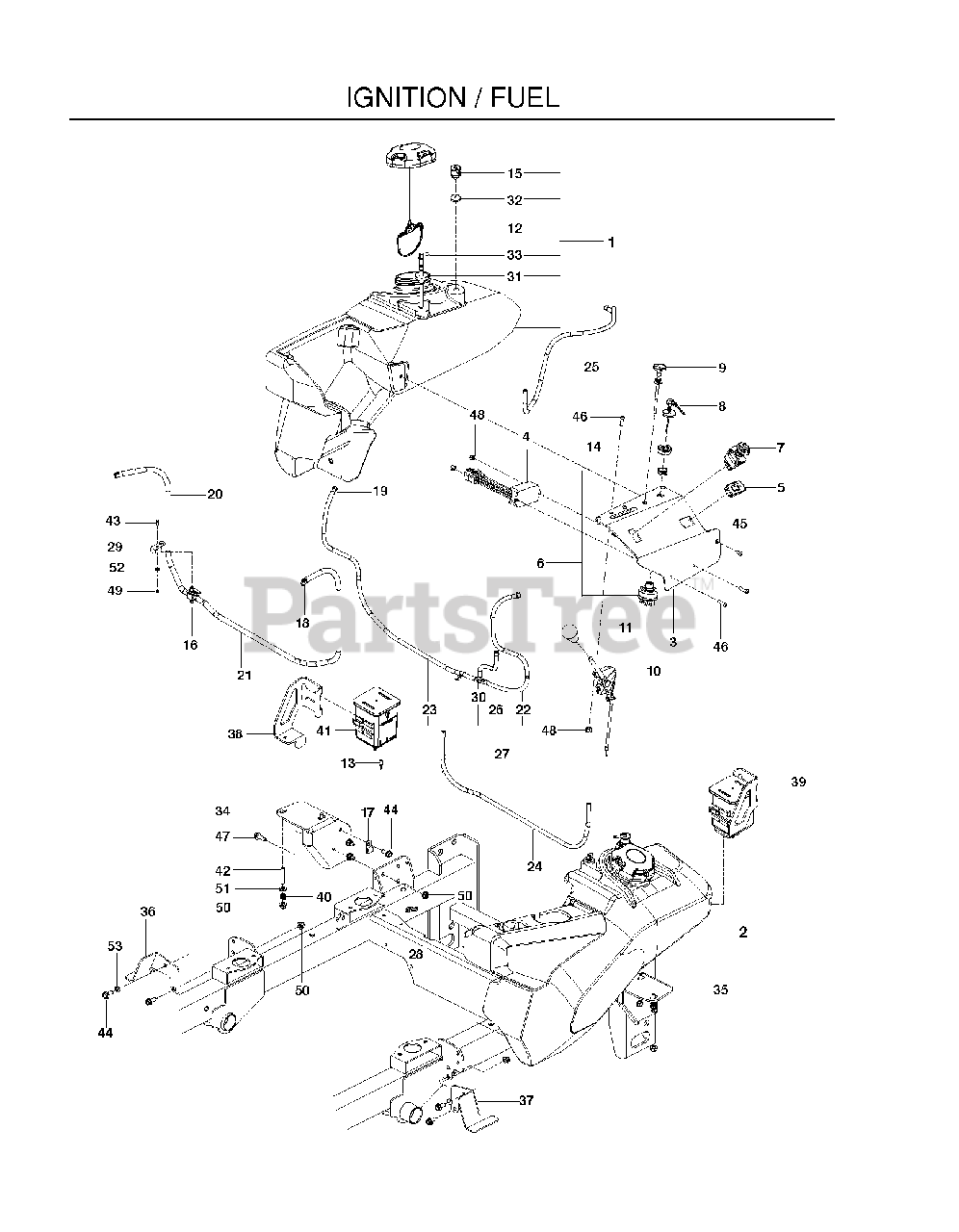

FUEL SYSTEM Parts Diagram

  • Title

1

Husqvarna 576369202

RT FUEL TANK ASM EPA
(Superseded to 578998202)

$

$

Not available

2

Husqvarna 576369102

LT FUEL TANK ASM EPA
(Superseded to 589997102)

$626.99

$

Usually ships in 3-10 days

0

3

Husqvarna 529280202

PANEL.CONTROL.GAS.GRAY
(Superseded to 592979103)

$31.99

$

Usually ships in 3-10 days

0

4

Husqvarna 574514001

TIMER, SEAT

$120.99

$

In Stock, only 1 left!

0

5

Husqvarna 576179401

HOUR METER

$34.99

$

In Stock, Qty 6

0

6

Husqvarna 574455401

SWITCH, IGNITION, INDAK

$34.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539131627

SWITCH, PTO 10 AMP
(Superseded to 597520401)

$100.99

$

In Stock, Qty 5

0

8

Husqvarna 574455501

KEY, IGNITION

$6.99

$

Usually ships in 3-10 days

0

9

Husqvarna 574206901

CABLE, CHOKE, 48"
(Superseded to 531077202)

$31.99

$

In Stock, Qty 8

0

10

Husqvarna 574207001

CABLE, THROTTLE, 46"

$53.99

$

In Stock, only 1 left!

0

11

Husqvarna 539132624

KNOB - SHIFT

$7.99

$

In Stock, Qty 6

0

12

Husqvarna 575018101

CAP, FUEL
(Superseded to 575018103)

$34.99

$

Usually ships in 3-10 days

0

13

Husqvarna 576978701

CAP, VINYL

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539103178

CAP IGNITION NUT

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 576618101

VALVE.FUEL.CHECK

$25.99

$

In Stock, Qty 17

0

16

Husqvarna 539102679

FUEL VALVE

$56.99

$

In Stock, only 2 left!

0

17

Husqvarna 539109867

DOUBLE TUBE CLAMP

$6.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

19

Husqvarna 575436501

CLAMP, HOSE

$6.49

$

In Stock, only 4 left!

0

20

Husqvarna 577103901

LINE, FUEL, 22"

$14.99

$

Usually ships in 3-10 days

0

21

Husqvarna 577103902

LINE, FUEL, 38"
(Superseded to 587044838)

$6.99

$

Usually ships in 3-10 days

0

22

Husqvarna 576660603

HOSE, 3/16" VAPOR, 21"

$

$

Not available

23

Husqvarna 576660601

HOSE, VAPOR 3/16 X 39"

$

$

Not available

24

Husqvarna 576660604

HOSE, VAPOR 3/16 X 30"

$13.99

$

Usually ships in 3-10 days

0

25

Husqvarna 575437802

FUEL LINE 33"
(Superseded to 575437801)

$14.99

$

Usually ships in 3-10 days

0

26

Husqvarna 576660610

HOSE, 3/16" VAPOR, 7-1/2"

$

$

Not available

27

Husqvarna 576979001

ASSEMBLY, VAPOR LINE

$

$

Not available

28

Husqvarna 505280001

TIE WRAP, 8-3/8", W/CLIP

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 577104002

BRACKET,FUEL VALVE, BLACK

$15.99

$

Usually ships in 3-10 days

0

30

Husqvarna 574206602

TEE, FUEL LINE 3/16"

$3.49

$

In Stock, only 1 left!

0

31

Husqvarna 539105245

RUBBER GROMMET

$4.99

$

In Stock, Qty 11

0

32

Husqvarna 576618201

GROMMET, CHECK VALVE
(Superseded to 584648201)

$4.99

$

In Stock, Qty 20+

0

33

Husqvarna 525865401

FITTING, FUEL

$34.99

$

In Stock, only 2 left!

0

34

Husqvarna 529279603

MOUNT, RT TANK, BLK

$72.99

$

Usually ships in 3-10 days

0

35

Husqvarna 529279703

MOUNT, LT TANK, BLK

$72.99

$

Usually ships in 3-10 days

0

36

Husqvarna 529279903

MOUNT, TANK, RT-BLK

$68.99

$

Usually ships in 3-10 days

0

37

Husqvarna 529280003

MOUNT, TANK, LT-BLK

$60.99

$

Usually ships in 3-10 days

0

38

Husqvarna 576927001

MOUNT, CANISATER, RT

$79.99

$

Usually ships in 3-10 days

0

39

Husqvarna 576926901

MOUNT, CANISTER, LT

$56.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539102845

SPRING

$4.99

$

In Stock, only 3 left!

0

41

Husqvarna 532414114

CANNISTER, CARBON

$62.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539102502

STUD, 5/16C

$10.99

$

In Stock, only 4 left!

0

43

Husqvarna 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0

44

Husqvarna 525464701

HHFS 5/16-18 X 3/4

$3.99

$

In Stock, only 1 left!

0

45

Husqvarna 539114341

SCR #10-24 X 3/8 SKT HD BLK OX

$4.99

$

In Stock, only 3 left!

0

46

Husqvarna 574822701

SCR #10-24 X .75 SKT HD BLK

$4.99

$

In Stock, Qty 6

0

47

Husqvarna 539113226

RP BLT 5/16-18 X 1 THRD FORM D
(Superseded to 593337201)

$3.99

$

Usually ships in 3-10 days

0

48

Husqvarna 539976977

NUT 10-24 NYLOC

$

$

Not available

49

Husqvarna 539108120

JAM NUT 1/4C (2 2 PW01)
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

50

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

51

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

52

Husqvarna 539990598

WASHER 1/4 FLAT

$

$

Not available

53

Husqvarna 539109600

WASH 5/16 DISC SPRING ZD

$

$

Not available
