PZ 5426 FX (966060901) - Husqvarna 54" Zero-Turn Mower (2009-09) Chassis / Frame Parts Diagram

54" Zero-Turn Mower

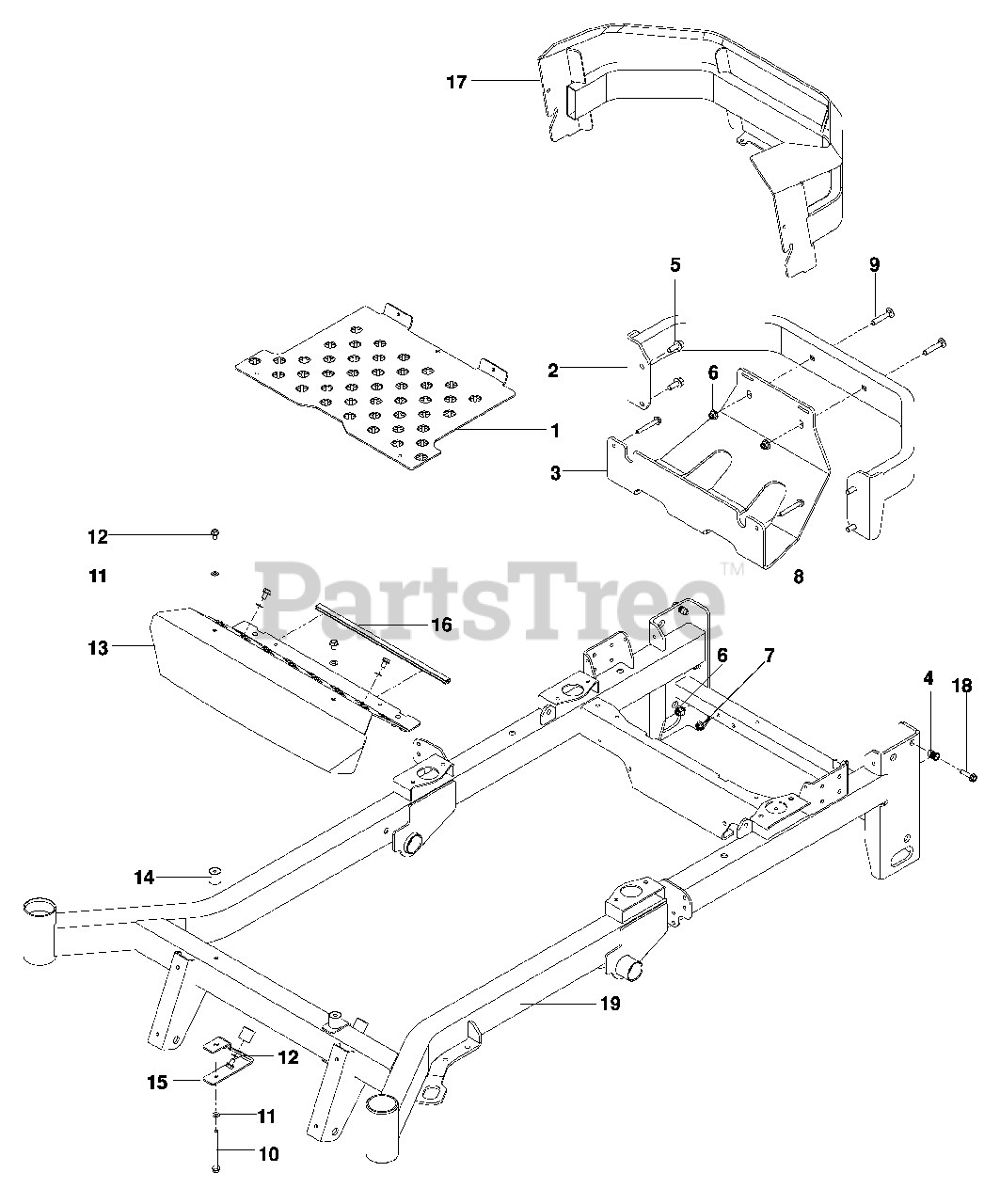

Chassis / Frame Parts Diagram

  • Title

1

Husqvarna 574215602

FLOORPAN

$157.99

$

Usually ships in 3-10 days

0

2

Husqvarna 522675702

BUMPER, REAR

$241.99

$

Usually ships in 3-10 days

0

3

Husqvarna 574228602

PLATE, SKID

$206.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539111028

NUTSERT 5/16-18

$

$

Not available

5

Husqvarna 525612801

SCREW 3/8-16 x 1 HEX FLG

$

$

Not available

6

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC

$

$

Not available

7

Husqvarna 539112899

NUT 5/16-18 HEX FLG NYLOC
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

8

Husqvarna 574233801

SCREW 5/16-18 x 2¼ HEX FLG

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539100145

BOLT 3/8-16 x 2 RD HD
(Superseded to 595901401)

$3.99

$

In Stock, only 4 left!

0

10

Husqvarna 539131780

SCREW 5/16-18 x 3¾ HEX FLG

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539109600

WASHER 5/16 DISC SPRING

$

$

Not available

12

Husqvarna 539990858

SCREW 5/16-18 x ½ SLF TAP

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 574215702

FOOTREST

$145.99

$

Usually ships in 3-10 days

0

14

Husqvarna 510083201

MOUNT, F/F INSERT

$7.49

$

In Stock, Qty 18

0

15

Husqvarna 510040301

BRACKET, REST MOUNT

$10.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539112294

FLEX TRIM
(Superseded to 589362602)

$5.99

$

In Stock, only 4 left!

0

17

Husqvarna 574221602

GUARD, REAR

$727.99

$

Usually ships in 3-10 days

0

18

Husqvarna 525544001

SCREW 5/16-18 x 1½ TPBLT

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 574482801

FRAME w/ SAFETY DECALS

$3641.99

$

Usually ships in 3-10 days

0

20

Husqvarna 574482802

FRAME w/ SFTY DECALS 72"

$3077.99

$

Usually ships in 3-10 days

0
