PZ 54 (967004002) - Husqvarna 54" Zero-Turn Mower (2013-01) PARKING BRAKE Parts Diagram

54" Zero-Turn Mower

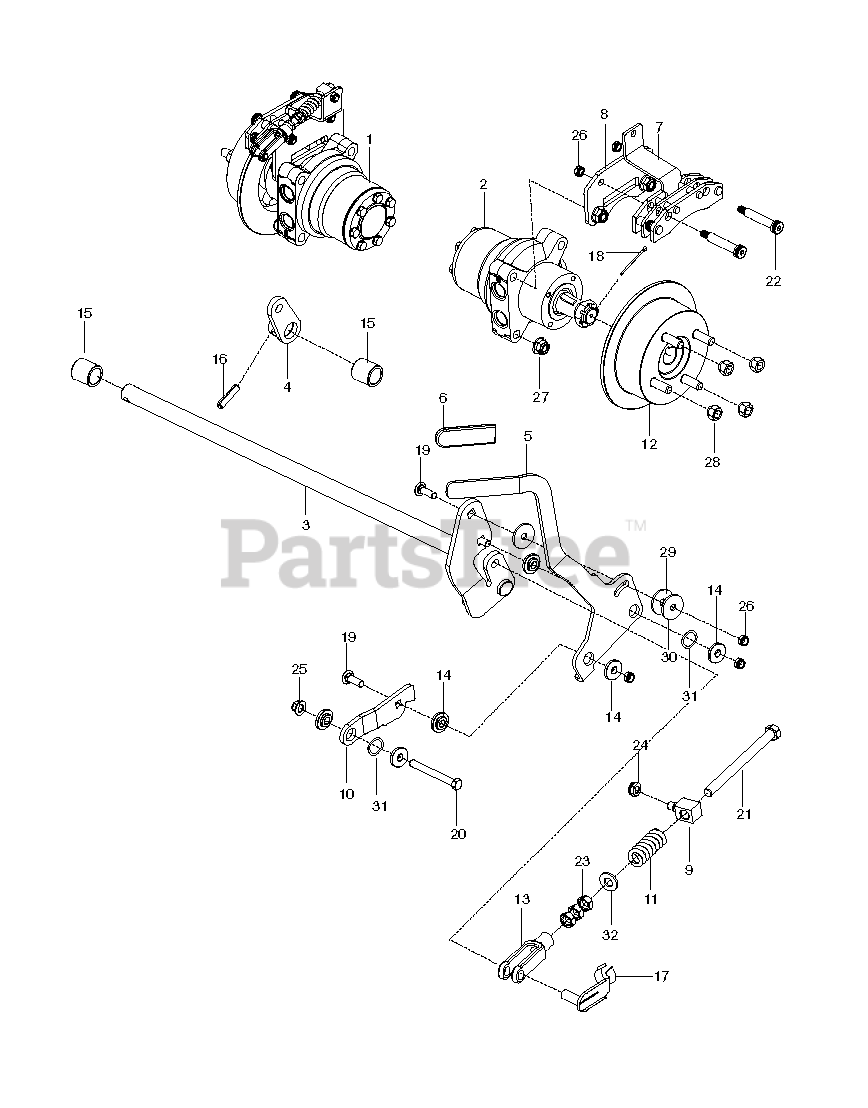

PARKING BRAKE Parts Diagram

  • Title
1

Husqvarna 574805202

MOTOR, TL0310, RT

Note: RT

$1091.99

$

Usually ships in 3-10 days

0

2

Husqvarna 574805201

MOTOR, TL0310, LT

Note: LT

$1091.99

$

Usually ships in 3-10 days

0

3

Husqvarna 525851201

SHAFT, BRAKE WLDMT

$

$

Not available

4

Husqvarna 510025901

ARM, RT BRAKE

$157.99

$

Usually ships in 3-10 days

0

5

Husqvarna 515980002

LEVER.BRAKE.BLACK

$66.99

$

Usually ships in 3-10 days

0

$3.99

$

In Stock, only 3 left!

0

$120.99

$

In Stock, only 2 left!

0

8

Husqvarna 525851601

PLATE, CALIPER

$21.99

$

Usually ships in 3-10 days

0

9

Husqvarna 525851401

SWIVEL, BRAKE

$

$

Not available

10

Husqvarna 515980301

LINK, FOLLOWER

$

$

Not available

$7.49

$

Usually ships in 3-10 days

0

12

Husqvarna 525848701

HUB, DISC BRAKE, W/STUDS

$250.99

$

In Stock, only 1 left!

0

13

Husqvarna 539977465

YOKE-3/8-24 PLTD

$24.99

$

In Stock, Qty 11

0

14

Husqvarna 539132161

BUSHING, BRAKE

$6.49

$

In Stock, Qty 6

0

15

Husqvarna 510089201

BUSHING, SLEEVE 3/4 X 1.0

$14.99

$

In Stock, only 4 left!

0

16

Husqvarna 539110631

5/16 DIA ROLL PIN

$3.99

$

In Stock, Qty 16

0

17

Husqvarna 522705901

PIN, CLEVIS SPRING, 3/8

$

$

Not available

18

Husqvarna 539102889

COTTER PIN 1/8 X 2
(Superseded to 539124704)

$

$

Not available

19

Husqvarna 539100413

RHSNB 3/8-16 X 1-1/4

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539923463

HCS 3/8-16 X 3-1/4 GR5 ZD

$

$

Not available

21

Husqvarna 539104984

HCS 3/8F X SPECIAL

$

$

Not available

22

Husqvarna 516035501

BOLT, SHOULDER, 1/2 X 2.25

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539108732

NUT 3/8-24 JAM

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539115617

5/16-18 THIN PROF NY

$

$

Not available

25

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

26

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

27

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

28

Husqvarna 539101173

LUG NUT 1/2F

$

$

Not available

29

Husqvarna 525490901

WASHER, FRICTION, 1/8

$7.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539912063

CONE WASHER

$6.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539133007

WASHER, .825 X 1.087, WAVE

$4.99

$

In Stock, only 3 left!

0

32

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0
