PZ 54 (966614004-00) - Husqvarna 54" Zero-Turn Mower (2016-12) MOWER DECK / CUTTING DECK Parts Diagram

54" Zero-Turn Mower

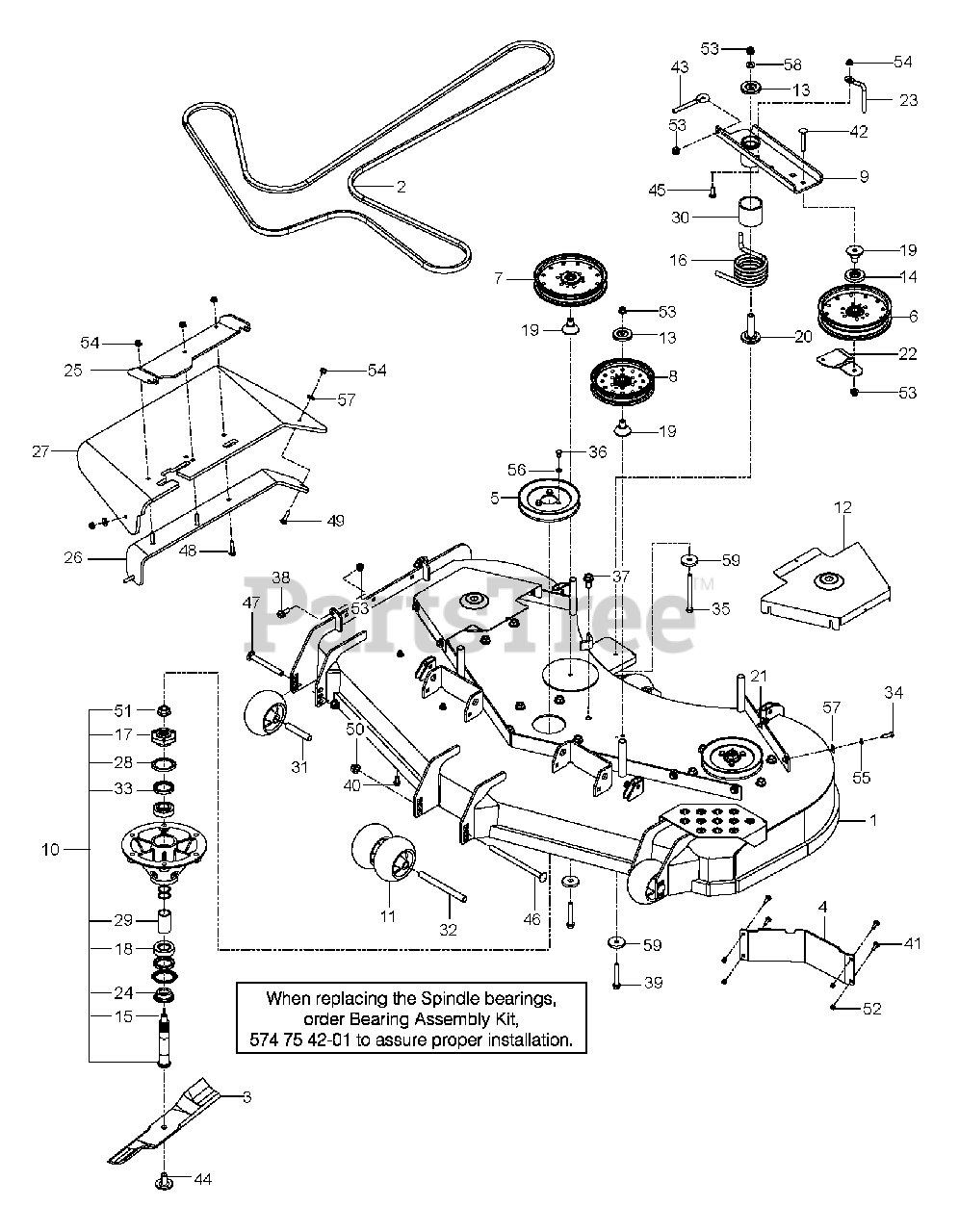

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Husqvarna 588127604

DECK.W/DECALS.PZ.54"

$

$

Not available

2

Husqvarna 588264802

BELT.5V.169.75

$148.99

$

In Stock, only 1 left!

0

3

Husqvarna 575265901

BLADE, 19"

$28.99

$

In Stock, Qty 6

0

4

Husqvarna 510437502

BAFFLE, DIVERTER 54"/60" LH

$60.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539130646

PULLEY - 6.57

$26.99

$

In Stock, only 2 left!

0

6

Husqvarna 510015101

PULLEY - IDLER 7"

$

$

Not available

7

Husqvarna 525598201

PULLEY - 7" NARROW

$

$

Not available

8

Husqvarna 510019601

PULLEY IDLER, 6" NARROW

$

$

Not available

9

Husqvarna 574722201

ASSY, IDLER ARM, PZ

$121.99

$

Usually ships in 3-10 days

0

10

Husqvarna 580943304

SPINDLE.ASM.10".IRON.1/8-27
(Superseded to 580943306)

$363.99

$

In Stock, only 1 left!

0

11

Husqvarna 574169601

ROLLER, GAUGE .635 BORN

$17.99

$

Usually ships in 3-10 days

0

12

Husqvarna 510131202

SHIELD,BELT, 60" ORANGE

$68.99

$

Usually ships in 3-10 days

0

13

Husqvarna 510254501

DUST SHIELD

$

$

Not available

14

Husqvarna 510262201

SHIELD, DUST

$

$

Not available

15

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

16

Husqvarna 525310901

SPRING, TORSION, IDLER

$121.99

$

Usually ships in 3-10 days

0

17

Husqvarna 580942201

HUB

$24.99

$

In Stock, only 1 left!

0

18

Husqvarna 580941801

BEARING
(Superseded to 583911101)

$51.99

$

Usually ships in 3-10 days

0

19

Husqvarna 510263701

BEARING, IDLER ARM

$6.99

$

In Stock, Qty 9

0

20

Husqvarna 522729701

BEARING, IDLER PIVOT

$9.49

$

In Stock, only 1 left!

0

21

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 9

0

22

Husqvarna 574262102

BELT.GUIDE.BLACK

$34.99

$

Usually ships in 3-10 days

0

23

Husqvarna 574262201

BELT KEEPER

$

$

Not available

24

Husqvarna 580942501

SEAL

$9.49

$

In Stock, only 2 left!

0

25

Husqvarna 574197002

BRKT - CHUTE MTG BLACK

$78.99

$

Usually ships in 3-10 days

0

26

Husqvarna 525486002

BRKT, CHUTE SUPPORT BLACK

$79.99

$

In Stock, only 1 left!

0

27

Husqvarna 525485801

CHUTE, DISCHARGE 48-52

$85.99

$

In Stock, only 1 left!

0

28

Husqvarna 580942701

SEAL V-RING 55MM

$4.99

$

In Stock, only 2 left!

0

29

Husqvarna 580942301

SPACER

$10.99

$

In Stock, only 4 left!

0

30

Husqvarna 525465601

SPACER, IDLER PIVOT

$10.99

$

In Stock, only 1 left!

0

31

Husqvarna 574196401

TUBE, ROLLER AXLE

$

$

Not available

32

Husqvarna 574196501

TUBE, ROLLER AXLE LONG

$14.99

$

Usually ships in 3-10 days

0

33

Husqvarna 580942601

SEAL SHAFT

$6.99

$

In Stock, only 2 left!

0

34

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539101686

HCS 3/8-16 X 4-1/2 GR 8 ZD

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539130315

HCS 5/16-18 X 1/2 GR 5 ZD

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 574210601

HHFS 1/2-13 X 1 GR5 ZD

$

$

Not available

38

Husqvarna 525612801

HHFS 3/8-16 X 1 GRD 5 ZD

$

$

Not available

39

Husqvarna 539131781

HHFS 3/8-16 X 2 3/4

$5.99

$

In Stock, only 2 left!

0

40

Husqvarna 874490512

HHFS 5/16-18 X 3/4

$

$

Not available

41

Husqvarna 539115620

1/4-20X3/4 CARR BLT
(Superseded to 596238401)

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539128101

CARRIAGE BOLT 3/8-16 X

$

$

Not available

43

Husqvarna 574202001

EYE BOLT, 3/8 X 4"

$

$

Not available

44

Husqvarna 539119007

BLADE BOLT/WASHER

$10.99

$

In Stock, only 3 left!

0

45

Husqvarna 539107271

RHSSNB 5/16C X 1.0
(Superseded to 596435701)

$3.99

$

In Stock, Qty 6

0

46

Husqvarna 510022401

RHSNB 1/2-13 X 8 GR5 ZD

$31.99

$

In Stock, only 1 left!

0

47

Husqvarna 510022301

RHSNB 1/2-13 X 4.75 GR5 ZD

$

$

Not available

48

Husqvarna 539102933

RHSNB 5/16-18 X 1-1/2 GR 5 ZD

$

$

Not available

49

Husqvarna 539100472

BOLT, CARRIAGE 5/16X1-1/4

$3.99

$

In Stock, Qty 20+

0

50

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

51

Husqvarna 539130653

NUT FLANGE 3/4-16
(Superseded to 598490501)

$9.49

$

In Stock, only 2 left!

0

52

Husqvarna 539976978

RP_NUT 1/4-20 NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

53

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

54

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

55

Husqvarna 810030500

WASH.5/16.SLW.ZD
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

56

Husqvarna 539109600

WASH 5/16 DISC SPRING ZD

$

$

Not available

57

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

58

Husqvarna 522023401

WASHER, 3/8 THICK

$4.99

$

In Stock, Qty 20+

0

59

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

Husqvarna 525307001

BLADE 19 X 3 X .250, 1.50 LIFT

Note: OPTIONAL

$30.99

$

Usually ships in 3-10 days

0

Husqvarna 574481101

BLADE, 19" 3X.25X.75 LIFT

Note: OPTIONAL

$30.99

$

Usually ships in 3-10 days

0

Husqvarna 525525901

BLADE, 19" GATOR, 1.25" LIFT

Note: OPTIONAL

$31.99

$

In Stock, Qty 8

0

Husqvarna 574486901

Blade, Wavy Rev Lift 19"

Note: SPARK ARRESTOR

$

$

Currently unavailable
