PZ 54 (966614003) - Husqvarna 54" Zero-Turn Mower (2013-01) MOWER DECK / CUTTING DECK Parts Diagram

54" Zero-Turn Mower

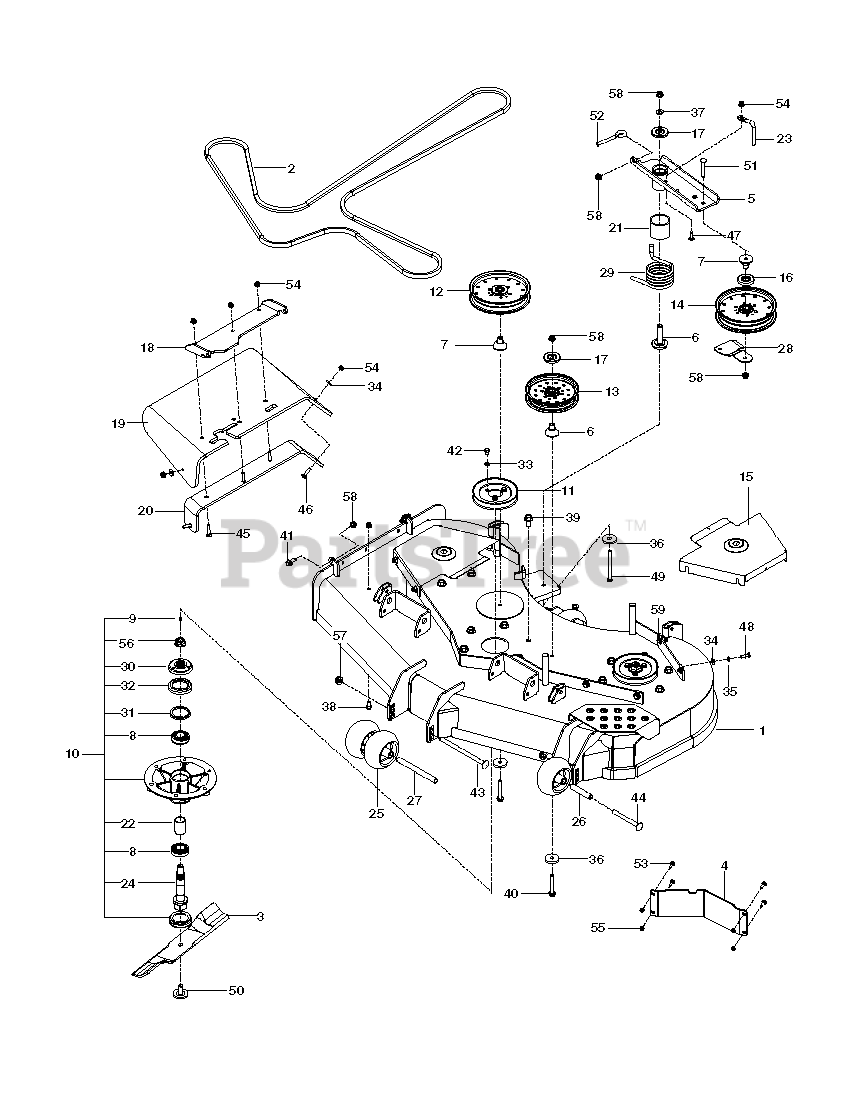

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
1

Husqvarna 574497101

DECK.FAB.54".W/DECALS.ORANGE
(Superseded to 588127604)

$

$

Not available

2

Husqvarna 575658401

BELT, "5V", 169.75"
(Superseded to 588264802)

$148.99

$

In Stock, only 1 left!

0

3

Husqvarna 575265901

BLADE, 19"

$28.99

$

In Stock, Qty 6

0

4

Husqvarna 510437502

BAFFLE, DIVERTER 54"/60" LH

$60.99

$

Usually ships in 3-10 days

0

5

Husqvarna 574722201

ASSY, IDLER ARM, PZ

$121.99

$

Usually ships in 3-10 days

0

6

Husqvarna 522729701

BEARING, IDLER PIVOT

$9.49

$

In Stock, only 1 left!

0

7

Husqvarna 510263701

BEARING, IDLER ARM

$6.99

$

In Stock, Qty 9

0

8

Husqvarna 539130638

BEARING - 206KRR8

$34.99

$

In Stock, Qty 20+

0

9

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

10

Husqvarna 525836401

SPINDLE ASM. 10"
(Superseded to 580943306)

$363.99

$

In Stock, only 1 left!

0

11

Husqvarna 521979701

PULLEY - 5.93 OVER PINS

$26.99

$

In Stock, only 1 left!

0

12

Husqvarna 525598201

PULLEY - 7" NARROW

$

$

Not available

13

Husqvarna 510019601

PULLEY IDLER, 6" NARROW

$

$

Not available

14

Husqvarna 510015101

PULLEY - IDLER 7"

$

$

Not available

15

Husqvarna 510131202

SHIELD,BELT, 60" ORANGE

$68.99

$

Usually ships in 3-10 days

0

16

Husqvarna 510262201

SHIELD, DUST

$

$

Not available

17

Husqvarna 510254501

DUST SHIELD

$

$

Not available

18

Husqvarna 574197002

BRKT - CHUTE MTG BLACK

$78.99

$

Usually ships in 3-10 days

0

19

Husqvarna 525485801

CHUTE, DISCHARGE 48-52

$85.99

$

In Stock, only 1 left!

0

20

Husqvarna 525486002

BRKT, CHUTE SUPPORT BLACK

$79.99

$

In Stock, only 1 left!

0

21

Husqvarna 525465601

SPACER, IDLER PIVOT

$10.99

$

In Stock, only 1 left!

0

22

Husqvarna 539130641

SPACER - BEARING

$

$

Not available

23

Husqvarna 574262201

BELT KEEPER

$

$

Not available

24

Husqvarna 525836001

SHAFT - SPINDLE
(Superseded to 580943306)

$363.99

$

In Stock, only 1 left!

0

25

Husqvarna 574169601

ROLLER, GAUGE .635 BORN

$17.99

$

Usually ships in 3-10 days

0

26

Husqvarna 574196401

TUBE, ROLLER AXLE

$

$

Not available

27

Husqvarna 574196501

TUBE, ROLLER AXLE LONG

$14.99

$

Usually ships in 3-10 days

0

28

Husqvarna 574262102

BELT.GUIDE.BLACK

$34.99

$

Usually ships in 3-10 days

0

29

Husqvarna 525310901

SPRING, TORSION, IDLER

$121.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539130637

HUB - PULLEY

$

$

Not available

31

Husqvarna 539130639

V-RING, 55MM

$6.99

$

In Stock, Qty 7

0

32

Husqvarna 539130643

CUP - DEBRIS

$7.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539109600

WASH 5/16 DISC SPRING ZD

$

$

Not available

34

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

35

Husqvarna 539990187

WASHER 5/16 LOCK
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

36

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

37

Husqvarna 522023401

WASHER, 3/8 THICK

$4.99

$

In Stock, Qty 20+

0

38

Husqvarna 525464701

HHFS 5/16-18 X 3/4

$3.99

$

In Stock, only 1 left!

0

39

Husqvarna 574210601

HHFS 1/2-13 X 1 GR5 ZD

$

$

Not available

40

Husqvarna 539131781

HHFS 3/8-16 X 2 3/4

$5.99

$

In Stock, only 2 left!

0

41

Husqvarna 525612801

HHFS 3/8-16 X 1 GRD 5 ZD

$

$

Not available

42

Husqvarna 539130315

HCS 5/16-18 X 1/2 GR 5 ZD

$3.99

$

Usually ships in 3-10 days

0

43

Husqvarna 510022401

RHSNB 1/2-13 X 8 GR5 ZD

$31.99

$

In Stock, only 1 left!

0

44

Husqvarna 510022301

RHSNB 1/2-13 X 4.75 GR5 ZD

$

$

Not available

45

Husqvarna 539102933

RHSNB 5/16-18 X 1-1/2 GR 5 ZD

$

$

Not available

46

Husqvarna 539100472

BOLT, CARRIAGE 5/16X1-1/4

$3.99

$

In Stock, Qty 20+

0

47

Husqvarna 539107271

RHSSNB 5/16C X 1.0
(Superseded to 596435701)

$3.99

$

In Stock, Qty 6

0

48

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

49

Husqvarna 539101686

HCS 3/8-16 X 4-1/2 GR 8 ZD

$3.99

$

Usually ships in 3-10 days

0

50

Husqvarna 539119007

BLADE BOLT/WASHER

$10.99

$

In Stock, only 3 left!

0

51

Husqvarna 539128101

CARRIAGE BOLT 3/8-16 X

$

$

Not available

52

Husqvarna 574202001

EYE BOLT, 3/8 X 4"

$

$

Not available

53

Husqvarna 539115620

1/4-20X3/4 CARR BLT
(Superseded to 596238401)

$3.99

$

Usually ships in 3-10 days

0

54

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

55

Husqvarna 539976978

RP_NUT 1/4-20 NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

56

Husqvarna 539130653

NUT FLANGE 3/4-16
(Superseded to 598490501)

$9.49

$

In Stock, only 2 left!

0

57

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

58

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

59

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 9

0
