PZ 54 (966614003-01) - Husqvarna 54" Zero-Turn Mower (2013-01) WHEELS & TIRES Parts Diagram

54" Zero-Turn Mower

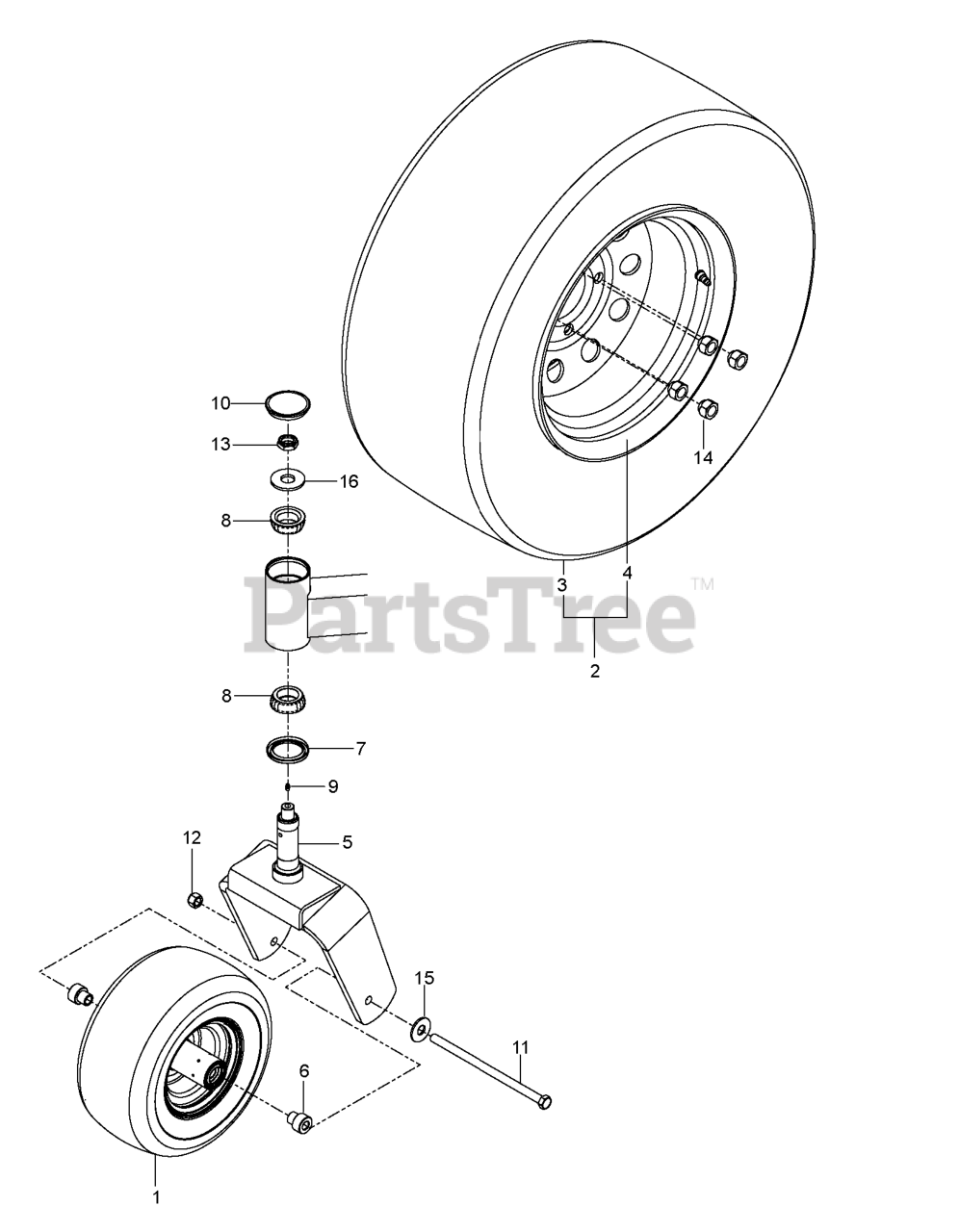

WHEELS & TIRES Parts Diagram

  • Title

2

Husqvarna 522905101

WHEEL/TIRE.ASM SILV 23X10.5-12

$423.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539107431

TIRE.TURF.MASTER.23X10.5-12

$423.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539990250

WASHER 1/2" FLAT

$1.99

$

In Stock, only 2 left!

0

14

Husqvarna 539101173

LUG NUT 1/2F

$

$

Not available

1

Husqvarna 510154601

TIRE, 13 X 6.5-6 NO FLAT

$265.99

$

In Stock, only 2 left!

0

6

Husqvarna 539105518

AXLE SPACER

$9.49

$

In Stock, only 4 left!

0

12

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

5

Husqvarna 525611902

FORK.CASTER.ORANGE

$250.99

$

Usually ships in 3-10 days

0

7

Husqvarna 510034301

SEAL, BEARING

$6.49

$

In Stock, only 3 left!

0

4

Husqvarna 522905102

RIM, 12 X 8.5, 1.125" NEG OS

Note: RIM

$193.99

$

Usually ships in 3-10 days

0

8

Husqvarna 510034403

CONE, LM67048

$14.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539101474

ZERK

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 510034001

CAP, DUST

$

$

Not available

13

Husqvarna 522842601

NUT, 3/4-16 HEX THIN NYLOC ZD

$

$

Not available

11

Husqvarna 539105517

HEX SCREW 1/2-13 X 9.5 GR5

$

$

Not available

16

Husqvarna 574824701

WASHER, 3/4 HARDENED

$

$

Not available
