PZ 34 FX BF (966553901) - Husqvarna Zero-Turn Mower (2012-04) STEERING Parts Diagram

Zero-Turn Mower

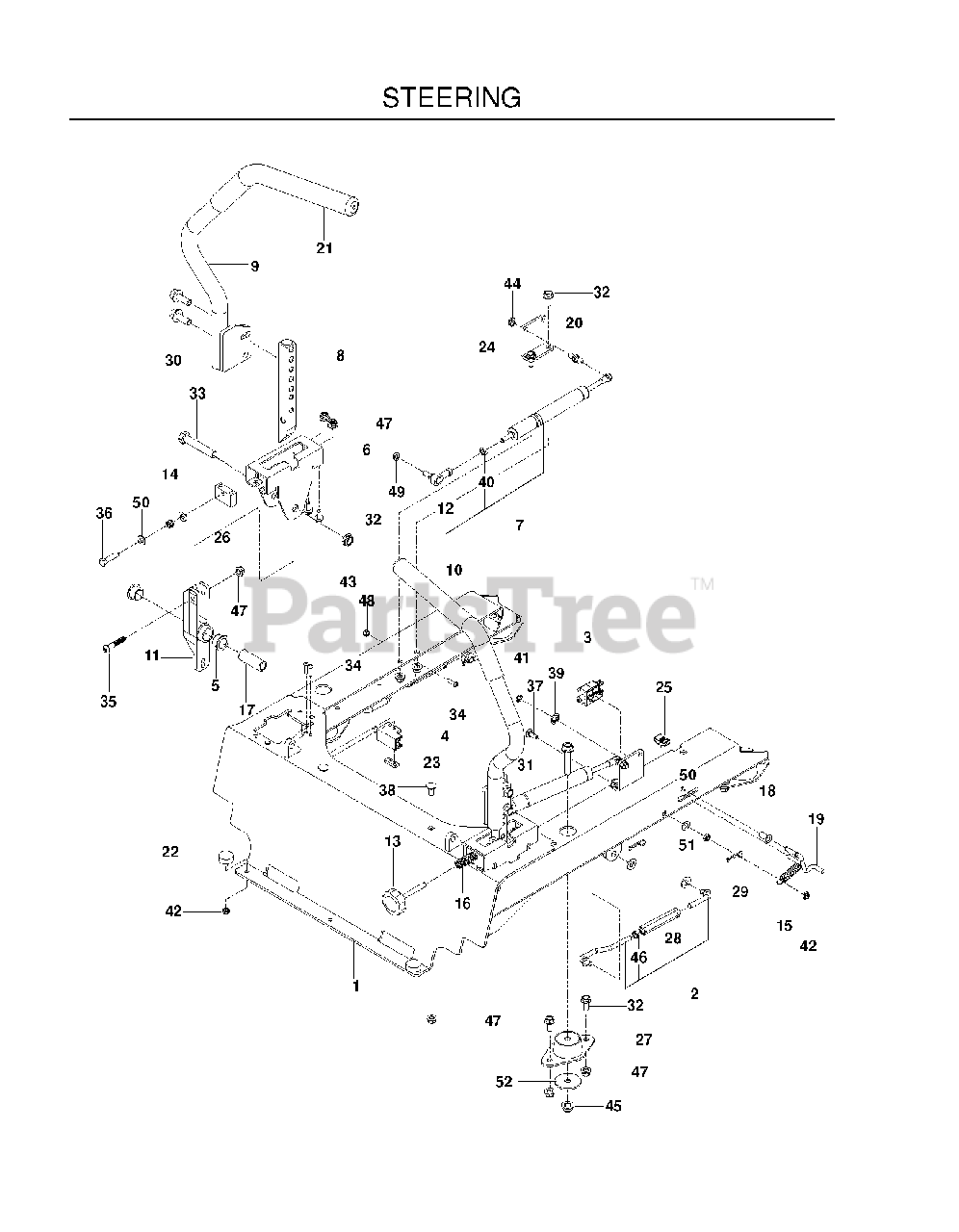

STEERING Parts Diagram

  • Title
1

Husqvarna 577327702

FRAME SEAT MOUNT ORANGE

Note: ORG

$

$

Not available

2

Husqvarna 525447901

ASSEMBLY, SEAT STRUT

$27.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539113792

SWITCH, BRAKE 3P

$17.99

$

In Stock, Qty 14

0

4

Husqvarna 532109553

SWITCH INTERLOCKT
(Superseded to 539101080)

$17.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539131518

BEARING, FLANGE

$11.99

$

In Stock, Qty 7

0

6

Husqvarna 577251701

BRACKET, CONTROL
(Superseded to 586737202)

$26.99

$

In Stock, only 1 left!

0

7

Husqvarna 516020301

ASSEMBLY, DAMPENER
(Superseded to 597084601)

$159.99

$

Usually ships in 3-10 days

0

8

Husqvarna 574269401

LEVER, MOTION

$27.99

$

Usually ships in 3-10 days

0

9

Husqvarna 577042403

LEVER.WITH GRIP.RT

Note: RT

$109.99

$

Usually ships in 3-10 days

0

10

Husqvarna 577042303

LEVER.WITH GRIP.LT

Note: LT

$109.99

$

Usually ships in 3-10 days

0

11

Husqvarna 576140302

LEVER.CONTROL.SHORT

$78.99

$

Usually ships in 3-10 days

0

12

$10.99

$

Usually ships in 3-10 days

0

$

$

Not available

$4.99

$

In Stock, only 2 left!

0

15

Husqvarna 539020035

SPRING, EXTENSION
(Superseded to 540020035)

$14.99

$

Usually ships in 3-10 days

0

16

Husqvarna 576850301

SPRING COMPRESSION 2.0

$6.49

$

In Stock, Qty 9

0

17

Husqvarna 577252401

SPACER, PIVOT CONTROL
(Superseded to 584927201)

$5.99

$

In Stock, only 1 left!

0

18

Husqvarna 511594901

BUSHING, 1/4 FLANGE

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 511595001

LINK, SWITCH

$7.49

$

Usually ships in 3-10 days

0

20

Husqvarna 539110607

STUD.BALL.10MM

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539130894

GRIP - DRIVE LEVER 12"

$9.99

$

In Stock, only 3 left!

0

22

Husqvarna 578811501

NUT
(Superseded to 575811501)

$6.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539102678

TAPPED PLATE

$15.99

$

In Stock, Qty 9

0

24

Husqvarna 577265801

BRACKET.DAMPNER

$

$

Not available

25

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

26

Husqvarna 577251801

BLOCK.TRACKING

$11.99

$

Usually ships in 3-10 days

0

27

Husqvarna 510082101

MOUNT, ISO

$28.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539109149

TURNBUCKLE, 3/8

$48.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539976988

HAIRPIN #2

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 525612801

HHFS 3/8-16 X 1 GRD 5 ZD

$

$

Not available

31

Husqvarna 525866201

HHFS 3/8-16 X 2.0 GD 5

$4.99

$

In Stock, only 1 left!

0

32

Husqvarna 525464701

HHFS 5/16-18 X 3/4

$3.99

$

In Stock, only 1 left!

0

33

Husqvarna 539101332

HCS 1/2C X 2 3/4

$5.99

$

In Stock, only 3 left!

0

34

Husqvarna 574822701

SCR #10-24 X .75 SKT HD BLK

$4.99

$

In Stock, Qty 6

0

35

Husqvarna 576850402

SCREW 5/16-18 X 1 3/4 BTN-HD

$4.99

$

In Stock, only 2 left!

0

36

Husqvarna 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, Qty 9

0

37

Husqvarna 539990074

RHSNB 1/4C X 3/4
(Superseded to 596238401)

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

39

Husqvarna 539913847

NUT 3/8 PALNUT RTNG BLK PHOS

$4.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539127046

NUT M8 X 1.25 STD HEX

$3.99

$

Usually ships in 3-10 days

0

41

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539108120

JAM NUT 1/4C (2 2 PW01)
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

43

Husqvarna 539108010

NUT 1/2-13 HEX JM NYL

$4.99

$

In Stock, only 3 left!

0

44

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

45

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

46

Husqvarna 539108732

NUT 3/8-24 JAM

$3.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

48

Husqvarna 539976977

NUT 10-24 NYLOC

$

$

Not available

49

Husqvarna 539990187

WASHER 5/16 LOCK
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

50

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 18

0

51

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

52

Husqvarna 539111897

WASHER, 3/8 SPEC

$

$

Not available
