PZ 34 BF (966553901-04) - Husqvarna Zero-Turn Mower (2015-10) SEAT Parts Diagram

Zero-Turn Mower

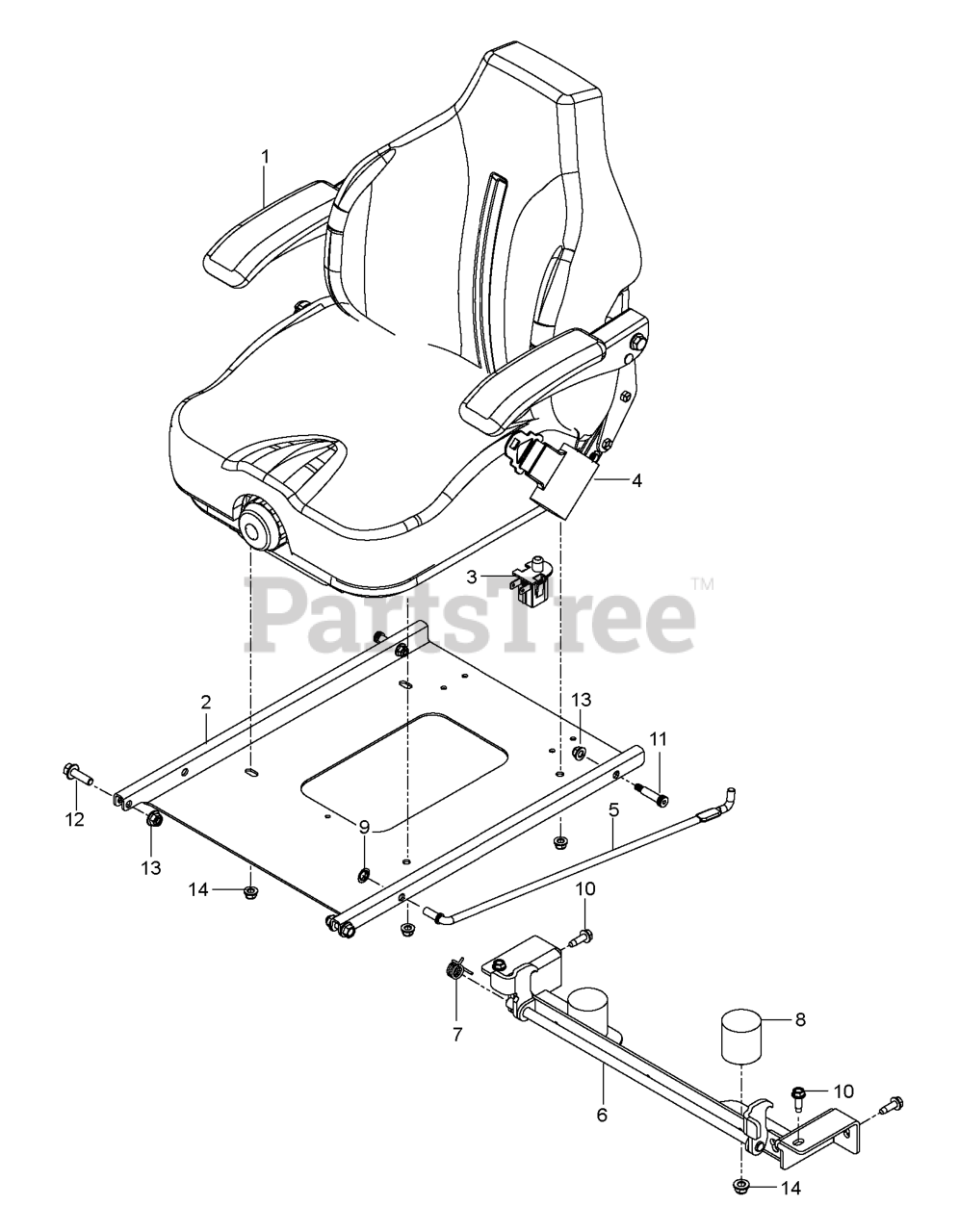

SEAT Parts Diagram

  • Title

7

Husqvarna 520283101

SPRING, TORSION

$

$

Not available

1

Husqvarna 501552801

SEAT.ASM.SUSPENSION.TRACK
(Superseded to 582460103)

$1595.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

3

Husqvarna 539119741

SEAT SWITCH
(Superseded to 532421062)

$14.99

$

In Stock, only 1 left!

0

5

Husqvarna 510064101

ROD, SEAT

$10.99

$

Usually ships in 3-10 days

0

6

Husqvarna 585857402

BRACKET.PNT.LATCH.SEAT.BUMPER

$170.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539913847

NUT 3/8 PALNUT RTNG BLK PHOS

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539113226

RP BLT 5/16-18 X 1 THRD FORM D
(Superseded to 593337201)

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 510039302

PAN, SEAT, BLACK

$145.99

$

Usually ships in 3-10 days

0

11

Husqvarna 515990601

BOLT, SHOULDER 3/8 X 1.25

$3.99

$

In Stock, only 2 left!

0

8

Husqvarna 510283801

BUMPER, RUBBER

$24.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539130359

SEAT BELT, RETRACTABLE
(Superseded to 596322701)

$136.99

$

In Stock, only 1 left!

0

12

Husqvarna 525834201

HHFS 3/8-16 X 1.25 GD 5

$

$

Not available

13

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available
