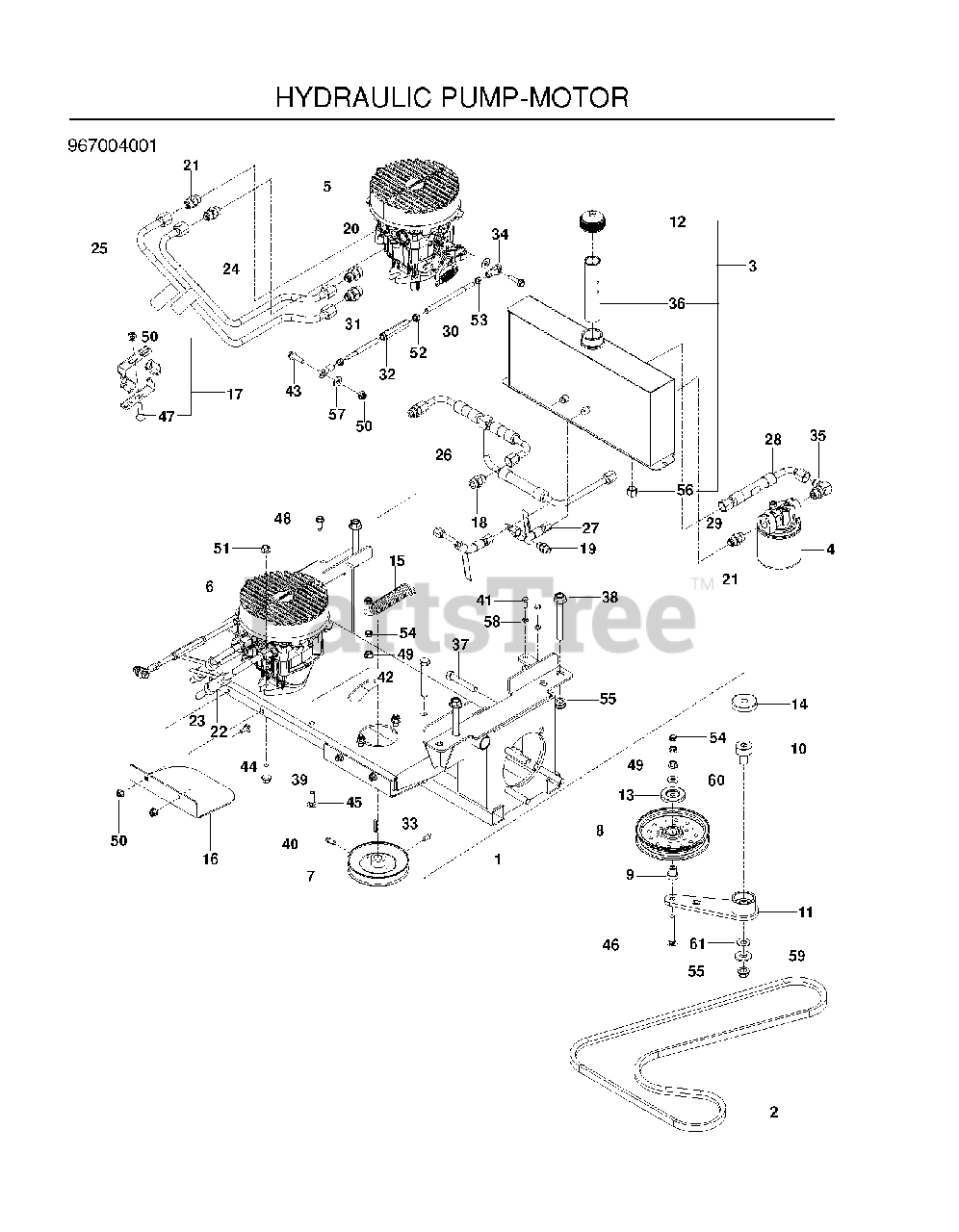

PZ 29 FX BF (966553801) - Husqvarna Zero-Turn Mower (2012-04) HYDRAULIC FRAME Parts Diagram

Zero-Turn Mower

HYDRAULIC FRAME Parts Diagram

  • Title

1

Husqvarna 506007902

FRAME, NYDR SUB, BLK

$909.99

$

Usually ships in 3-10 days

0

2

Husqvarna 573978301

BELT, "B", 75.5"

$66.99

$

In Stock, only 3 left!

0

3

Husqvarna 576035902

ASSEMBLY, RESERVOIR, OIL

$376.99

$

Usually ships in 3-10 days

0

4

Husqvarna 522805401

FILTER 25 MICRON

$31.99

$

Usually ships in 3-10 days

0

5

Husqvarna 505351001

HG_PUMP, 12CC RT

$1595.99

$

Usually ships in 3-10 days

0

6

Husqvarna 505351101

HG_PUMP, 12CC LT

$1595.99

$

Usually ships in 3-10 days

0

7

Husqvarna 510019001

PULLEY, PUMP 15MM

$62.99

$

Usually ships in 3-10 days

0

8

Husqvarna 510283702

IDLER, FLAT, 5.5"

$

$

Not available

9

Husqvarna 525435601

PIVOT, IDLER

$8.99

$

In Stock, only 4 left!

0

10

Husqvarna 510206301

PIVOT, BEARING

$6.49

$

In Stock, only 2 left!

0

11

Husqvarna 510041603

ARM, IDLER, STEEL, W/BGS

$56.99

$

Usually ships in 3-10 days

0

12

Husqvarna 522805301

CAP, HYDRAULIC

$31.99

$

Usually ships in 3-10 days

0

13

Husqvarna 510254501

DUST SHIELD

$

$

Not available

14

Husqvarna 539114662

SHIELD, DUST

$

$

Not available

15

Husqvarna 577437201

SPRING, PUMP

$8.99

$

In Stock, only 2 left!

0

16

Husqvarna 574398502

SHIELD, PULLEY, BLK

$34.99

$

Usually ships in 3-10 days

0

17

Husqvarna 576577701

ASM, VIB, HYDRO HOSE
(Superseded to 576587101)

$18.99

$

In Stock, only 1 left!

0

18

Husqvarna 539131748

FITTING, HYDRO

$7.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539103316

STRAIGHT FITG

$11.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539101239

CONNECTOR, STRAIGHT
(Superseded to 539101237)

$12.99

$

In Stock, only 2 left!

0

21

Husqvarna 539101237

FITTING, STRAIGHT F6400-8-8-0

$12.99

$

In Stock, only 2 left!

0

22

Husqvarna 510010101

LINE, RT A

$109.99

$

Usually ships in 3-10 days

0

23

Husqvarna 510010201

LINE, RT B

$109.99

$

Usually ships in 3-10 days

0

24

Husqvarna 510010301

LINE, LT A

$109.99

$

Usually ships in 3-10 days

0

25

Husqvarna 510010401

LINE, LT B

$136.99

$

Usually ships in 3-10 days

0

26

Husqvarna 510010501

LINE, CHARGE

$148.99

$

Usually ships in 3-10 days

0

27

Husqvarna 510010601

LINE, CASE

$34.99

$

Usually ships in 3-10 days

0

28

Husqvarna 510010701

LINE, SUCTION

$34.99

$

Usually ships in 3-10 days

0

29

Husqvarna 575872301

FILTER HEAD

$43.99

$

Usually ships in 3-10 days

0

30

Husqvarna 522842801

LINKAGE, CONTROL, RR

$91.99

$

Usually ships in 3-10 days

0

31

Husqvarna 522559201

LINKAGE, CONTROL, FT

$

$

Not available

32

Husqvarna 539109149

TURNBUCKLE, 3/8

$48.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539101177

KEY 5 MM SQ X 25 MM

$8.99

$

In Stock, only 2 left!

0

34

Husqvarna 539102590

BALL JOINT, RIGHT HANDED

$27.99

$

In Stock, only 1 left!

0

35

Husqvarna 539101242

ELBOW, 90 DEGREE

$34.99

$

Usually ships in 3-10 days

0

36

Husqvarna 522805001

TUBE, ANTI-SPLASH

$113.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539101332

HCS 1/2C X 2 3/4

$5.99

$

In Stock, only 3 left!

0

38

Husqvarna 525544801

HHFS 1/2-13 X 4.0 GD8 ZD

$6.49

$

Usually ships in 3-10 days

0

39

Husqvarna 525834201

HHFS 3/8-16 X 1.25 GD 5

$

$

Not available

40

Husqvarna 539102717

SCREW 5/16C X 5/8 SQ HEAD

$3.99

$

In Stock, only 4 left!

0

41

Husqvarna 539990072

HCS 1/4C X 5/8

$3.99

$

In Stock, only 1 left!

0

42

Husqvarna 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, only 4 left!

0

43

Husqvarna 525544001

HHFS 5/16-18 X 1.25 TPBLT GD 5

$3.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

45

Husqvarna 539100413

RHSNB 3/8-16 X 1-1/4

$3.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539130235

RHSNB 3/8-16 X 2.75

$3.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539102933

RHSNB 5/16-18 X 1-1/2 GR 5 ZD

$

$

Not available

48

Husqvarna 539113226

RP BLT 5/16-18 X 1 THRD FORM D
(Superseded to 593337201)

$3.99

$

Usually ships in 3-10 days

0

49

Husqvarna 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

50

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

51

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

52

Husqvarna 539108732

NUT 3/8-24 JAM

$3.99

$

Usually ships in 3-10 days

0

53

Husqvarna 539990223

NUT 5/16F

$3.99

$

Usually ships in 3-10 days

0

54

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

55

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

56

Husqvarna 539105168

NUT 9/16-18 JIC CAP

$3.99

$

In Stock, only 3 left!

0

57

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

58

Husqvarna 539990052

LOCKWASHER 1/4"

$3.99

$

Usually ships in 3-10 days

0

59

Husqvarna 539109554

WASH USS FLAT 1/2

$

$

Not available

60

Husqvarna 522023401

WASHER, 3/8 THICK

$4.99

$

In Stock, Qty 20+

0

61

Husqvarna 539115528

CONTACT BELLSPR 1/2

$3.99

$

Usually ships in 3-10 days

0
