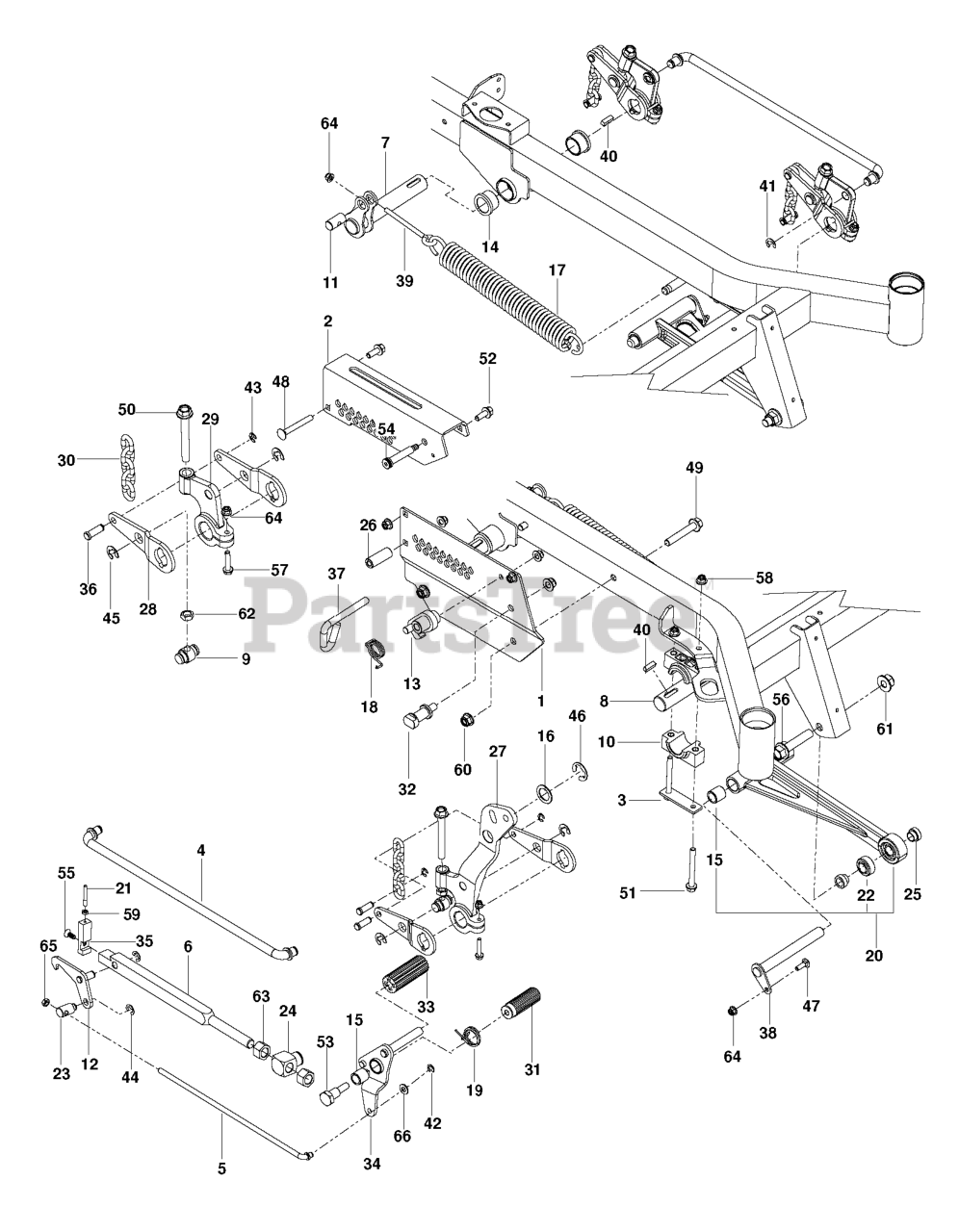

PZ 29 D CE (966616701) - Husqvarna Zero-Turn Mower (2012-02) MOWER LIFT / DECK LIFT Parts Diagram

Zero-Turn Mower

MOWER LIFT / DECK LIFT Parts Diagram

  • Title

14

Husqvarna 510089401

BUSHING, FLANGE 1.25 X 1.0

$20.99

$

Usually ships in 3-10 days

0

50

Husqvarna 525465701

HHFS 1/2-13 X 4 GR 5

$24.99

$

Usually ships in 3-10 days

0

64

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

30

Husqvarna 539102641

LIFT CHAIN

$8.99

$

Usually ships in 3-10 days

0

10

Husqvarna 510023902

BLOCK, PILLOW

$14.99

$

In Stock, only 1 left!

0

8

Husqvarna 510409602

SHAFT, LIFT, FT

$96.99

$

Usually ships in 3-10 days

0

5

Husqvarna 510407601

ROD, HEIGHT LATCH

$10.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539912730

E-RING 1"
(Superseded to 812000053)

$7.49

$

Usually ships in 3-10 days

0

13

Husqvarna 510406801

LATCH, TRANSPORT WLDMT

$

$

Not available

17

Husqvarna 510029201

SPRING, EXTENSION

$40.99

$

In Stock, only 1 left!

0

45

Husqvarna 539102454

E RING 3/4

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 510376601

SPRING, TORSION

$3.99

$

In Stock, only 2 left!

0

59

Husqvarna 539991112

NUT 1/4-20 JAM

$3.99

$

In Stock, only 4 left!

0

34

Husqvarna 510407801

PEDAL, RELEASE WLDMT

$182.99

$

Usually ships in 3-10 days

0

53

Husqvarna 510408201

BOLT, SHOULDER

$

$

Not available

41

Husqvarna 539105069

E-RING 5/8

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 510406401

SWIVEL, HEIGHT BAR

$18.99

$

Usually ships in 3-10 days

0

52

Husqvarna 525612801

HHFS 3/8-16 X 1 GRD 5 ZD

$

$

Not available

19

Husqvarna 510376701

SPRING, TORSION

$3.99

$

In Stock, only 1 left!

0

25

Husqvarna 510362501

SPACER, STRUT

$7.49

$

Usually ships in 3-10 days

0

47

Husqvarna 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 510016501

PIN, HEIGHT

$14.99

$

Usually ships in 3-10 days

0

65

Husqvarna 539108732

NUT 3/8-24 JAM

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 510089801

ROD, LIFT

$113.99

$

Usually ships in 3-10 days

0

51

Husqvarna 525822101

HHFS 3/8-16 X 3.5 GD 5 ZD

$7.49

$

Usually ships in 3-10 days

0

57

Husqvarna 525465401

HHFS 5/16-18 X 1.5 GD 5

$7.49

$

Usually ships in 3-10 days

0

49

Husqvarna 525828901

HFFS 1/2-13 X 3 GD 5 ZD

$6.49

$

Usually ships in 3-10 days

0

43

Husqvarna 522705201

RING, E, 7/16

$4.99

$

In Stock, only 1 left!

0

54

Husqvarna 516035501

BOLT, SHOULDER, 1/2 X 2.25

$4.99

$

Usually ships in 3-10 days

0

29

Husqvarna 510022501

ARM, CAST LIFT
(Superseded to 525465501)

$121.99

$

Usually ships in 3-10 days

0

Husqvarna 525465502

ASSEMBLY, DECK LIFT LEVER

Note: NOT SHOWN

$182.99

$

Usually ships in 3-10 days

0

28

Husqvarna 510410002

ARM LIFT BLK

$9.49

$

Usually ships in 3-10 days

0

12

Husqvarna 510407201

LATCH, HEIGHT WLDMT

$

$

Not available

2

Husqvarna 510408602

PLATE, OUTER HEIGHT ORG

$96.99

$

Usually ships in 3-10 days

0

62

Husqvarna 539990625

NUT 1/2 HEX JAM
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

61

Husqvarna 525829101

NUT 5/8-11 FLG NYLOC ZD

$4.99

$

In Stock, only 3 left!

0

Husqvarna 525465501

ASSEMBLY, DECK LIFT CRANK

$121.99

$

Usually ships in 3-10 days

0

22

Husqvarna 510083801

BALL JOINT, 3/4" SWIVEL

$51.99

$

Usually ships in 3-10 days

0

9

Husqvarna 510023601

SHAFT, LIFT TRUNION WSL

$20.99

$

Usually ships in 3-10 days

0

3

Husqvarna 525822201

PLATE, PILLOW BLACK
(Superseded to 593634102)

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 510406701

GUIDE, HEIGHT BAR

$

$

Not available

44

Husqvarna 539101949

E-RING 1/2 (2 2)

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 510106501

ASSEMBLY, STRUT

$121.99

$

Usually ships in 3-10 days

0

63

Husqvarna 539108677

NUT 3/4-10 HEX ZD

$

$

Not available

60

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

55

Husqvarna 522705601

SCREW, 5/16-18 X 3/4 FLAT HEX

$4.99

$

Usually ships in 3-10 days

0

38

Husqvarna 515988201

PIN, STRUT

$24.99

$

Usually ships in 3-10 days

0

27

Husqvarna 510022502

ARM, LIFT LEVER
(Superseded to 525465502)

$182.99

$

Usually ships in 3-10 days

0

58

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

11

Husqvarna 510412301

PIVOT, SPRING

$7.49

$

Usually ships in 3-10 days

0

39

Husqvarna 539120993

EYE BOLT 4.5`

$46.99

$

Usually ships in 3-10 days

0

6

Husqvarna 510406301

BAR, HEIGHT

$

$

Not available

23

Husqvarna 510407501

SWIVEL, HEIGHT LATCH

$10.99

$

Usually ships in 3-10 days

0

66

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 539916561

MACHINE BUSHING

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 510089201

BUSHING, SLEEVE 3/4 X 1.0

$14.99

$

In Stock, only 4 left!

0

26

Husqvarna 510408401

SPACER, HEIGHT PLATE

$4.99

$

Usually ships in 3-10 days

0

40

Husqvarna 525822501

KEY, 5/16 SQ X 1.0

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 510408301

PEDAL, DECK HEIGHT

$

$

Not available

7

Husqvarna 510410703

SHAFT, RR LIFT

$60.99

$

Usually ships in 3-10 days

0

33

Husqvarna 510089501

PAD, FOOT PEDAL

$6.49

$

In Stock, Qty 14

0

21

Husqvarna 510406601

LINK, INDICATOR

$

$

Not available

42

Husqvarna 539990870

E RING 3/8"

$6.49

$

In Stock, only 1 left!

0

48

Husqvarna 539122728

3/8-16 X 3` CARR BOLT

$3.99

$

Usually ships in 3-10 days

0

56

Husqvarna 525829001

HHFS 5/8-11 X 3.0 GD 8 ZD

$31.99

$

Usually ships in 3-10 days

0

35

Husqvarna 510406501

CAP, HEIGHT BAR

$

$

Not available

1

Husqvarna 510408502

PLATE, INNER HEIGHT, ORANGE

$96.99

$

Usually ships in 3-10 days

0

36

Husqvarna 510090101

PIN, 7/16 CLEVIS

$

$

Not available
