PZ 29 D CE (966616701) - Husqvarna Zero-Turn Mower (2012-02) HYDRAULIC FRAME Parts Diagram

Zero-Turn Mower

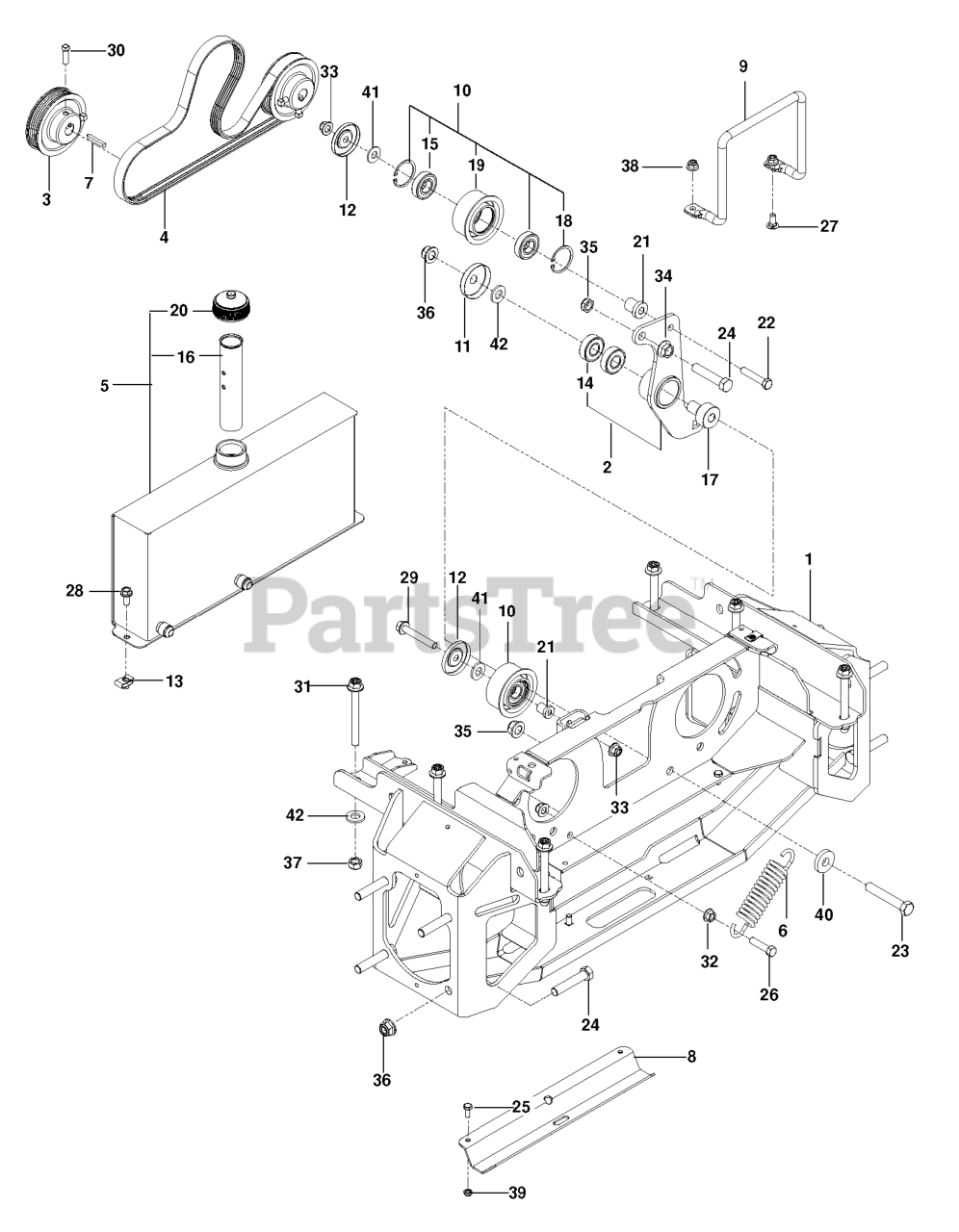

HYDRAULIC FRAME Parts Diagram

  • Title

7

Husqvarna 539109178

KEY, METRIC

$7.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539112050

BEARING, BALL

$7.49

$

In Stock, only 4 left!

0

28

Husqvarna 525464701

HHFS 5/16-18 X 3/4

$3.99

$

In Stock, only 1 left!

0

42

Husqvarna 539990250

WASHER 1/2" FLAT

$1.99

$

In Stock, only 2 left!

0

38

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

3

Husqvarna 539106334

PUMP SHEAVE

$

$

Not available

2

Husqvarna 574890201

ASSEMBLY.IDLER.W/BEARINGS

$102.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539101572

SCREW, 1/2C X 3 HEX CAP

$5.99

$

In Stock, Qty 10

0

4

Husqvarna 574890001

BELT, PUMP

$43.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539107042

HCS 3/8-16 X 1-1/2

$3.99

$

In Stock, Qty 6

0

33

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

10

Husqvarna 576937901

IDLER, W/BEARINGS

$284.99

$

Usually ships in 3-10 days

0

1

Husqvarna 574888702

WELDMENT, PUMP BAY, BLK

$

$

Not available

11

Husqvarna 539114662

SHIELD, DUST

$

$

Not available

22

Husqvarna 539990588

HCS 3/8C X 2

$4.99

$

In Stock, Qty 10

0

20

Husqvarna 522805301

CAP, HYDRAULIC

$31.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539119124

7/16-14 HEX NUT W/NYL RING ZD

$

$

Not available

17

Husqvarna 510206301

PIVOT, BEARING

$6.49

$

In Stock, only 2 left!

0

36

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

41

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 574507601

GUIDE, BELT

$

$

Not available

13

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 9

0

24

Husqvarna 539108346

HEX SCREW 1/2-13 X 2.5" GR 5

$5.99

$

Usually ships in 3-10 days

0

31

Husqvarna 521983801

BOLT 7/16 X 4 GR 8 BLK PHOS

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539110655

SPRING

$14.99

$

Usually ships in 3-10 days

0

16

Husqvarna 522805001

TUBE, ANTI-SPLASH

$113.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539131781

HHFS 3/8-16 X 2 3/4

$5.99

$

In Stock, only 2 left!

0

8

Husqvarna 522957201

GUARD, HOSE

$

$

Not available

34

Husqvarna 539111187

NUT 1/2-13 HEX

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 576689901

IDLER, PUMP

$94.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539102716

SCREW 5/16C X 1 SQ HEAD SET

$3.99

$

In Stock, only 3 left!

0

15

Husqvarna 539130296

BEARING

$9.99

$

In Stock, only 2 left!

0

21

Husqvarna 576690001

SPACER, IDLER

$6.99

$

Usually ships in 3-10 days

0

12

Husqvarna 510254501

DUST SHIELD

$

$

Not available

32

Husqvarna 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539117378

NUT, HEX 1/2-13 THIN W/NY

$

$

Not available

40

Husqvarna 539115636

WASHER .525 X 1.375 X .25

$9.99

$

In Stock, only 1 left!

0

5

Husqvarna 515999302

ASSEMBLY, RESERVOIR

$188.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539108120

JAM NUT 1/4C (2 2 PW01)
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

25

Husqvarna 539990072

HCS 1/4C X 5/8

$3.99

$

In Stock, only 1 left!

0

27

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 576816901

RING, RETAINING, 1-5/8"

$1.99

$

Usually ships in 3-10 days

0
