PZ 29 D CE (966616701) - Husqvarna Zero-Turn Mower (2011-02) MOWER DECK / CUTTING DECK Parts Diagram

Zero-Turn Mower

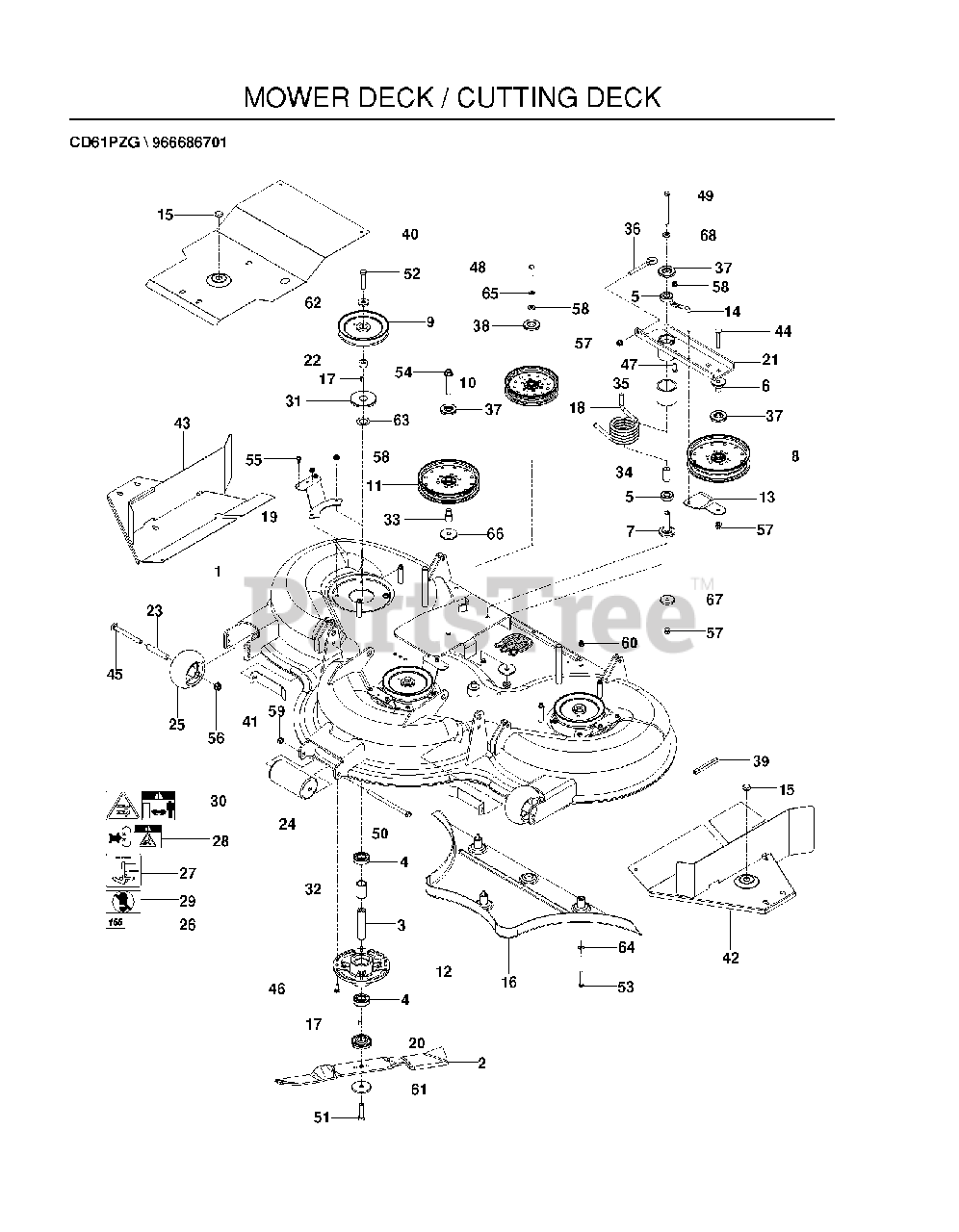

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Husqvarna 576380201

DECK W/SAFETY DECALS

Note: w / SAFETY DECALS

$

$

Not available

2

Husqvarna 544175801

BLADE

$

$

Not available

3

Husqvarna 535428702

AXLE

$56.99

$

Usually ships in 3-10 days

0

4

Husqvarna 738220519

BALL BEARING

$50.99

$

In Stock, only 2 left!

0

5

Husqvarna 539112050

BEARING, BALL

$7.49

$

In Stock, only 4 left!

0

6

Husqvarna 510263701

BEARING, IDLER ARM

$6.99

$

In Stock, Qty 8

0

7

Husqvarna 522729701

BEARING, IDLER PIVOT

$9.49

$

In Stock, only 1 left!

0

8

Husqvarna 510015101

PULLEY - IDLER 7"

$

$

Not available

9

Husqvarna 539112507

PULLEY, 61

$

$

Not available

10

Husqvarna 510019601

PULLEY IDLER, 6" NARROW

$

$

Not available

11

Husqvarna 525598201

PULLEY - 7" NARROW

$

$

Not available

12

Husqvarna 535428901

BEARING HOUSING

$

$

Not available

13

Husqvarna 574262102

BELT.GUIDE.BLACK

$34.99

$

Usually ships in 3-10 days

0

14

Husqvarna 574262201

BELT KEEPER

$

$

Not available

15

Husqvarna 539108382

PLUG, BUTTON HOLE

$0.99

$

Usually ships in 3-10 days

0

16

Husqvarna 544166401

PLUG ASSEMBLY

$

$

Not available

17

Husqvarna 506533501

KEY

$6.49

$

Usually ships in 3-10 days

0

18

Husqvarna 525310901

SPRING, TORSION, IDLER

$121.99

$

Usually ships in 3-10 days

0

19

Husqvarna 577012502

BRACKET,BELT CVR,COMBI BLK

$26.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539132778

BUSHING, BLADE

$37.99

$

Usually ships in 3-10 days

0

21

Husqvarna 525464402

IDLER.ARM.BLACK

$109.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539112609

KEY RETAINER

$10.99

$

Usually ships in 3-10 days

0

23

Husqvarna 574196401

TUBE, ROLLER AXLE

$

$

Not available

24

Husqvarna 544185401

ROLLER
(Superseded to 539002472)

$

$

Not available

25

Husqvarna 574169601

ROLLER, GAUGE .635 BORN

$17.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539112537

Decal, 155

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 574437301

DECAL, BELT ROUTING

$8.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539105744

DECAL, BELT DRIVE

$6.99

$

In Stock, only 2 left!

0

29

Husqvarna 539105743

DECAL, NO STEP
(Superseded to 581724301)

$4.99

$

In Stock, only 3 left!

0

30

Husqvarna 539105746

DECAL, EURO SEVERING

$3.99

$

In Stock, only 3 left!

0

31

Husqvarna 539108450

TOP DUST CAP

$5.99

$

In Stock, only 1 left!

0

32

Husqvarna 535428801

SPACER

$9.49

$

Usually ships in 3-10 days

0

33

Husqvarna 539114582

SPACER - IDLER

$24.99

$

Usually ships in 3-10 days

0

34

Husqvarna 510264201

SPACER, IDLER BEARINGS

$6.99

$

Usually ships in 3-10 days

0

35

Husqvarna 525465601

SPACER, IDLER PIVOT

$10.99

$

In Stock, only 1 left!

0

36

Husqvarna 574202001

EYE BOLT, 3/8 X 4"

$

$

Not available

37

Husqvarna 510254501

DUST SHIELD

$

$

Not available

38

Husqvarna 510262201

SHIELD, DUST

$

$

Not available

39

Husqvarna 539112294

FLEX TRIM, BLACK - LENGTH 1 FT
(Superseded to 589362602)

$5.99

$

In Stock, only 4 left!

0

40

Husqvarna 577048102

GUARD.CENTER.COMBI.61.BLACK

$122.99

$

Usually ships in 3-10 days

0

41

Husqvarna 577512802

GUARD, COMBI STRUT, BLK

$17.99

$

Usually ships in 3-10 days

0

42

Husqvarna 577048303

WLDMNT, LEFT COMBI 61, BLK

$

$

Not available

43

Husqvarna 577048203

WLDMNT, RIGHT COMBI 61, BLK

$

$

Not available

44

Husqvarna 539128101

CARRIAGE BOLT 3/8-16 X

$

$

Not available

45

Husqvarna 510022301

RHSNB 1/2-13 X 4.75 GR5 ZD

$

$

Not available

46

Husqvarna 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539107271

RHSSNB 5/16C X 1.0
(Superseded to 596435701)

$3.99

$

In Stock, only 4 left!

0

48

Husqvarna 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, only 1 left!

0

49

Husqvarna 539104984

HCS 3/8F X SPECIAL

$

$

Not available

50

Husqvarna 539132470

HCS 7/16-14 X 7 GR5 ZD

$4.99

$

In Stock, only 1 left!

0

51

Husqvarna 539132480

HCS M12 X 1.75 X 50 GR8.8 ZD

$3.99

$

In Stock, only 1 left!

0

52

Husqvarna 539132479

HCS M12 X 1.75 X 60 GR5 ZD

$3.99

$

In Stock, only 1 left!

0

53

Husqvarna 539132494

HCS M8 X 1.25 X 50 GR8.8 ZD

$

$

Not available

54

Husqvarna 525828901

HFFS 1/2-13 X 3 GD 5 ZD

$6.49

$

Usually ships in 3-10 days

0

55

Husqvarna 539107631

SCREW- 1/4-20 X 5/8
(Superseded to 532137729)

$4.99

$

In Stock, Qty 20+

0

56

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

57

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

58

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

59

Husqvarna 539990839

NUT 7/16C CENTERLOCK

$3.99

$

In Stock, only 3 left!

0

60

Husqvarna 506916203

BLIND RIVET NUT

$9.49

$

Usually ships in 3-10 days

0

61

Husqvarna 506792302

WASHER

$14.99

$

Usually ships in 3-10 days

0

62

Husqvarna 539115550

WASHER-.533IDX1.37OD

$4.99

$

In Stock, only 2 left!

0

63

Husqvarna 539127099

WASHER-1.06IDX1.63ODX.06

$6.49

$

In Stock, only 1 left!

0

64

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 11

0

65

Husqvarna 539990118

SLW 3/8 STD
(Superseded to 596238701)

$4.99

$

In Stock, Qty 15

0

66

Husqvarna 539111844

WASHER, HEAVY

$4.99

$

Usually ships in 3-10 days

0

67

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

68

Husqvarna 522023401

WASHER, 3/8 THICK

$4.99

$

In Stock, Qty 20+

0
