PZ 29 D CE (966616701) - Husqvarna Zero-Turn Mower (2011-02) COOLING SYSTEM Parts Diagram

Zero-Turn Mower

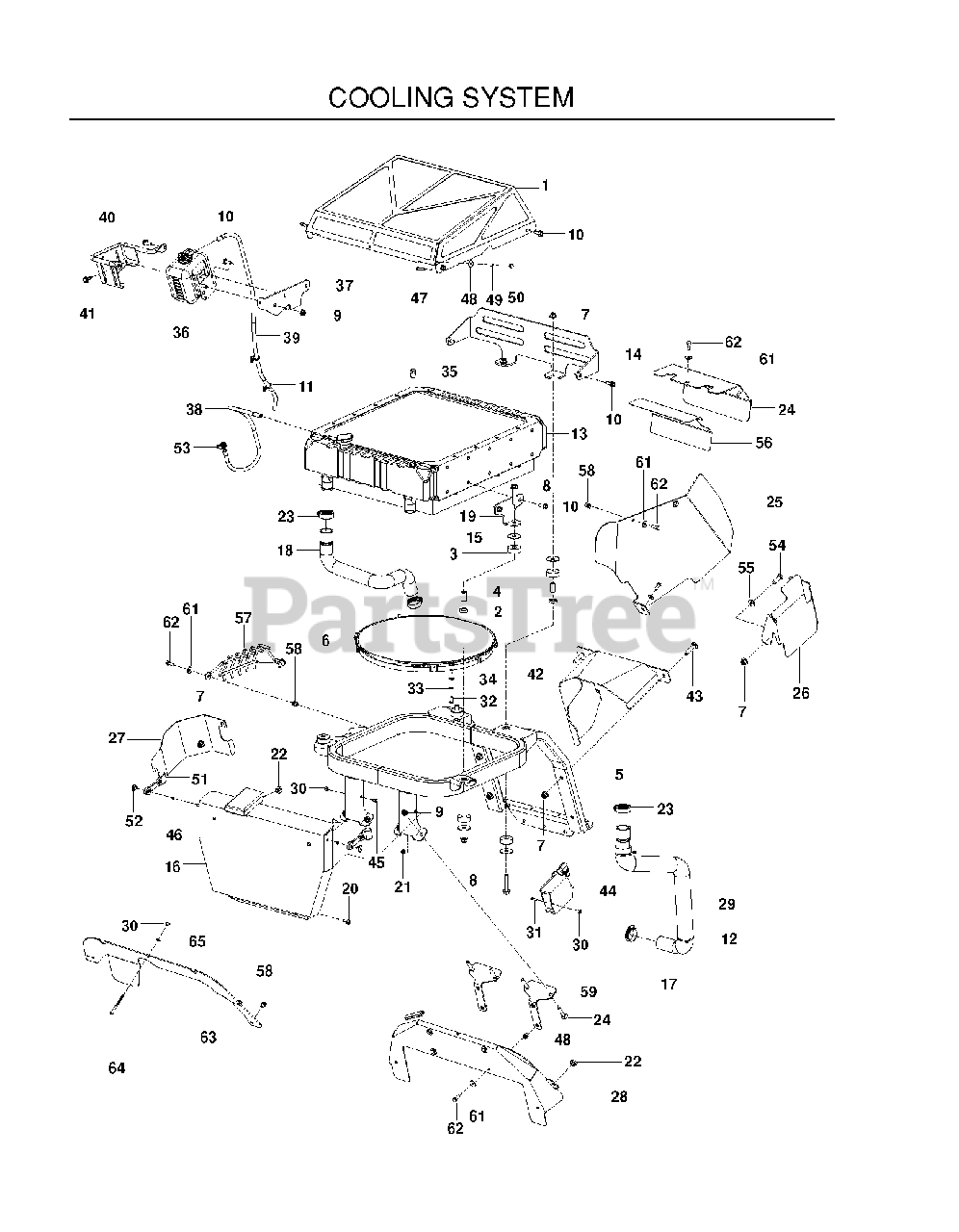

COOLING SYSTEM Parts Diagram

  • Title

1

Husqvarna 574356108

SCREEN, DEBRIS, BLK

$330.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539116377

ISO-MOUNT INSERT

$4.99

$

In Stock, Qty 5

0

3

Husqvarna 539116378

ISO-MOUNT BUSHING

$6.49

$

In Stock, Qty 7

0

4

Husqvarna 539121367

ISO MT. BUSHING

$17.99

$

Usually ships in 3-10 days

0

5

Husqvarna 574432702

MOUNT, RADIATOR, GRAY

$566.99

$

Usually ships in 3-10 days

0

6

Husqvarna 516018601

FAN, ELECTRIC

$460.99

$

Usually ships in 3-10 days

0

7

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

8

Husqvarna 525866201

HHFS 3/8-16 X 2.0 GD 5

$4.99

$

In Stock, only 1 left!

0

9

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

10

Husqvarna 525464701

HHFS 5/16-18 X 3/4

$3.99

$

In Stock, only 1 left!

0

11

Husqvarna 505280001

TIE WRAP, 8-3/8", W/CLIP

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539976856

TIE, PLASTIC

$5.99

$

Usually ships in 3-10 days

0

13

Husqvarna 574351601

RADIATOR

$1595.99

$

Usually ships in 3-10 days

0

14

Husqvarna 574433802

MOUNT, RADIATOR, REAR-BLK

$94.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539115516

7/16 HD FLAT WASHER
(Superseded to 596437601)

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 575315003

Hose Guard with Decals

Note: w / SAFETY DECAL

$103.99

$

Usually ships in 3-10 days

0

17

Husqvarna 574431101

HOSE, RADIATOR, LT

Note: LT

$

$

Not available

18

Husqvarna 574431001

HOSE, RADIATOR, RT

Note: RT

$28.99

$

Usually ships in 3-10 days

0

19

Husqvarna 574433702

MOUNT.RADIATOR.FRONT.BLACK

$17.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539107631

SCREW- 1/4-20 X 5/8
(Superseded to 532137729)

$4.99

$

In Stock, Qty 20+

0

21

Husqvarna 539108120

JAM NUT 1/4C (2 2 PW01)
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

22

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

23

Husqvarna 539106321

CLAMP

$

$

Not available

24

Husqvarna 577100302

GUARD MUFFLER GRAY

$42.99

$

Usually ships in 3-10 days

0

25

Husqvarna 577100402

GUARD.LEFT GRAY

$70.99

$

Usually ships in 3-10 days

0

26

Husqvarna 577100102

GUARD.LH.GRAY

$132.99

$

Usually ships in 3-10 days

0

27

Husqvarna 577100002

GUARD.RT.REAR.GRAY

$26.99

$

Usually ships in 3-10 days

0

28

Husqvarna 577250902

$

$

Currently unavailable

29

Husqvarna 575867701

SLEEVE, HOSE

$

$

Not available

30

Husqvarna 539976977

NUT 10-24 NYLOC

$

$

Not available

31

Husqvarna 539976952

SCREW #10-24 X 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

32

Husqvarna 539990072

HCS 1/4C X 5/8

$3.99

$

In Stock, only 1 left!

0

33

Husqvarna 539990052

LOCKWASHER 1/4"

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539990055

WASHER 1/4 SAE

$3.99

$

In Stock, Qty 19

0

35

Husqvarna 574596801

FITTING, PIPE, 1/4 NPT

$

$

Not available

36

Husqvarna 522503501

BOTTLE, OVERFLOW

$54.99

$

Usually ships in 3-10 days

0

37

Husqvarna 574841002

MOUNT, RADIATOR, BLK

$26.99

$

Usually ships in 3-10 days

0

38

Husqvarna 574845401

HOSE, OVERFLOW, UPPER

$

$

Not available

39

Husqvarna 574845402

HOSE, OVERFLOW, LOWER

$

$

Not available

40

Husqvarna 575256402

GUARD, OVERFLOW, BLK

$169.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, only 4 left!

0

42

Husqvarna 574722305

SHIELD, BELT W/DECAL - GR

Note: w / SAFETY DECAL

$

$

Not available

43

Husqvarna 539990923

RHSNB 3/8-16X1-3/4

$3.49

$

Usually ships in 3-10 days

0

44

Husqvarna 574431401

MODULE, FAN REVERSE

$319.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539990411

HCS #10-24 X 1/2

$3.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539109552

WASHER - 3/16 LOCK ZD

$4.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539108083

SCREW #10-24 X 1-1/8 ZD SPEC

$3.99

$

In Stock, only 1 left!

0

48

Husqvarna 539108084

WASHER

$4.99

$

In Stock, Qty 15

0

49

Husqvarna 539108085

BSHG .202X.75 LG SPLIT ZD SPEC
(Superseded to 532007206)

$7.49

$

In Stock, Qty 6

0

50

Husqvarna 539108086

NUT 10-24 ACORN ZD

$4.99

$

In Stock, Qty 20+

0

51

Husqvarna 539108088

HOOD LATCH
(Superseded to 532109808)

$6.99

$

In Stock, Qty 9

0

52

Husqvarna 539108089

NUT 10-24 WELD PLATED
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

53

Husqvarna 576286001

CLAMP, WORM GEAR, NO. 4

$1.99

$

Usually ships in 3-10 days

0

54

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD

$1.99

$

Usually ships in 3-10 days

0

55

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

56

Husqvarna 577100701

BARRIER.HEAT

$47.99

$

Usually ships in 3-10 days

0

57

Husqvarna 577100601

Muffler Guard

$236.99

$

Usually ships in 3-10 days

0

58

Husqvarna 539108147

KNURLED INSERT

$3.99

$

Usually ships in 3-10 days

0

59

Husqvarna 577251402

$

$

Currently unavailable

60

Husqvarna 539990861

RHSNB 5/16-18X1 3/4

$3.99

$

Usually ships in 3-10 days

0

61

Husqvarna 539990598

WASHER 1/4 FLAT

$

$

Not available

62

Husqvarna 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0

63

Husqvarna 577100502

GUARD.FRONT GRAY

$47.99

$

Usually ships in 3-10 days

0

64

Husqvarna 577503401

SCREW.#10-24X2-1/2.GR5.ZD

$17.99

$

Usually ships in 3-10 days

0

65

Husqvarna 539105408

WASHER #10

$3.99

$

In Stock, Qty 12

0

Husqvarna 539112294

FLEX TRIM, BLACK - LENGTH 1 FT
(Superseded to 589362602)

Note: NOT SHOWN

$5.99

$

In Stock, only 4 left!

0
