PZ 29 D (966554801) - Husqvarna Zero-Turn Mower (2010-03) Wheel And Tires Parts Diagram

Zero-Turn Mower

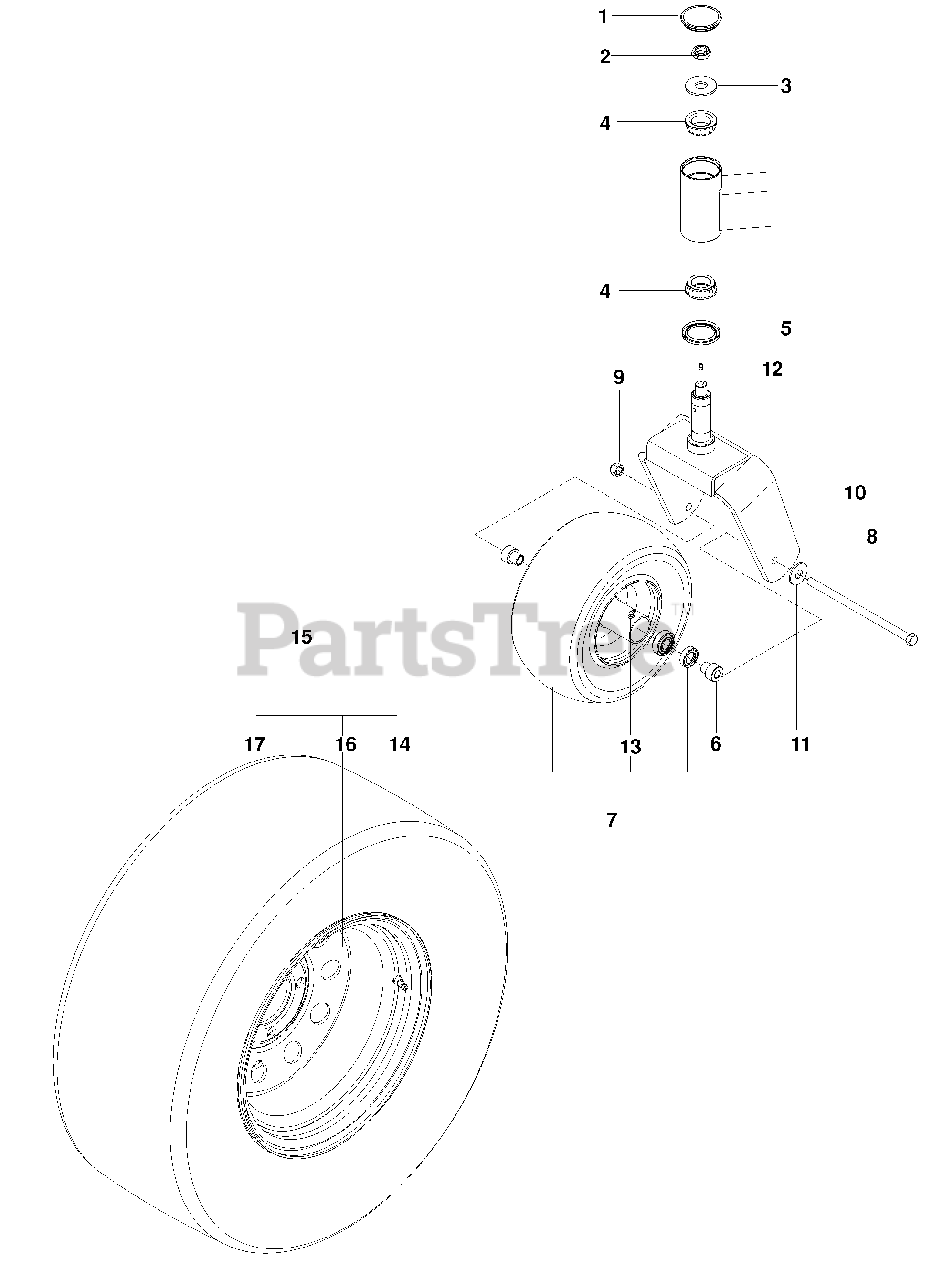

Wheel And Tires Parts Diagram

  • Title

1

Husqvarna 510034001

Cap, Dust

$

$

Not available

2

Husqvarna 522842601

Nut 3/4-16 Hex Thin Nyloc

$

$

Not available

3

Husqvarna 574824701

Washer 3/4 Hardened

$

$

Not available

4

Husqvarna 510034401

Bearing, Tapered

$21.99

$

Usually ships in 3-10 days

0

5

Husqvarna 510034301

Seal, Bearing

$6.49

$

In Stock, only 3 left!

0

6

Husqvarna 539105518

Axle Spacer

$9.49

$

In Stock, only 4 left!

0

7

Husqvarna 510154601

Tire Assy 13 X 6.5, Flt Free

$265.99

$

In Stock, only 2 left!

0

8

Husqvarna 539105517

Bolt 1/2-13 X 9 1/2 Hex Nyloc

$

$

Not available

9

Husqvarna 521991101

Nut 1/2-13 Hex Flg Nyloc
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

10

Husqvarna 525611902

Fork, Caster Org

$250.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539990250

Washer 1/2 Sae

$1.99

$

In Stock, only 2 left!

0

12

Husqvarna 539101474

Zerk

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539103300

Zerk

$4.99

$

In Stock, Qty 19

0

14

Husqvarna 539912234

Stem, Valve

$6.49

$

In Stock, Qty 20+

0

15

Husqvarna 516022901

Wheel Assy

$

$

Not available

16

Husqvarna 516022902

Rim 12 X 8.5 Centered

$

$

Not available

17

Husqvarna 539107715

Tire 26 X 12-12

$484.99

$

Usually ships in 3-10 days

0

Husqvarna 539105521

Tire Assy 13 X 6.5 Pneu (Optional)

Note: Not Shown

$182.99

$

Usually ships in 3-10 days

0
