PZ 29 D (966554801) - Husqvarna Zero-Turn Mower (2010-03) Mower Lift Deck Parts Diagram

Zero-Turn Mower

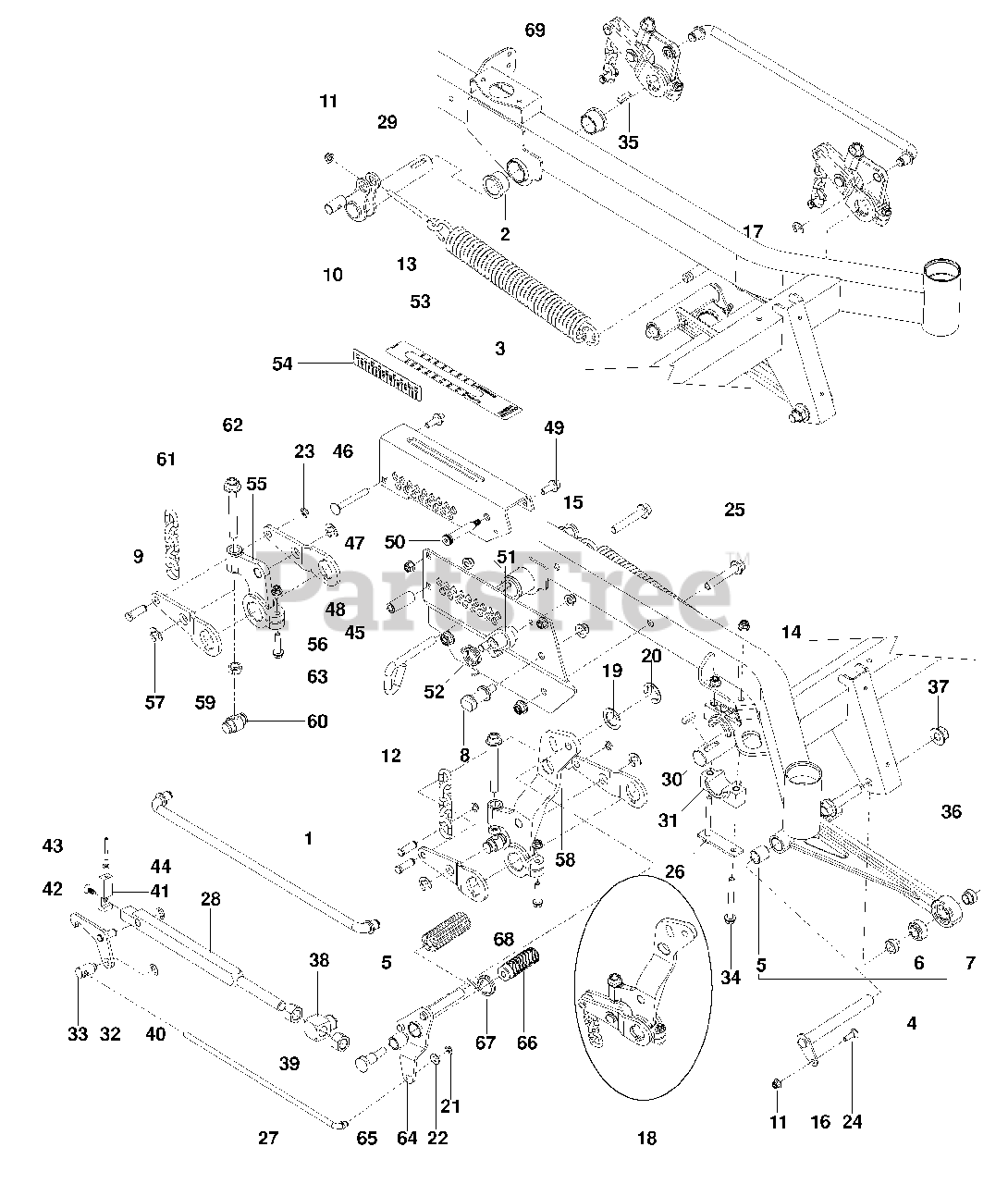

Mower Lift Deck Parts Diagram

  • Title

1

Husqvarna 510089801

ROD, LIFT

$113.99

$

Usually ships in 3-10 days

0

2

Husqvarna 510089401

BUSHING, FLANGED 1 1/4 ID

$20.99

$

Usually ships in 3-10 days

0

3

Husqvarna 510029201

SPRING, EXTENSION

$40.99

$

In Stock, only 1 left!

0

4

Husqvarna 510106501

STRUT ASSY

$121.99

$

Usually ships in 3-10 days

0

5

Husqvarna 510089201

BUSHING 3/4 x 1 SLEEVE

$14.99

$

In Stock, only 4 left!

0

6

Husqvarna 510083801

BALLJOINT 3/4 SWIVEL

$51.99

$

Usually ships in 3-10 days

0

7

Husqvarna 510362501

SPACER, STRUT

$7.49

$

Usually ships in 3-10 days

0

8

Husqvarna 510406701

GUIDE, HEIGHT BAR

$

$

Not available

9

Husqvarna 510090101

PIN 7/16 CLEVIS

$

$

Not available

10

Husqvarna 510412301

PIVOT, SPRING

$7.49

$

Usually ships in 3-10 days

0

11

Husqvarna 539112899

NUT 5/16-18 HEX FLANGE NYLOC
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

12

Husqvarna 510016501

PIN, HEIGHT

$14.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539120993

EYEBOLT 4 1/2

$46.99

$

Usually ships in 3-10 days

0

14

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC

$

$

Not available

15

Husqvarna 521991101

NUT 1/2-13 HEX FLG NYLOC
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

16

Husqvarna 515988201

PIN, STRUT

$24.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539105069

E-RING 5/8

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 525465502

DECK LIFT LEVER ASSY

$182.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539916561

BUSHING 1" x 14 GA

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539912730

E-RING 1"
(Superseded to 812000053)

$7.49

$

Usually ships in 3-10 days

0

21

Husqvarna 539990870

E- RING 3/8"

$6.49

$

In Stock, only 1 left!

0

22

Husqvarna 539990122

WASHER, 3/8 SAE FLT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 522705201

E-RING 7/16"

$4.99

$

In Stock, only 1 left!

0

24

Husqvarna 539990208

BOLT 5/16-18 x 1 RD HD

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 525828901

BOLT 1/2-13 x 3 HEX FLG

$6.49

$

Usually ships in 3-10 days

0

26

Husqvarna 525822201

PLATE, PILLOW BLOCK
(Superseded to 593634102)

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 510407601

ROD, HEIGHT LATCH

$10.99

$

Usually ships in 3-10 days

0

28

Husqvarna 510406301

BAR, HEIGHT

$

$

Not available

29

Husqvarna 510410703

SHAFT, RR LIFT

$60.99

$

Usually ships in 3-10 days

0

30

Husqvarna 510409602

SHAFT, LIFT, FT

$96.99

$

Usually ships in 3-10 days

0

31

Husqvarna 510023902

BLOCK, PILLOW

$14.99

$

In Stock, only 1 left!

0

32

Husqvarna 510407201

LATCH, HEIGHT

$

$

Not available

33

Husqvarna 510407501

SWIVEL, HEIGHT LATCH

$10.99

$

Usually ships in 3-10 days

0

34

Husqvarna 525822101

SCREW 3/8-16 x 3 1/2 HEX FLG

$7.49

$

Usually ships in 3-10 days

0

35

Husqvarna 525822501

KEY 5/16 SQ x 1

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 525829001

SCREW 3/8-16 x 1 1/2 HEX HD

$31.99

$

Usually ships in 3-10 days

0

37

Husqvarna 525829101

NUT 5/8-11 FLG NYLOC

$4.99

$

In Stock, only 3 left!

0

38

Husqvarna 510406401

SWIVEL, HEIGHT BAR

$18.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539108677

NUT 3/4-10 HEX

$

$

Not available

40

Husqvarna 539101949

E-RING 1/2"

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 510406501

CAP, HEIGHT BAR

$

$

Not available

42

Husqvarna 522705601

SCREW 5/16-18 x 3/4 HEX SCKT

$4.99

$

Usually ships in 3-10 days

0

43

Husqvarna 510406601

LINK, INDICATOR

$

$

Not available

44

Husqvarna 539991112

NUT 1/4-20 JAM

$3.99

$

In Stock, only 4 left!

0

45

Husqvarna 510408502

PLATE, INNER HEIGHT

$96.99

$

Usually ships in 3-10 days

0

46

Husqvarna 510408602

PLATE, OUTER HEIGHT

$96.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539122728

BOLT 3/8-16 x 3 RD HD GR2

$3.99

$

Usually ships in 3-10 days

0

48

Husqvarna 510408401

SPACER, HEIGHT PLATE

$4.99

$

Usually ships in 3-10 days

0

49

Husqvarna 525612801

SCREW 3/8-16 x 1 HEX FLG

$

$

Not available

50

Husqvarna 516035501

BOLT 1/2 x 2 1/4, 3/8-16 SHLDR

$4.99

$

Usually ships in 3-10 days

0

51

Husqvarna 510406801

LATCH, TRANSPORT

$

$

Not available

52

Husqvarna 510376601

SPRING, TORSION

$3.99

$

In Stock, only 2 left!

0

53

Husqvarna 516038101

DECAL, HEIGHT

$4.99

$

Usually ships in 3-10 days

0

54

Husqvarna 525349701

DECAL, HEIGHT

$8.99

$

Usually ships in 3-10 days

0

55

Husqvarna 510022501

ARM, CAST LIFT
(Superseded to 525465501)

$121.99

$

Usually ships in 3-10 days

0

56

Husqvarna 525465401

SCREW 5/16-18 x 1 1/2 HEX FLG

$7.49

$

Usually ships in 3-10 days

0

57

Husqvarna 539102454

E-RING 3/4"

$3.99

$

Usually ships in 3-10 days

0

58

Husqvarna 510022502

LEVER, DECK LIFT
(Superseded to 525465502)

$182.99

$

Usually ships in 3-10 days

0

59

Husqvarna 510410002

ARM, LIFT

$9.49

$

Usually ships in 3-10 days

0

60

Husqvarna 510023601

SHAFT, LIFT TRUNION

$20.99

$

Usually ships in 3-10 days

0

61

Husqvarna 539102641

LIFT CHAIN

$8.99

$

Usually ships in 3-10 days

0

62

Husqvarna 525465701

BOLT 1/2-13 x 4 HEX TPBLT

$24.99

$

Usually ships in 3-10 days

0

63

Husqvarna 539990625

NUT 1/2-13 HEX JAM
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

64

Husqvarna 510407801

PEDAL, RELEASE

$182.99

$

Usually ships in 3-10 days

0

65

Husqvarna 510408201

BOLT, SHOULDER

$

$

Not available

66

Husqvarna 510089501

PAD, FOOT PEDAL

$6.49

$

In Stock, Qty 14

0

67

Husqvarna 510376701

SPRING, TORSION

$3.99

$

In Stock, only 1 left!

0

68

Husqvarna 510408301

PEDAL, DECK HEIGHT

$

$

Not available

69

Husqvarna 525465501

DECK LIFT CRANK ASSY

$121.99

$

Usually ships in 3-10 days

0
