PZ 29 D (966554801) - Husqvarna Zero-Turn Mower (2010-03) Hydralic Pump Motor Parts Diagram

Zero-Turn Mower

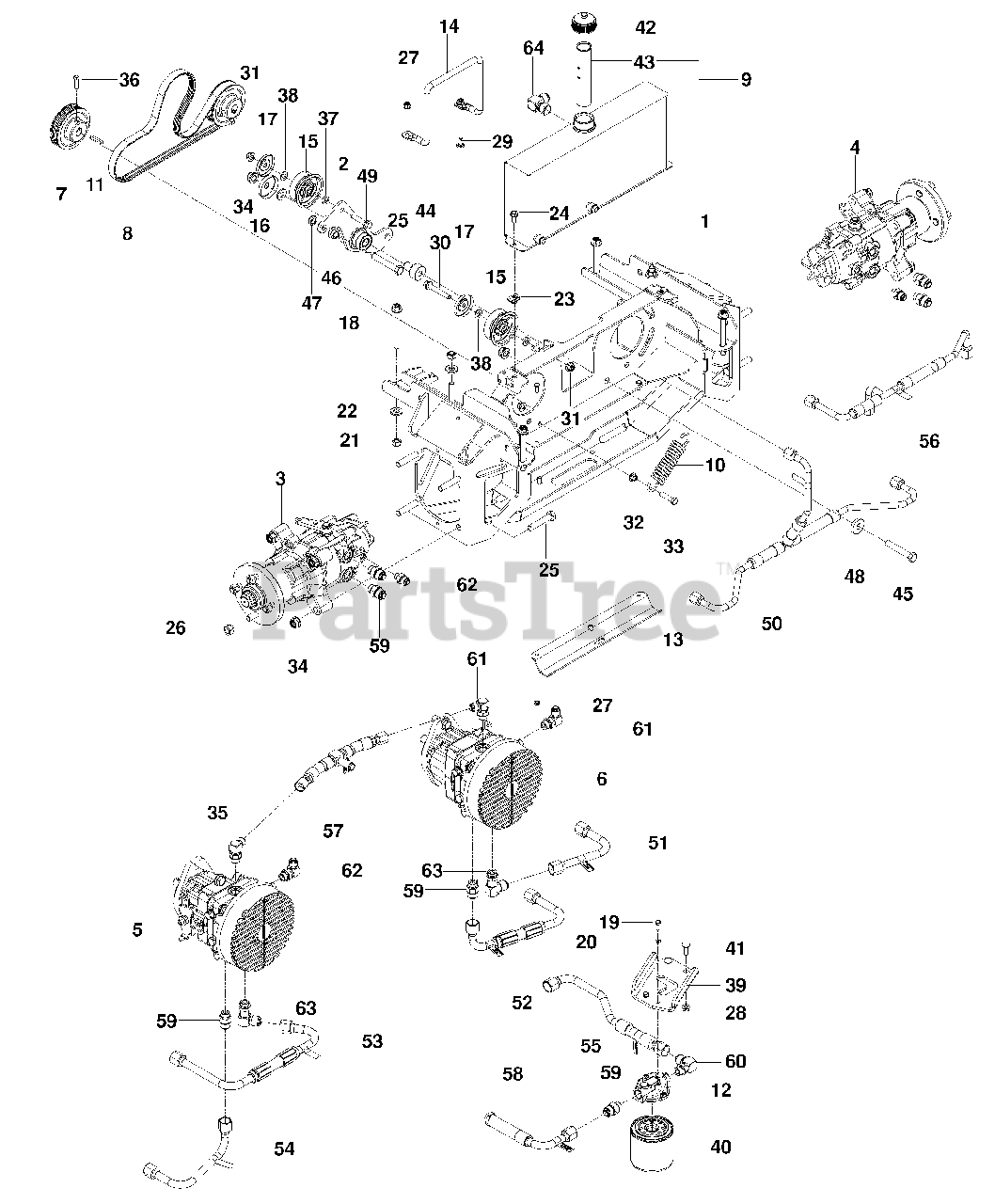

Hydralic Pump Motor Parts Diagram

  • Title

1

Husqvarna 574888702

PUMP BAY, BLK

$

$

Not available

2

Husqvarna 574890201

IDLER w/ BEARINGS ASSY

$102.99

$

Usually ships in 3-10 days

0

3

Husqvarna 515999101

MOTOR, PRM, RT

$

$

Not available

4

Husqvarna 515999201

MOTOR, PRM, LT

$

$

Not available

5

Husqvarna 515998901

PUMP, 21CC, RT

$2305.99

$

Usually ships in 3-10 days

0

6

Husqvarna 515999001

PUMP, 21CC, LT

$

$

Not available

7

Husqvarna 539106334

SHEAVE, PUMP

$

$

Not available

8

Husqvarna 574890001

BELT, PUMP

$43.99

$

Usually ships in 3-10 days

0

9

Husqvarna 515999302

RESERVOIR ASSY

$188.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539110655

SPRING

$14.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539109178

KEY, 5MM SQ x 36MM

$7.99

$

Usually ships in 3-10 days

0

12

Husqvarna 575872301

HEAD, FILTER

$43.99

$

Usually ships in 3-10 days

0

13

Husqvarna 522957201

GUARD, HOSE

$

$

Not available

14

Husqvarna 574507601

GUIDE, BELT

$

$

Not available

15

Husqvarna 575505001

PULLEY, IDLER

$56.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539114662

SHIELD, DUST 1/2 ID

$

$

Not available

17

Husqvarna 510254501

SHIELD, DUST

$

$

Not available

18

Husqvarna 521983801

BOLT 7/16-14 x 4 GR8 BLK

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539990072

HCS 1/4-20 x 5/8

$3.99

$

In Stock, only 1 left!

0

20

Husqvarna 539990052

WASHER 1/4 SPLT LK

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539119124

NUT 7/16-14 HEX NYLOC

$

$

Not available

22

Husqvarna 539990250

WASHER, SAE

$1.99

$

In Stock, only 2 left!

0

23

Husqvarna 539104763

RETAINER, U TYPE

$6.49

$

In Stock, Qty 9

0

24

Husqvarna 525464701

HHFS 5/16-18 x 3/4

$3.99

$

In Stock, only 1 left!

0

25

Husqvarna 539108346

HCS 1/2-13 x 2 1/2

$5.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539101173

NUT 1/2 LUG

$

$

Not available

27

Husqvarna 539108120

NUT 1/4-20 HEX THIN NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

28

Husqvarna 539112899

NUT 5/16-18 HEX FLANGE NYLOC
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

29

Husqvarna 539990316

RHSNB 5/16-18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

30

Husqvarna 539133006

HHFS 3/8-16 x 2 1/2

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC

$

$

Not available

32

Husqvarna 539990613

NUT 3/8-16 HEX WHIZLK

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539107042

HCS 3/8-16 x 1 1/2 GR 8

$3.99

$

In Stock, Qty 6

0

34

Husqvarna 521991101

NUT 1/2-13 HEX FLG NYLOC
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

35

Husqvarna 539990622

BOLT 1/2-13 x 1 1/4 WHIZLK SP

$4.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539102716

SCREW 3/8-16 x 1 1/2 HEX HD

$3.99

$

In Stock, only 3 left!

0

37

Husqvarna 539109562

WASHER 3/8 x 3/4

$4.99

$

In Stock, Qty 15

0

38

Husqvarna 539990122

WASHER 3/8 SAE FLT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

39

Husqvarna 576190602

MOUNT, FILTER, BLK

$37.99

$

Usually ships in 3-10 days

0

40

Husqvarna 522805401

FILTER, 25 MICRON

$31.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539990208

BOLT 5/16-18 x 1 RD HD

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 522805301

CAP, RESERVOIR

$31.99

$

Usually ships in 3-10 days

0

43

Husqvarna 522805001

TUBE, ANTI-SPLASH

$113.99

$

Usually ships in 3-10 days

0

44

Husqvarna 510206301

PIVOT, BEARING

$6.49

$

In Stock, only 2 left!

0

45

Husqvarna 539101572

HCS 1/2-13 x 3

$5.99

$

In Stock, Qty 10

0

46

Husqvarna 539111187

NUT 1/2-13 HEX WHIZLK

$3.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539117378

1/2-13 HEX NUT THIN NYLOC

$

$

Not available

48

Husqvarna 539115636

WASHER, 1/2 x 1/2

$9.99

$

In Stock, only 1 left!

0

49

Husqvarna 539990701

BOLT 3/8-16 x 1 3/4 WHIZLK

$3.99

$

Usually ships in 3-10 days

0

50

Husqvarna 516000101

LINE, HYD, CASE-PRM

$

$

Not available

51

Husqvarna 574888801

LINE, HYD, LT-AA

$

$

Not available

52

Husqvarna 574889001

LINE, HYD, LT-BB

$

$

Not available

53

Husqvarna 574889101

LINE, HYD, RT-AB

$

$

Not available

54

Husqvarna 574889201

LINE, HYD, RT-BA

$45.99

$

Usually ships in 3-10 days

0

55

Husqvarna 576045001

LINE, HYD, SUCTION

$70.99

$

Usually ships in 3-10 days

0

56

Husqvarna 574889501

LINE, HYD, CASE-PUMP

$

$

Not available

57

Husqvarna 576045101

LINE, HYD, CHARGE

$103.99

$

Usually ships in 3-10 days

0

58

Husqvarna 576045201

LINE, HYD, CHARGE

$37.99

$

Usually ships in 3-10 days

0

59

Husqvarna 539132889

FITTING, 10-8 STRAIGHT

$11.99

$

Usually ships in 3-10 days

0

60

Husqvarna 539106370

FITTING

$24.99

$

Usually ships in 3-10 days

0

61

Husqvarna 539101242

ELBOW 90O ADJ

$34.99

$

Usually ships in 3-10 days

0

62

Husqvarna 539131748

FITTING, HYD

$7.99

$

Usually ships in 3-10 days

0

63

Husqvarna 539132888

FITTING, 10-8 90O

$27.99

$

Usually ships in 3-10 days

0

64

Husqvarna 576191301

FITTING, HYD, 6500-10-8

$17.99

$

Usually ships in 3-10 days

0
