PZ 29 D (966554801-01) - Husqvarna Zero-Turn Mower (2015-02) COOLING SYSTEM Parts Diagram

Zero-Turn Mower

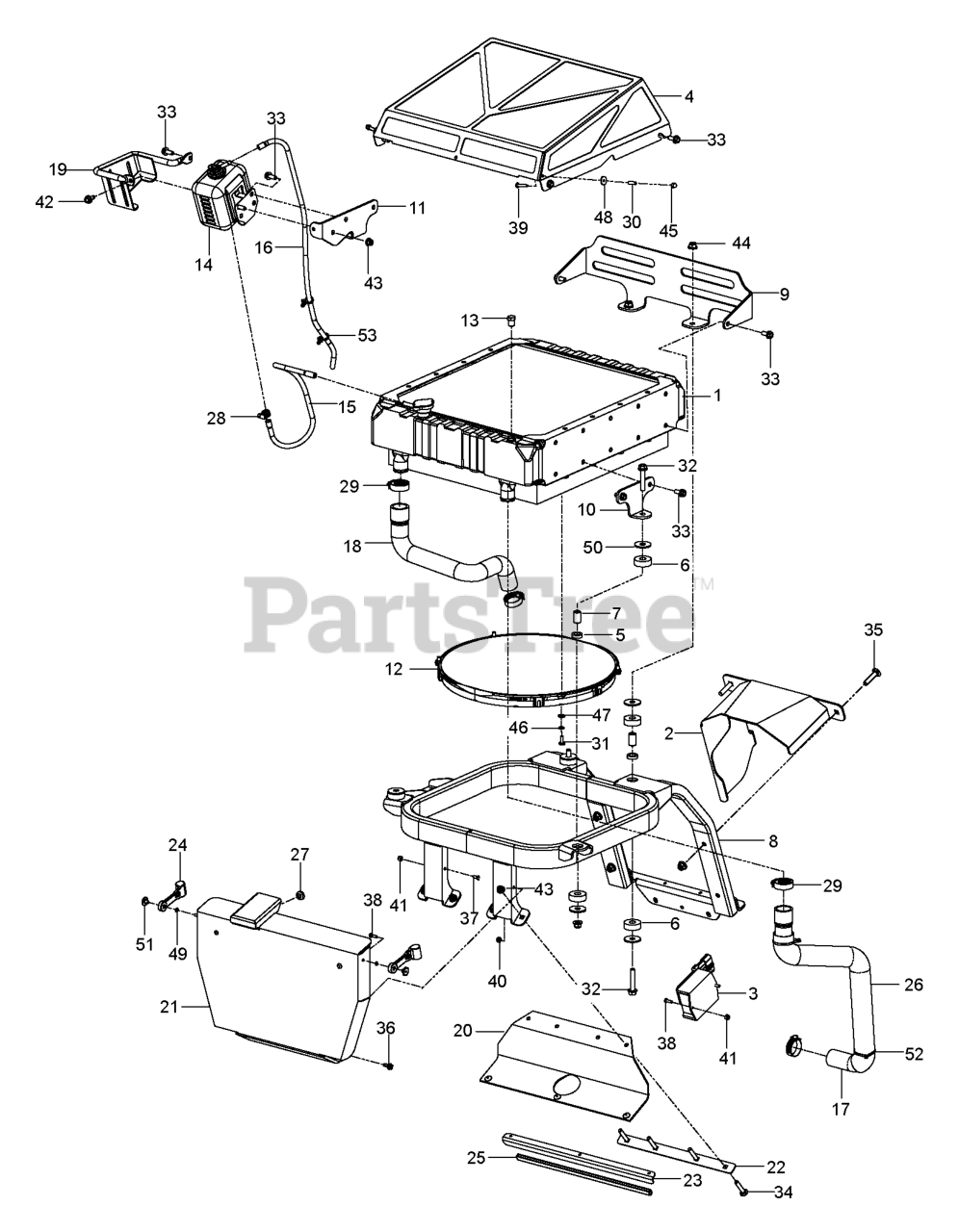

COOLING SYSTEM Parts Diagram

  • Title

7

Husqvarna 539121367

ISO MT. BUSHING

$17.99

$

Usually ships in 3-10 days

0

13

Husqvarna 574596801

FITTING, PIPE, 1/4 NPT

$

$

Not available

29

Husqvarna 539106321

CLAMP

$

$

Not available

12

Husqvarna 516018601

FAN, ELECTRIC

$460.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539990055

WASHER 1/4 SAE

$3.99

$

In Stock, Qty 19

0

52

Husqvarna 539976856

TIE, PLASTIC

$5.99

$

Usually ships in 3-10 days

0

19

Husqvarna 575256402

GUARD, OVERFLOW, BLK

$169.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539990923

RHSNB 3/8-16X1-3/4

$3.49

$

Usually ships in 3-10 days

0

15

Husqvarna 574845401

HOSE, OVERFLOW, UPPER

$

$

Not available

34

Husqvarna 539990861

RHSNB 5/16-18X1 3/4

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 574433802

MOUNT, RADIATOR, REAR-BLK

$94.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539116378

ISO-MOUNT BUSHING

$6.49

$

In Stock, Qty 7

0

8

Husqvarna 574432702

MOUNT, RADIATOR, GRAY

$566.99

$

Usually ships in 3-10 days

0

4

Husqvarna 574356108

SCREEN, DEBRIS, BLK

$330.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539976977

NUT 10-24 NYLOC

$

$

Not available

16

Husqvarna 574845402

HOSE, OVERFLOW, LOWER

$

$

Not available

1

Husqvarna 574351601

RADIATOR

$1595.99

$

Usually ships in 3-10 days

0

3

Husqvarna 574431401

MODULE, FAN REVERSE

$319.99

$

Usually ships in 3-10 days

0

49

Husqvarna 539109552

WASHER - 3/16 LOCK ZD

$4.99

$

Usually ships in 3-10 days

0

53

Husqvarna 505280001

TIE WRAP, 8-3/8", W/CLIP

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 874490512

HHFS 5/16-18 X 3/4

$

$

Not available

20

Husqvarna 522023101

GUARD, BELT

$17.99

$

Usually ships in 3-10 days

0

26

Husqvarna 575867701

SLEEVE, HOSE

$

$

Not available

22

Husqvarna 522023201

STRAP, GUARD

$11.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539112294

RP.FLEX TRIM, BLK-LENGTH 1 FT
(Superseded to 589362602)

$5.99

$

In Stock, only 4 left!

0

27

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

51

Husqvarna 539108089

NUT 10-24 WELD PLATED
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

31

Husqvarna 539990072

HCS 1/4C X 5/8

$3.99

$

In Stock, only 1 left!

0

43

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

28

Husqvarna 576286001

CLAMP, WORM GEAR, NO. 4

$1.99

$

Usually ships in 3-10 days

0

44

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

10

Husqvarna 574433702

MOUNT.RADIATOR.FRONT.BLACK

$17.99

$

Usually ships in 3-10 days

0

11

Husqvarna 574841002

MOUNT, RADIATOR, BLK

$26.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539108086

NUT 10-24 ACORN ZD

$4.99

$

In Stock, Qty 20+

0

36

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

23

Husqvarna 574469302

STRAP, BELT GUARD, BLK

$

$

Not available

39

Husqvarna 539108083

SCREW #10-24 X 1-1/8 ZD SPEC

$3.99

$

In Stock, only 1 left!

0

14

Husqvarna 522503501

BOTTLE, OVERFLOW

$54.99

$

Usually ships in 3-10 days

0

32

Husqvarna 874490632

HHFS 3/8-16 X 2.0 GD 5

$

$

Not available

37

Husqvarna 539990411

HCS #10-24 X 1/2

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539976952

SCREW #10-24 X 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

50

Husqvarna 539115516

7/16 HD FLAT WASHER
(Superseded to 596437601)

$3.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539990052

LOCKWASHER 1/4"

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539108085

BSHG .202X.75 LG SPLIT ZD SPEC
(Superseded to 532007206)

$7.49

$

In Stock, Qty 6

0

24

Husqvarna 539108088

HOOD LATCH
(Superseded to 532109808)

$6.99

$

In Stock, Qty 9

0

18

Husqvarna 574431001

HOSE, RADIATOR, RT

$28.99

$

Usually ships in 3-10 days

0

2

Husqvarna 574722305

SHIELD, BELT W/DECAL - GR

Note: w/ DECAL

$

$

Not available

21

Husqvarna 575315003

GUARD, HOSE W/DECALS

Note: w/ DECAL

$103.99

$

Usually ships in 3-10 days

0

17

Husqvarna 574431101

HOSE, RADIATOR, LT

$

$

Not available

42

Husqvarna 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, only 4 left!

0

5

Husqvarna 539116377

ISO-MOUNT INSERT

$4.99

$

In Stock, Qty 5

0

40

Husqvarna 539108120

JAM NUT 1/4C (2 2 PW01)
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

48

Husqvarna 539108084

WASHER

$4.99

$

In Stock, Qty 15

0
