PZ 29 CE (966616601) - Husqvarna Zero-Turn Mower (2011-02) STEERING Parts Diagram

Zero-Turn Mower

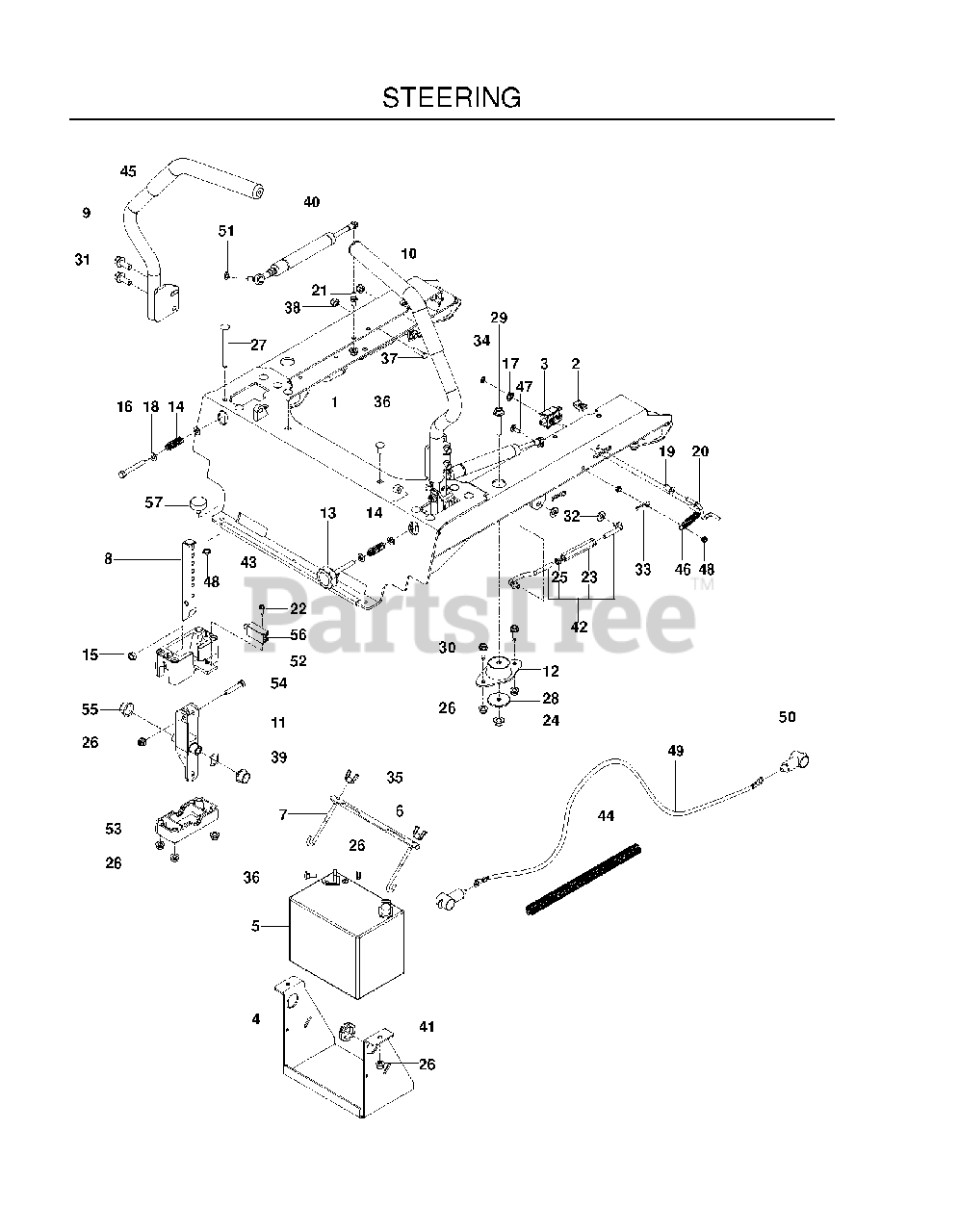

STEERING Parts Diagram

  • Title

1

Husqvarna 574189602

FRAME, SEAT MOUNT, ORG

$358.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

3

Husqvarna 539113792

SWITCH, BRAKE 3P

$17.99

$

In Stock, Qty 12

0

4

Husqvarna 510029902

BRACKET, BATTERY, BLK

$84.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539102436

BATTERY, 12 V 330 AMP
(Superseded to 579411601)

$

$

Not available

6

Husqvarna 510030001

BRACKET, BATTERY MOUNT

$51.99

$

In Stock, only 1 left!

0

7

Husqvarna 510064001

HOOK, "J"

$

$

Not available

8

Husqvarna 574269401

LEVER, MOTION

$27.99

$

Usually ships in 3-10 days

0

9

Husqvarna 574262701

LEVER, W/GRIP, RT

$136.99

$

Usually ships in 3-10 days

0

10

Husqvarna 574262702

LEVER, W/GRIP, LT

$125.99

$

Usually ships in 3-10 days

0

11

Husqvarna 510113203

LEVER, CONTROL

$72.99

$

In Stock, only 1 left!

0

12

Husqvarna 510082101

MOUNT, ISO

$28.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539131799

KNOB

$

$

Not available

14

Husqvarna 539101224

SPRING

$22.99

$

In Stock, only 1 left!

0

15

Husqvarna 539990196

NUT 5/16C HEX

$1.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539108396

HCS 5/16-18 X 2 1/2 TPBLT

$

$

Not available

17

Husqvarna 539913847

NUT 3/8 PALNUT RTNG BLK PHOS

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 11

0

19

Husqvarna 511594901

BUSHING, 1/4 FLANGE

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 511595001

LINK, SWITCH

$7.49

$

Usually ships in 3-10 days

0

21

Husqvarna 539110607

STUD.BALL.10MM

$4.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539991034

SCREW #10 X 1/2 SELF TAPPING

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539109149

TURNBUCKLE, 3/8

$48.99

$

Usually ships in 3-10 days

0

24

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

25

Husqvarna 539108732

NUT 3/8-24 JAM

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

27

Husqvarna 539131665

RHSNB 5/16-18 X 3-3/4 GR 5 ZD

$

$

Not available

28

Husqvarna 539111897

WASHER, 3/8 SPEC

$

$

Not available

29

Husqvarna 525866201

HHFS 3/8-16 X 2.0 GD 5

$4.99

$

In Stock, only 1 left!

0

30

Husqvarna 525464701

HHFS 5/16-18 X 3/4

$3.99

$

In Stock, only 1 left!

0

31

Husqvarna 525612801

HHFS 3/8-16 X 1 GRD 5 ZD

$

$

Not available

32

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

33

Husqvarna 539976988

HAIRPIN #2

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539102234

NUT PUSH

$3.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539990997

WING NUT 1/4

$3.49

$

Usually ships in 3-10 days

0

36

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

37

Husqvarna 574822701

SCR #10-24 X .75 SKT HD BLK

$4.99

$

In Stock, Qty 6

0

38

Husqvarna 539976977

NUT 10-24 NYLOC

$

$

Not available

39

Husqvarna 539133007

WASHER, .825 X 1.087, WAVE

$4.99

$

In Stock, only 3 left!

0

40

Husqvarna 516020301

ASSEMBLY, DAMPENER
(Superseded to 597084601)

$159.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539105974

RUBBER GROMMET

$

$

Not available

42

Husqvarna 525447901

ASSEMBLY, SEAT STRUT

$27.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539112294

FLEX TRIM, BLACK - LENGTH 1 FT
(Superseded to 589362602)

$5.99

$

In Stock, only 4 left!

0

44

Husqvarna 574235301

LOOM, SPLIT, CONVOLUTED

$3.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539130894

GRIP - DRIVE LEVER 12"

$9.99

$

In Stock, only 3 left!

0

46

Husqvarna 539020035

SPRING, EXTENSION
(Superseded to 540020035)

$14.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539990074

RHSNB 1/4C X 3/4
(Superseded to 596238401)

$3.99

$

Usually ships in 3-10 days

0

48

Husqvarna 539108120

JAM NUT 1/4C (2 2 PW01)
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

49

Husqvarna 522718701

CABLE, POSITIVE, 55"

$26.99

$

In Stock, only 2 left!

0

50

Husqvarna 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

51

Husqvarna 539990187

WASHER 5/16 LOCK
(Superseded to 596238801)

$3.99

$

In Stock, only 2 left!

0

52

Husqvarna 539131517

BLOCK, UPPER

$30.99

$

In Stock, only 1 left!

0

53

Husqvarna 539131519

BLOCK, LOWER

$15.99

$

Usually ships in 3-10 days

0

54

Husqvarna 539990669

HCS 5/16C X 1 3/4
(Superseded to 874780528)

$7.49

$

In Stock, only 2 left!

0

55

Husqvarna 539131518

BEARING, FLANGE

$11.99

$

In Stock, Qty 6

0

56

Husqvarna 539101080

SWITCH, INTERLOCK

$17.99

$

Usually ships in 3-10 days

0

57

Husqvarna 575811501

BUMPER, 1/4-20 STUD, 1/4

$6.99

$

Usually ships in 3-10 days

0

Husqvarna 510093601

HARNESS, MAIN WIRING

Note: NOT SHOWN

$227.99

$

Usually ships in 3-10 days

0

Husqvarna 522710701

CABLE, NEG, 55"

Note: NOT SHOWN

$34.99

$

Usually ships in 3-10 days

0
