PZ 29 CE (966616601-00) - Husqvarna Zero-Turn Mower (2011-02) MOWER DECK / CUTTING DECK 2 Parts Diagram

Zero-Turn Mower

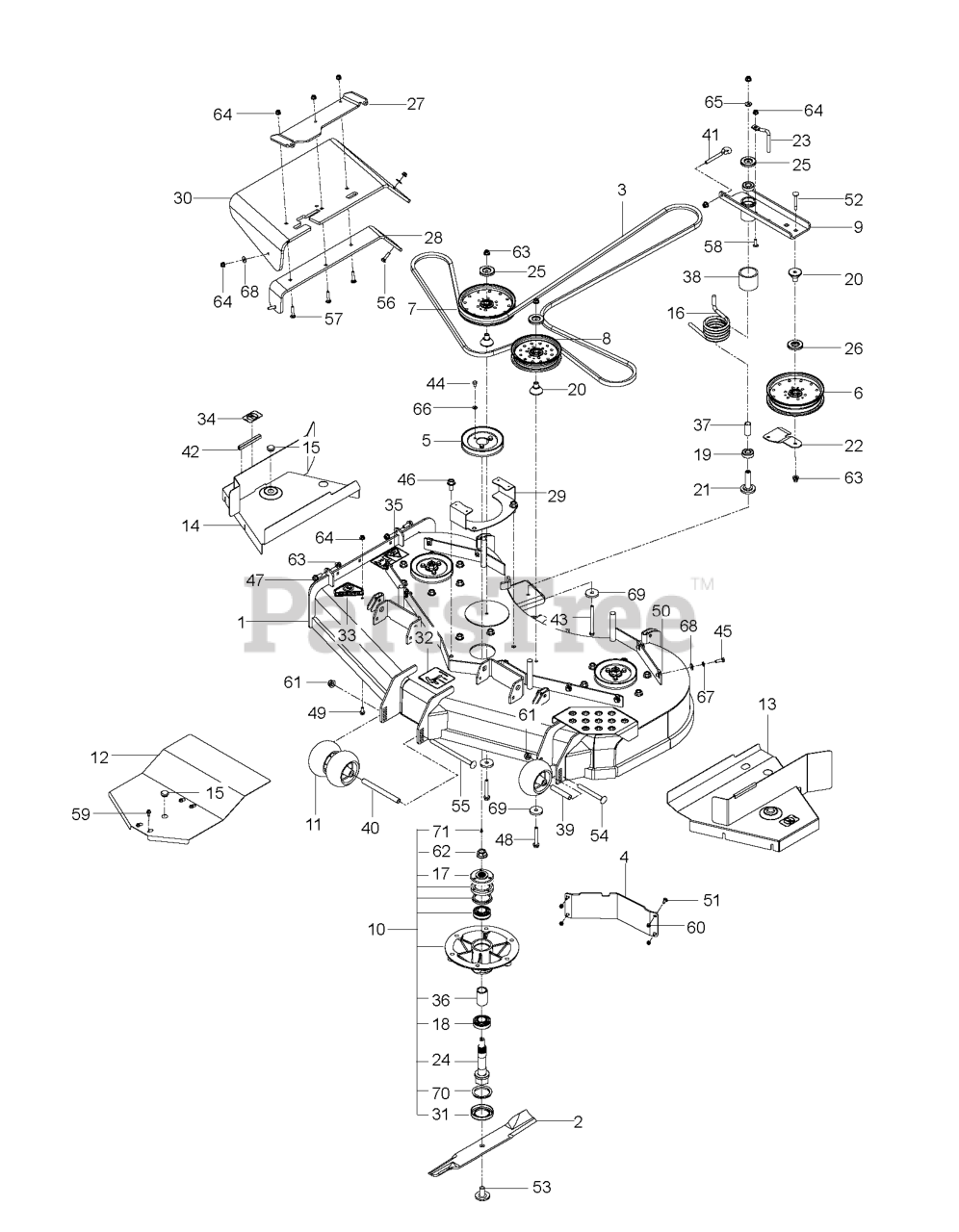

MOWER DECK / CUTTING DECK 2 Parts Diagram

  • Title

7

Husqvarna 525598201

PULLEY - 7" NARROW

$

$

Not available

48

Husqvarna 539131780

HHFS 5/16-18 X 3 3/4

$3.99

$

Usually ships in 3-10 days

0

68

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

27

Husqvarna 574197002

BRKT - CHUTE MTG BLACK

$78.99

$

Usually ships in 3-10 days

0

24

Husqvarna 525836001

SHAFT - SPINDLE
(Superseded to 580943306)

$363.99

$

In Stock, only 1 left!

0

32

Husqvarna 574437301

DECAL, BELT ROUTING

Note: BELT ROUTING

$8.99

$

Usually ships in 3-10 days

0

21

Husqvarna 522729701

BEARING, IDLER PIVOT

$9.49

$

In Stock, only 1 left!

0

43

Husqvarna 539101686

HCS 3/8-16 X 4-1/2 GR 8 ZD

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 574202001

EYE BOLT, 3/8 X 4"

$

$

Not available

38

Husqvarna 525465601

SPACER, IDLER PIVOT

$10.99

$

In Stock, only 1 left!

0

9

Husqvarna 525464402

IDLER.ARM.BLACK

$109.99

$

Usually ships in 3-10 days

0

10

Husqvarna 525836401

SPINDLE ASM. 10"
(Superseded to 580943306)

$363.99

$

In Stock, only 1 left!

0

13

Husqvarna 577094103

WELDMENT.LEFT.PZ.G60.BLACK

$141.99

$

Usually ships in 3-10 days

0

14

Husqvarna 577094003

WELDMENT.RIGHT.PZ.G60.BLACK

$141.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539105743

DECAL, NO STEP
(Superseded to 581724301)

Note: NO STEP

$4.99

$

In Stock, only 3 left!

0

42

Husqvarna 539112294

RP.FLEX TRIM, BLK-LENGTH 1 FT
(Superseded to 589362602)

$5.99

$

In Stock, only 4 left!

0

40

Husqvarna 574196501

TUBE, ROLLER AXLE LONG

$14.99

$

Usually ships in 3-10 days

0

50

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

47

Husqvarna 525612801

HHFS 3/8-16 X 1 GRD 5 ZD

$

$

Not available

69

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

1

Husqvarna 574497201

DECK.SVC W/DECALS.60.ORANGE
(Superseded to 588127602)

Note: w/ SAFETY DECALS

$3191.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539913010

DECAL, CPSC

Note: BLADE WARNING

$4.99

$

In Stock, only 1 left!

0

70

Husqvarna 539130639

V-RING, 55MM

$6.99

$

In Stock, Qty 7

0

35

Husqvarna 539105746

DECAL, EURO SEVERING

Note: SEVERING

$3.99

$

In Stock, only 3 left!

0

2

Husqvarna 539105711

BLADE - HEAVY DUTY 21"

$37.99

$

In Stock, Qty 19

0

37

Husqvarna 510264201

SPACER, IDLER BEARINGS

$6.99

$

Usually ships in 3-10 days

0

66

Husqvarna 539109600

WASH 5/16 DISC SPRING ZD

$

$

Not available

3

Husqvarna 575658403

RP.BELT, "5V", 176"
(Superseded to 588264801)

$113.99

$

In Stock, Qty 10

0

56

Husqvarna 539100472

BOLT, CARRIAGE 5/16X1-1/4

$3.99

$

In Stock, Qty 20+

0

55

Husqvarna 510022401

RHSNB 1/2-13 X 8 GR5 ZD

$31.99

$

In Stock, only 1 left!

0

30

Husqvarna 525485801

CHUTE, DISCHARGE 48-52

$85.99

$

In Stock, only 1 left!

0

19

Husqvarna 539112050

BEARING, BALL

$7.49

$

In Stock, only 4 left!

0

60

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

63

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

15

Husqvarna 539108382

PLUG, BUTTON HOLE

$0.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539130641

SPACER - BEARING

$

$

Not available

53

Husqvarna 539119007

BLADE BOLT/WASHER

$10.99

$

In Stock, only 4 left!

0

26

Husqvarna 510262201

SHIELD, DUST

$

$

Not available

61

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

52

Husqvarna 539128101

CARRIAGE BOLT 3/8-16 X

$

$

Not available

64

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

29

Husqvarna 577093802

BRACKET GUARD.PZG.BLK

$35.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539977761

HCS 1/4C X 1

$3.99

$

Usually ships in 3-10 days

0

59

Husqvarna 539107631

SCREW- 1/4-20 X 5/8
(Superseded to 532137729)

$4.99

$

In Stock, Qty 20+

0

71

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

31

Husqvarna 539130643

CUP - DEBRIS

$7.99

$

Usually ships in 3-10 days

0

16

Husqvarna 525310901

SPRING, TORSION, IDLER

$121.99

$

Usually ships in 3-10 days

0

8

Husqvarna 510019601

PULLEY IDLER, 6" NARROW

$

$

Not available

54

Husqvarna 510022301

RHSNB 1/2-13 X 4.75 GR5 ZD

$

$

Not available

6

Husqvarna 510015101

PULLEY - IDLER 7"

$

$

Not available

12

Husqvarna 577093902

GUARD.CENTER.PZ.G60.BL

$56.99

$

Usually ships in 3-10 days

0

49

Husqvarna 525464701

HHFS 5/16-18 X 3/4

$3.99

$

In Stock, only 1 left!

0

5

Husqvarna 539130646

PULLEY - 6.57

$26.99

$

In Stock, only 2 left!

0

28

Husqvarna 525486002

BRKT, CHUTE SUPPORT BLACK

$79.99

$

In Stock, only 1 left!

0

39

Husqvarna 574196401

TUBE, ROLLER AXLE

$

$

Not available

20

Husqvarna 510263701

BEARING, IDLER ARM

$6.99

$

In Stock, Qty 9

0

18

Husqvarna 539130638

BEARING - 206KRR8

$34.99

$

In Stock, Qty 20+

0

17

Husqvarna 539130637

HUB - PULLEY

$

$

Not available

22

Husqvarna 574262102

BELT.GUIDE.BLACK

$34.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539130315

HCS 5/16-18 X 1/2 GR 5 ZD

$3.99

$

Usually ships in 3-10 days

0

58

Husqvarna 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

65

Husqvarna 522023401

WASHER, 3/8 THICK

$4.99

$

In Stock, Qty 20+

0

62

Husqvarna 539130653

NUT FLANGE 3/4-16
(Superseded to 598490501)

$9.49

$

In Stock, only 2 left!

0

57

Husqvarna 539102933

RHSNB 5/16-18 X 1-1/2 GR 5 ZD

$

$

Not available

67

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

11

Husqvarna 574169601

ROLLER, GAUGE .635 BORN

$17.99

$

Usually ships in 3-10 days

0

4

Husqvarna 510437502

BAFFLE, DIVERTER 54"/60" LH

$60.99

$

Usually ships in 3-10 days

0

23

Husqvarna 574262201

BELT KEEPER

$

$

Not available

46

Husqvarna 574210601

HHFS 1/2-13 X 1 GR5 ZD

$

$

Not available

25

Husqvarna 510254501

DUST SHIELD

$

$

Not available

51

Husqvarna 539115620

1/4-20X3/4 CARR BLT
(Superseded to 596238401)

$3.99

$

Usually ships in 3-10 days

0
