PXT 175G42 (960160024-01) - Poulan XT Lawn Tractor (2011-03) ELECTRICAL Parts Diagram

XT Lawn Tractor

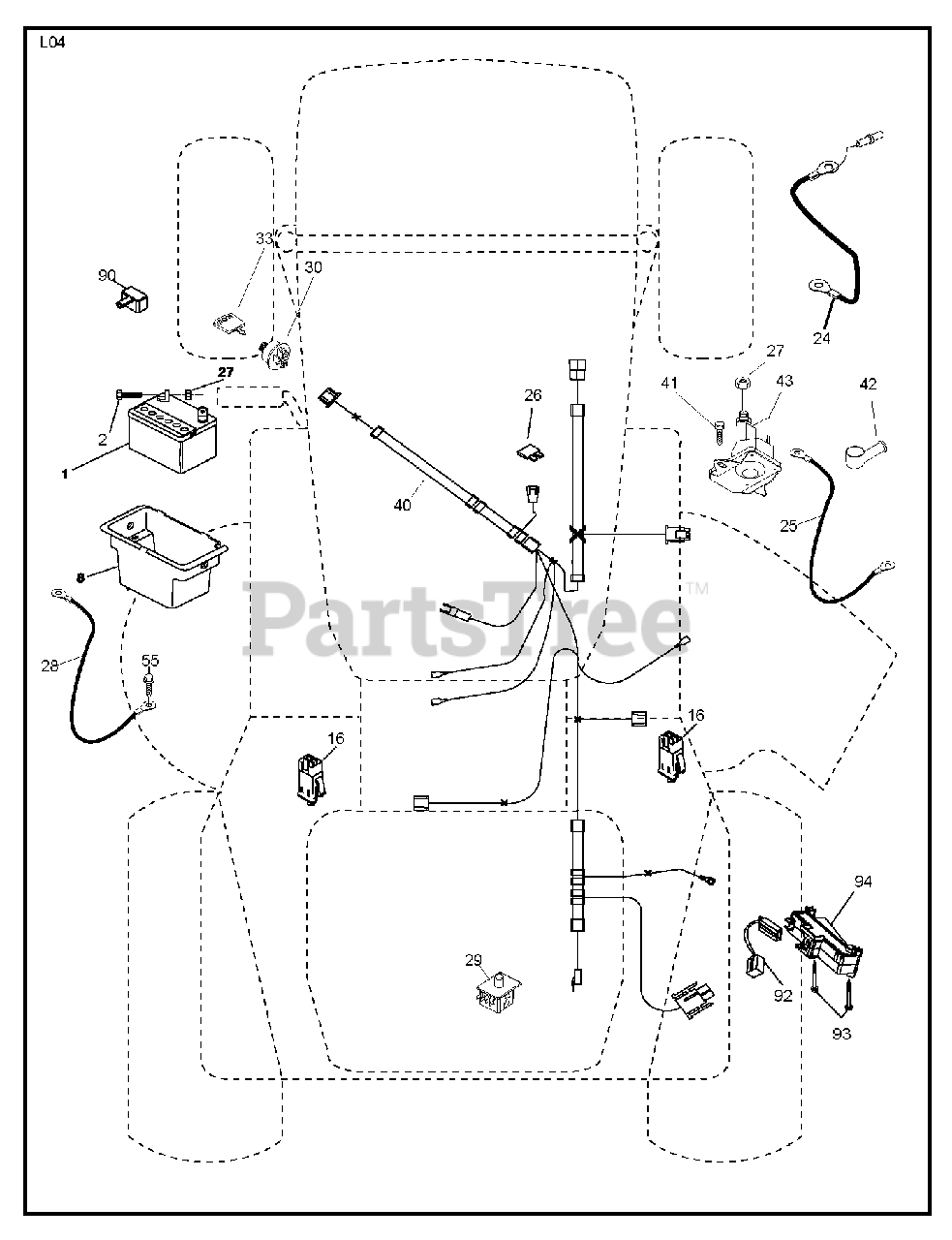

ELECTRICAL Parts Diagram

  • Title

1

Poulan 532163465

REPL BY 532 12 38-99
(Superseded to 532123899)

$194.99

$

In Stock, only 1 left!

0

2

Poulan 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$7.49

$

In Stock, only 1 left!

0

8

Poulan 532176689

BOX.BATTERY.FENDER

$

$

Not available

16

Poulan 532176138

SWITCH INTERLOOK PUSH-IN

$22.99

$

In Stock, Qty 7

0

24

Poulan 532421299

CABLE.STARTER.6GA.11"RED

$20.99

$

In Stock, only 1 left!

0

25

Poulan 532421297

CABLE.GROUND.REAR.BTRY.8GA.44"

$24.99

$

In Stock, only 4 left!

0

26

Poulan 532175158

FUSE 20AMP

$7.49

$

In Stock, only 2 left!

0

27

Poulan 873510400

NUT
(Superseded to 873640400)

$

$

Not available

28

Poulan 532421298

CABLE GROUND 6 GA. 12" BLACK

$14.99

$

Usually ships in 3-10 days

0

29

Poulan 532192749

SWITCH.SEAT.DP W/RAMPS

$21.99

$

Usually ships in 3-10 days

0

30

Poulan 532193350

SWITCH.IGN.DELTA.W.LGH.ROS

$22.99

$

In Stock, only 1 left!

0

33

Poulan 532411935

KEY.CHAIN.BLISTER.PACK.GEN.INT

$10.99

$

Usually ships in 3-10 days

0

40

Poulan 532197427

$

$

Not available

41

Poulan 871110408

BOLT
(Superseded to 71110408)

$2.99

$

Usually ships in 3-10 days

0

42

Poulan 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

43

Poulan 532192507

SOLENOID.W/BRASS.PLUNGER
(Superseded to 582042802)

$26.99

$

In Stock, Qty 19

0

55

Poulan 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

90

Poulan 532435395

COVER.TERMINAL.BATTERY

$6.49

$

In Stock, only 2 left!

0

92

Poulan 532196615

HARNESS.PIGTAIL.CONSLE

$18.99

$

Usually ships in 3-10 days

0

93

Poulan 532192540

SCREW.PLASTITE

$4.99

$

Usually ships in 3-10 days

0

94

Poulan 532191834

MODULE.REVERSE.ROS

$37.99

$

Usually ships in 3-10 days

0
