PXT 175G42 (960160024-01) - Poulan XT Lawn Tractor (2011-03) DRIVE Parts Diagram

XT Lawn Tractor

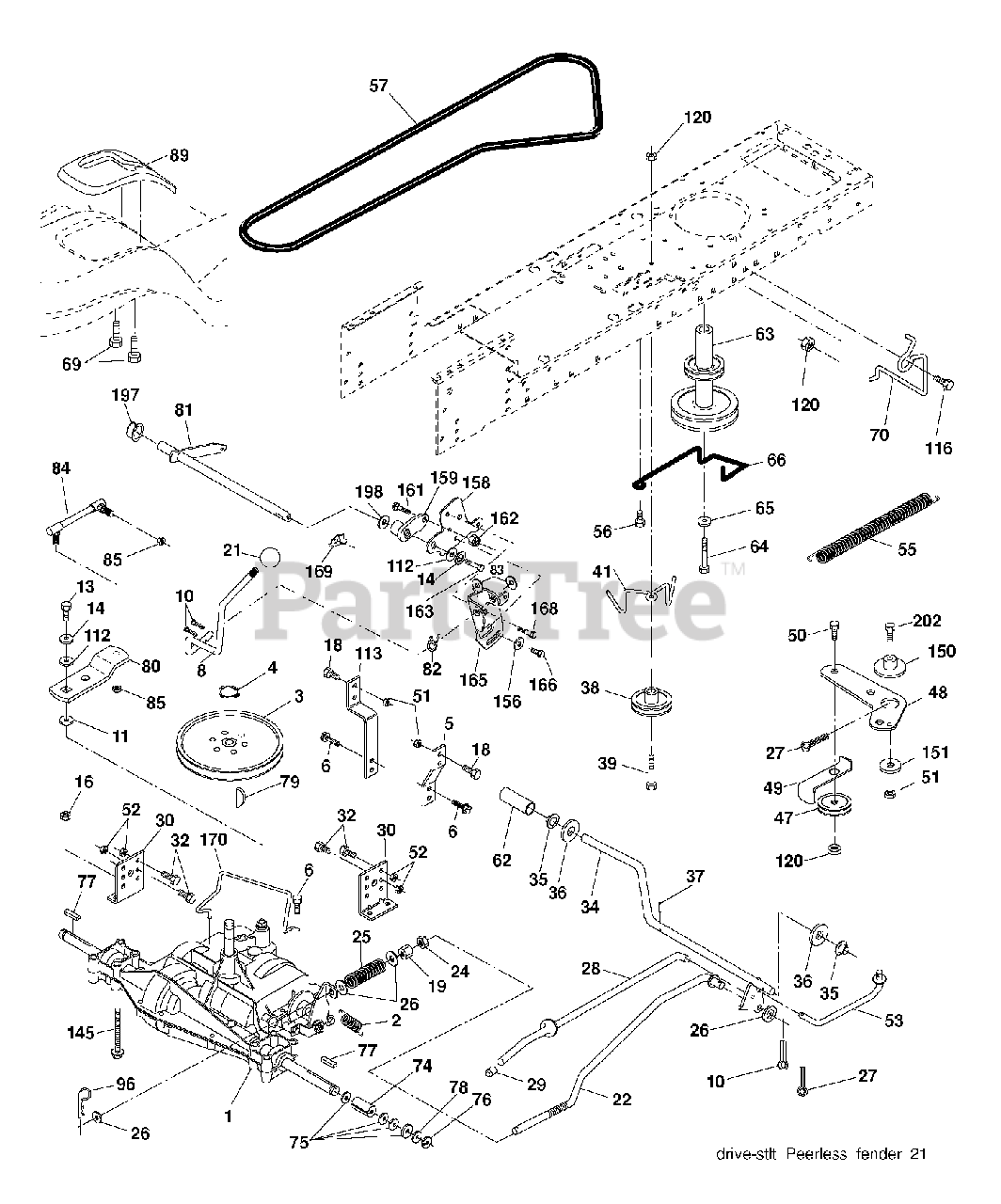

DRIVE Parts Diagram

  • Title

1

Poulan 000000000

Note: TRANSAXLE PEERLESS MODEL 206-545C (165670)

$

$

Not available

2

Poulan 532146682

SPRING,BRAKE RETURN

$8.99

$

In Stock, only 2 left!

0

3

Poulan 532123666

PULLEY TRANS

$45.99

$

In Stock, only 1 left!

0

4

Poulan 812000028

RETAINING RING LT
(Superseded to 532002267)

$7.49

$

In Stock, Qty 8

0

5

Poulan 532121520

STRAP TORQUE

$7.99

$

In Stock, only 3 left!

0

6

Poulan 817060512

SCREW 5/16"
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

8

Poulan 532192706

ROD SHIFT FENDER ADJUST LT
(Superseded to 585139901)

$20.99

$

Usually ships in 3-10 days

0

10

Poulan 876020416

PIN COTTER

$3.99

$

Usually ships in 3-10 days

0

11

Poulan 532105701

WASH-SHFT PLT LT

$6.49

$

Usually ships in 3-10 days

0

13

Poulan 874550412

Bolt, 1/4-20 unf Grade 8 w/Patch
(Superseded to 871040412)

$6.49

$

Usually ships in 3-10 days

0

14

Poulan 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

16

Poulan 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

18

Poulan 874780616

BOLT

$6.49

$

Usually ships in 3-10 days

0

19

Poulan 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

21

Poulan 532106933

KNOB T (1/2-HOLE)

$7.99

$

In Stock, only 1 left!

0

22

Poulan 532130804

ROD BRAKE

$31.99

$

Usually ships in 3-10 days

0

24

Poulan 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

25

Poulan 532106888

SPRING ROD LT
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

26

Poulan 819131316

WASHER

$4.99

$

In Stock, Qty 5

0

27

Poulan 876020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

28

Poulan 532175765

ROD, PARKING BRAKE

$6.49

$

Usually ships in 3-10 days

0

29

Poulan 532071673

PLUNGER CAP

$5.99

$

Usually ships in 3-10 days

0

30

Poulan 532169592

BRKT, TRNSXLE MNT 20"

$6.49

$

Usually ships in 3-10 days

0

32

Poulan 874760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

34

Poulan 532175578

SHAFT, FOOT PEDAL

$31.99

$

Usually ships in 3-10 days

0

35

Poulan 532120183

BEARING.NYLON

$6.99

$

In Stock, only 4 left!

0

36

Poulan 819211616

WASHER LT

$6.49

$

Usually ships in 3-10 days

0

37

Poulan 532124963

(Superseded to 532002882)

$

$

Not available

38

Poulan 532179114

PULLEY IDLER COMPOSITE

$31.99

$

Usually ships in 3-10 days

0

39

Poulan 872110622

BOLT

$4.99

$

In Stock, Qty 9

0

41

Poulan 532175556

KEEPER, BELT IDLER

$9.99

$

In Stock, only 1 left!

0

47

Poulan 532127783

Idler Pulley
(Superseded to 532139245)

$37.99

$

In Stock, only 2 left!

0

48

Poulan 532154407

BELLCRANK, CLUTCH

$8.99

$

Usually ships in 3-10 days

0

49

Poulan 532123205

RETAIN BELT

$6.49

$

Usually ships in 3-10 days

0

50

Poulan 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

51

Poulan 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

52

Poulan 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

53

Poulan 532199652

LINK.CLUTCH.7.66.2005

$13.99

$

Usually ships in 3-10 days

0

55

Poulan 532105709

SPRING, RETURN LT

$11.99

$

In Stock, only 4 left!

0

56

Poulan 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 11

0

57

Poulan 532138255

BELT, V GROUND DRIVE 95 25

$39.99

$

In Stock, Qty 7

0

62

Poulan 532124872

(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

63

Poulan 532175410

ENGINE PULLEY

$87.99

$

Usually ships in 3-10 days

0

64

Poulan 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

65

Poulan 810040700

LOCKWASHER
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

66

Poulan 532154778

KEEPER BELT ENGINE

$12.99

$

Usually ships in 3-10 days

0

69

Poulan 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

70

Poulan 532134683

KEEPER BELT ENG

Note: RH

$

$

Not available

74

Poulan 532137057

SPACER AXLE

$7.49

$

In Stock, only 3 left!

0

75

Poulan 532121749

WASHER

$3.49

$

Usually ships in 3-10 days

0

76

Poulan 812000001

E-RING LT

$4.99

$

Usually ships in 3-10 days

0

77

Poulan 532123583

SQUARE KEY

$4.99

$

In Stock, Qty 7

0

78

Poulan 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

79

Poulan 532125096

KEY STD (1373) DANA

$9.49

$

In Stock, only 1 left!

0

80

Poulan 532145090

ARM SHIFT

$7.99

$

Usually ships in 3-10 days

0

81

Poulan 532165592

SHAFT ASM CROSS TAPERED PMST/2

$40.99

$

Usually ships in 3-10 days

0

82

Poulan 532165711

SHIFT SPRING

$7.49

$

In Stock, only 1 left!

0

83

Poulan 819171216

WASHER
(Superseded to 19171216)

$2.99

$

Usually ships in 3-10 days

0

84

Poulan 532166231

LINK.TRANSAXLE.PMST/DANA.20"
(Superseded to 597068804)

$

$

Not available

85

Poulan 532150360

NUT LOCK CENTER 1/4 -28 FNTHD
(Superseded to 873610400)

$

$

Not available

89

Poulan 532194971

CONSOLE SHIFT STLT

$

$

Not available

96

Poulan 532124788

(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

112

Poulan 819091210

WASHER LT
(Superseded to 734115441)

$4.99

$

Usually ships in 3-10 days

0

113

Poulan 532127285

STRAP TORQUE LH LT

$

$

Not available

116

Poulan 872140608

(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

120

Poulan 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

145

Poulan 874490540

BOLT

$4.99

$

Usually ships in 3-10 days

0

150

Poulan 532175456

SPACER, RETAINER

$

$

Not available

151

Poulan 819133210

WASHER 12/32X2X10GA
(Superseded to 596135501)

$5.99

$

In Stock, Qty 12

0

156

Poulan 532166002

WASHER.SRRTD.5/16

$6.49

$

Usually ships in 3-10 days

0

158

Poulan 532437458

BRACKET.SHIFT.MOUNT

$7.49

$

Usually ships in 3-10 days

0

159

Poulan 532183900

HUB.SHIFT
(Superseded to 532444304)

$8.99

$

Usually ships in 3-10 days

0

161

Poulan 872140406

BOLT
(Superseded to 872110407)

$4.99

$

Usually ships in 3-10 days

0

162

Poulan 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

163

Poulan 874780416

BOLT

$6.49

$

Usually ships in 3-10 days

0

165

Poulan 532438250

BRACKET.PIVOT.LEVER

$7.49

$

Usually ships in 3-10 days

0

166

Poulan 817490510

SCREW

$4.99

$

Usually ships in 3-10 days

0

168

Poulan 532165492

BOLT.SHOULDER.5/16-18X

$10.99

$

In Stock, only 3 left!

0

169

Poulan 532165580

PLATE.FASTENING.CROSS.SHAFT

$6.99

$

Usually ships in 3-10 days

0

170

Poulan 532187414

KEEPER BELT T/A

$14.99

$

Usually ships in 3-10 days

0

197

Poulan 532169613

NYLINER SNAP 5/8" ID

$7.49

$

In Stock, Qty 6

0

198

Poulan 532169593

WASHER.NYL.7/8IDX.105"HYD CR

$11.99

$

Usually ships in 3-10 days

0

202

Poulan 872110614

BOLT
(Superseded to 596136201)

$4.99

$

In Stock, only 1 left!

0
