PXT 175G42 (960160024-01) - Poulan XT Lawn Tractor (2011-03) CHASSIS ENCLOSURES Parts Diagram

XT Lawn Tractor

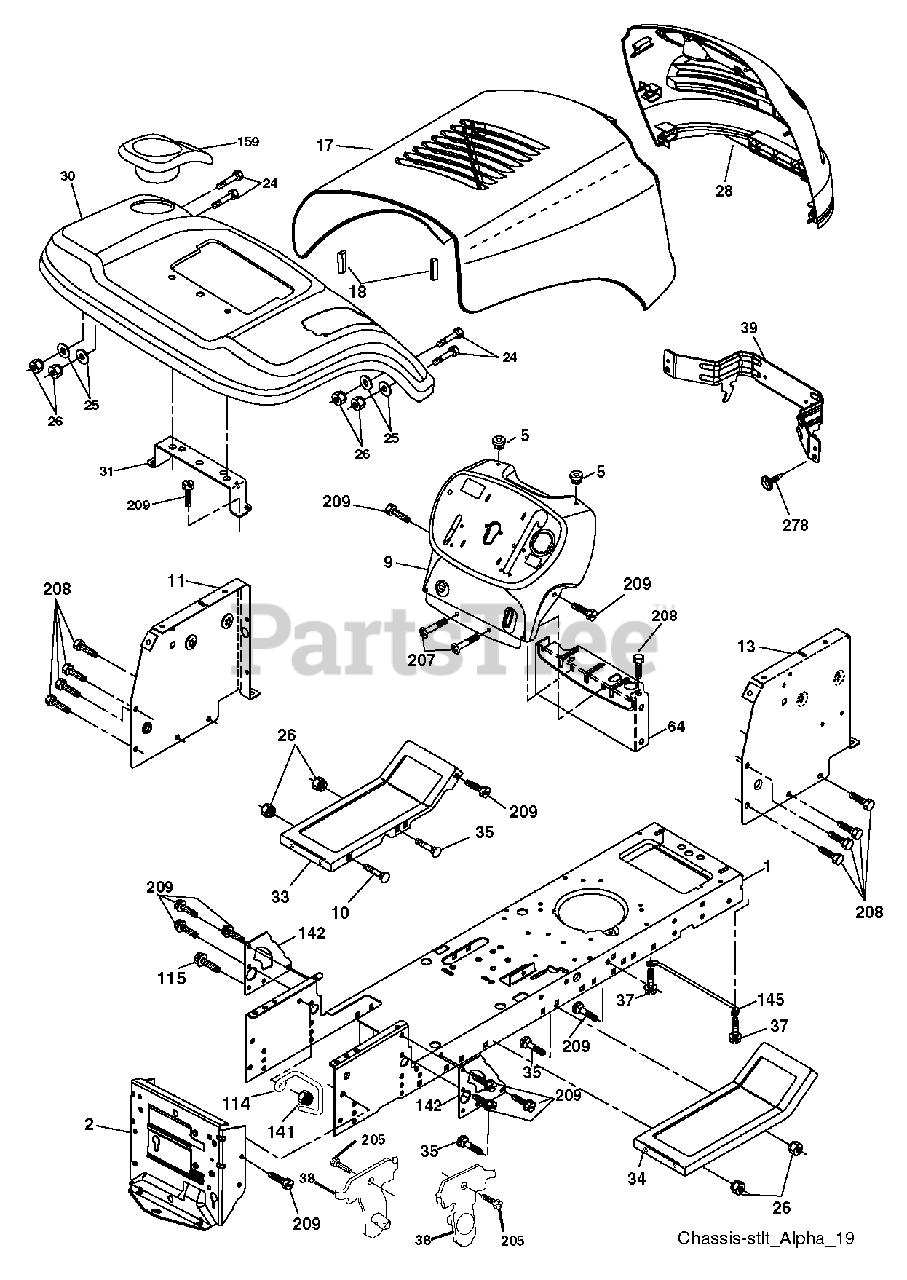

CHASSIS ENCLOSURES Parts Diagram

  • Title

1

Poulan 532174619

CHASSIS STAMPING
(Superseded to 579841401)

$433.99

$

Usually ships in 3-10 days

0

2

Poulan 532176554

DRAWBAR, 12GA

$43.99

$

Usually ships in 3-10 days

0

5

Poulan 532155272

BUMPER.RUBBER.HOOD

$7.49

$

In Stock, only 3 left!

0

9

Poulan 532433353

DASH

$42.99

$

In Stock, only 1 left!

0

10

Poulan 872140608

(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

11

Poulan 532174996

PANEL.DASH.LH.LTX
(Superseded to 174996)

Note: LH

$

$

Not available

13

Poulan 532181719

(Superseded to 532172105)

Note: RH

$21.99

$

In Stock, only 1 left!

0

17

Poulan 532441509

HOOD.PNT.STEEL.ALPHA.LT.667
(Superseded to 587484201)

$

$

Not available

18

Poulan 532184921

BUMPER.HOOD.LARGE.1.75"

$7.49

$

In Stock, Qty 9

0

24

Poulan 874780616

BOLT

$6.49

$

Usually ships in 3-10 days

0

25

Poulan 819131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

26

Poulan 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Poulan 532443247

GRILL.ALPH.N/LTS.W/POUL.DEC667

$51.99

$

Usually ships in 3-10 days

0

30

Poulan 532442213

FENDER.PNT.LIST.W/SFT.W/CUP.HD

$145.99

$

Usually ships in 3-10 days

0

31

Poulan 532136619

BRACKET FENDER
(Superseded to 136619)

$3.49

$

Usually ships in 3-10 days

0

33

Poulan 532441519

FOOTREST.PNT.LH.MS667

Note: LH

$18.99

$

Usually ships in 3-10 days

0

34

Poulan 532441518

FOOTREST.PNT.RH.MS667

Note: RH

$18.99

$

Usually ships in 3-10 days

0

35

Poulan 872110606

BOLT

$4.99

$

Usually ships in 3-10 days

0

37

Poulan 817490508

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

38

Poulan 532175710

BRACKET.ASM.PIVOT.MOWER.REAR

$11.99

$

Usually ships in 3-10 days

0

39

Poulan 532187568

BRACKET.PIVOT.ALPHA.LT

$28.99

$

Usually ships in 3-10 days

0

64

Poulan 532154798

DASH LOWER
(Superseded to 154798)

$15.99

$

Usually ships in 3-10 days

0

114

Poulan 532158112

(Superseded to 584448901)

$8.99

$

Usually ships in 3-10 days

0

115

Poulan 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 11

0

141

Poulan 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

142

Poulan 532175702

PLATE REINFORCEMENT

$9.49

$

Usually ships in 3-10 days

0

145

Poulan 532409167

ROD.PIVOT.HOOD

$13.99

$

In Stock, only 2 left!

0

159

Poulan 532185635

CUPHOLDER.BLACK
(Superseded to 532169473)

$

$

Not available

205

Poulan 817490608

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

207

Poulan 817670508

SCREW, 5/16-18 X 1/2

$9.49

$

In Stock, only 2 left!

0

208

Poulan 817670608

SCREW 3/8-16X1/2

$6.49

$

Usually ships in 3-10 days

0

209

Poulan 817000612

SCREW, 3/8-16X3/4

$4.99

$

Usually ships in 3-10 days

0

278

Poulan 532416358

SCREW.#10 X 0.750.BOS (2 2)
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

--

Poulan 532005479

PLUG BUTTON T

$5.99

$

Usually ships in 3-10 days

0

--

Poulan 532187801

PLUG

Note: CHOKE HOLE

$4.99

$

Usually ships in 3-10 days

0

--

Poulan 532193935

PLUG.SWITCH.LIGHT.428
(Superseded to 532193934)

$6.99

$

Usually ships in 3-10 days

0
