PXT 12538 (960160022-00) - Poulan XT Lawn Tractor (2010-10) MOWER LIFT / DECK LIFT Parts Diagram

XT Lawn Tractor

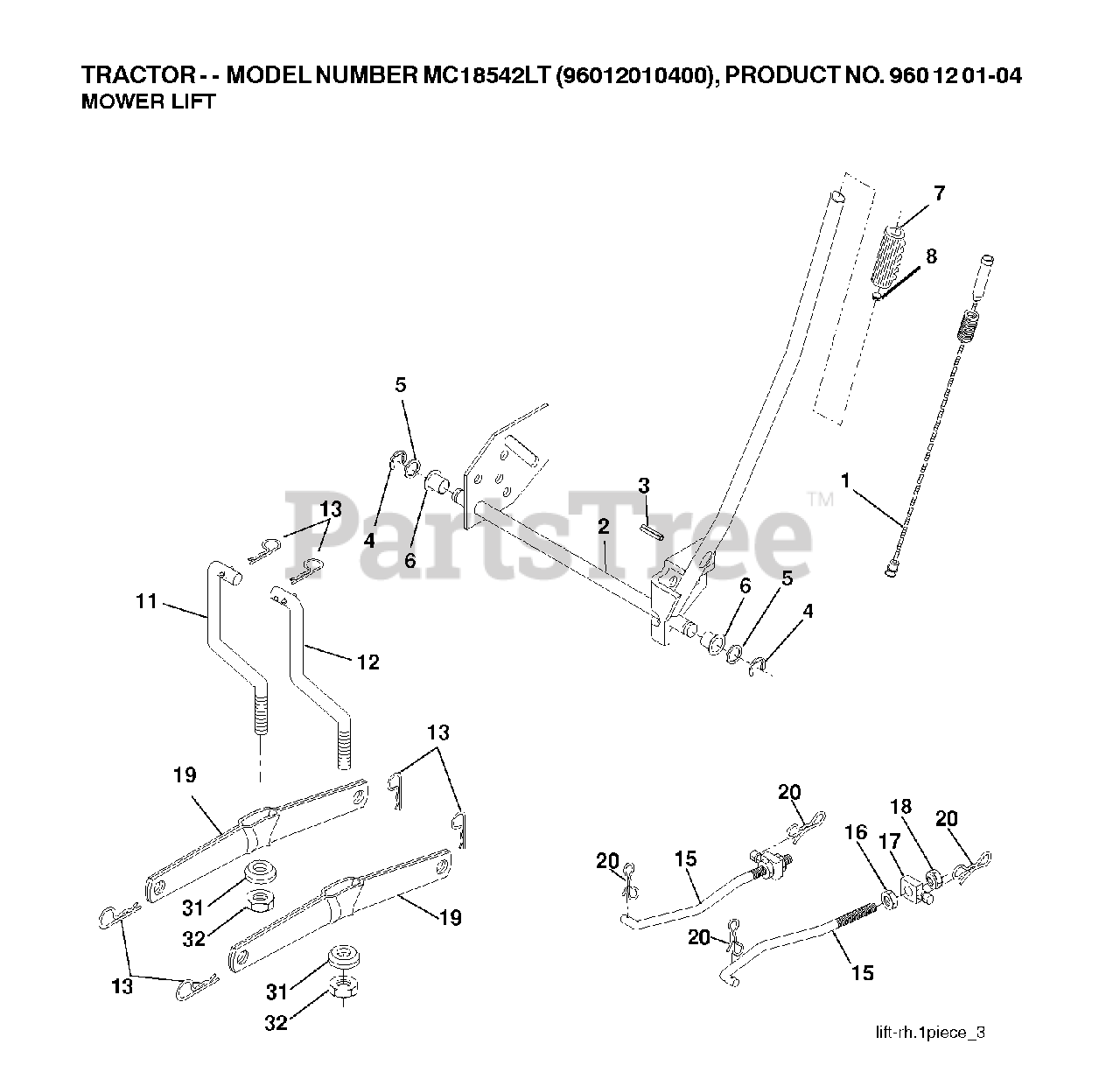

MOWER LIFT / DECK LIFT Parts Diagram

  • Title
1

Poulan 532404981

PLUNGER.ASM.LIFT.LVR.BLK.17.32

$

$

Not available

2

Poulan 532159471

SHAFT ASM R HANDLE

Note: RH

$54.99

$

Usually ships in 3-10 days

0

3

Poulan 532105767

PIN GROOVE.

$6.49

$

In Stock, only 3 left!

0

4

Poulan 812000002

RETAINING RING LT

$7.49

$

In Stock, only 1 left!

0

5

$6.49

$

In Stock, only 2 left!

0

6

Poulan 532120183

BEARING.NYLON

$6.99

$

In Stock, only 4 left!

0

7

Poulan 532109413

GRIP
(Superseded to 532125631)

$7.99

$

In Stock, only 1 left!

0

8

Poulan 532124526

PLUNGER BUT KIT
(Superseded to 532125925)

$

$

Not available

11

Poulan 532139865

LINK LIFT LH
(Superseded to 532145537)

$26.99

$

In Stock, only 1 left!

0

12

Poulan 532139866

Lift Link Assembly, RH
(Superseded to 532145536)

$26.99

$

In Stock, only 3 left!

0

13

Poulan 532124670

RETAINER-SPRNG RB
(Superseded to 532085902)

$

$

Not available

15

Poulan 532173288

LINK.SUSPENSION.FRONT

$13.99

$

In Stock, only 2 left!

0

16

Poulan 873350800

NUT.HEX.JAM.1/2-13
(Superseded to 596433401)

$3.99

$

In Stock, Qty 18

0

17

Poulan 532175689

TRUNNION

$

$

Not available

18

Poulan 873800800

NUT.LK.W/WSH.1/2.
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

19

Poulan 532139868

ARM.REAR.SUSPENSION

$15.99

$

Usually ships in 3-10 days

0

20

Poulan 532194209

PIN.COTTER.7/16.BOW TI.

$3.99

$

In Stock, Qty 14

0

31

Poulan 532169865

BEARING.PIVOT.LIFT

$

$

Not available

32

Poulan 873540600

NUT CROWNLOCK 3/8-24

$4.99

$

In Stock, only 3 left!

0
