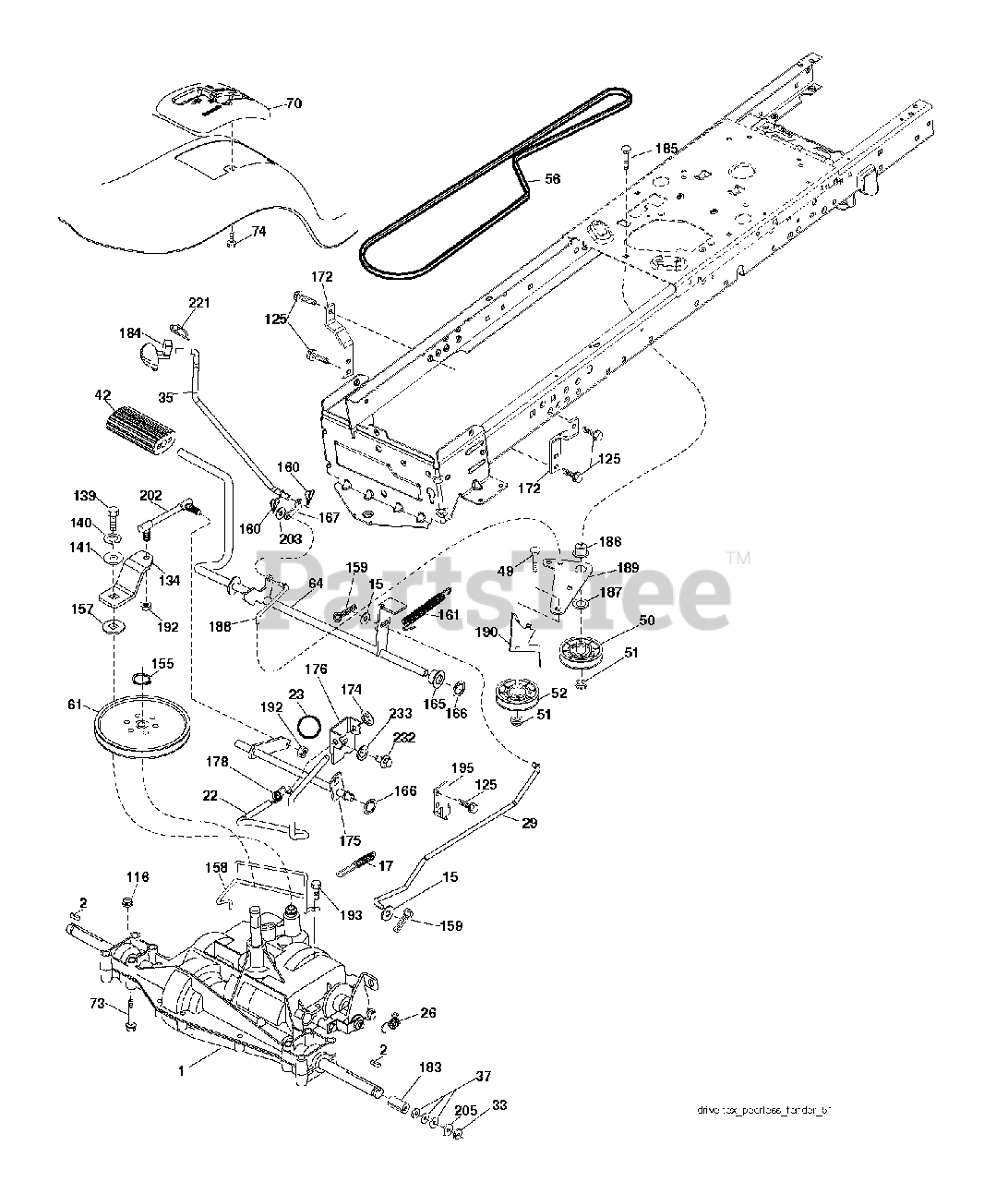

PXT 12530 (960460030-00) - Poulan XT Lawn Tractor (2010-01) DRIVE Parts Diagram

XT Lawn Tractor

DRIVE Parts Diagram

  • Title

1

Poulan 000000000

Note: TRANSAXLE PEERLESS 203-569 (430731)

$

$

Not available

2

Poulan 532123583

SQUARE KEY

$4.99

$

In Stock, only 4 left!

0

15

Poulan 819131316

WASHER

$4.99

$

In Stock, Qty 5

0

17

Poulan 532197297

SPRING.BRAKE.PEERLESS.TEX

$9.49

$

Usually ships in 3-10 days

0

22

Poulan 532197660

ROD.SHIFT.FENDER.TLT.2006

$182.99

$

Usually ships in 3-10 days

0

23

Poulan 532106933

KNOB T (1/2-HOLE)

$7.99

$

In Stock, only 1 left!

0

26

Poulan 532197455

SPRING.BRAKE.RTN.GR.DR

$4.99

$

Usually ships in 3-10 days

0

29

Poulan 532197267

ROD.BRAKE.PEERLESS

$30.99

$

Usually ships in 3-10 days

0

33

Poulan 812000001

E-RING LT

$4.99

$

Usually ships in 3-10 days

0

35

Poulan 532197722

ROD.BRAKE.PARKING.LT.T

$39.99

$

Usually ships in 3-10 days

0

37

Poulan 532121749

WASHER

$3.49

$

Usually ships in 3-10 days

0

42

Poulan 532124872

(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

49

Poulan 872110614

BOLT
(Superseded to 596136201)

$4.99

$

In Stock, only 1 left!

0

50

Poulan 532194327

IDLER.FLAT.910.OFFSET

$20.99

$

In Stock, Qty 16

0

51

Poulan 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

52

Poulan 532194326

IDLER.V-GROOVE.910.OFFSET

$22.99

$

Usually ships in 3-10 days

0

56

Poulan 532138255

BELT, V GROUND DRIVE 95 25

$39.99

$

In Stock, Qty 5

0

61

Poulan 532165999

(Superseded to 584450701)

$60.99

$

Usually ships in 3-10 days

0

64

Poulan 532196200

SHAFT.ASM.PEDAL.BRAKE.

$56.99

$

Usually ships in 3-10 days

0

70

Poulan 532438543

CONSOLE.3-SPEED.TEX.BLACK

$36.99

$

Usually ships in 3-10 days

0

73

Poulan 874490540

BOLT

$4.99

$

Usually ships in 3-10 days

0

74

Poulan 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

116

Poulan 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

125

Poulan 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 6

0

134

Poulan 532197857

ARM SHIFT

$7.99

$

Usually ships in 3-10 days

0

139

Poulan 874550412

Bolt, 1/4-20 unf Grade 8 w/Patch
(Superseded to 871040412)

$6.49

$

Usually ships in 3-10 days

0

140

Poulan 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

141

Poulan 819091210

WASHER LT
(Superseded to 734115441)

$4.99

$

In Stock, only 1 left!

0

155

Poulan 812000028

RETAINING RING LT
(Superseded to 532002267)

$7.49

$

In Stock, Qty 7

0

157

Poulan 532105701

WASH-SHFT PLT LT

$6.49

$

Usually ships in 3-10 days

0

158

Poulan 532194352

KEEPER.PMS.18/20.D4365
(Superseded to 593853501)

$10.99

$

Usually ships in 3-10 days

0

159

Poulan 876020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

160

Poulan 532169484

RETAINER CLIP
(Superseded to 596029401)

$4.99

$

In Stock, only 1 left!

0

161

Poulan 532105709

SPRING, RETURN LT

$11.99

$

Usually ships in 3-10 days

0

165

Poulan 532196212

BUSHING.SHAFT.BRAKE.HAND

$6.99

$

Usually ships in 3-10 days

0

166

Poulan 532429164

NUT.PUSH.625

$6.49

$

In Stock, only 2 left!

0

167

Poulan 532405257

LATCH.BRAKE.SPRING

$4.99

$

Usually ships in 3-10 days

0

172

Poulan 532197657

STRAP.TRQ.LH.GEAR.DRIV

$6.49

$

Usually ships in 3-10 days

0

174

Poulan 532197289

NUT.PUSH.500.2006

$6.49

$

In Stock, only 2 left!

0

175

Poulan 532197858

SHAFT ASM SHIFT

$39.99

$

Usually ships in 3-10 days

0

176

Poulan 532196214

ARM.CLEVIS.ROD.SHIFT

$7.99

$

Usually ships in 3-10 days

0

178

Poulan 532197456

SPRING.SHIFT.GT2006

$6.49

$

Usually ships in 3-10 days

0

183

Poulan 532154923

$

$

Not available

184

Poulan 532441504

HANDLE.PARKING.BRAKE.LTTEX.667

$

$

Not available

185

Poulan 872110622

BOLT

$4.99

$

In Stock, Qty 10

0

186

Poulan 532194321

SPACER.RETAINER

$9.49

$

In Stock, Qty 9

0

187

Poulan 819133210

WASHER 12/32X2X10GA
(Superseded to 596135501)

$5.99

$

In Stock, Qty 12

0

188

Poulan 532194323

LINK.CLUTCH.GROUND.DRIVE
(Superseded to 582217001)

$5.99

$

In Stock, Qty 10

0

189

Poulan 532194317

BELLCRANK.GROUND.DRIVE.TEX.

$

$

Not available

190

Poulan 532194318

KEEPER.BELLCRANK.DRIVE

$8.99

$

In Stock, only 2 left!

0

192

Poulan 532150360

NUT LOCK CENTER 1/4 -28 FNTHD
(Superseded to 873610400)

$

$

Not available

193

Poulan 817060512

SCREW 5/16"
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

195

Poulan 532197332

BRKT.ROD.BRAKE.PEERLES

$5.99

$

Usually ships in 3-10 days

0

202

Poulan 532197859

LINK.SHIFT.PMST.18" (SPG1286)
(Superseded to 597079401)

$9.49

$

In Stock, only 2 left!

0

203

Poulan 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 11

0

205

Poulan 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

221

Poulan 532403187

RETAINER.SPRING.CLIP.H

$6.49

$

In Stock, only 2 left!

0

232

Poulan 874780716

BOLT FIN HEX 7/16-14 X 1

$4.99

$

Usually ships in 3-10 days

0

233

Poulan 532405296

WASHER SERRATED

$6.49

$

Usually ships in 3-10 days

0
