PXT 12530 (960460008-00) - Poulan XT Lawn Tractor (2009-06) Seat Parts Diagram

XT Lawn Tractor

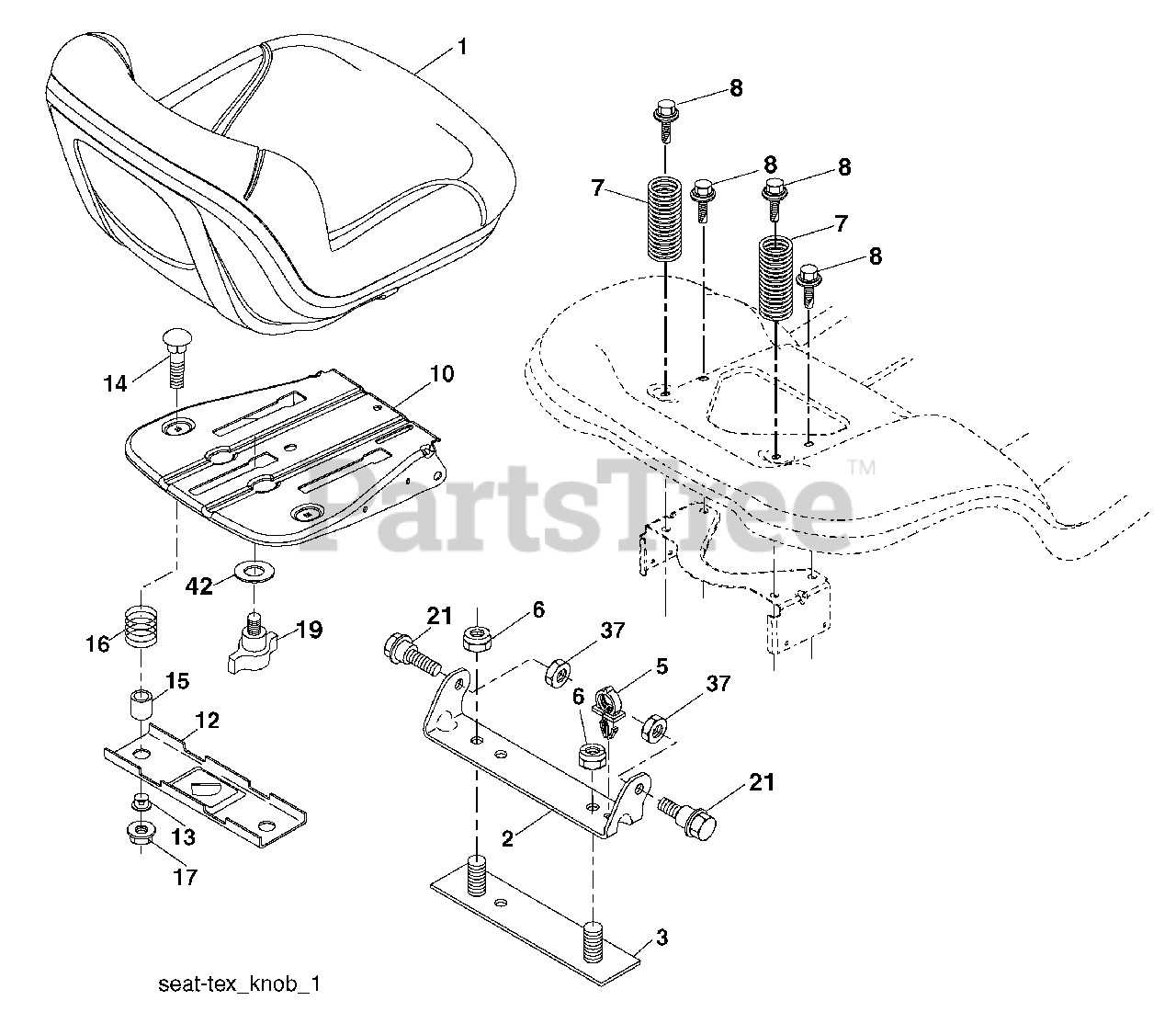

Seat Parts Diagram

  • Title
1

Electrolux/AYP 403017

Seat
(Superseded to 583280801)

$182.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 180166

Bracket Pivot Fender
(Superseded to 532180166)

$13.99

$

In Stock, only 1 left!

0

3

Electrolux/AYP 140675

Strap, Asm Fender
(Superseded to 532140675)

$6.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 145006

Clip Push-In Hinged
(Superseded to 532145006)

$6.49

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 73800600

Nut, Lock w/Ins. 3/8-16 unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 124181X

Spring, Seat Cprsn
(Superseded to 587613301)

$6.99

$

In Stock, only 3 left!

0

8

Electrolux/AYP 171877

Bolt 5/16-18 unc x 3/4 w/Sems
(Superseded to 532171877)

$7.49

$

In Stock, Qty 6

0

10

$2.49

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 199370

Bracket Seat Mounting
(Superseded to 532199370)

$11.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 121248X

Bushing Snap
(Superseded to 532121248)

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 72050412

Bolt 1/4 - 20 X 1-1/2
(Superseded to 872050412)

$6.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 134300

Spacer Split
(Superseded to 532134300)

$7.49

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 123740X

Spring CPRSN Plate SW 1.310 Ga.
(Superseded to 532123740)

$6.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 123976X

Nut Lock 1/4 Gr.5
(Superseded to 586668901)

$4.99

$

In Stock, Qty 15

0

19

Electrolux/AYP 199372

Knob Seat
(Superseded to 532199372)

$8.99

$

In Stock, only 2 left!

0

21

Electrolux/AYP 171852

Bolt, Shoulder 5/16-18
(Superseded to 532171852)

$4.99

$

In Stock, Qty 8

0

37

Electrolux/AYP 73800500

Nut, Lock 5/16-18 unc
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

42

Electrolux/AYP 199371

Washer Cup Seat
(Superseded to 532199371)

$4.99

$

Usually ships in 3-10 days

0
